MS-TS5510-GH
- High precision traffic camera 5Mpx
- 2/3" Global shutter. Motorized lenses 15~50 mm
- Dual lens (OCR + Surround image)
- Vehicle detection up to 250Km/h
- IR60m | MicroSD up to 1TB | ONVIF & RTSP
- Detection of traffic violations

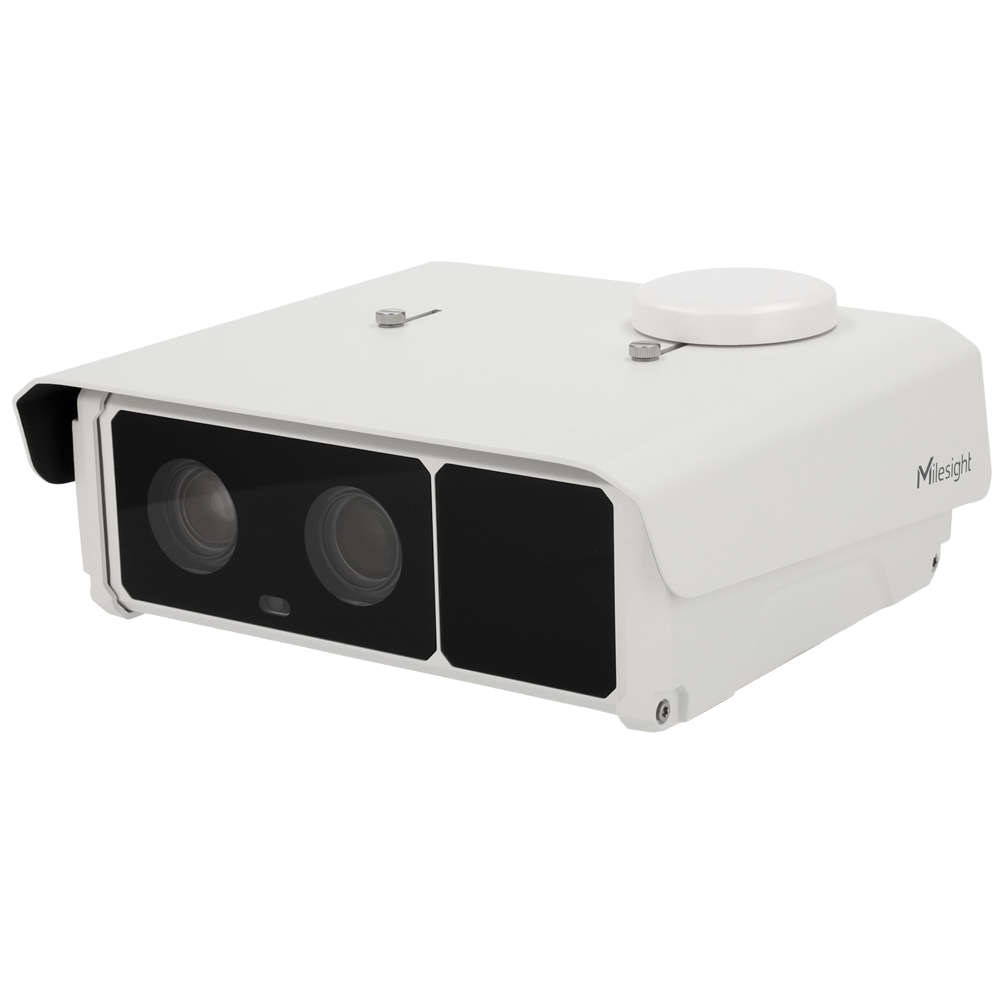

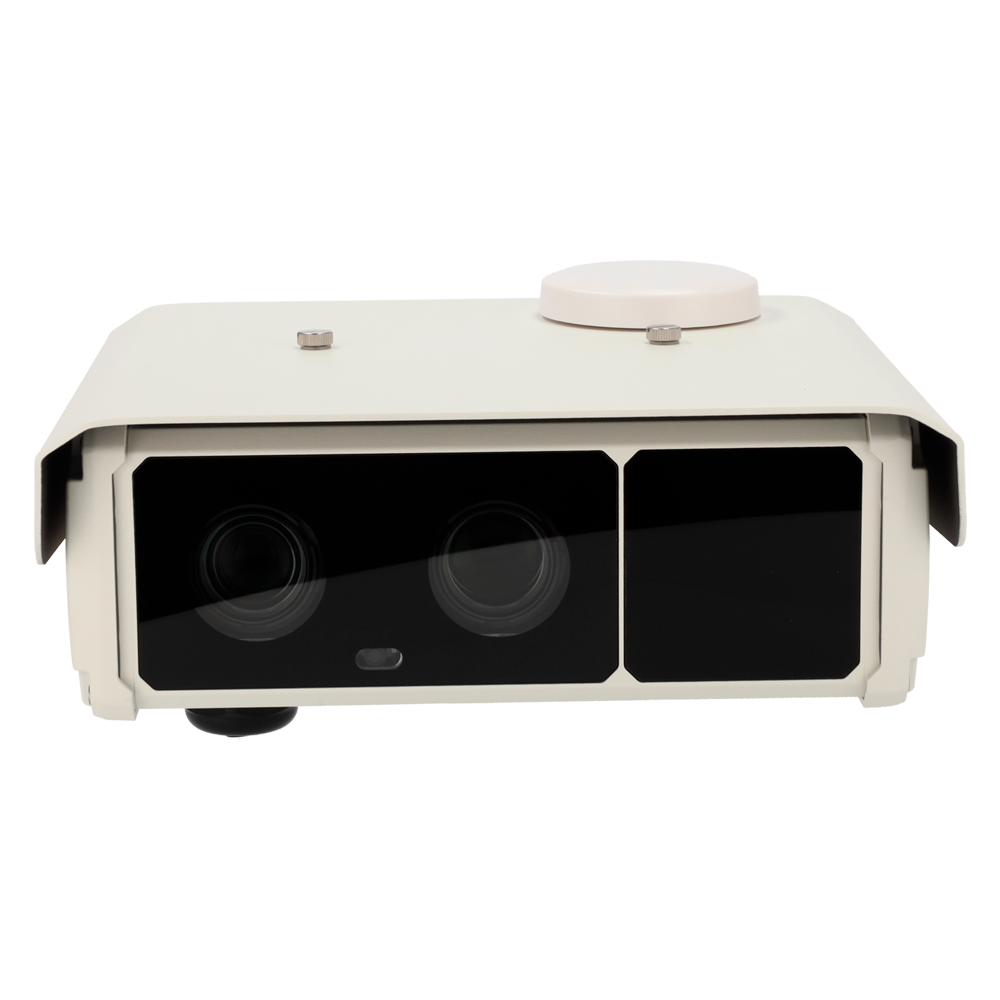

The Milesight TrafficX camera, equipped with dual lenses, captures accurate evidence, ideal for monitoring Low Emission Zones. In addition, it covers a stopping distance of up to 50 meters, simultaneously monitoring up to 4 lanes. Supports vehicle detection at speeds up to 200 km/h and can integrate with third-party systems.
- Milesight
- High-precision dual IP traffic camera
- 2/3" Global Shutter
- 2x 5 Megapixel (2592x1444) @ 30FPS- Varifocal Motorized Lens
- 0 Lux
- IR Range 60 m
- Number plate reading up to 250km/h
- Supervision of up to 4 lanes (Track-mounted installation)
- Detection of traffic violations
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100/1000 Mbps BaseT
- Audio
- Alarms
- WDR (120dB)
- MicroSD card up to 1TB
- WEB Interface & API
- ONVIF Compatible
- Weatherproof IP67
Specifications
| Brand | MILESIGHT |
| Image sensor | 2/3" Global Shutter |
| Maximum resolution (each lens) | 5 Megapixel (2464x2056) |
| Main Stream rate | 30fps@(2464x2056, 2204x2056, 1910x1592,1568x1312, 1104x928) 25fps@(2464x2056, 2204x2056, 1910x1592,1568x1312, 1104x928) |
| Extra Stream rate | 30fps@(2464x2056) 25fps@(2464x2056) |
| Compression | H265 / H264 / MJPEG |
| Bitrate | 16 Kbps ~ 16 Mbps (CBR / VBR) |
| Lenses | Motorized 15~50 mm Autofocus (3X Optical zoom) |
| FOV | H: 41.4°~10.3°; V: 26.8º~8.42º; D: 32°~13.3° |
| IRIS Control | Auto/Manual |
| Minimum illumination | Colour: 0.001Lux@F1.4 B/W: 0 Lux with IR ON |
| Infrared Light | 60 m |
| Day / Night | Day / Night / Auto / Customizable / Programmable |
| Image improvements | DIS (Digital Image Stabilization), IP address filtering, AGC, Manual shutter configuration, IP address filtering, AGC, Manual shutter configuration |
| License Plate Recognition | Up to 4 detection rails (Installation on track) / Up to 2 side installation rails Maximum speed for detection: 250 Km/h Detection up to 50m |
| Intelligent traffic detection | License Plate Recognition, License Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition, Vehicle Direction Recognition and Traffic Flow Detection |
| List of license plates | Allowed / Not Allowed / Visitors (max. 2000 license plates) to activate different actions |
| Detection of traffic violations | Detection of vehicles without license plates Detection of oncoming traffic |
| Attribute-based events | Activation of recording or relay output when the camera detects: - Specific license plate color - Specific vehicle type - Specific vehicle color - Detection in a specific lane. * Up to 4 rules can be created |
| Trigger Event | Motion Detection, License Plate List, Exceptions, Alarm Entry |
| Event Action | Upload Image to FTP, SMTP, MicroSD Card, Enable Alarm Output, SIP Phone, HTTP Notification |
| Internal memory | MicroSD card, Max 1TB (required for LPR function) |
| Alarms | 4/1 |
| Audio | 1/1 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Two-way Audio | Support |
| Audio Bit Rate | 16~256Kbps |
| SIP/VoIP | Yes. Voice and Video over IP |
| Communication Interface | Ethernet 10/100M BaseT | 1 RS485 |
| Remote access | Web Browser, Smartphone App and Milesight Central Management System Software |
| Interoperability | ONVIF (G/Q/S/T Profile) |
| Certification | NDAA |
| Power | DC 24 V / MAX 8W |
| Degree of protection | Waterproof IP67, Vandal resistant IK10, Over voltage 4000V |
| Temp. operation | -40º C ~ +60º C |
| Dimensions | 126 (W) X 134 (H) X 301 (D) mm |
| Weight | 1080 g |
In the box
- Dual IP LPR camera
- Installation material

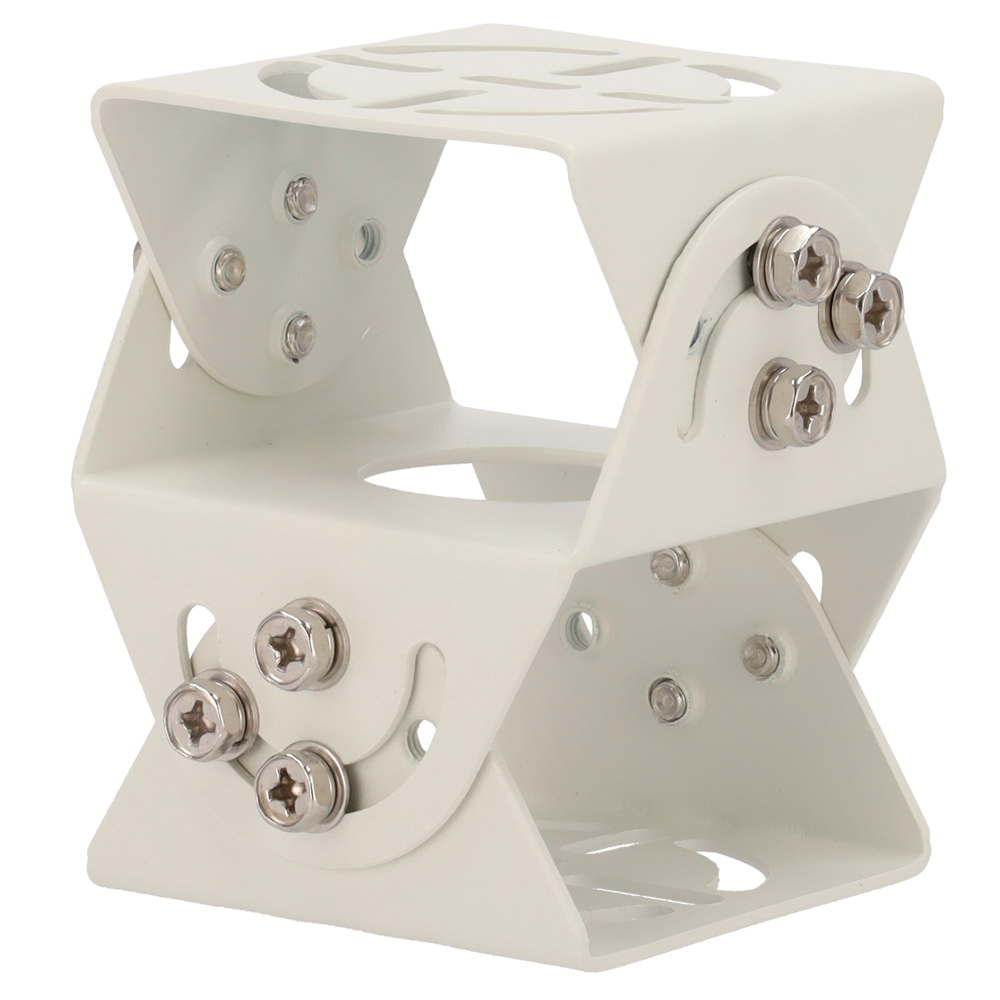

- Cardan joint support

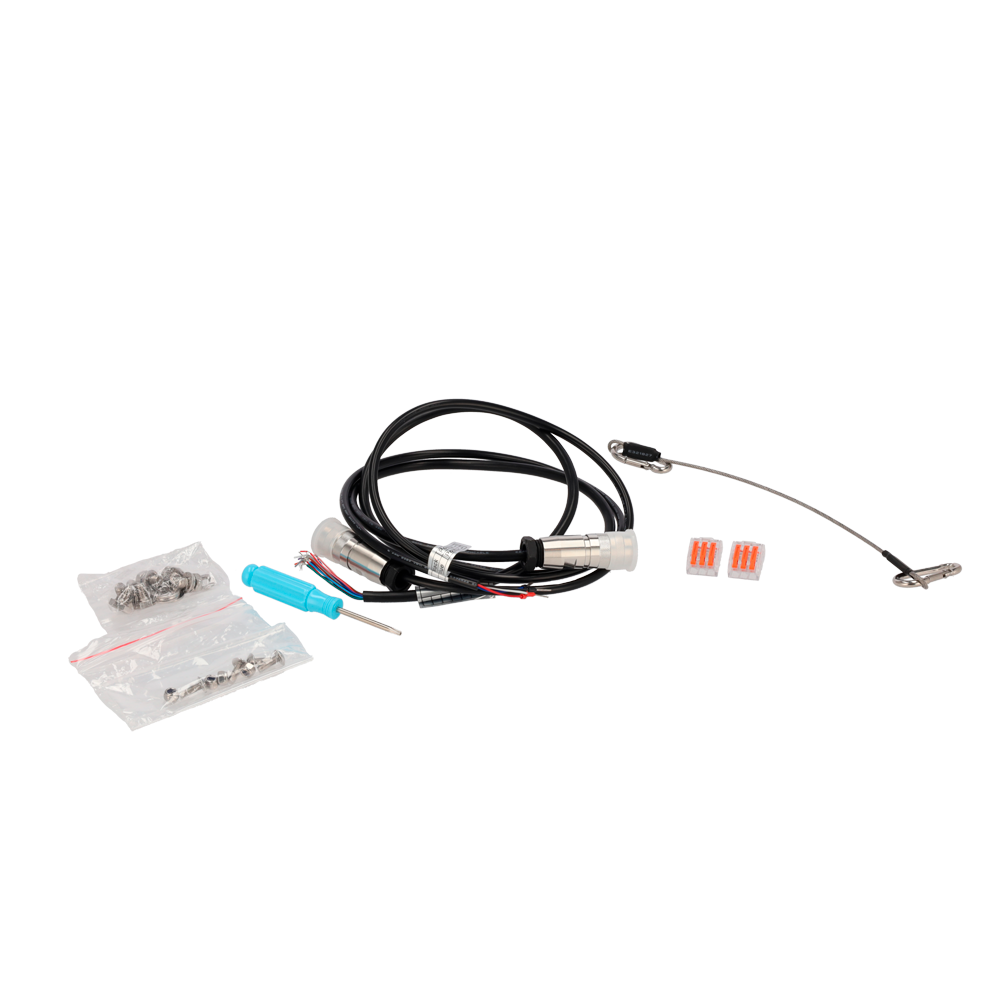

- Connection cables
