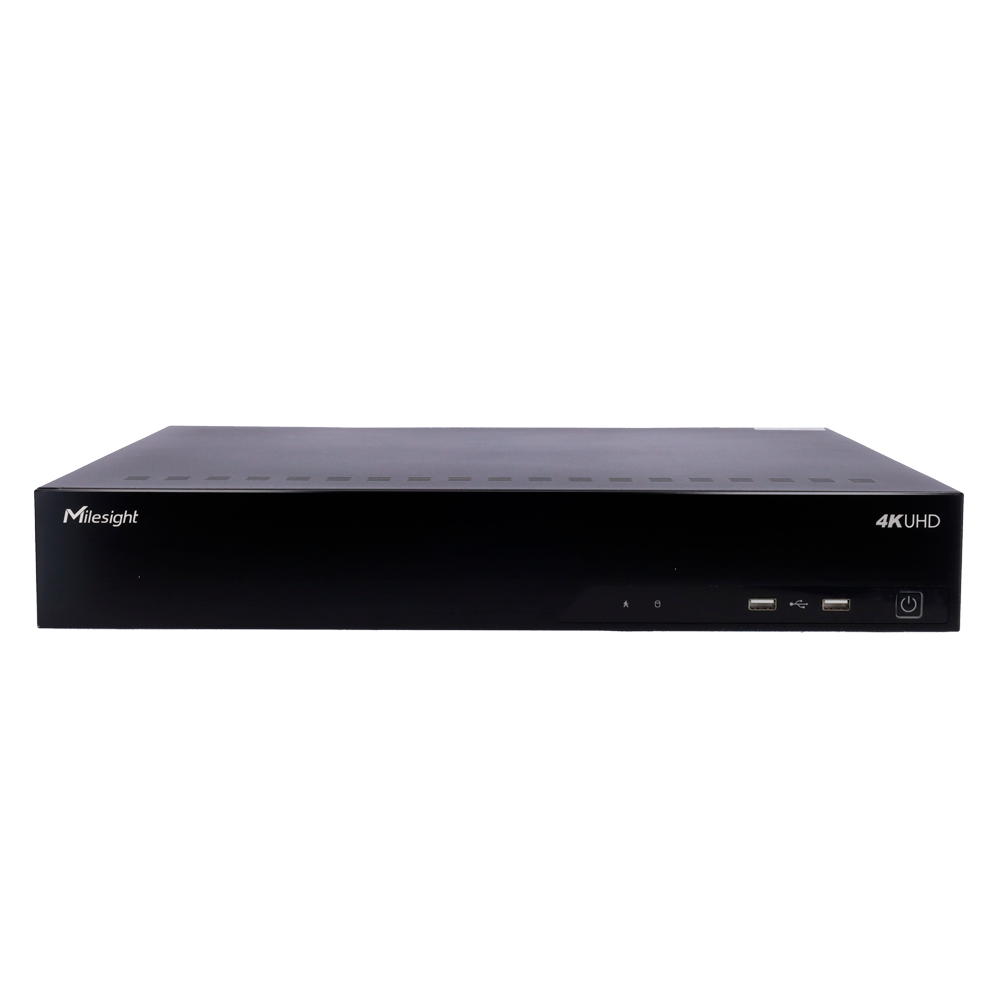

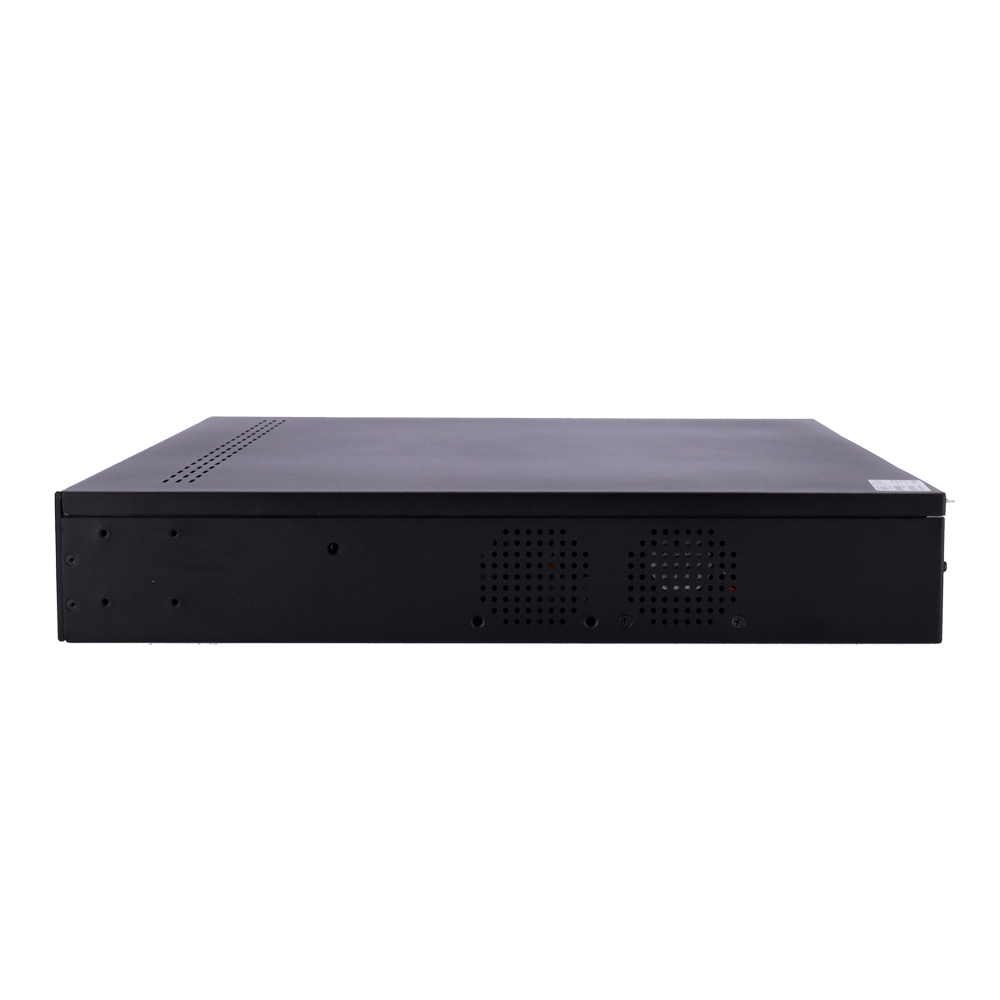

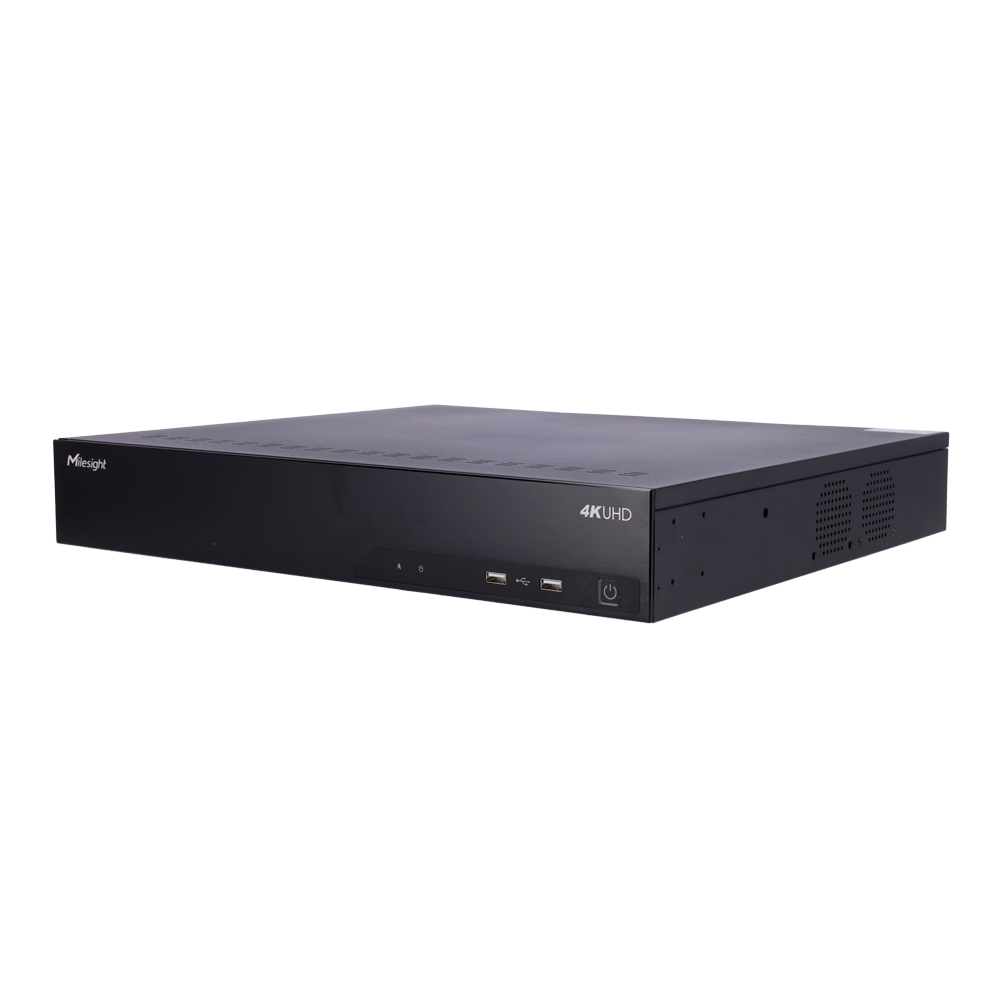

MS-N7048-UPH
Ga direct naar de productinformatie
MS-N7048-UPH
- Milesight 4K PoE NVR 7000 series
- Max resolution. 4K | 48 channels / 24 PoE ports
- Bandwidth 320/256Mbps
- Output 4K HDMI and VGA | 4 HDD
- Supports LPR Milesight | ONVIF S/T cameras
- Support RAID0 RAID1 RAID5 RAID6 RAID10
- Milesight
- NVR for IP cameras
- 48 channels
- 24 PoE ports 10/100Mbps
- Supported bandwidth 320/256Mbps
- Maximum resolution 4K
- Compression H.265+/H.265/H.264+/H.264
- Audio
- Alarms
- VGA and HDMI 4K output
- RAID support
- IP Dual Stream Access
- Compatible with LPR Milesight cameras
- Mouse
- Space for 4 HDD up to 10TB
- WEB, CMS/VMS and Smartphone interface
- ONVIF S/T compatible
Specifications
| Brand | Milesight |
| Range | 4K H.265 PoE NVR 7000 series |
| Inputs for IP cameras | LAN port up to 48 channels |
| PoE interface | Interface: 24 ports RJ45 10/100Mbps Supported standard: IEEE 802.3af/at Power output: ≤200W |
| IP compatible cameras | Milesight (native protocol), ONVIF S/T |
| Main Stream recording | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF |
| Decoding capacity | 4*(30fps@8MP), 5*(30fps@6MP), 6*(30fps@5MP), 8*(30fps@4MP), 10*(30fps@3MP), 16*(30fps@1080P), 32*(30fps@720P) |
| Bidirectional audio | 1 RCA input / 1 RCA output / 1 output via HDMI |
| Video outputs | 1 4K HDMI, 1 FullHD VGA |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Display resolution | HDMI: 3840x2160/60Hz, 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Total bandwidth | 320Mbps input / 256Mbps output (200Mbps / 200Mbps with RAID enabled) |
| Simultaneous multifunction | Pentaplex: live, recording, playback, backup and remote access |
| Alarms | 16 inputs / 4 outputs |
| Video Analysis | Region entry/exit, advanced motion detection, sabotage detection, line crossing, loitering, people counting, abandoned object, withdrawn object, etc |
| Recording mode | Continuous, event (motion detection, alarm, VCA, intelligent analysis) |
| ANPR | Supported |
| Advanced function | ANR |
| Internal memory | 4 HDD SATA 3.5" of up to 10TB (not included) |
| RAID support | RAID0 RAID1 RAID5 RAID6 RAID10 |
| External interface | 1 x USB 3.0 / 2 x USB 2.0 / 1 x RJ45 10/100/1000Mbps |
| Remote access | Web browser, smartphone App and PC software Milesight CMS/VMS |
| Operating conditions | Temperature: -10℃~55℃ Humidity: 10%~90% |
| Power | AC 100V~240V 50Hz~60Hz |
| Consumption | ≤18W (without HDD, without activating PoE) |
| Dimensions | Rack-mount chassis 19" (1.5U standard) 440mm (W) x 390mm (D) x 66.75mm (H) |
| Weight | 4.89Kg |
In the box
- Milesight NVR Recorder
- Mouse
- AC/DC Power adaptor
- CD with manual and software
