MS-N5016-NE
Ga direct naar de productinformatie
MS-N5016-NE

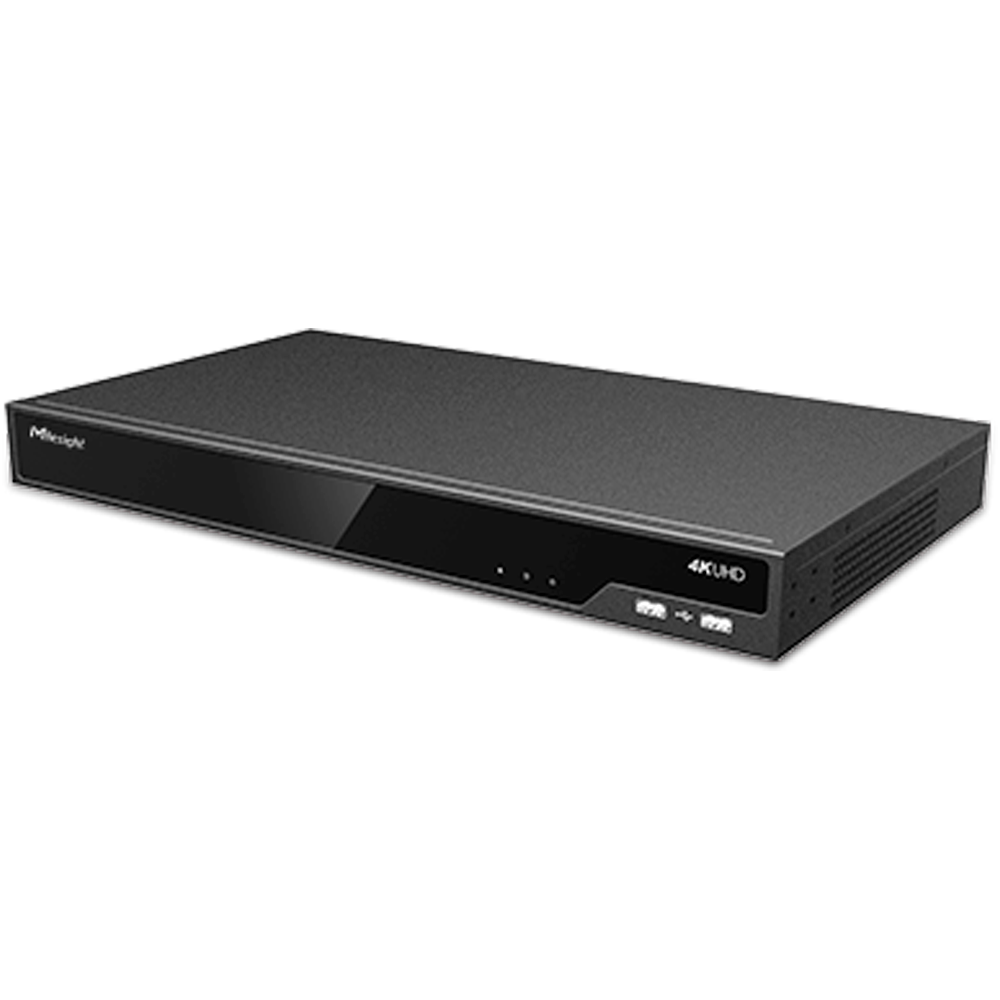

- Milesight NVR Recorder for IP cameras
- 16 CH video
- Maximum resolution 8.0 Mpx
- Bandwidth 80 Mbps
- HDMI 4K and VGA output 2HDDs
- Supports LPR Milesight Cameras
- Milesight
- NVR for IP cameras
- 16 CH
- Supported bandwidth 80Mbps
- Maximum resolution 8 Megapixel
- Compression H.265+/H.265/H.264+/H.264
- Audio
- Alarms
- VGA and HDMI 4K output
- IP Dual Stream Access
- Compatible with LPR Milesight cameras
- Mouse
- Space for 2 HDD up to 10TB
- WEB, CMS and Smartphone interface
- ONVIF Compatible
Specifications
| Brand | Milesight |
| Inputs for IP cameras | LAN port up to 16 channels |
| IP compatible cameras | Milesight (native protocol), ONVIF |
| Main Stream recording | 8MP/6MP/5MP/4MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding capacity | 1*(30fps @8MP), 2*(30fps @6MP), 2*(30fps@5MP),3*(30fps @4MP), 4*(30fps @3MP),6*(30fps @1080P), 12*(30fps@720P) |
| Bidirectional audio | 1 input / 1 RCA output / via HDMI |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Display resolution | 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Total bandwidth | 80 Mbps downstream / 50 Mbps upstream |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | 4 In / 1 Out |
| Recording method | Manual, programmed, motion detection |
| External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |
| Internal memory | 2 SATA HDD 3.5" of up to 10 TB (not included) |
| Communication | 1 x USB 3.0 / 1 x USB 2.0 / 1 x RJ45 (Ethernet) |
| Remote access | Web Browser, Smartphone App and PC Software Milesight CMS |
| Power | AC 100V-240V max. ≤10W |
| Dimensions / Weight | 380(An) x 317.6 (Fo) x 51.8 (Al) mm |
In the box
- Milesight NVR Recorder
- Mouse
- AC/DC Adapter 12 V / 10W
- CD with manual and software
