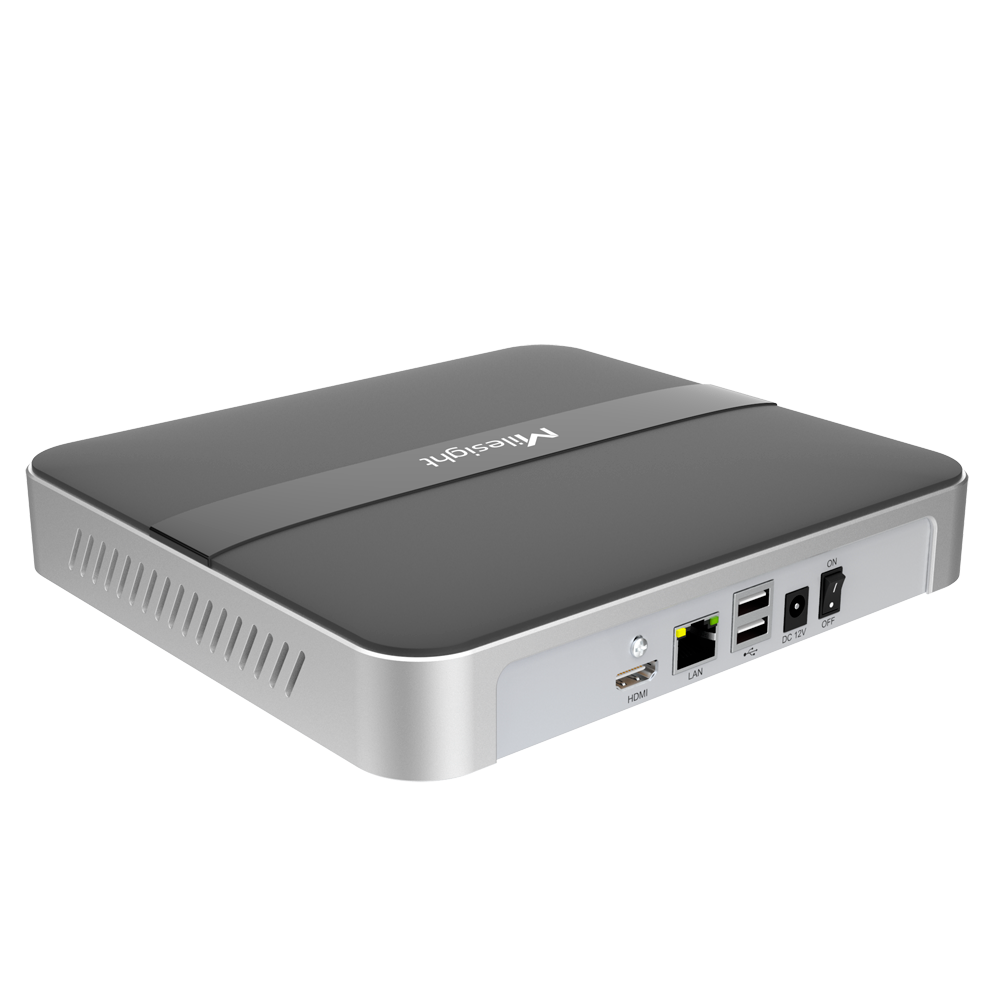

MS-N1008-UC
Ga direct naar de productinformatie
MS-N1008-UC
- Milesight 4K Mini NVR 5000 series
- Maximum resolution 4K | 8 channels
- Bandwidth 80/80Mbps
- 4K HDMI output
- ONVIF, API
- 1 HDD up to 10 TB
- Milesight
- 4K Mini NVR for IP cameras
- 8 channels
- Supported bandwidth 80/80Mbps
- Maximum resolution 4K
- Compression H.264+/H.264
- Audio
- HDMI output 4K
- IP Dual Stream Access
- Mouse
- Space for 1 HDD up to 10TB
- WEB, CMS/VMS and Smartphone interface
- ONVIF S/T compatible
- Silver Color
Specifications
| Brand | Milesight |
| Range | 4K Mini NVR 1000 series |
| Inputs for IP cameras | 8 channels |
| Total bandwidth | 80Mbps input / 80Mbps output |
| HDMI output | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI Support Audio Output |
| Dual stream | Support |
| Recording resolution | When the bitrate is ≤2048 kbps: 1*(30fps @8MP), 1*(30fps @6MP), 1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps@1080P), 8*(30fps@720P) Resolutions with width or alto>4096 are not supported for decoding |
| Video compression | H.264+ / H.264 |
| Audio compression | G.711/AAC/G.722/G.726 |
| IP compatible cameras | Milesight (native protocol), ONVIF S/T |
| Internal memory | 1 HDD SATA 3.5" of up to 10TB (not included) |
| Recording mode | Continuous, event (motion detection, alarm, VCA, intelligent analysis) |
| Playback mode | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Image and video |
| External interface | 2 x USB 2.0 / 1 x RJ45 10/100/1000Mbps |
| Compatibility | ONVIF, API |
| Advanced function | ANR |
| Video Analysis | Region input/output, advanced motion detection, tamper detection, line crossing, loitering, people counting, abandoned object, removed object, object removed |
| Power | DC 12V, 2A |
| Consumption | ≤2.3W (without HDD) |
| Operating conditions | Temperature: -10℃~55℃ Humidity: 10%~90% |
| Dimensions | 220mm (W) x 200mm (D) x 43.6mm (H) |
| Weight | 190 g |
| Remote access | Web browser, smartphone App and PC software Milesight CMS/VMS |
| Colour | Silver |
In the box
- Milesight NVR Recorder
- Mouse
- AC/DC Adapter 12 V / 10W
- CD with manual and software
