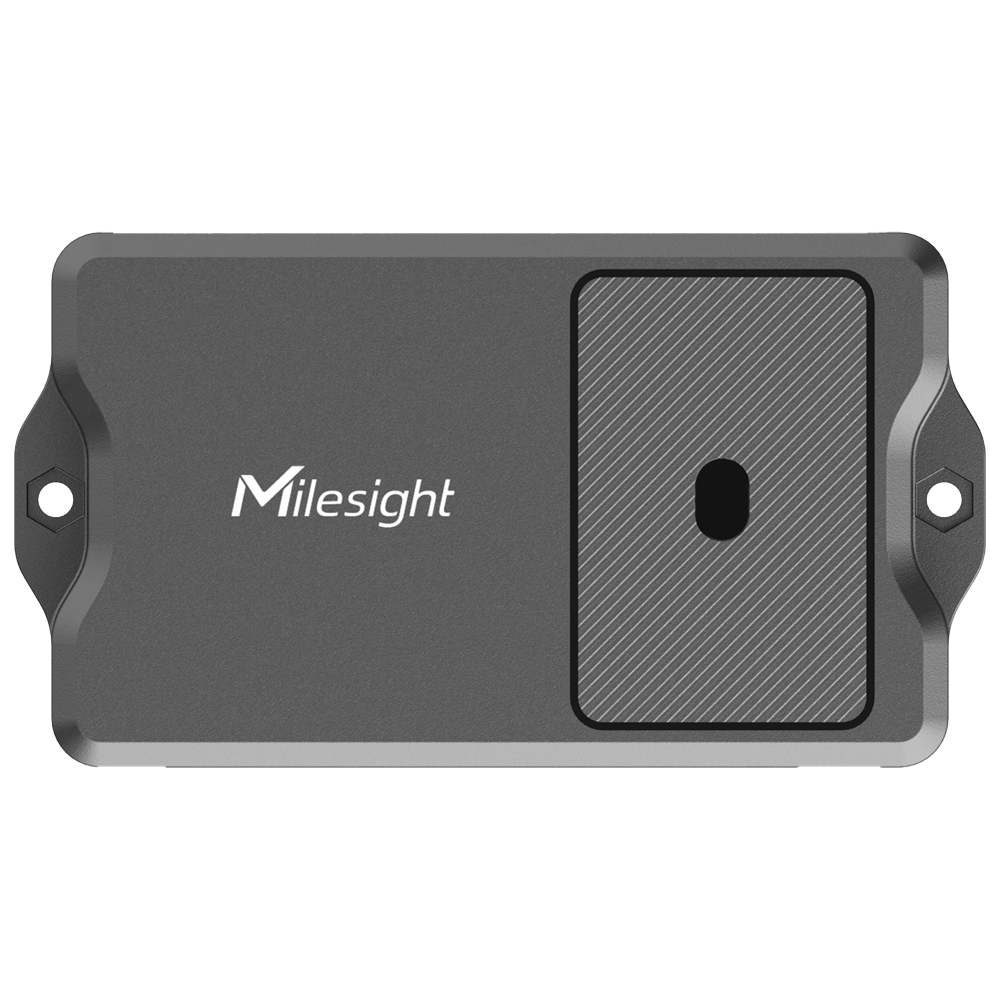

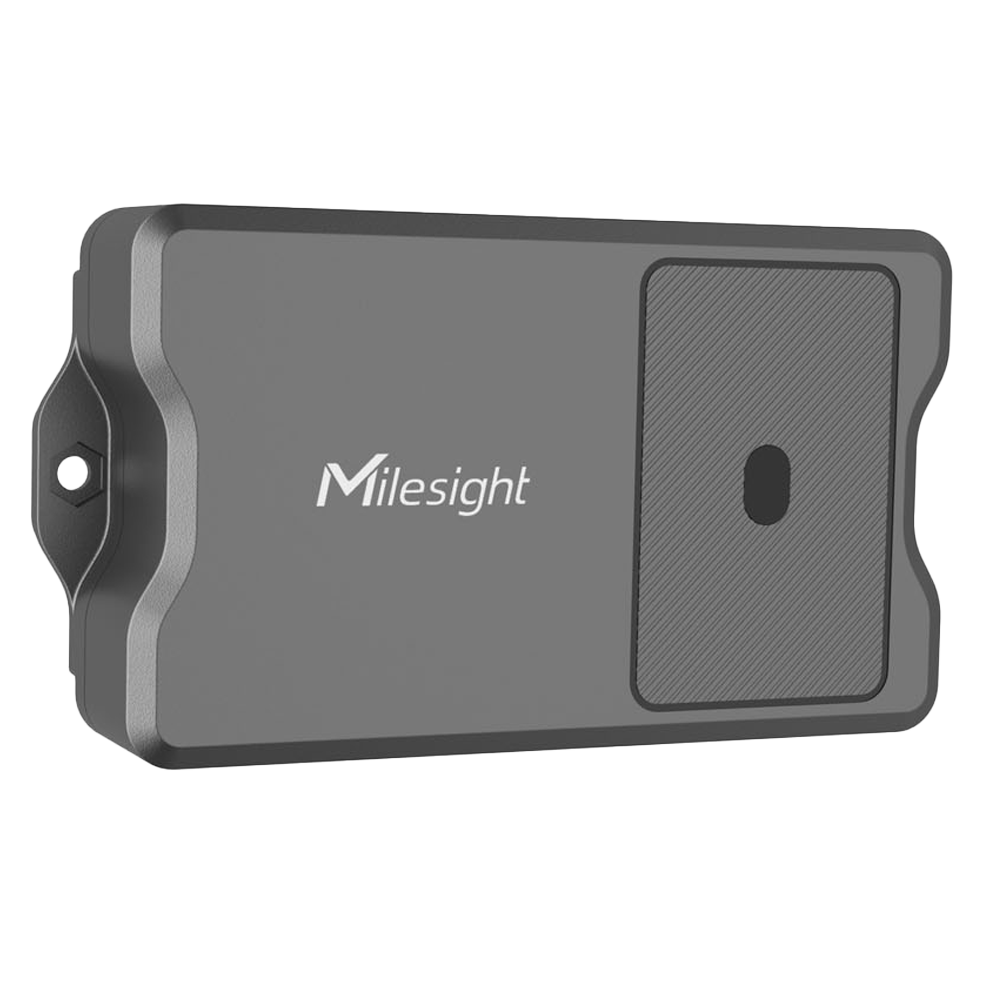

MS-EM400-TLD-868M
Ga direct naar de productinformatie
MS-EM400-TLD-868M
- LoRaWAN ToF laser sensor
- Detection up to 3.5m, acceleration and temperature
- No blind spot detection
- Up to 15Km range with direct vision
- Configuration via NFC and APP
- Degree of Protection IP67
- Milesight
- LoRaWan IoT ToF laser distance sensor
- Contactless distance detection
- No blind spaces
- Integrated 3-axis sensor for position monitoring
- NTC thermistor for temperature reading
- Suitable for use in water level monitoring, garbage collection, parking, etc.
- Detection up to 3.5 meters
- 10 years battery life
- Frequency 868MHz
- Communication range up to 15Km with direct view
- Easy configuration via NFC and smartphone APP
- Suitable for exterior IP67
Specifications
| Technology | LoRaWAN® |
| Frequency band | 868 MHz |
| Power Output | 16dBm Max. |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| ToF angle | 27º |
| Measurement range | 2 ~ 350 cm |
| Accuracy | ± 2 cm |
| Resolution | 1 mm |
| Position status | Normal / Inclined |
| Temperature sensor | Range -40 ~ 125°C Resolution 0,1°C |
| Power supply | 2 x 9000 mAh ER26500 Li-SOCL2 |
| Battery duration | 10 years (10 minutes of interval + 20 activations per day) |
| Operating temperature | -30°C to 70°C |
| Environmental protection | IP67 |
| Dimensions | 118 x 65 x 30 mm |
In the box
- Ultrasonic sensor
- Battery
- Installation accessories
- User instructions
