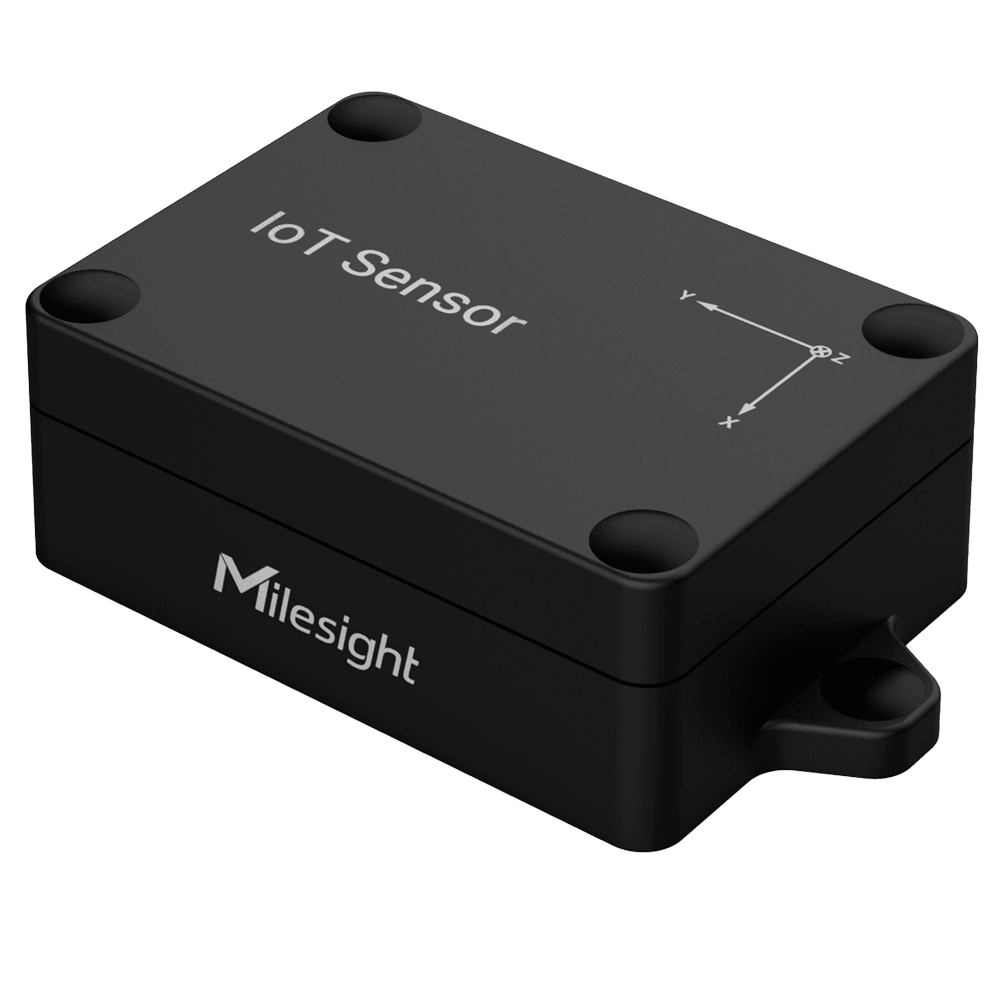

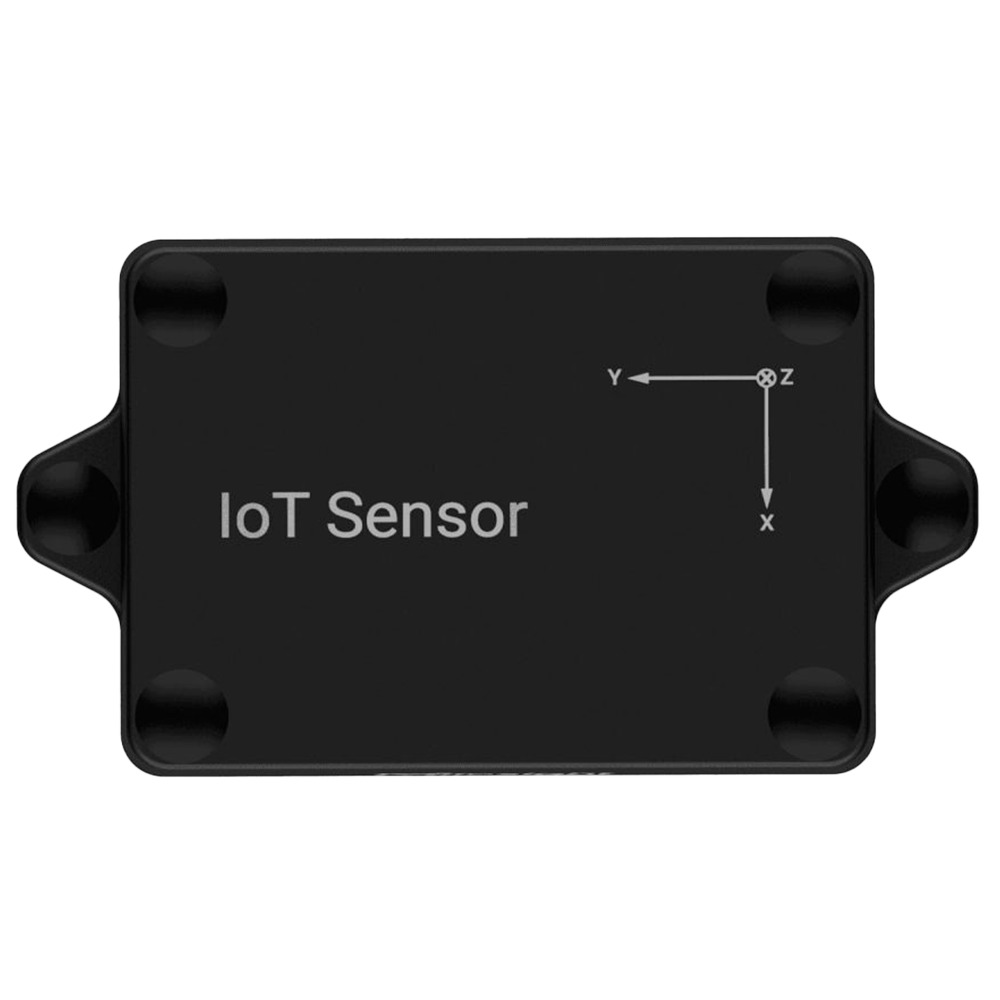

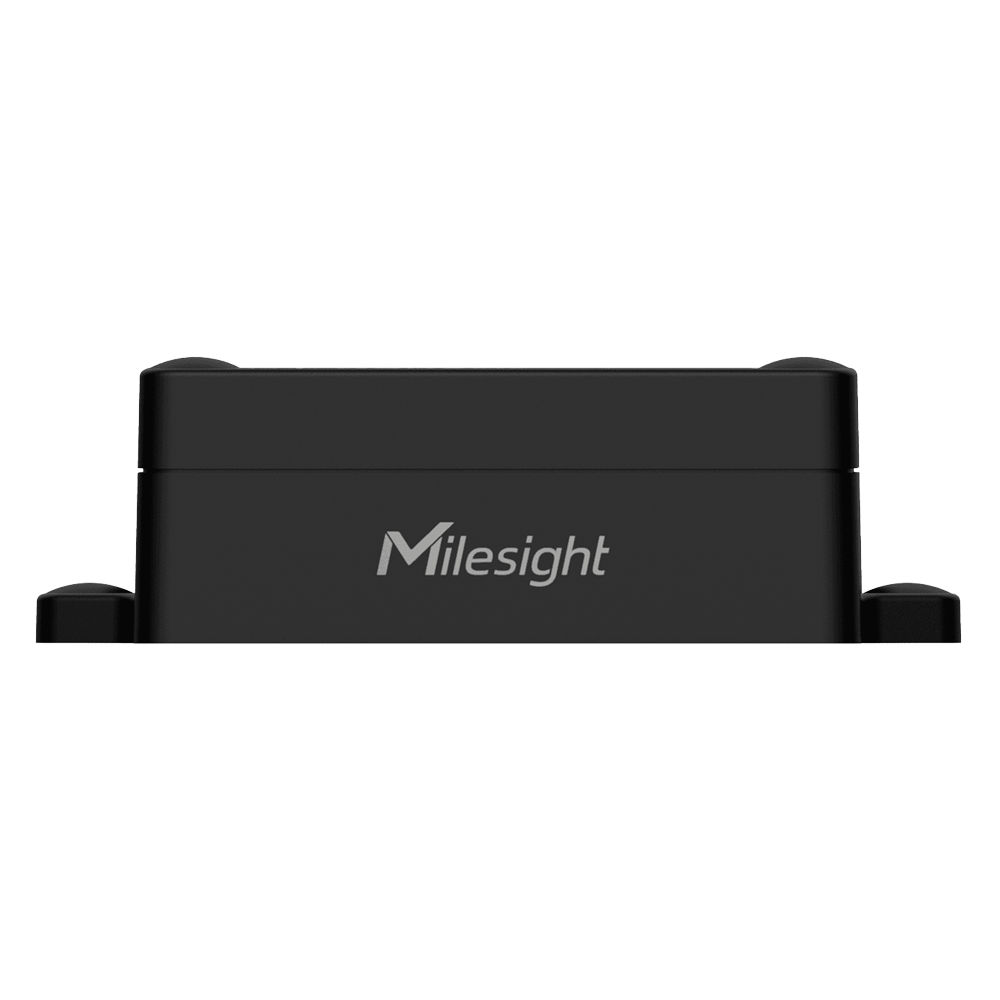

MS-EM310-TILT-868M
Ga direct naar de productinformatie
MS-EM310-TILT-868M
- LoRaWAN angle and tilt sensor
- Integrated MEMS sensor
- Up to 15Km range with direct vision
- Configuration via NFC and APP
- Degree of Protection IP67
- Long-lasting battery
- Milesight
- LoRaWan IoT angle and tilt sensor
- Integrated MEMS sensor
- Integrated 3-axis sensor for position monitoring
- High accuracy and resolution
- 5 years battery life
- Frequency 868MHz
- Communication range up to 15Km with direct view
- Easy configuration via NFC and smartphone APP
- Suitable for exterior IP67
Specifications
| Technology | LoRaWAN® |
| Frequency band | 868 MHz |
| Power Output | 16dBm Max. |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Axis | X, Y, Z |
| Measurement range | -90° ~ +90° |
| Accuracy | ± 1º |
| Resolution | 0.1ºC |
| Power supply | 2 x 3500 mAh ER17505 Li-SOCL2 |
| Battery duration | 5 years (10 minutes of interval) |
| Operating temperature | -20°C to 60°C |
| Environmental protection | IP67 |
| Dimensions | 111 x 62 x 33 mm |
In the box
- Tilt sensor
- Battery
- Installation accessories
- User instructions
