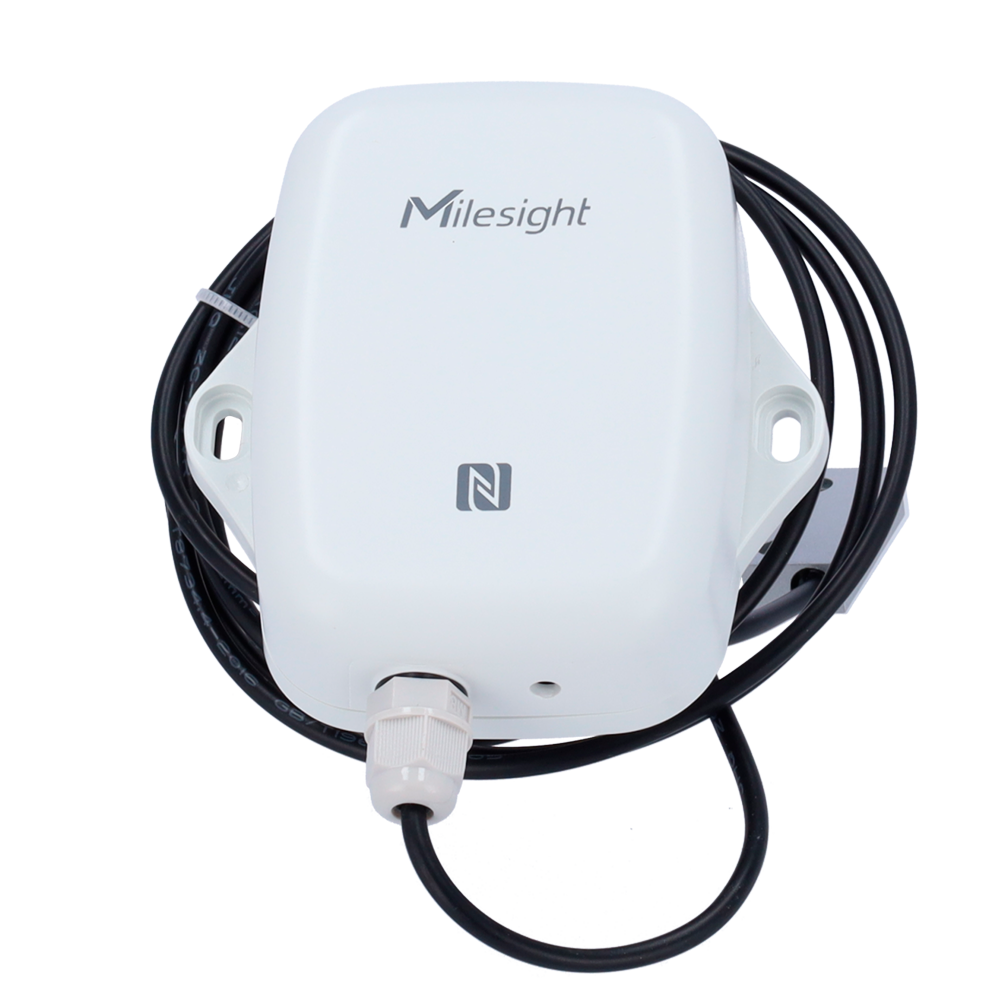

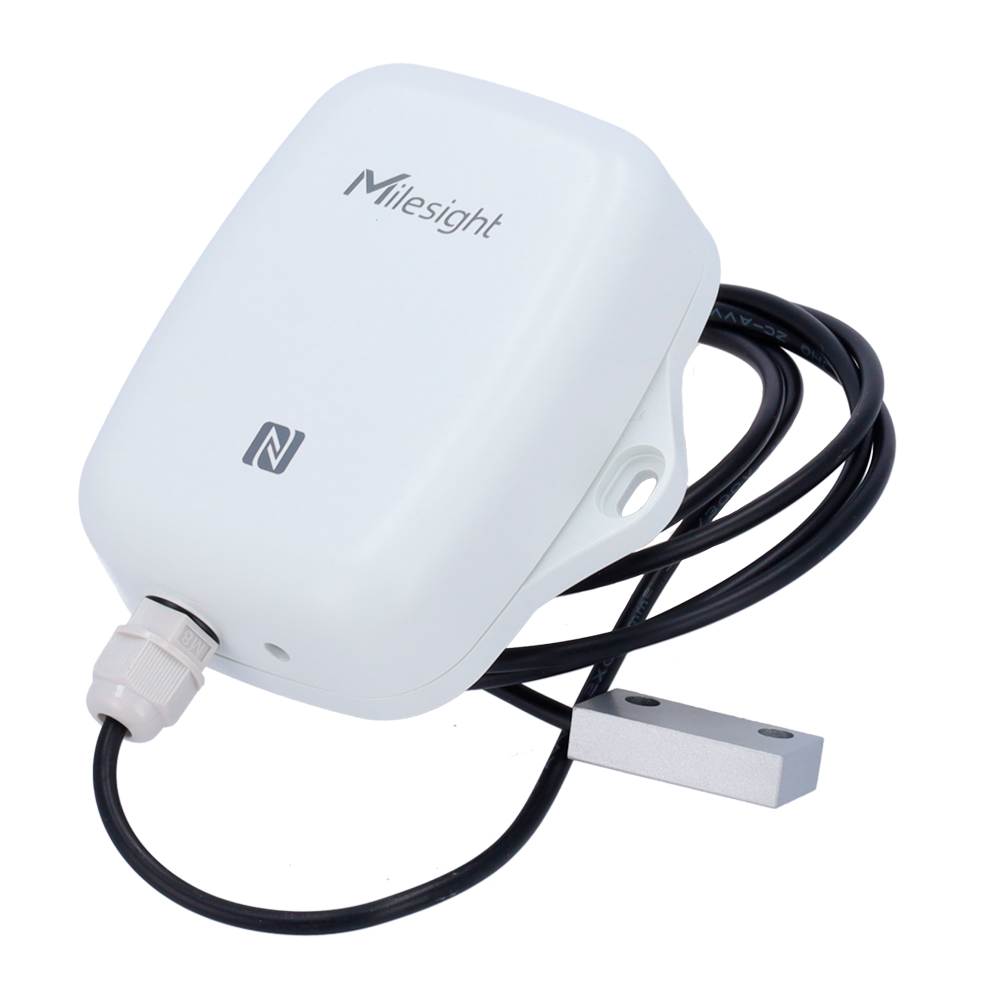

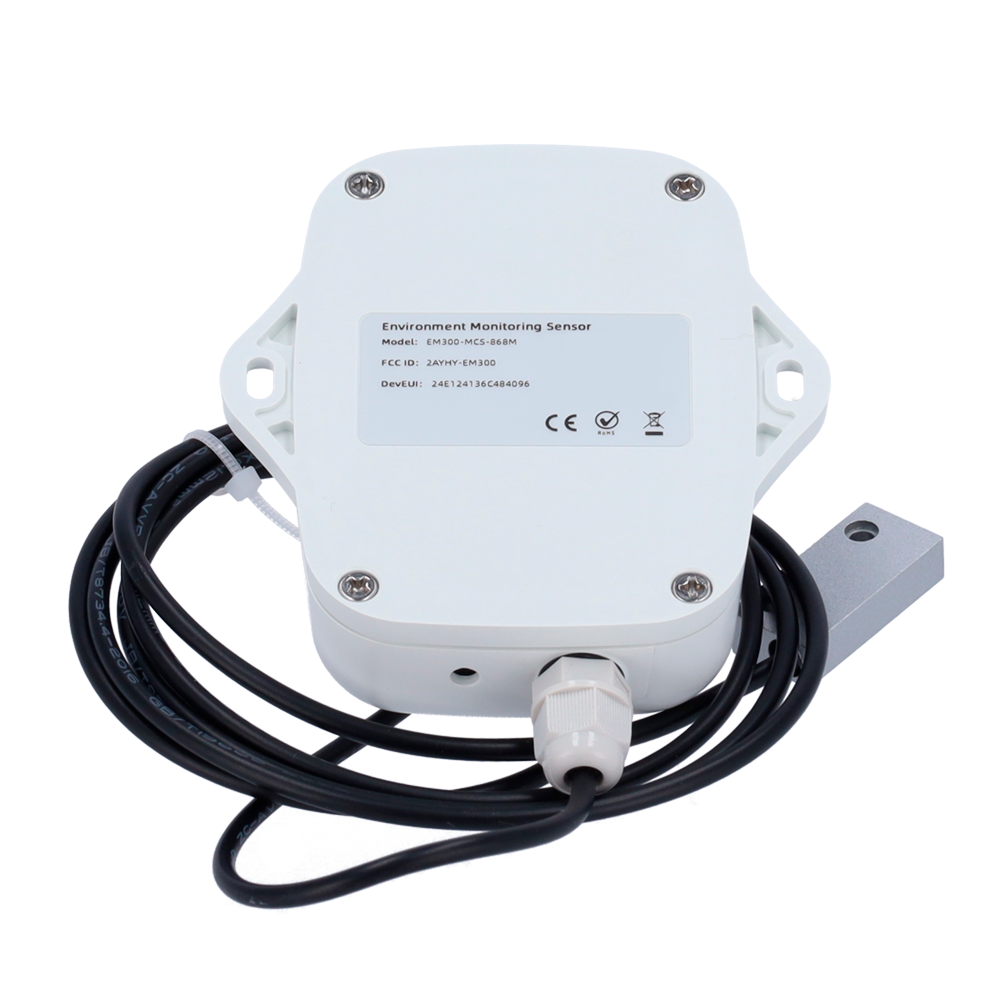

MS-EM300-MCS-868M
- LoRaWAN magnetic contact
- Up to 15Km range with direct vision
- Length of 1.5m of cable
- Configuration via NFC and APP
- Degree of Protection IP67
- Long-lasting battery
- Milesight
- LoRaWan IoT magnetic contact
- Integrated temperature and humidity detector
- Installation on doors and windows
- Detector cable 1.5m
- 5 years of battery (48 openings / day)
- Frequency 868MHz
- Communication range up to 15Km with direct view
- Easy configuration via NFC and smartphone APP
- Suitable for exterior IP67
Specifications
| Technology | LoRaWAN® |
| Frequency band | 868 MHz |
| Power Output | 16dBm Max. |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Magnetic sensor type | Normally closed |
| Magnetic sensor distance | 20-30mm |
| Cable length | 1.5m |
| Temperature measuring range | -30°C to +70°C |
| Temperature accuracy | 0 ~ 70°C: ±0.3°C -30 ~ 0°C: ±0.6°C |
| Temperature resolution | 0.1°C |
| Humidity measurement range | 0%~100% RH |
| Humidity accuracy | ±3%(10~90%HR) ±5%(Otros ranks) |
| Humidity resolution | 0.5% |

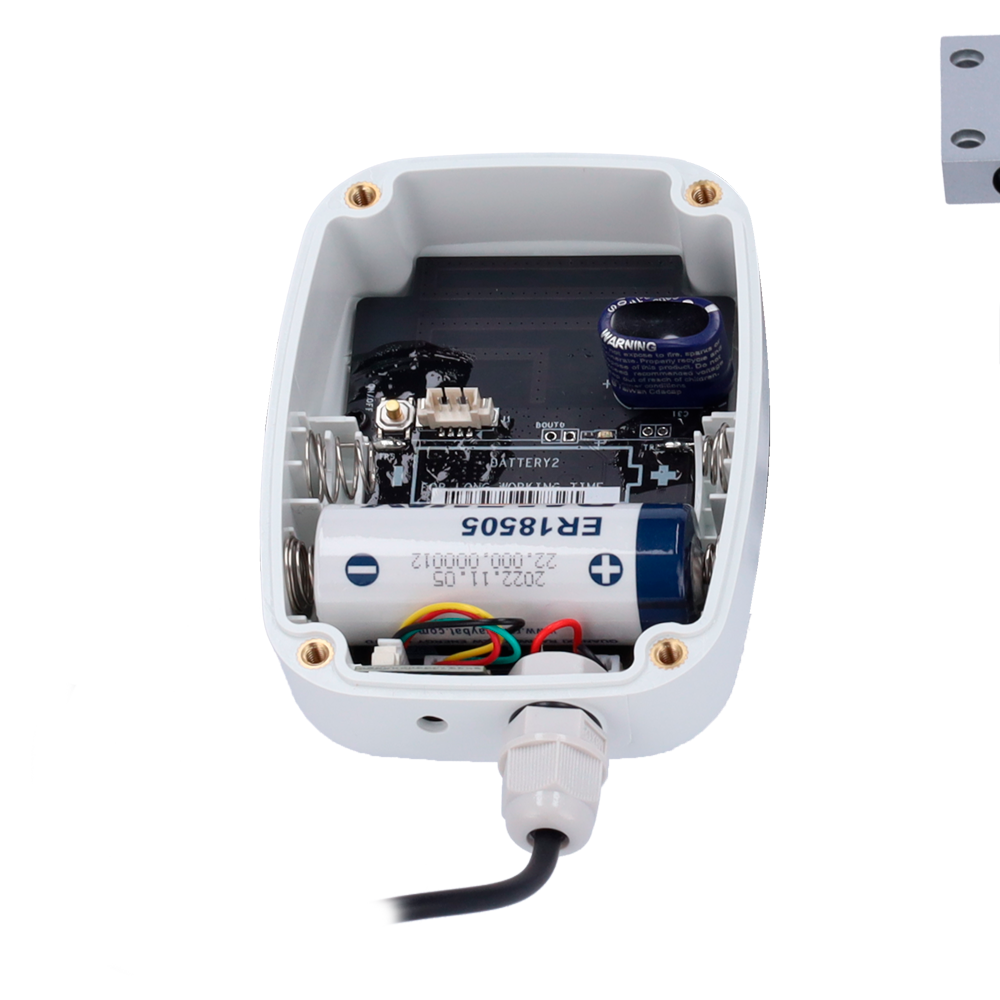

| Power supply | 1 × 4000 mAh ER18505 Li-SOCL2 (extensible to 2 batteries) |
| Battery duration | 5 years for 1 battery (10 interval minutes and 48 activations per day) |
| Operating temperature | -30°C a70°C |
| Environmental protection | IP67 |
| Dimensions | Transmitter 105.6×85.3×27 mm Magnet 32×15×8 mm |
| Installation | On flat surfaces with screws or tapes 3M |
In the box
- Magnetic contact
- Battery
- Installation accessories
- User instructions
