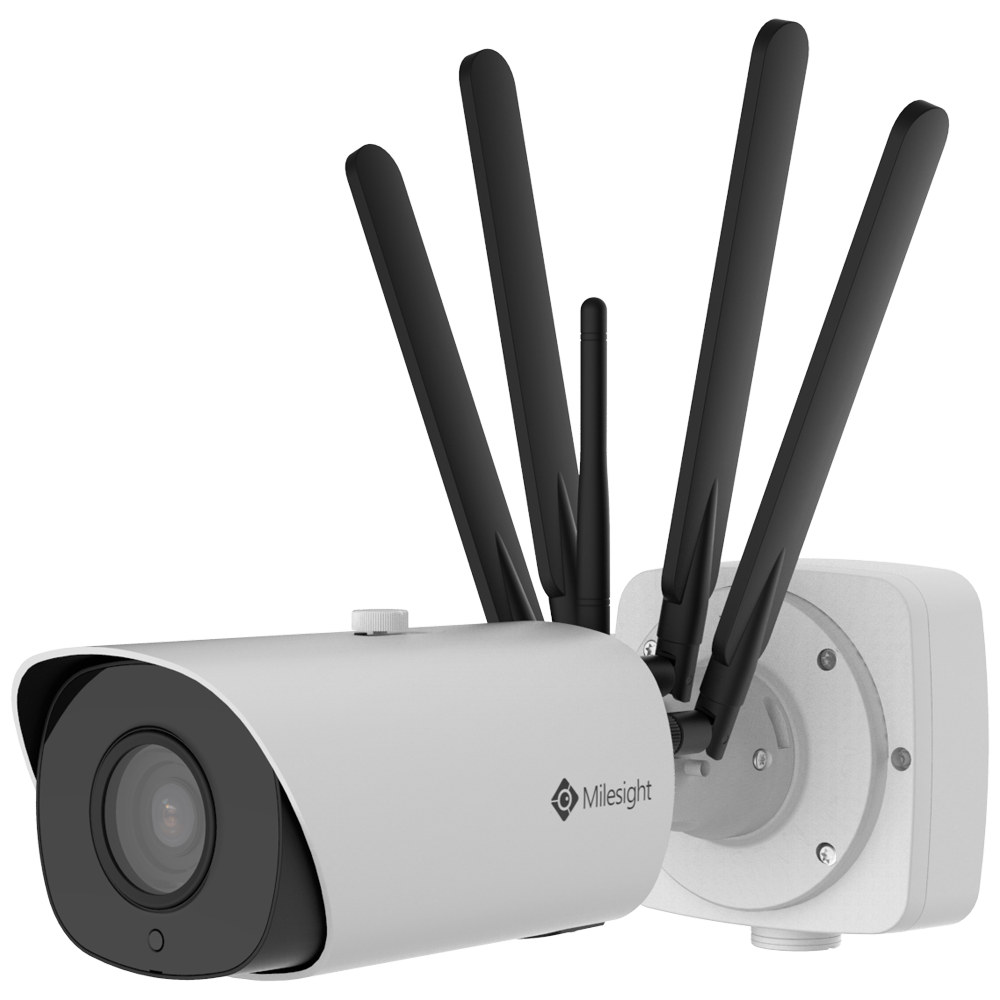

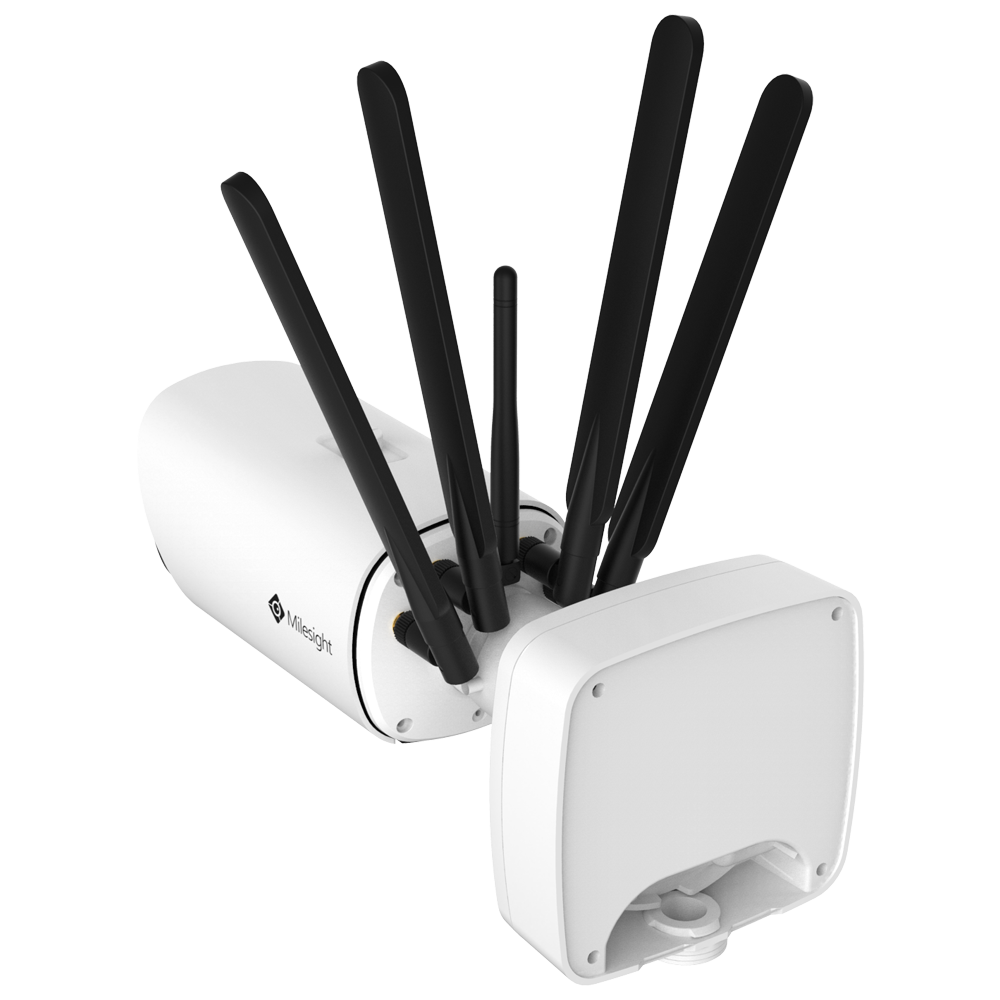

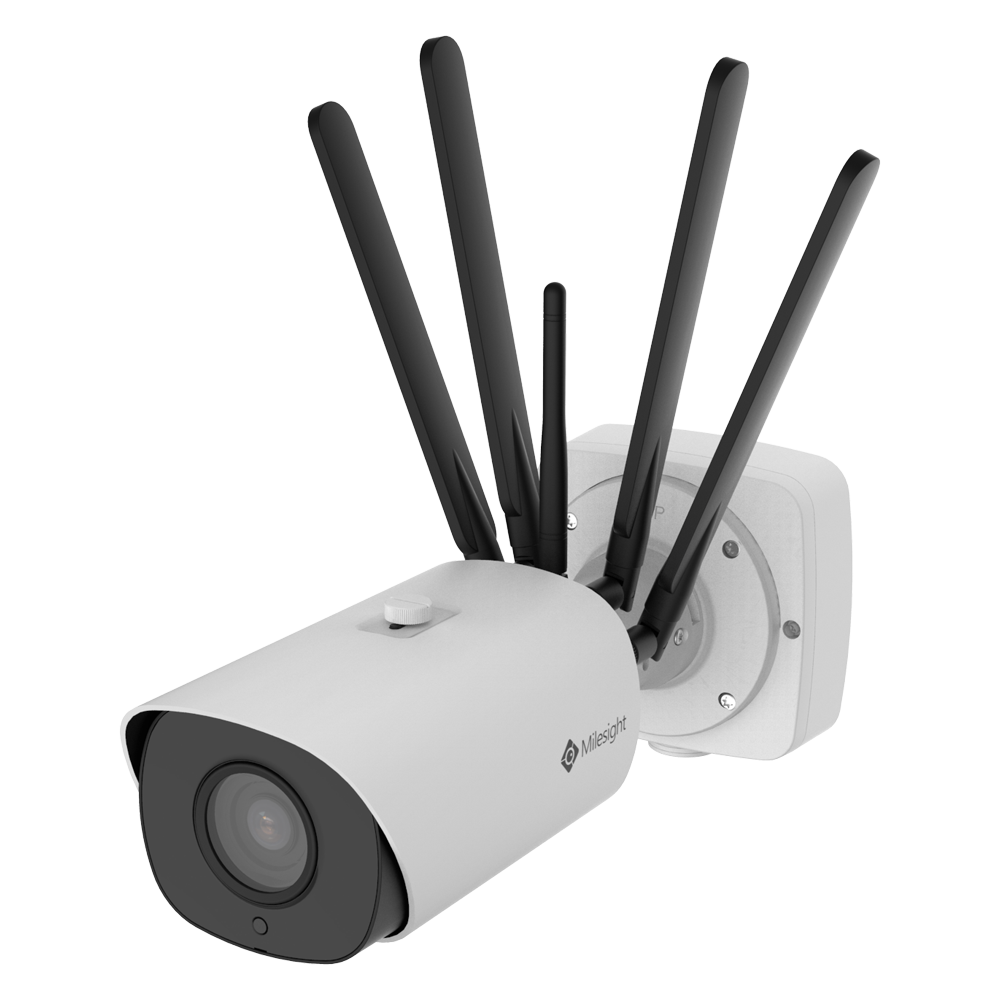

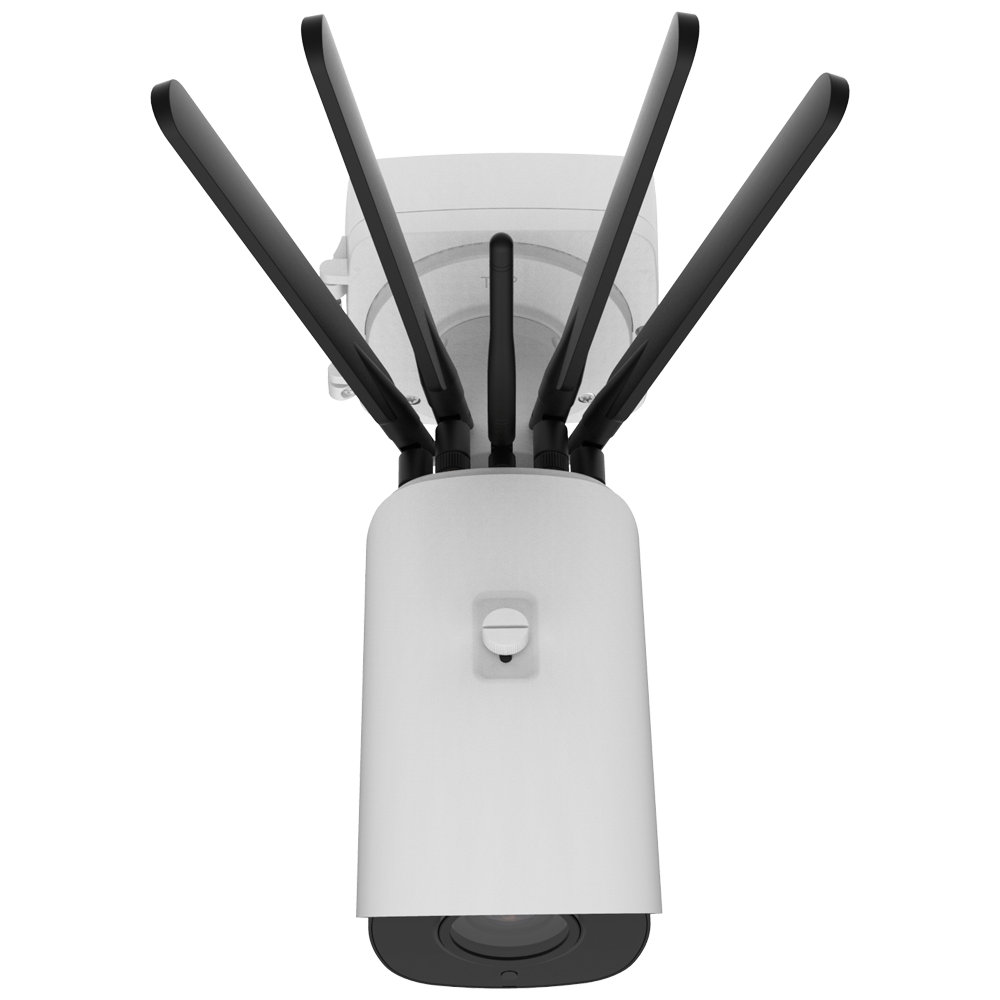

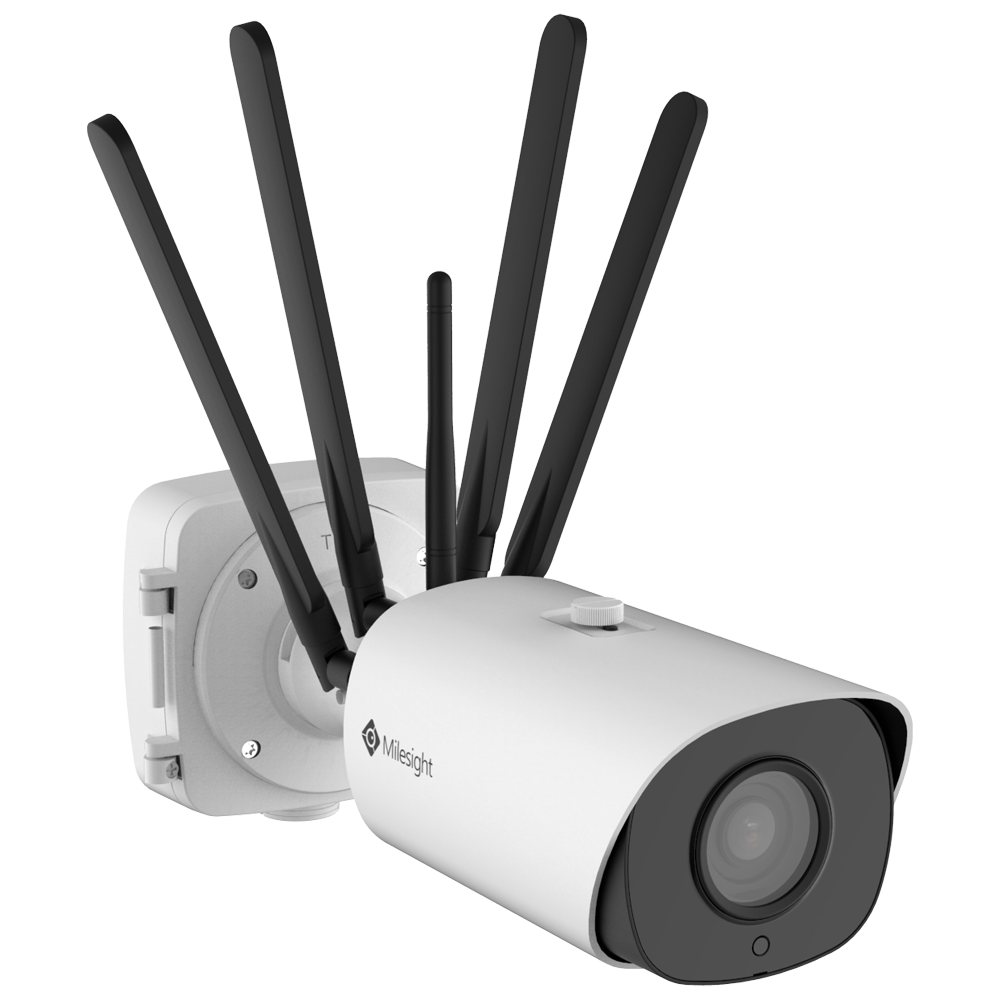

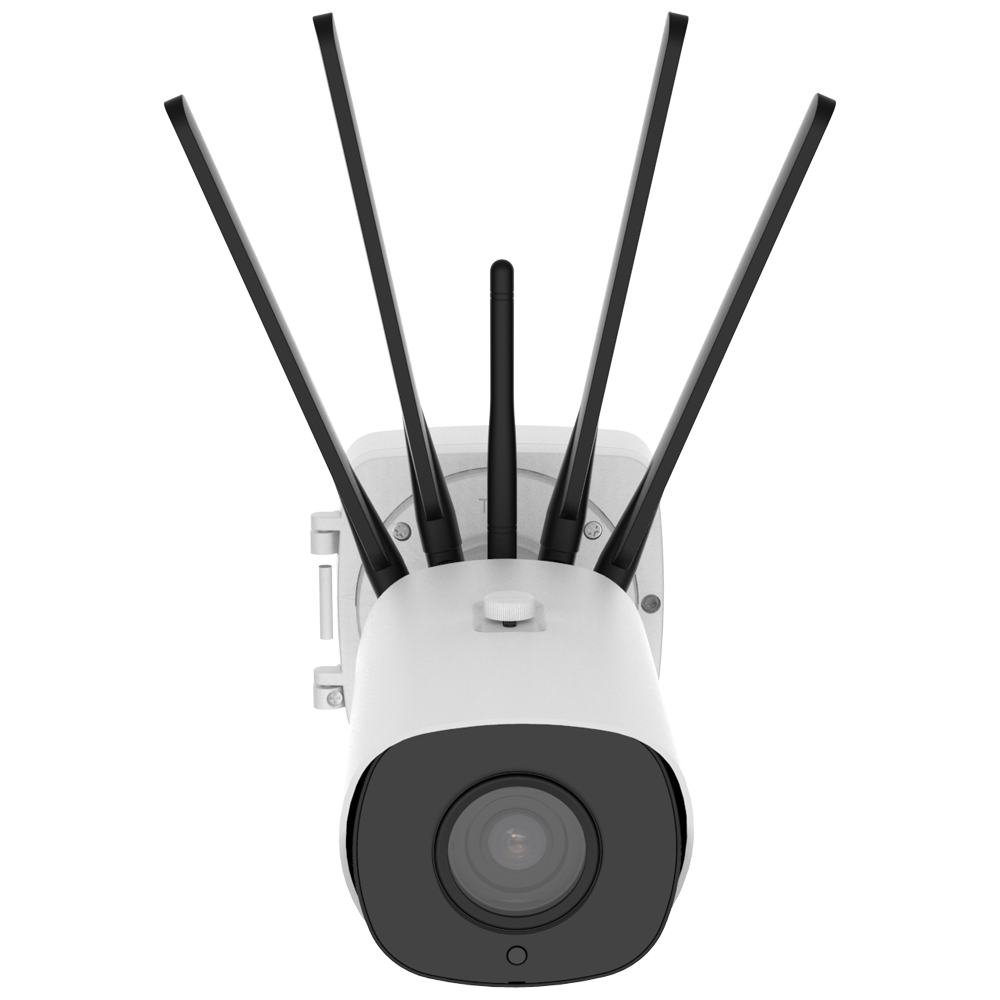

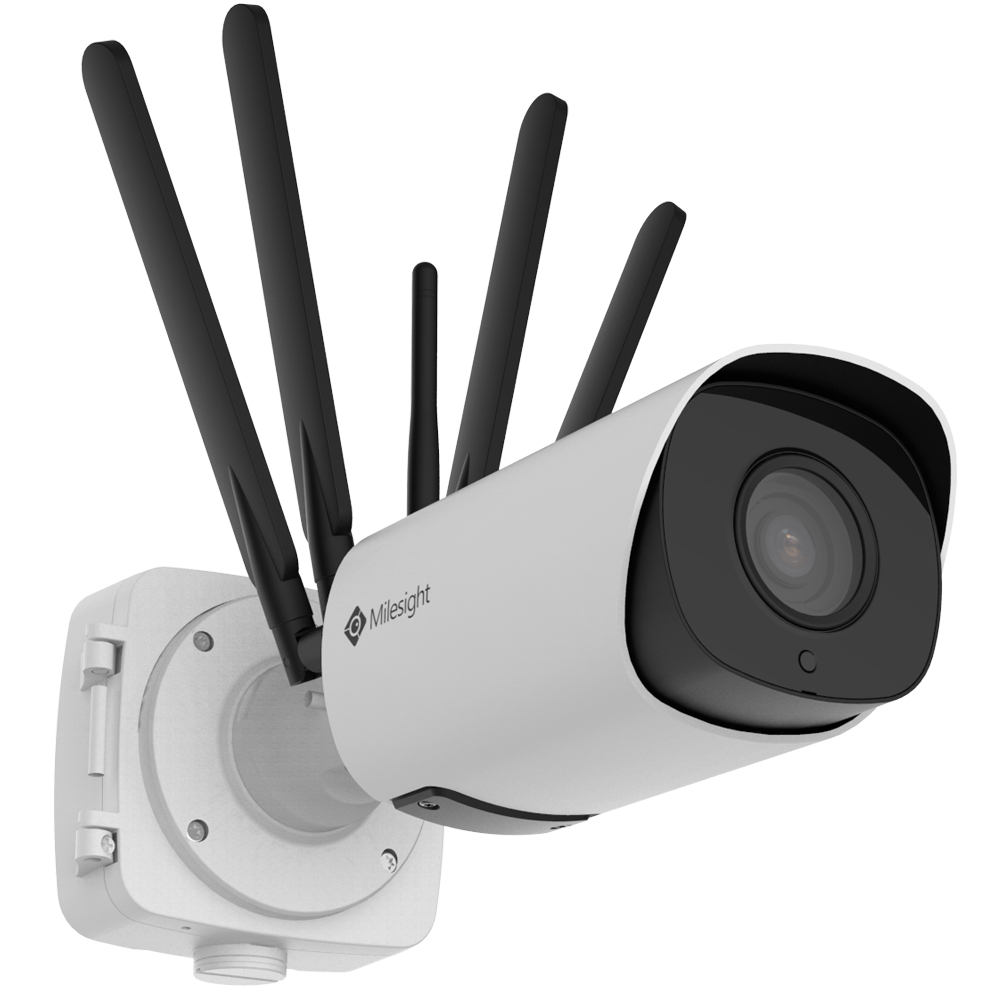

MS-C8266-X4GOPC
Ga direct naar de productinformatie
MS-C8266-X4GOPC
- IP Camera 8 Mpx 5G
- 1/1.8" Progressive Scan CMOS
- LoRa WAN
- 8~32mm Motorised auto-focus
- IR illumination up to 180m
- WEB, CMS Software, Smartphone and NVR
- Milesight
- Camera 5G
- 1/1.8" Progressive Scan CMOS
- 8 Megapixel (3840x2160) @ 25FPS
- 8~32 mm motorised varifocal autofocus lens
- 0 Lux
- IR Range 180 m
- Supports 5G/4G/3G
- Communication with LoRa WAN Milesight devices
- Compression H.265+/H.265/H.264+/H.264
- RJ45 10/100/1000 Mbps BaseT
- Audio
- Alarms
- PoE IEEE802.3at
- IR Cut
- Super WDR (120dB)
- MicroSD card
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- Weatherproof IP67
Specifications
| Brand | MILESIGHT |
| Image sensor | 1/1.8" Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Main Stream rate | 25fps@(3840x2160, 3072x2048, 2592x1944,2592x1520, 2048x1536, 1920x1080, 1280x960,1280x720, 704x576) |
| Extra Stream rate | 25fps@(704x576, 640x480, 640x360,352x288, 320x240, 320x192, 320x180) |
| Rate 3rd Stream | 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Compression | H.265+ / H265 /H.264+ / H264 / MJPEG |
| Bitrate | 16 Kbps ~ 16 Mbps (CBR / VBR) |
| Lens | 8~32mm Motorised auto-focus |
| FOV | H: 44°~13°; V: 51º~15º; D: 25°~7° |
| IRIS Control | Auto |
| Minimum illumination | Colour: 0.006Lux@F1.2 Colour: 0.009Lux@F1.6 B/W: 0 Lux with IR ON |
| Infrared Light | 180 m |
| Day / Night | Day / Night / Auto / Customizable / Programmable |
| Image improvements | Super WDR PRO (140 dB), BLC, HLC, 2D DNR, 3D DNR, Defog Function, AWB, EIS, IP Address Filtering, AGC, Anti Flicker, Corridor Mode, Watermarking |
| ROI | Up to 8 Areas |
| Intelligent Analysis | Motion Detection, Line Crossing, Loitering Detection, Region Entry, Region Exit, Object Left, Object Removed |
| Face detection | Real-time face detection |
| People Counting & Reporting | People counting at entrances and exits. Supports up to 4 people counting regions |
| Trigger Event | Motion Detection, Exceptions, Alarm Inputs |
| Event Action | Upload Image to FTP, SMTP, MicroSD Card, Enable Alarm Output, SIP Phone, HTTP Notification |
| LoRa WAN | Antenna 50 SMA-Female 8 channels Demodulation: 1 Mhz Frequency Band: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923/AS923-2 Sensitivity: -140 dBm @292bps Output power: 27 dBm Max. Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C Maximum range: 15 Km (open field) |
| Wireless Communication | Support: 5G/4G/3G SIM card: Nano SIM *By MicroSD card replacement, Slot shared with MicroSD card. |
| Communication Interface | Ethernet 10/100/1000M BaseT | 1 RS485 |
| Internal memory | MicroSD card, Max 256 GB *For nanoSIM card replacement, Slot shared with nanoSIM card |
| Alarms | 1/1 |
| Audio | 1/1 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Two-way Audio | Support |
| Audio Bit Rate | 16~256Kbps |
| SIP/VoIP | Support. Voice and Video over IP |
| Remote access | Web Browser, Smartphone App and Milesight Central Management System Software |
| Interoperability | ONVIF (G/Q/S/T Profile) |
| Power | DC 12 V / MAX 16W(con IR ON), PoE+ IEEE802.3at |
| Degree of protection | Waterproof IP67, Over voltage 4000V |
| Temp. operation | -40º C ~ +60º C |
| Dimensions | 320 (An) X 134(Al) X 292 (Fo) mm |
| Weight | 1636 g |
In the box
- Bullet IP camera MILESIGHT 5G
- Installation material
- CD with software and instructions
- Template for easy installation
- Junction box
