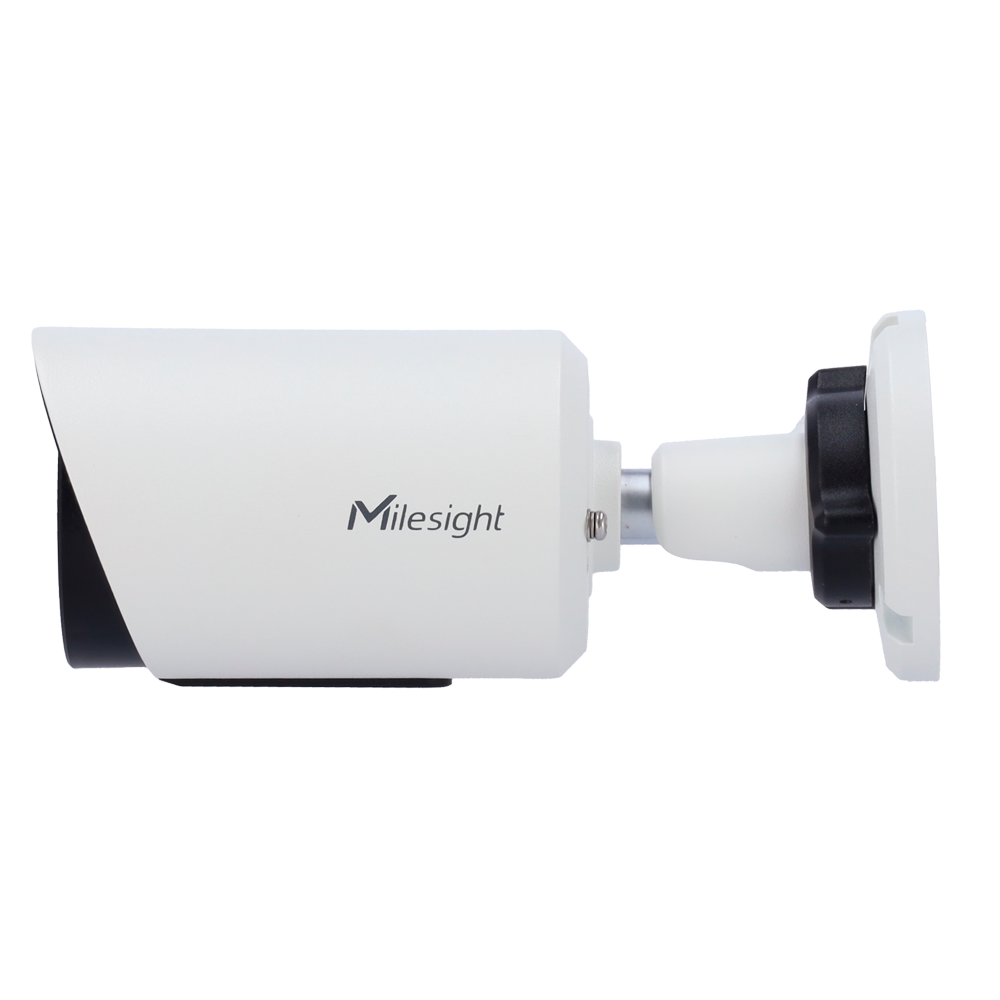

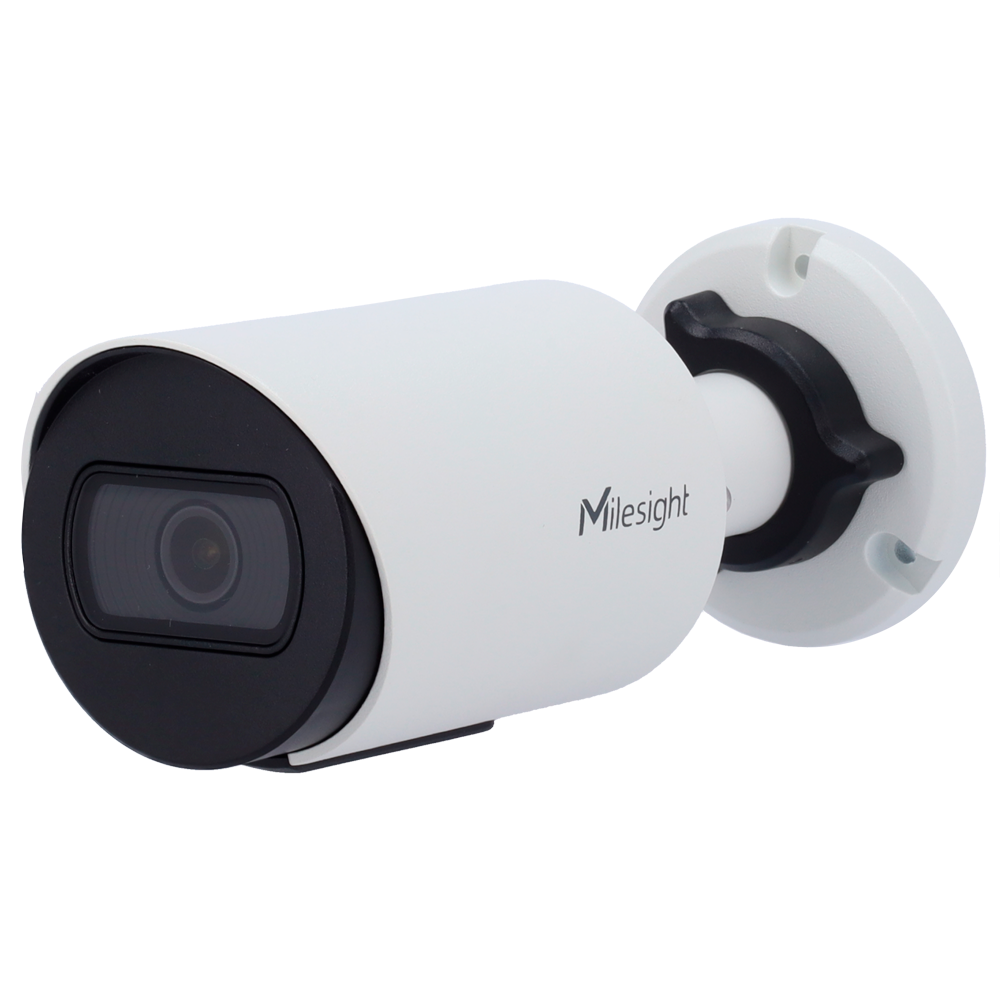

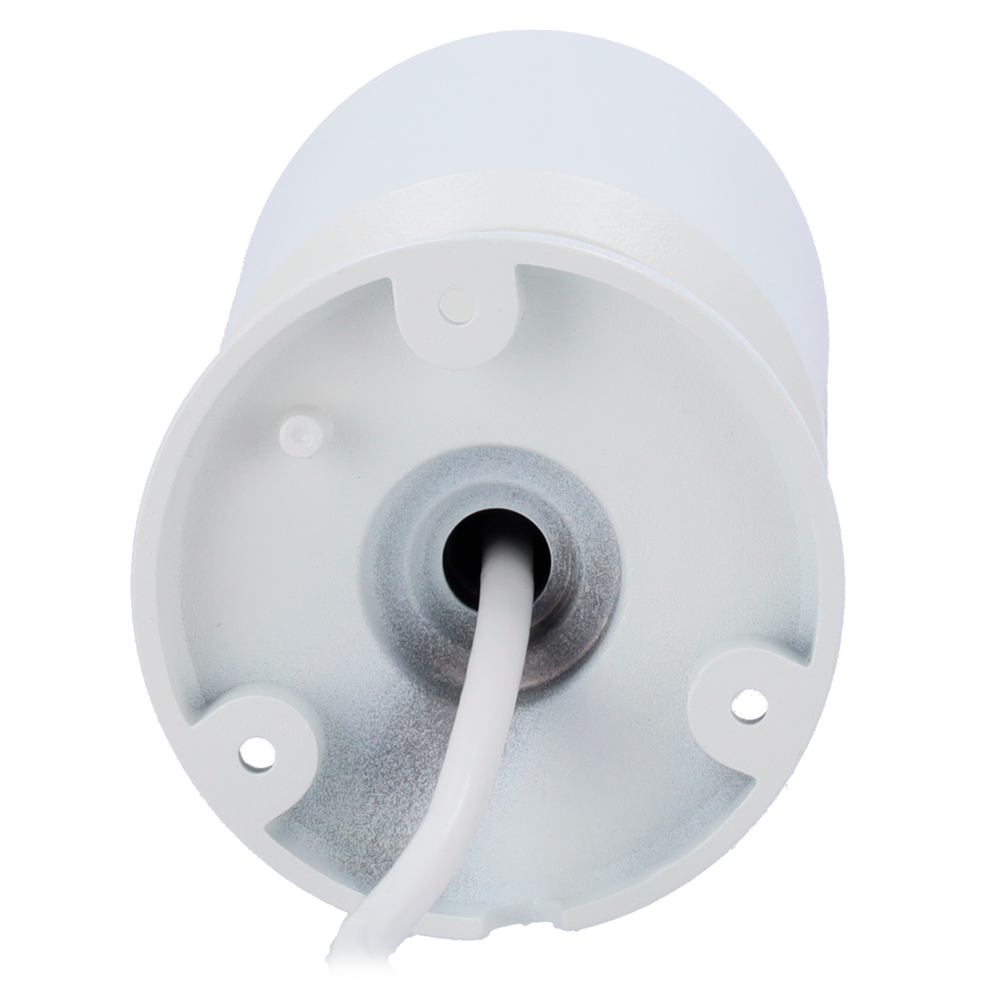

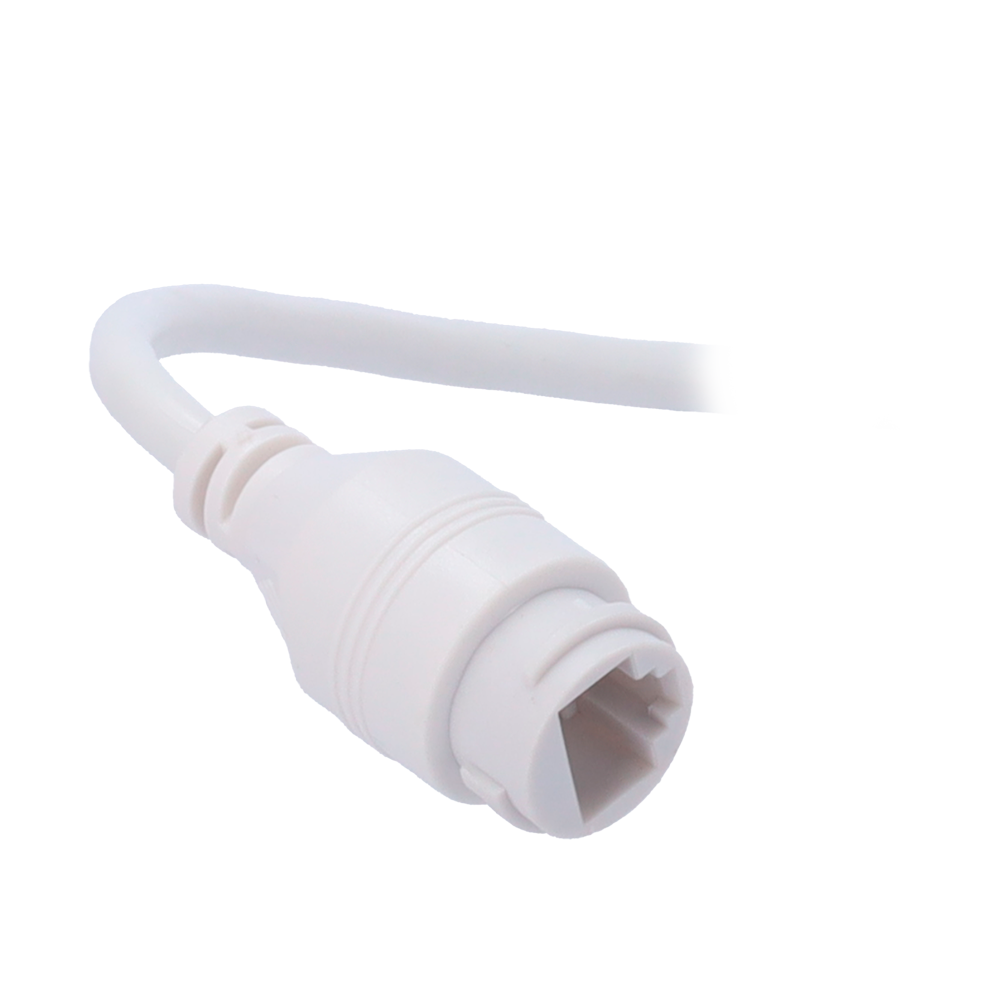

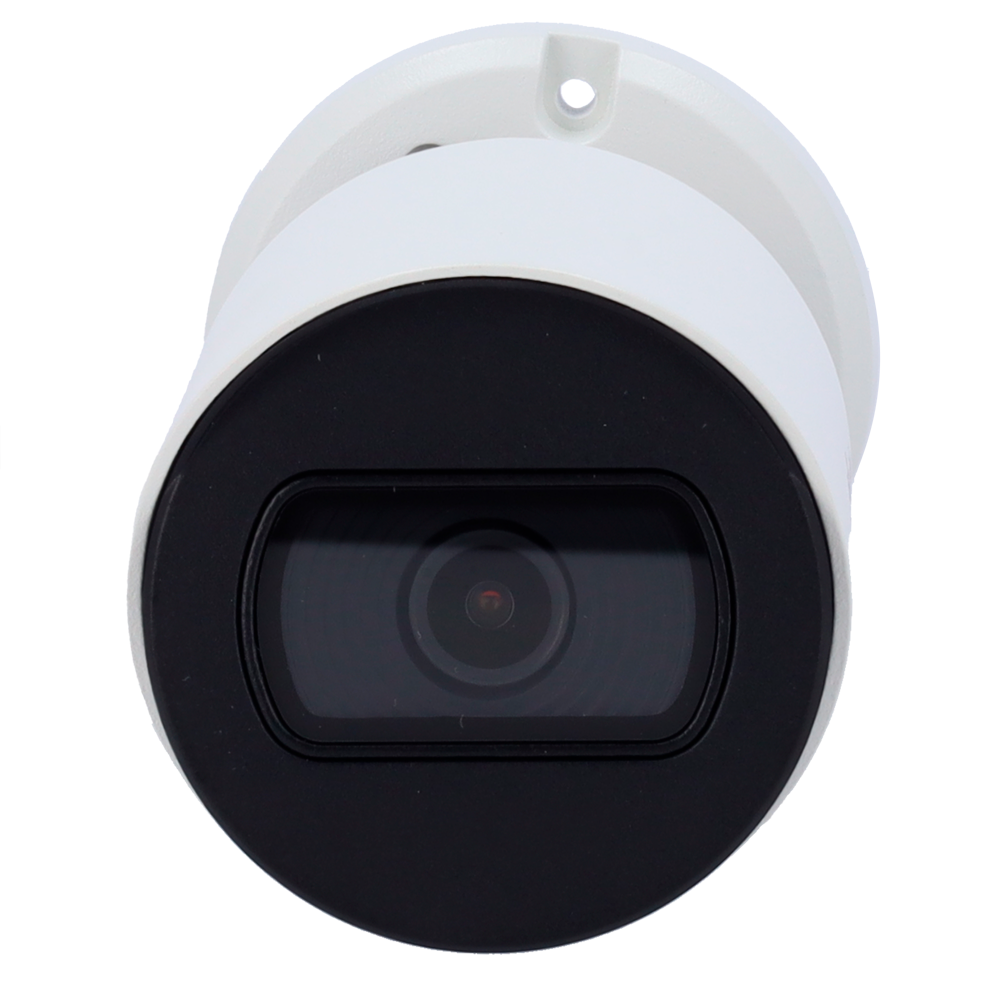

MS-C8164-PD
Ga direct naar de productinformatie
MS-C8164-PD
- Mini Bullet IP Camera
- Resolution 8Mpx
- 1/2.8" CMOS | Lens of 2.8mm
- IR 30m | Super WDR 120dB
- Human- and vehicle-based AI video analysis
- IP67 | IK10
- Milesight
- Mini Bullet IP Camera
- 1/2.8" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- Lens of 2.8mm
- Minimum illumination 0.012Lux@F1.6 | 0 Lux with IR
- IR Range 30 m
- Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
- PoE IEEE802.3af
- Super WDR (120dB)
- Slot for MicroSD/SDHC/SDXC card up to 1TB
- Video analysis with line crossover, input region, marauding
- Counting people with reports
- WEB, CMS, Smartphone and NVR interface
- ONVIF, API support
- Weatherproof IP67
- Anti-vandal IK10
Specifications
| Brand | Milesight |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Lens | 2.8mm |
| Main Stream rate | 60Hz/50Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576), 20fps@(3840x2160)(Opcional for S Series) |
| Extra Stream rate | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288) |
| Rate 3rd Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288) |
| Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Bitrate | 16 Kbps ~ 16 Mbps (CBR / VBR Adjustable) |
| FOV | H110°/D126°/V60° |
| Minimum illumination | Colour: 0.012Lux@F1.6 B/W: 0 Lux with IR ON |
| IR | 30 m |
| Day / Night | Day / Night / Auto / Customizable / Programmable |
| Image improvements | Super WDR PRO (120 dB), BLC, HLC, 2D DNR, 3D DNR, Deblur Function, AWB, IP Address Filtering, AGC, Anti Flicker, Hall Mode, deblur |
| ROI | Up to 8 Areas |
| Intelligent Analysis | Motion Detection, Line Crossing, Loitering Detection, Region Entry, Region Exit, Object Left, Object Removed |
| People Counting & Reporting | People counting at entrances and exits. |
| Trigger Event | Motion Detection, Exceptions, Alarm Inputs |
| Event Action | Upload Image to FTP, SMTP, MicroSD Card, Enable Alarm Output, SIP Phone, HTTP Notification |
| Communication Interface | Ethernet Port 1*RJ45 10M/100M |
| Internal memory | MicroSD Card, Max 1TB |
| Remote access | Web Browser, Smartphone App and Milesight Central Management System Software |
| Interoperability | ONVIF (G/S/T Profile), API |
| Power | DC 12 V / MAX 5.8W(con IR ON), PoE+ IEEE802.3at |
| Degree of protection | Waterproof IP67, Anti-vandal IK10 |
| Temp. operation | -40º C ~ +60º C |
| Dimensions | 64 (Ø) X 160 (H) mm |
| Weight | 450 g |
In the box
- Mini Bullet IP Camera
- Installation material
- Template for easy installation
