MS-C5372-RFPG1
Ga direct naar de productinformatie
MS-C5372-RFPG1

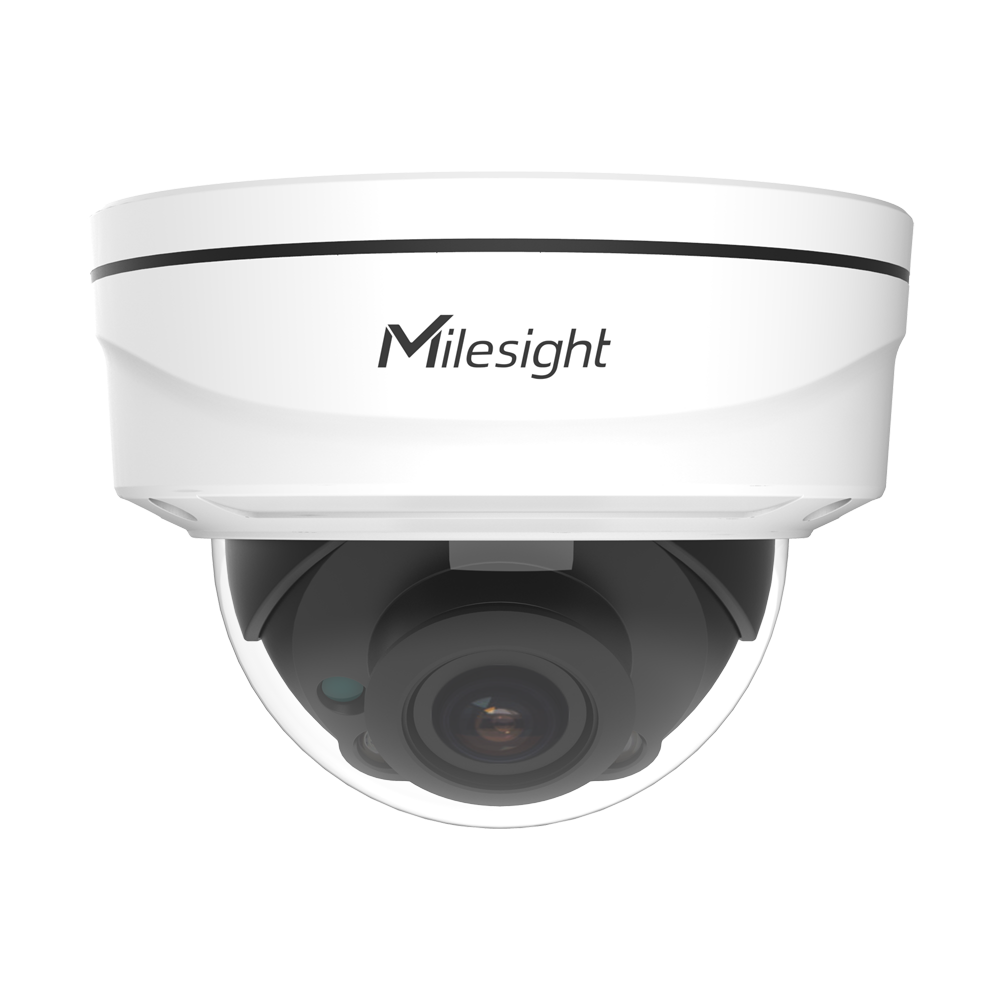

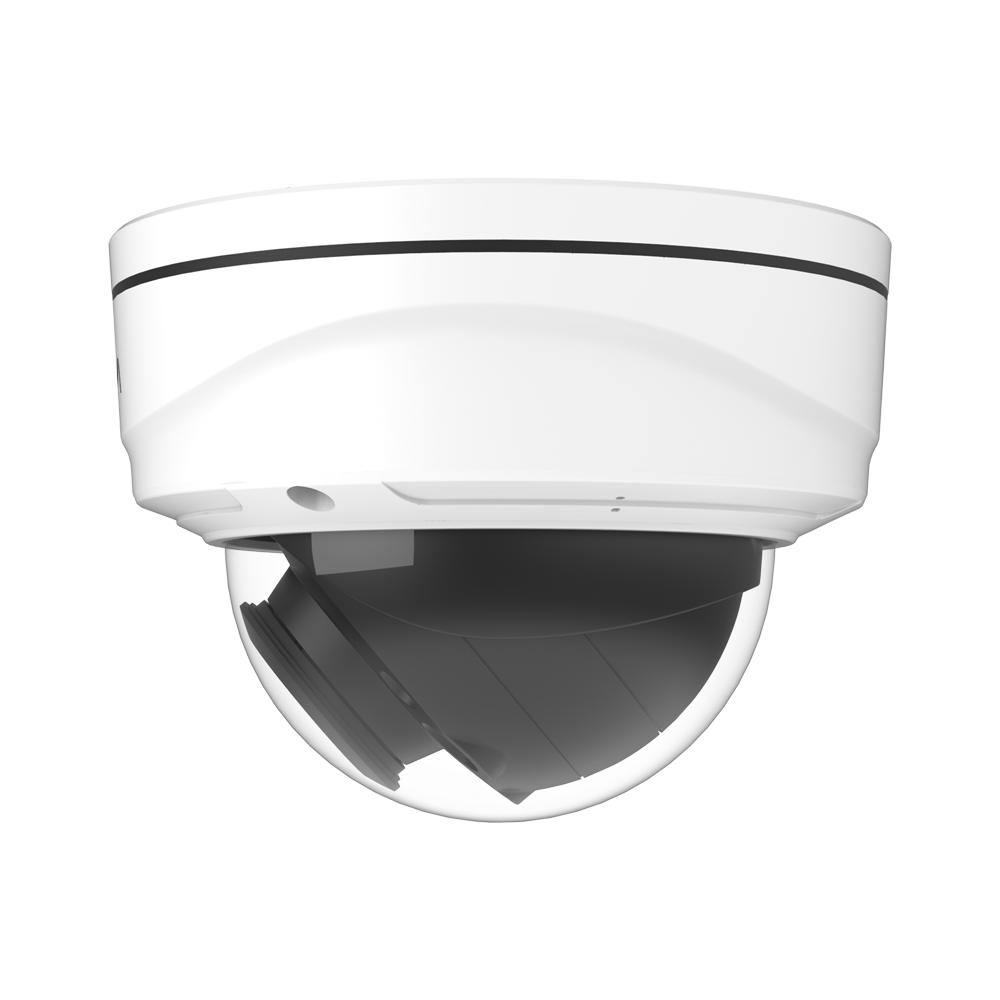

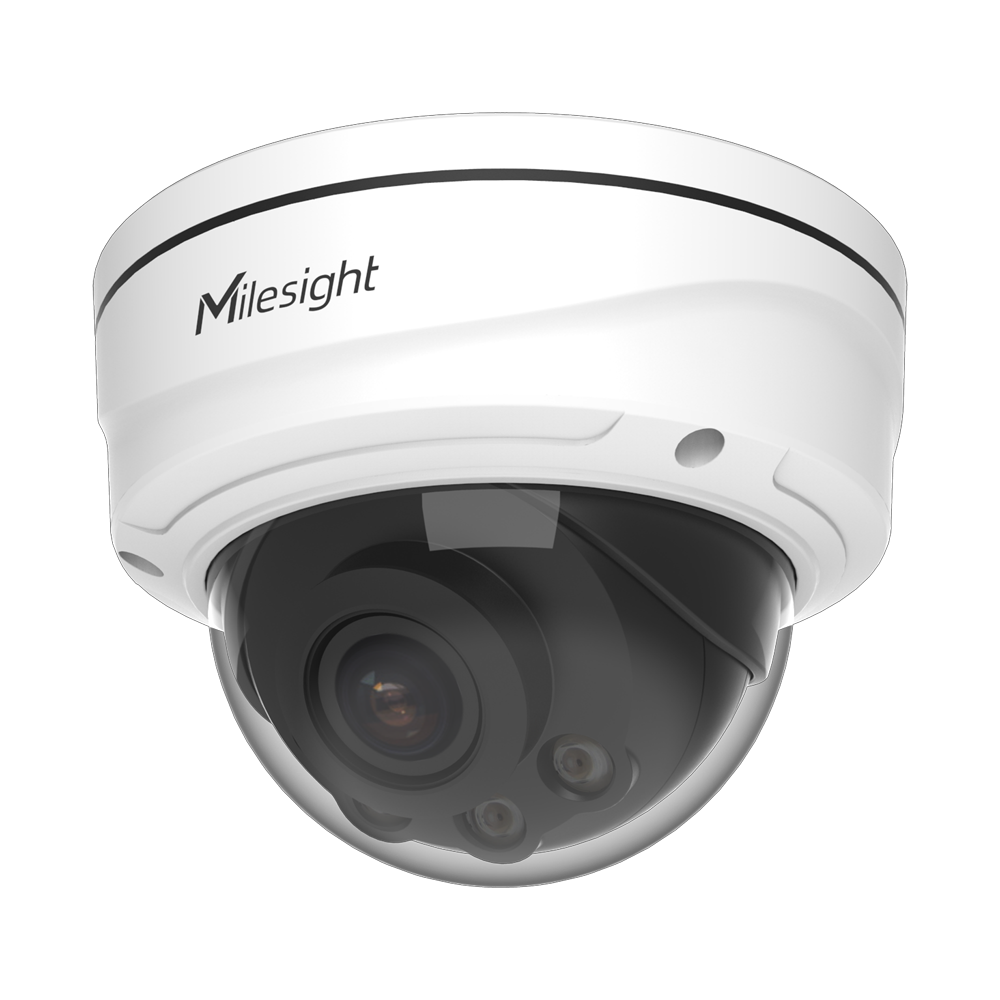

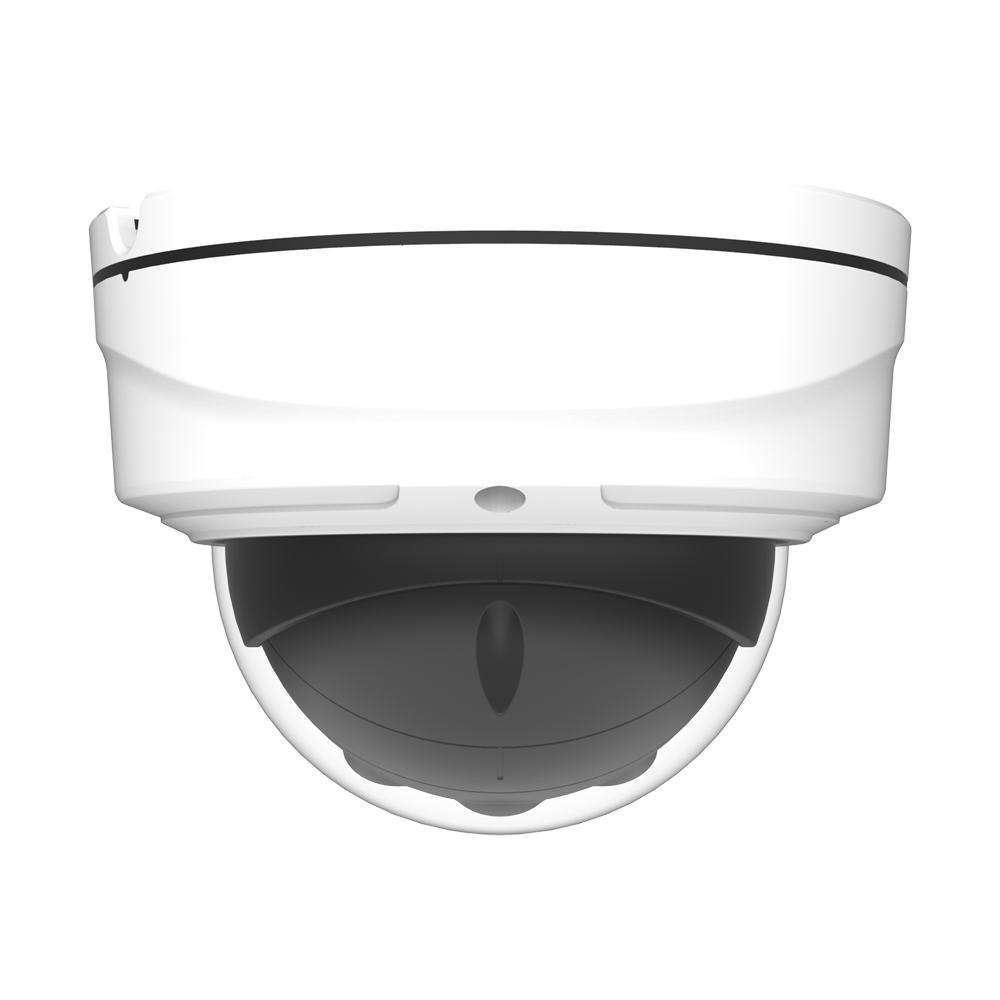

- OpenVision Pro Dome IP Camera
- Resolution 5Mpx
- 1/2.8" CMOS lens 2.7~13.5mm
- Human- and vehicle-based AI video analysis
- IP67 | IK10 | Power surges 6KV
- Network Optix Witness integrated in camera
- Milesight
- Pro Dome IP Camera
- 1/2.8" Progressive Scan CMOS
- 5 Megapixel (2592x1944)
- Lens of 2.7~13.5mm.
- 0 Lux
- IR Range 50m
- Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
- PoE IEEE802.3af
- Super WDR (120dB)
- MicroSD card
- AI video analysis in/out of area, advanced motion detection, line crossing, loitering, abandoned object, object removed
- Web, VMS/CMS, smartphone and NVR interface
- ONVIF profile G/S/T/M
- Weatherproof IP67
- IK10
- Surge protection 6KV
Specifications
| Brand | Milesight |
| Range | Pro |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 5 Megapixel (2592x1944) |
| Main Stream rate | 60Hz:60fps@(2592x1944,2592x1520,2048x1536,1920x1080,1280x960,1280x720) 50Hz:50fps@(2592x1944,2592x1520,2048x1536,1920x1080,1280x960,1280x720) |
| Extra Stream rate | 60Hz:60fps@(704x576,640x480,640x360),50Hz:50fps@(704x576,640x480,640x360) |
| Rate 3rd Stream | 60Hz:30fps@(2048x1536,1600x1200,1920x1080,1280x720,704x576,640x480,640x360) 50Hz:25fps@(2048x1536,1600x1200,1920x1080,1280x720,704x576,640x480,640x360) |
| Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Bitrate | 16 Kbps ~ 16Mbps (CBR / VBR Adjustable) |
| Lens | 2.8mm~13.5mm |
| Range performance | D:84.6m~273m O:33.9m~108m R:16.6m~53.8m I:8.4m~26.9m |
| FOV | H 99.8°~32.1°/D 121.5°~44.7°/V 68.2°~22.2° |
| Focus control | Auto/Manual |
| Iris Control | Auto/Manual (P-Iris) |
| Minimum illumination | Colour: 0.006Lux@F1.4, B/W: 0 Lux IR on |
| Infrared Light | 50m. |
| Day / Night | Day / Night / Auto / Customizable / Programmable |
| Advanced features | Super WDR PRO (120 dB), BLC, HLC, 2D DNR, 3D DNR, defog, AWB, IP address filtering, AGC, anti-flicker, hall mode, deblur, watermarking |
| ROI | Up to 8 Areas |
| Intelligent Analysis | VCA 2.0: Advanced motion detection, line crossing, loitering detection, region entry, region exit, object left, object removed |
| Trigger Event | Motion Detection, Exceptions, Alarm Inputs |
| Event Action | Upload Image to FTP, SMTP, MicroSD card, enable alarm output, SIP call, HTTP notification |
| Communication Interface | Ethernet Port 1*RJ45 10M/100M |
| Internal memory | Supports local storage microSD card, up to 1TB (UHS-I Micro SD, A2 standard or above); Supports SD Card Health Information Query |
| Audio | Included microphone / audio output |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Bit Rate | 16~256Kbps |
| SIP/VoIP | Yes. Voice and video over IP |
| Remote access | Web browser, smartphone App and software Milesight Central Management System, Milesight VMS Enterprise |
| Interoperability | ONVIF (Profile G/S/T/M) |
| Power | DC10~28V / Max 8.7W (with IR ON) PoE / Max 10.5W (with IR ON) |
| Degree of protection | Waterproof IP67, IK10, surge protection 6KV |
| Temp. operation | -40ºC~+60ºC |
| Dimensions | Φ 143 mm. x 108.4 mm |
| Weight | 1300 g |
In the box
- OpenVision Pro Dome IP Camera
- Installation material
- Template for easy installation
