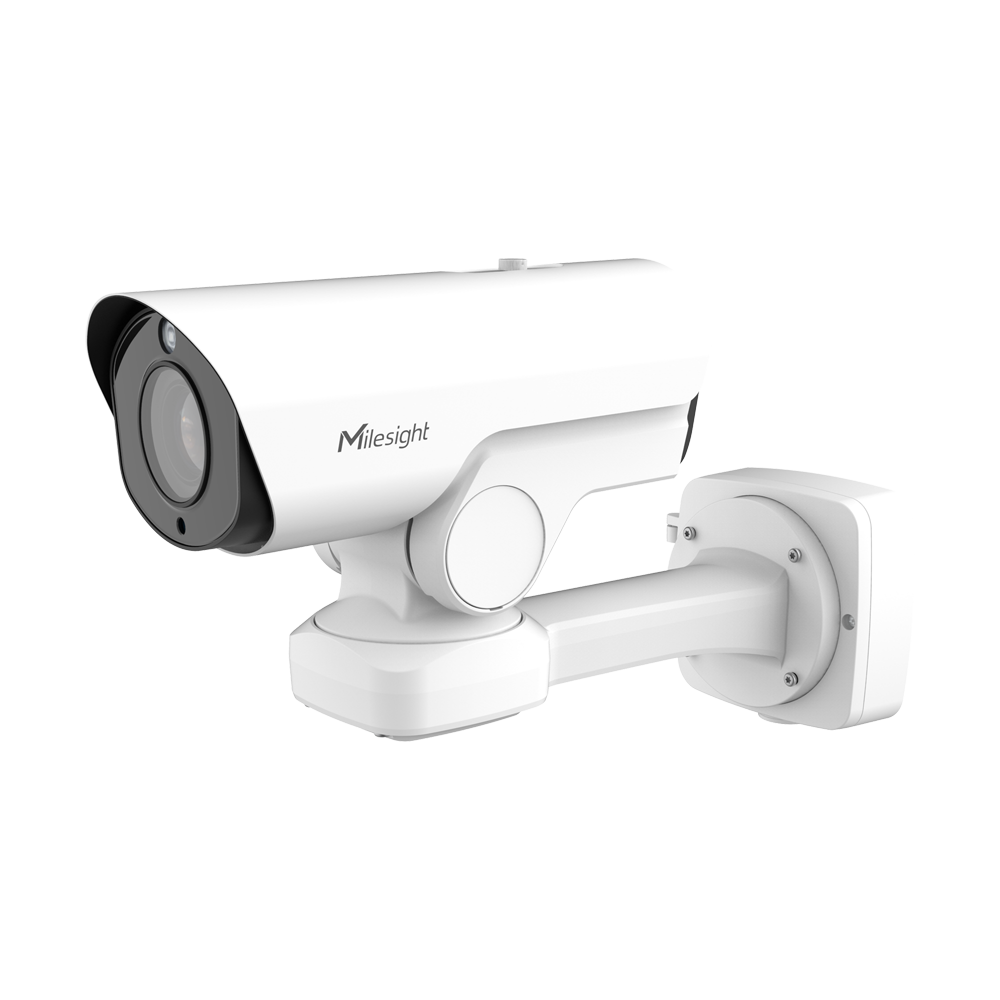

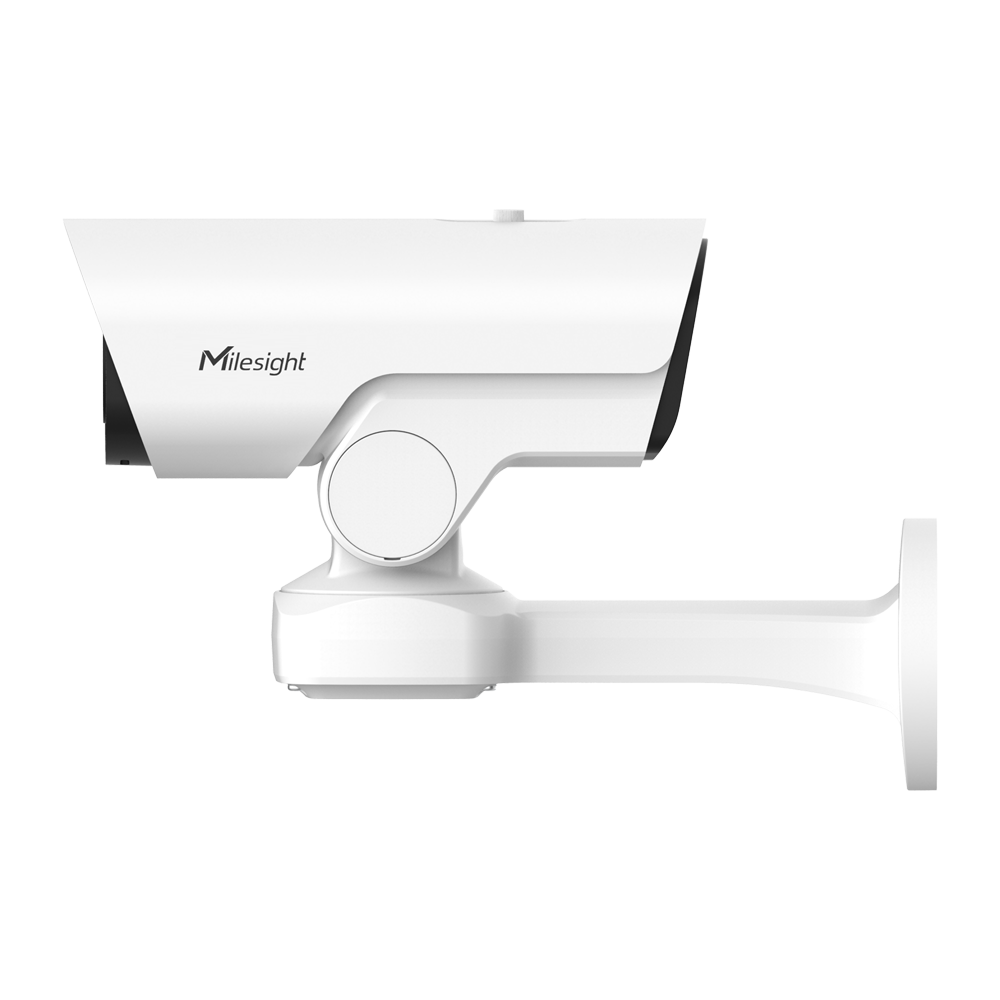

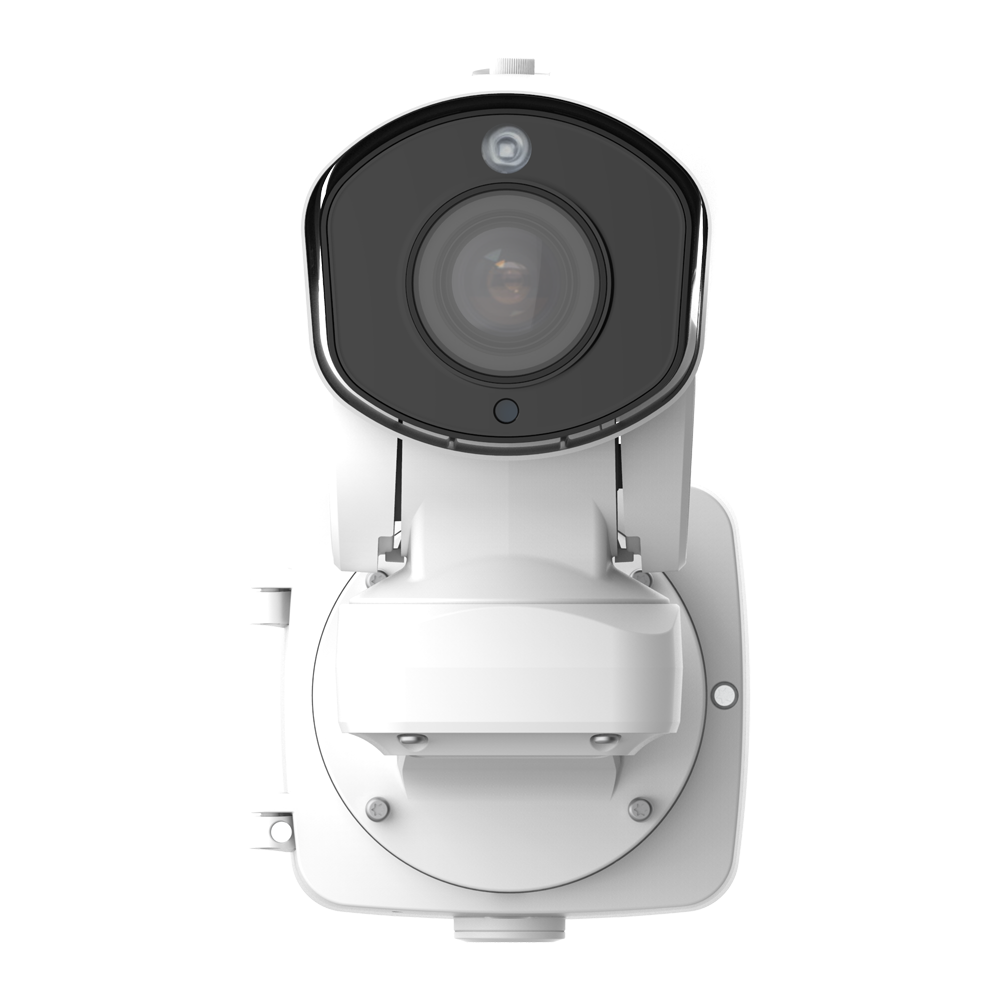

MS-C5367-X12PE
Ga direct naar de productinformatie
MS-C5367-X12PE
- IP AI 12X PTZ Bullet IP Camera
- Resolution 5Mpx | Optical zoom 12X
- 1/2.8" CMOS lens 5.3~64mm
- Human- and vehicle-based AI video analysis
- Certificate IP66
- NDAA Compliance
- Milesight
- IP AI 12X PTZ Bullet IP Camera
- 1/2.8" Progressive Scan CMOS
- 5 Megapixel (2592x1944)
- Lens of 5.3~64mm
- 12X Optical zoom
- 0 Lux
- IR Range 180m
- Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
- PoE IEEE802.3at
- Super WDR (120dB)
- MicroSD card
- AI video analysis in/out of area, advanced motion detection, line crossing, loitering, abandoned object, object removed
- Web, VMS/CMS, smartphone and NVR interface
- ONVIF profile G/S/T/M
- Weatherproof IP66
Specifications
| Brand | Milesight |
| Range | AI 12X/20X/23X PTZ Bullet |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 5 Megapixel (2592x1944) |
| Main Stream rate | 60Hz:30fps@(2592x1944,2592x1520),45fps@(2048x1536),60fps@(1920x1080,1280x960,1280x720) 50Hz:25fps@(2592x1944,2592x1520),45fps@(2048x1536),50fps@(1920x1080,1280x960,1280x720) |
| Extra Stream rate | 60Hz:30fps@(704x576,640x480,640x360,352x288,320x240,320x192,320x180) 50Hz:25fps@(704x576,640x480,640x360,352x288,320x240,320x192,320x180) |
| Rate 3rd Stream | 60Hz:30fps@(2048x1536,1920x1080,1600x1200,1280x720,704x576,640x480,640x360,320x240) 50Hz:25fps@(2048x1536,1920x1080,1600x1200,1280x720,704x576,640x480,640x360,320x240) |
| Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Bitrate | 16 Kbps ~ 16Mbps (CBR / VBR Adjustable) |
| Lens | 5.3~64mm |
| FOV | H 61°~H 5°/D 69°~D 5°/V 36°~V 2° |
| Focus control | Auto/Semi-auto/Manual |
| Iris Control | Auto |
| Minimum illumination | Colour: 0.008 Lux@F1.6 B/W: 0 Lux with IR ON |
| Infrared Light | 180m. |
| Day / Night | Day / Night / Auto / Customizable / Programmable |
| Advanced features | BLC, HLC, 2D DNR, 3D DNR, defog, AWB, AGC, anti-flicker, corridor mode, deblur |
| ROI | Up to 8 Areas |
| Intelligent Analysis | VCA 2.0: Advanced motion detection, line crossing, loitering detection, region entry, region exit, object left, object removed |
| Attribute extraction | Yesmultaneously detects up to 50 objects and captures humans and vehicles in real time. Recognizes attributes including color of upper and lower clothing, helmet, and types of vehicles (bicycle, car, motorcycle, bus, truck, electric scooter) |
| Face and attribute detection | Detects and captures faces, takes images in real time; Attributes include age, gender, glasses, mask and cap; Supports face privacy mode, faces detected in the face detection area are masked automatically. |
| Object counting and reporting | Counts the number of objects crossing a line, optionally humans and vehicles. Supports regional people counting up to 4 detection areas. |
| Trigger Event | Motion detection, Exceptions, Alarm input, audio alarm, etc. |
| Event Action | Upload Image to FTP, SMTP, MicroSD card, enable alarm output, SIP call, HTTP notification |
| Communication Interface | Ethernet Port 1*RJ45 10M/100M |
| Internal memory | Supports local storage microSD/SDHC/SDXC card up to 1TB |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Bit Rate | 16~256Kbps |
| SIP/VoIP | Si. Voice and video over IP |
| Remote access | Web browser, smartphone App and software Milesight Central Management System, Milesight VMS Enterprise |
| Interoperability | ONVIF (Profile G/S/T/M) |
| Power | PoE (802.3at) / DC 12V/3A±10% |
| Consumption | Max.: 20W (DC 12V), 21.7W (PoE) |
| Degree of protection | Weatherproof IP66 |
| Temp. operation | -40ºC~+60ºC |
| Operating humidity | 0~90% (without condensation) |
| Dimensions | 110mm. x 337mm. x 220mm. |
| Weight | 2.9Kg |
| Certifications | EMC: CE-EMC (EN 55032, EN 55035), FCC (PART 15B)) Security: CE-LVD (EN IEC 62368-1)) Environment: CE-ROHS (Directive (EU) 2015/863 modifying 2011/65/EU) |
In the box
- IP AI 23X PTZ Bullet IP Camera
- Installation material
- Template for easy installation
