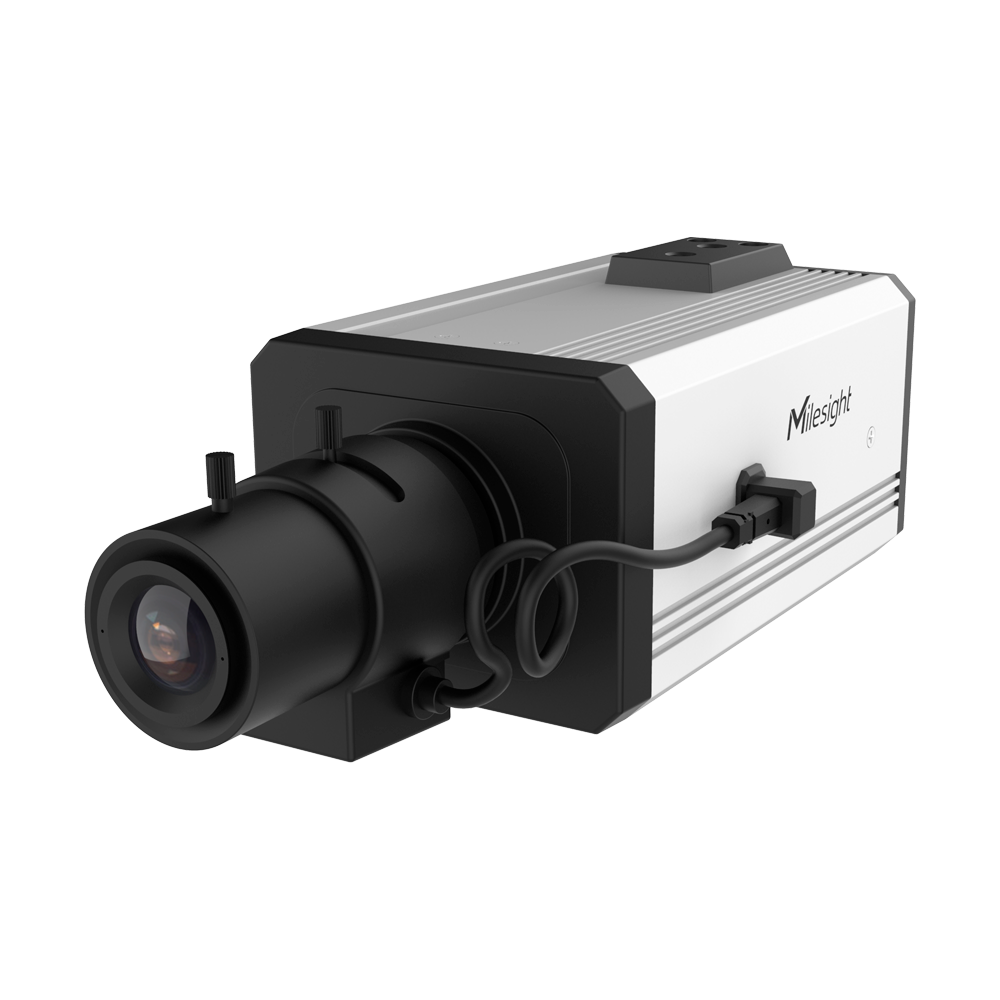

MS-C5352-PE
Ga direct naar de productinformatie
MS-C5352-PE
- IP Camera 5 Mpx AI Box
- 1/2.8" Progressive Scan CMOS
- C/CS mount (Lens not included)
- Human and vehicle detection
- Face capture and people counting
- NDAA
- Milesight
- AI Pro Box Plus IP Camera
- 1/2.8" Progressive Scan CMOS
- 5 Megapixel (2592x1944)
- C/CS mount
- Minimum illumination 0.002Lux@F1.2, 0.001 Lux B/W
- Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
- Audio
- Alarms
- PoE IEEE802.3af
- Super WDR (140dB)
- Slot for MicroSD card up to 1TB
- VCA 2.0
- Artificial intelligence with human and vehicle detection
- Face Capture
- People count
- Heat Map
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- NDAA
Specifications
| Brand | MILESIGHT |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 5 Megapixel (2592x1944) |
| Main Stream rate | 60Hz: 30fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720) |
| Extra Stream rate | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Rate 3rd Stream | 60Hz: 30fps@(2048x1536, 1920x1080, 1600x1200, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(2048x1536, 1920x1080, 1600x1200, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Bitrate | 16 Kbps ~ 16 Mbps (CBR / VBR Adjustable) |
| Lens mount | C/CS |
| Iris | P-Iris/DC-Iris |
| IRIS Control | Manual |
| Minimum illumination | Colour: 0.002Lux@F1.2 B/W: 0.001 Lux@F1.2 |
| Day / Night | Day / Night / Auto / Customizable / Programmable |
| Image improvements | Super WDR PRO (140 dB), BLC, HLC, 2D DNR, 3D DNR, Defog Function, AWB, EIS, IP Address Filtering, AGC, Anti Flicker, Corridor Mode, Watermarking |
| ROI | Up to 8 Areas |
| Intelligent Analysis | VCA 2.0: Motion Detection, Line Crossing, Loitering Detection, Region Entry, Region Exit, Object Left, Object Removed |
| Face detection | Real-time face detection and capture Attributes include age, gender, glasses, mask and cap Supports facial privacy mode, faces detected in the detection area will be pixelated automatically. |
| People Counting & Reporting | People counting at entrances and exits. Supports up to 4 people counting regions |
| Heat Map | Support |
| Trigger Event | Motion Detection, Exceptions, Alarm Inputs |
| Event Action | Upload Image to FTP, SMTP, MicroSD Card, Enable Alarm Output, SIP Phone, HTTP Notification |
| Communication Interface | Ethernet Port 1xRJ45 10M/100M |
| Internal memory | MicroSD Card, Max 1TB |
| Alarms | 1/1 |
| Audio | 1/1 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Bit Rate | 16~256Kbps |
| SIP/VoIP | Support. Voice and Video over IP |
| Remote access | Web Browser, Smartphone App, Milesight Central Management System Software and Milesight Enterprise Software |
| Interoperability | ONVIF (G/Q/S/T Profile) |
| Power | DC 12 V / MAX 7.5W(con IR ON), PoE IEEE802.3af |
| Degree of protection | Waterproof IP67, Anti-vandal IK10 |
| Temp. operation | -40º C ~ +60º C |
| Dimensions | 75 (W) X 66 (H) X 130 (D) mm |
| Weight | 366 g |
| NDAA | Support |
In the box
- IP camera
- Installation material
- Template for easy installation
