MS-C4583-PD
Ga direct naar de productinformatie
MS-C4583-PD

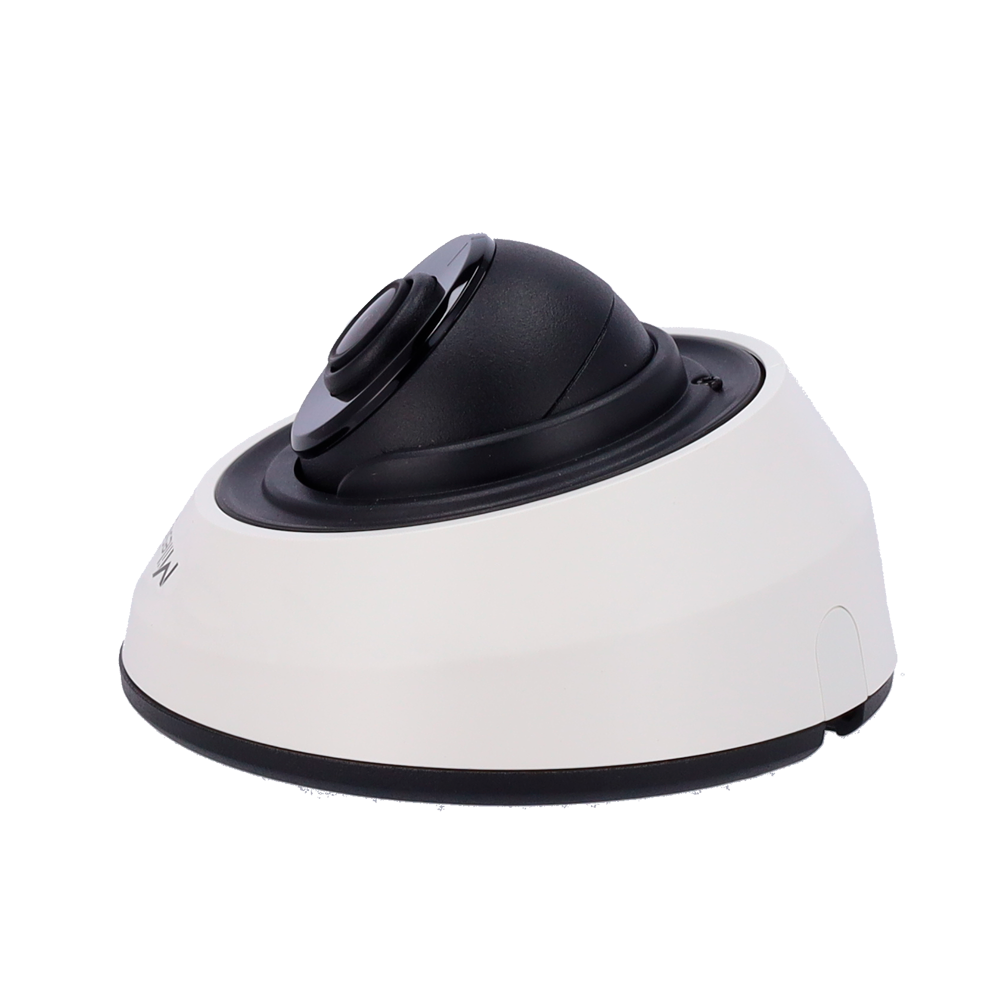

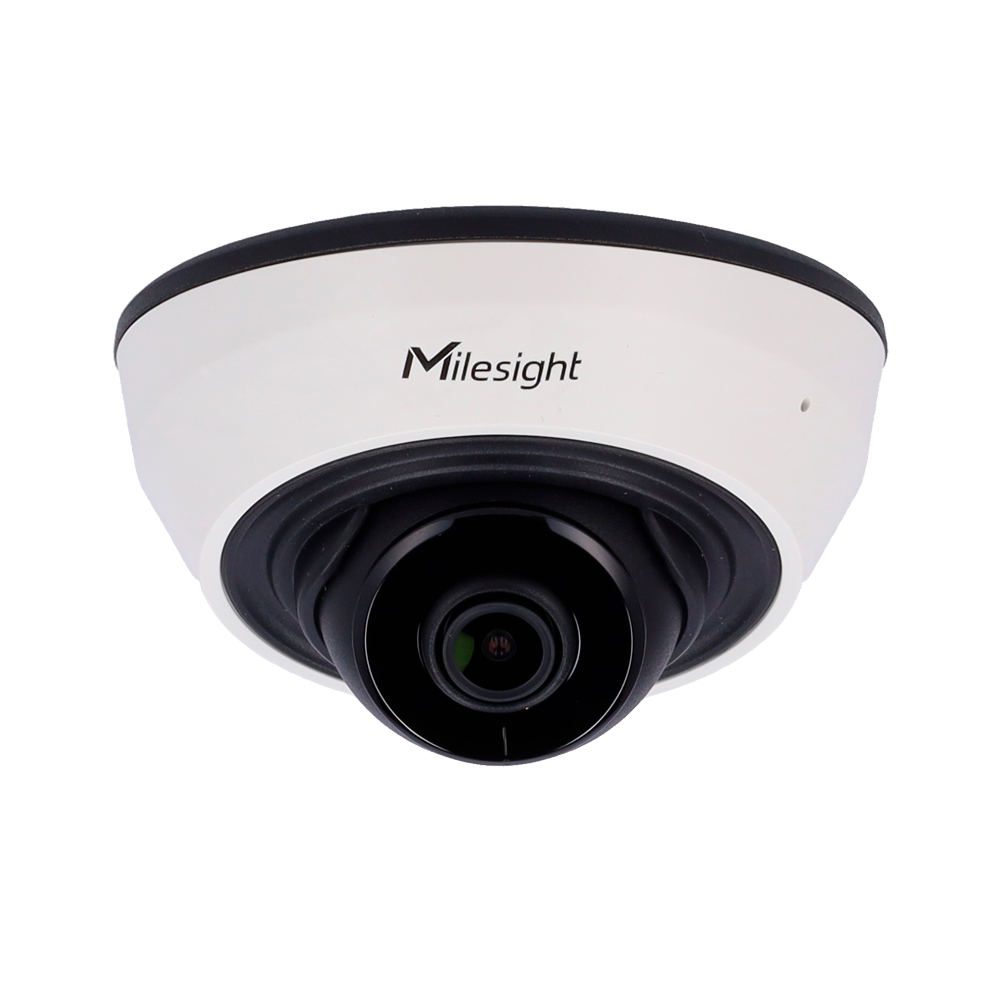

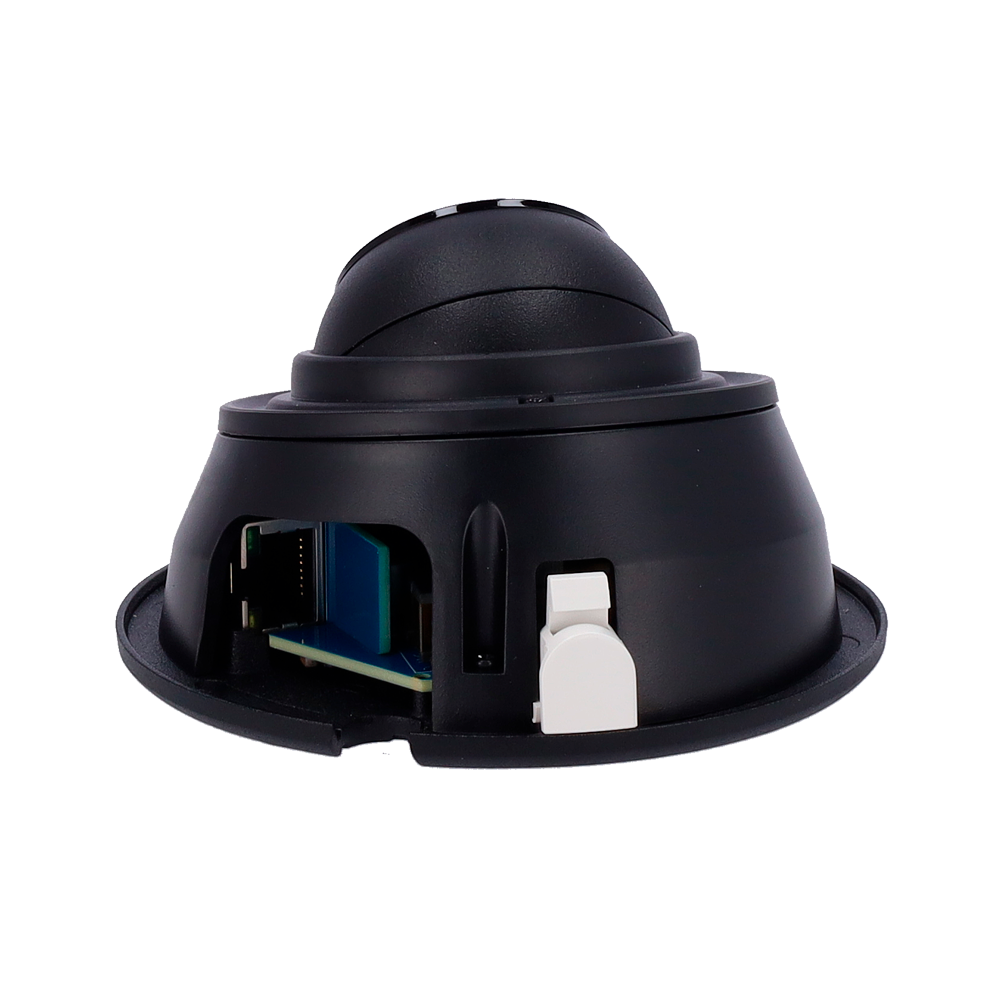

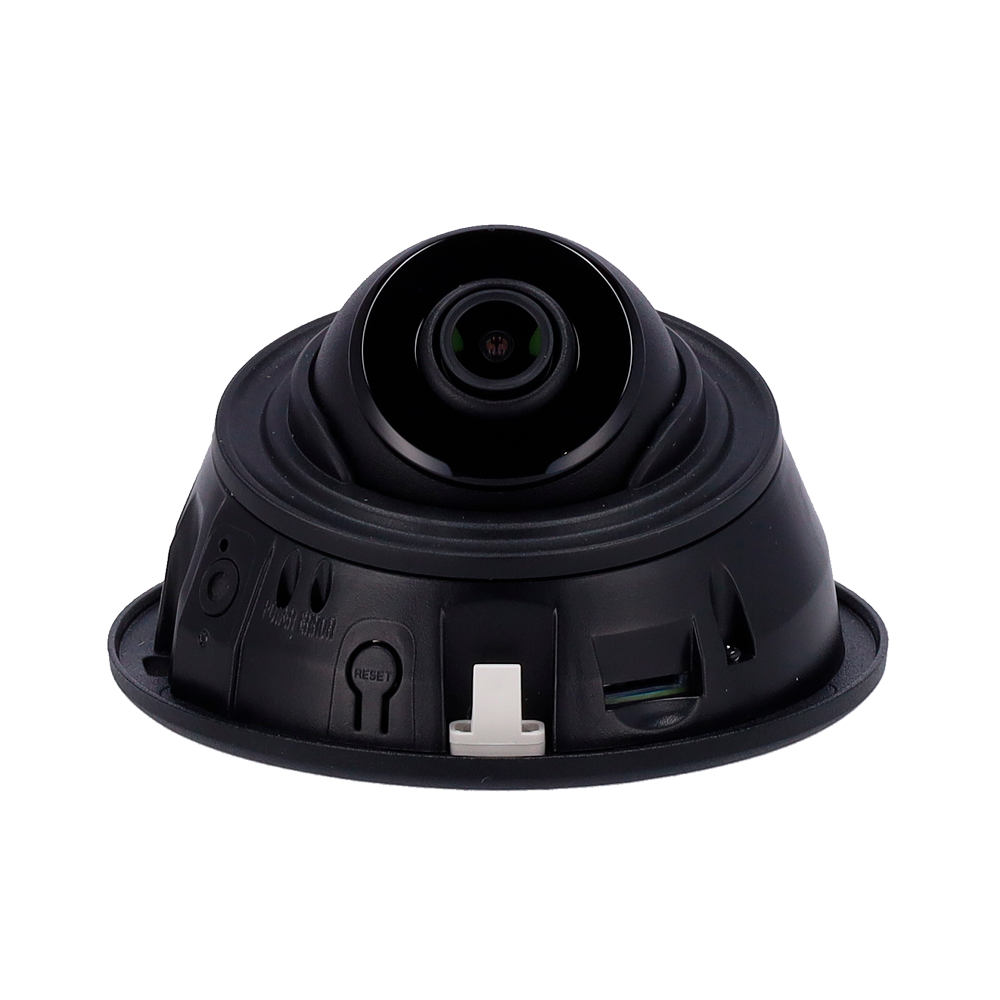

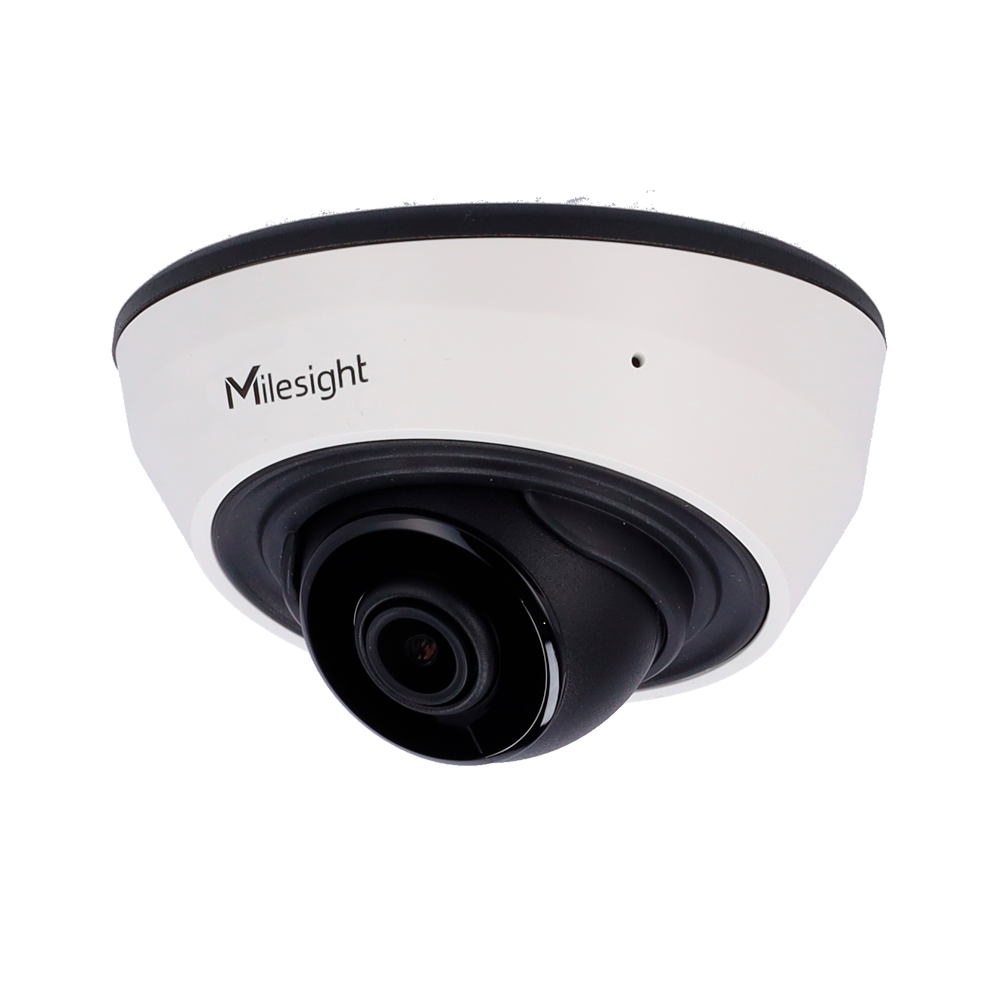

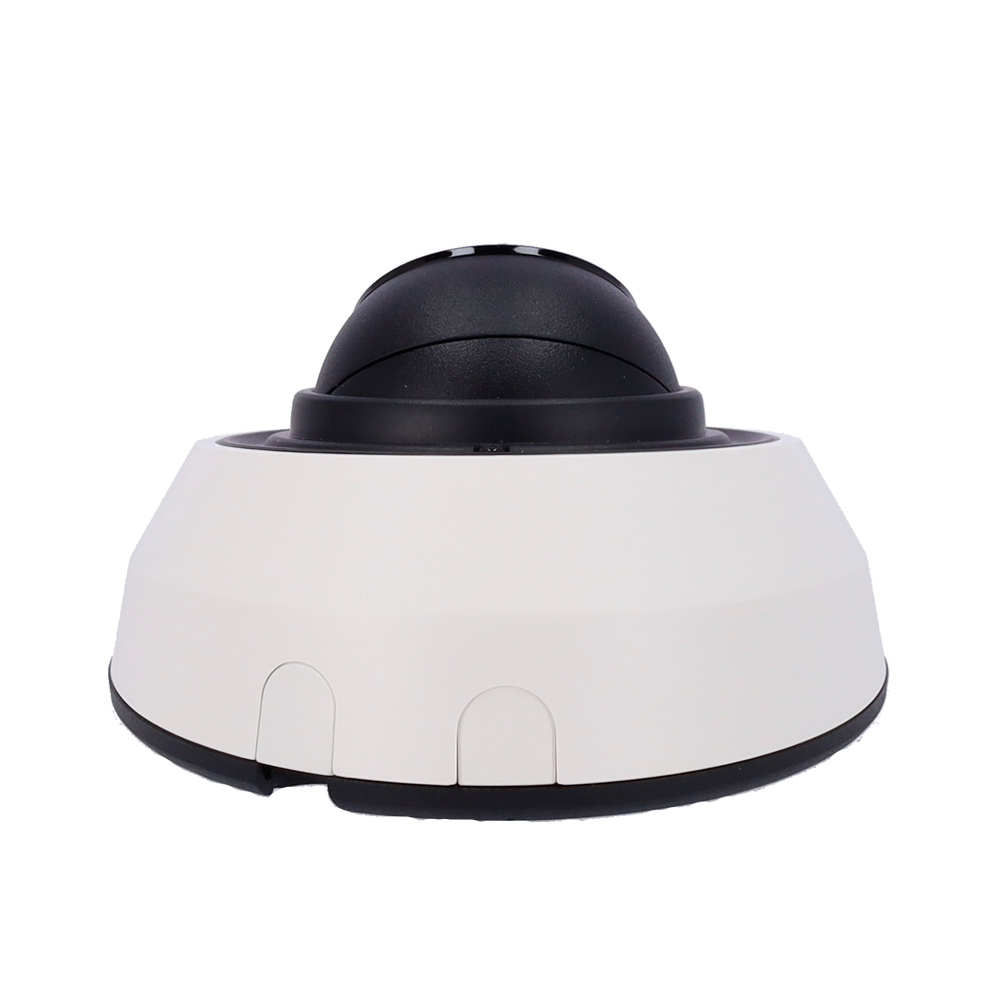

- Turret AI IR IP Camera
- Resolution 4Mpx
- 1/2.8" CMOS lens 2.8mm
- IR 20m | ONVIF | WDR 120dB
- Human- and vehicle-based AI video analysis
- NDAA : Integrated Microphone
- Milesight
- Turret AI IR IP Camera
- 1/2.8" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- Lens of 2.8mm
- Minimum illumination 0.005Lux@F1.6 (color) | 0 Lux
- IR Range 20m
- Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
- PoE IEEE802.3af
- Super WDR (120dB)
- Integrated microphone
- MicroSD/SDHC/SDXC card slot up to 1TB
- AI video analysis in/out of area, advanced motion detection, line crossing, loitering, abandoned object, object removed
- Counting people with reports
- Web, VMS/CMS, smartphone and NVR interface
- ONVIF profile G/S/T and API
- NDAA
Specifications
| Brand | Milesight |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Lens | 2.8mm |
| FOV | H106° / D124° / V58° |
| Main Stream rate | 60Hz: 30fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 25fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) |
| Extra Stream rate | 60Hz: 30fps@(1280x720, 704x576, 640x480) 50Hz: 25fps@(1280x720, 704x576, 640x4 |
| Rate 3rd Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480) 50Hz: 25fps@(1280x720, 704x576, 640x48 |
| Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Bitrate | 16 Kbps ~ 16 Mbps (CBR / VBR Adjustable) |
| Minimum illumination | Colour: 0.05 Lux@F1.6 B/W: 0 Lux with IR ON |
| Infrared Light | 20m. |
| Day / Night | Day / Night / Auto / Customizable / Programmable |
| Advanced features | Super WDR PRO (120 dB), BLC, HLC, 2D DNR, 3D DNR, defog, AWB, IP address filtering, AGC, anti-flicker, corridor mode, debur |
| ROI | Up to 8 Areas |
| Intelligent Analysis | Advanced motion detection, line crossing, loitering detection, region entry, region exit, object left, object removed |
| People counting and reporting | Counting of people entering and exiting |
| Trigger Event | Motion Detection, Exceptions, Alarm Inputs |
| Event Action | Upload Image to FTP, SMTP, MicroSD card, enable alarm output, SIP call, HTTP notification |
| Communication Interface | Ethernet Port 1*RJ45 10M/100M |
| Internal memory | MicroSD Card, Max 1TB |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Bit Rate | 16~256Kbps |
| SIP/VoIP | Yes. Voice and video over IP |
| Remote access | Web browser, smartphone App and software Milesight Central Management System, Milesight VMS Enterprise |
| Interoperability | ONVIF (G/S/T Profile) |
| Power | DC12V / Max 5W (with IR ON), PoE IEEE802.3af |
| Degree of protection | Weatherproof IP67 |
| Temp. operation | -40ºC~+60ºC |
| Dimensions | 97.8mm. (Ø) X 57.9mm. |
| Weight | 200 g |
In the box
- Turret AI IR IP Camera
- Installation material
- Template for easy installation
