MINI-PC-ZEN3-6CORE-V5
Ga direct naar de productinformatie
MINI-PC-ZEN3-6CORE-V5
- Mini PC without operating system
- AMD Ryzen CPU 5 5500U
- Radeon GPU 7Core
- RAM 16GB + ROM 500GB SSD | HDD Slot
- WiFi 6, Bluetooth 5.2 and RJ45 10/100/1000M
- HDMI 2.0 4K and USB 3.2 Gen2
- Mini PC
- No operating system, suitable for Windows or Linux installation
- CPU: AMD Ryzen 5 5500U
- GPU: Radeon 7Core
- RAM: 16GB
- ROM: 500GB M.2 NVME SSD
- WiFi 6 IEEE 802.11a/b/g/n/ac/ax
- Bluetooth 5.2
- RJ45 10/100/1000M
- Video output HDMI 2.0 up to 4K
- Audio jack connector 3.5
- Interface for USB 3.2 Gen2 and USB-C
- SATA HDD SATA hard disk slot 2.5"
Specifications
| Model | MINI-PC-ZEN3-6CORE-V5 |
| CPU | AMD Ryzen 5 5500U (2.1-4.0GHz, 6C/12T), L2-3MB, L3-8MB |
| GPU | Radeon 7Core 1800MHz |
| Memory (RAM) | 16GB SO-DIMM DDR4 3200Mhz (expandable up to a maximum of 64GB)) |
| Internal storage (ROM) | 500GB M.2 NVME SSD 2280 (expandable up to a maximum of 2TB)) Additional slot for SATA HDD 2.5" hard disk drive |
| Communication | WiFi 6 IEEE 802.11a/b/g/n/ac/ax Bluetooth 5.2 RJ45 10/100/1000M |
| Audio | Microphone input/audio output 3.5 mm Jack |
| Video output | 1 x HDMI 2.0 (Type A) Supports up to 4K @ 60 FPS, 1 x DP 1.4 (Display Port) Supports up to 4K @ 60 FPS |
| USB | 3 x UBS 3.2 Gen2, 1 x USB 2.0, 1 x USB 3.0 Type C |
| Supported Operating Systems | Windows and Linux |
| Power | DC 19 V / 3.49 A max. |
| Dimensions | 126 (W) x 43 (H) x 114 (D) mm |
| Weight | 280 g |

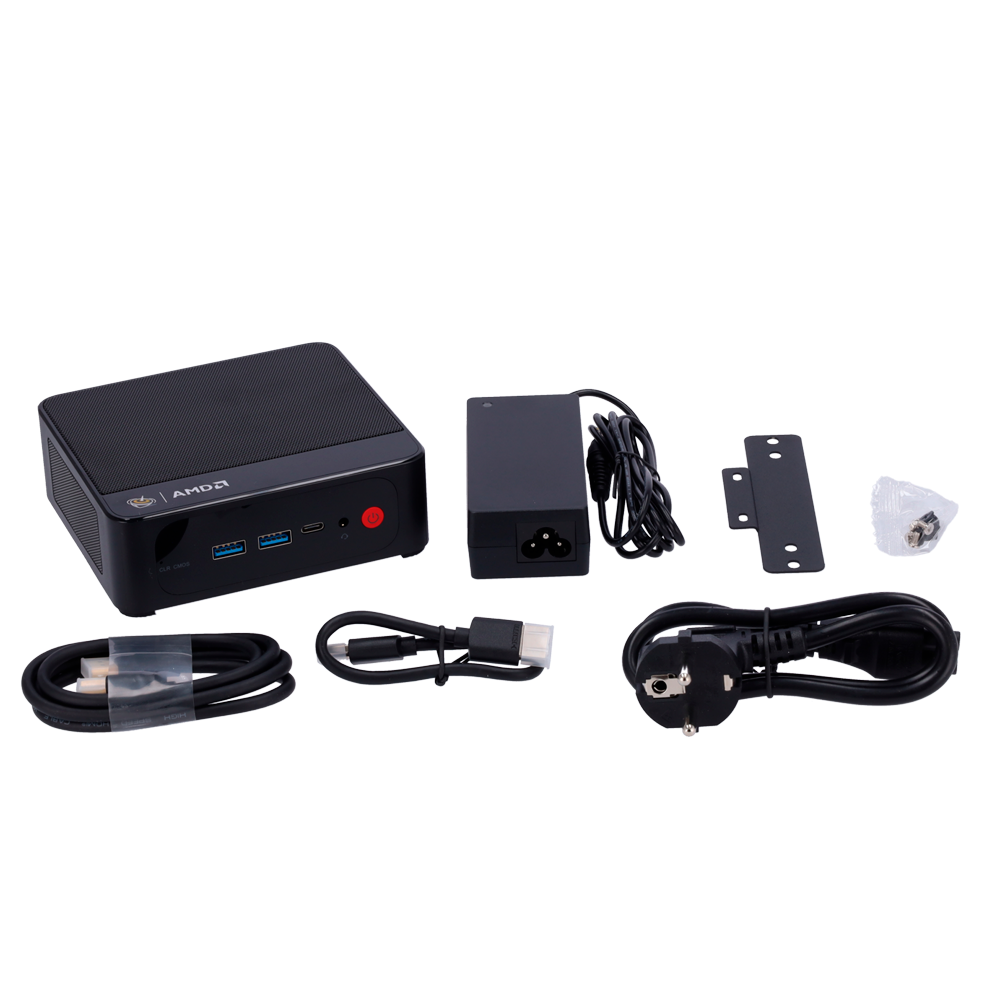

In the box
- Mini PC
- VESA Bracket
- 2 x HDMI Cable
- Power adapter
- User manual
