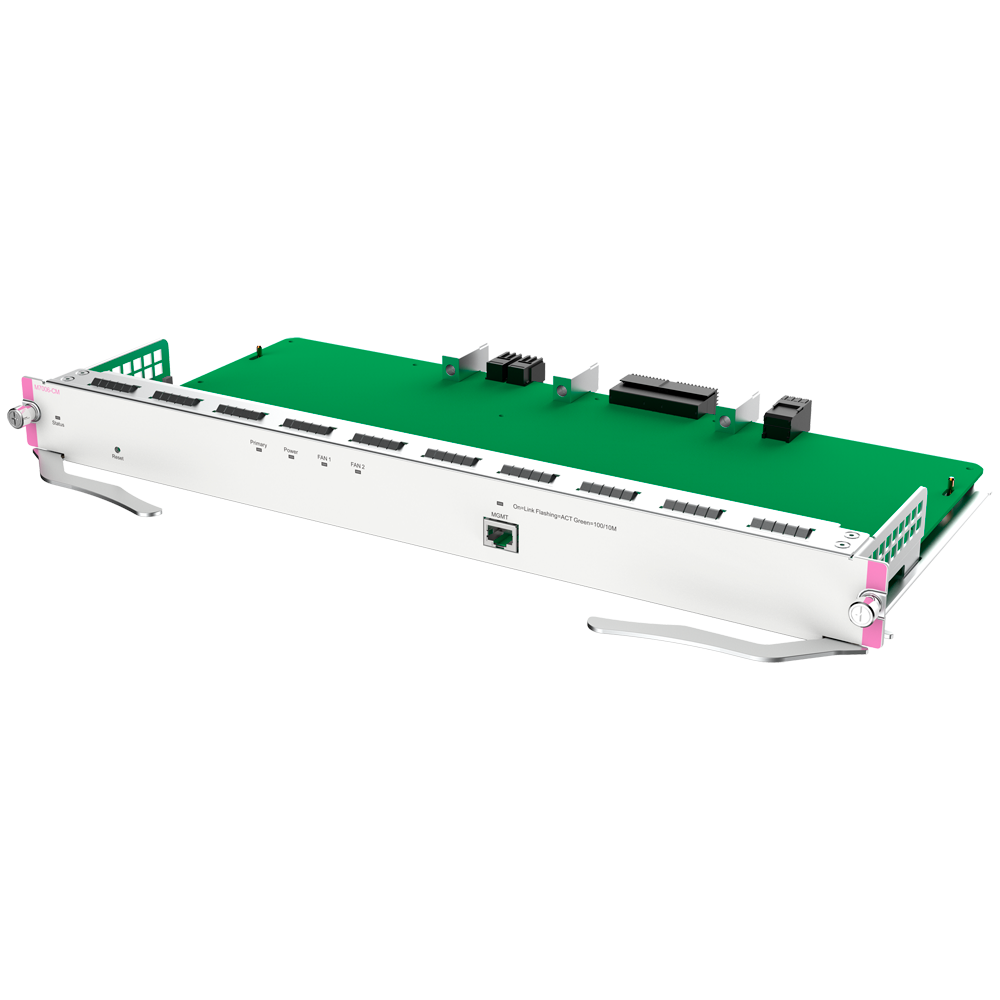

M7006-CM
Ga direct naar de productinformatie
M7006-CM
- Reyee
- Central control module for modular switch
- Compatible with RG-NBS7003 and RG-NBS7006
- 1x RJ45 (MGMT)
- Size 1U
The M7006-CM is the central control module of Ruijie modular switches, responsible for managing the overall operation of the chassis. Functions include system power on/off, line card management, fan and power supply control, as well as general switch status monitoring. In addition, it allows configuration and operation of 2 and 3, layer network functions such as routing, security, VLAN and QoS. It also offers remote access and centralized management through the Reyee cloud platform.
- Central control module for RG-NBS7003 and RG-NBS7006 modular switches
- 1 × RJ45 (MGMT port)
- Size 1U
Specifications
| Brand | Reyee |
| Device type | Central control module for modular switch RG-NBS7003 and RG-NBS7006 |
| Main functions | System startup/shutdown Line card management Control of fans and power supplies General switch status monitoring Layer functions 2/3 (routing, security, VLAN, QoS, etc.) Remote access in the cloud via Ruijie Cloud platform |
| Processor | Dual-core 1.0 GHz |
| Ram Memory | 1 GB DDRIII |
| Flash memory | 256 MB |
| Surge protection | Up to 6 kV (common and differential mode) |
| Energy consumption | ≤ 30 W |
| Operating temperature | 0 °C to 50 °C |
| Size | 1U |
