K408
Ga direct naar de productinformatie
K408
- Hochiki
- Power supply
- 24 V DC (Regulated)
- Latitude
- 10.25A

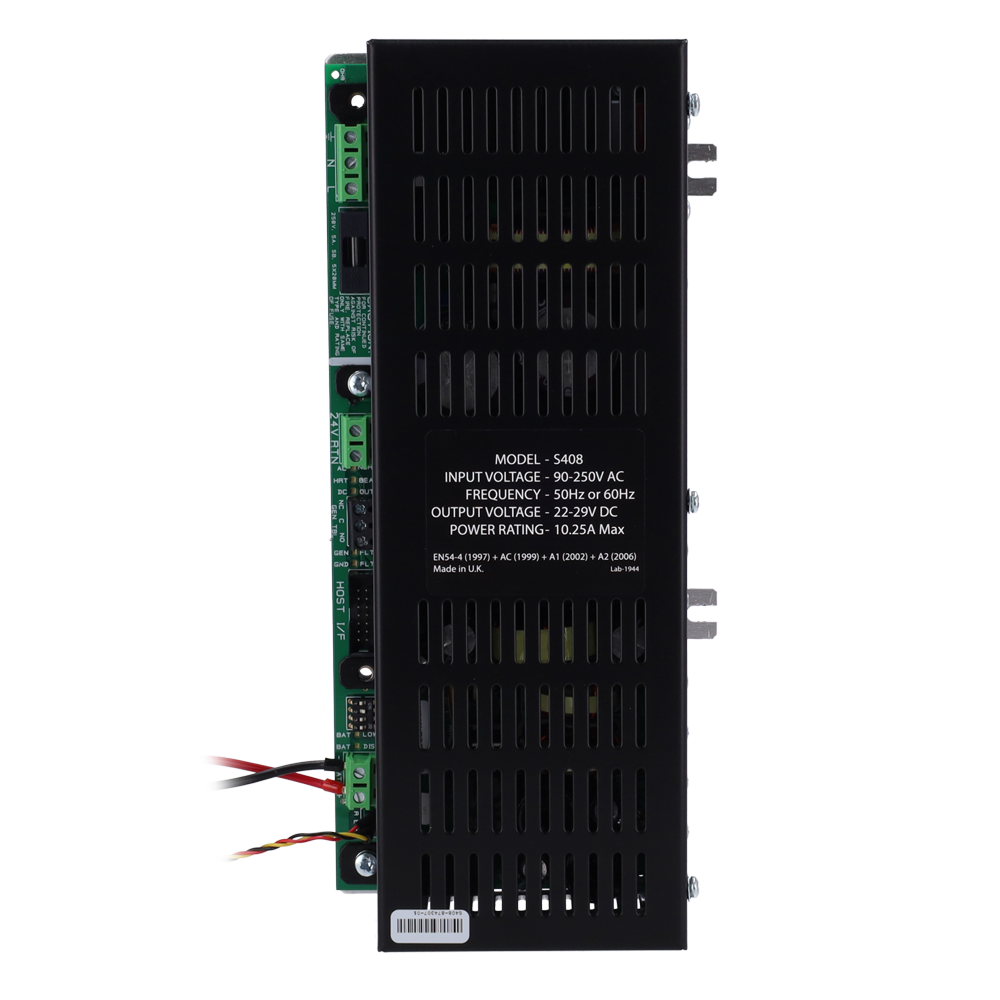

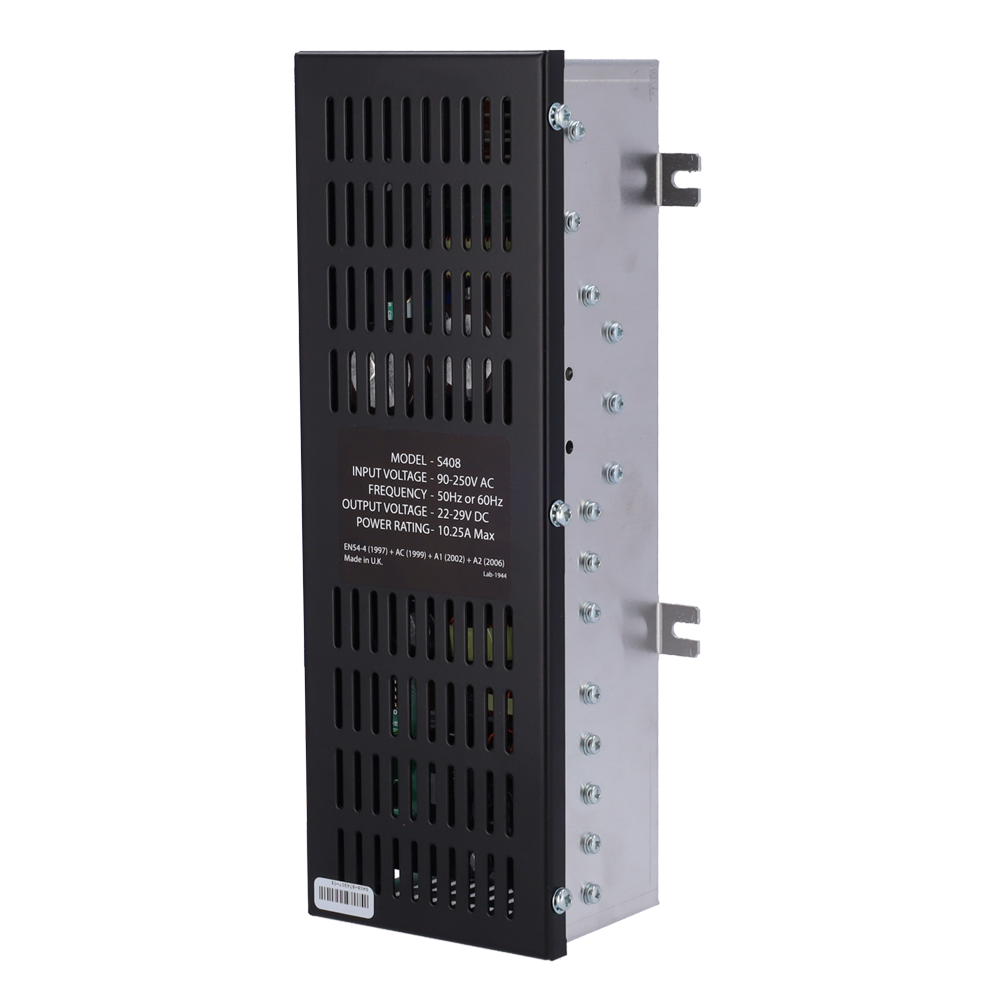

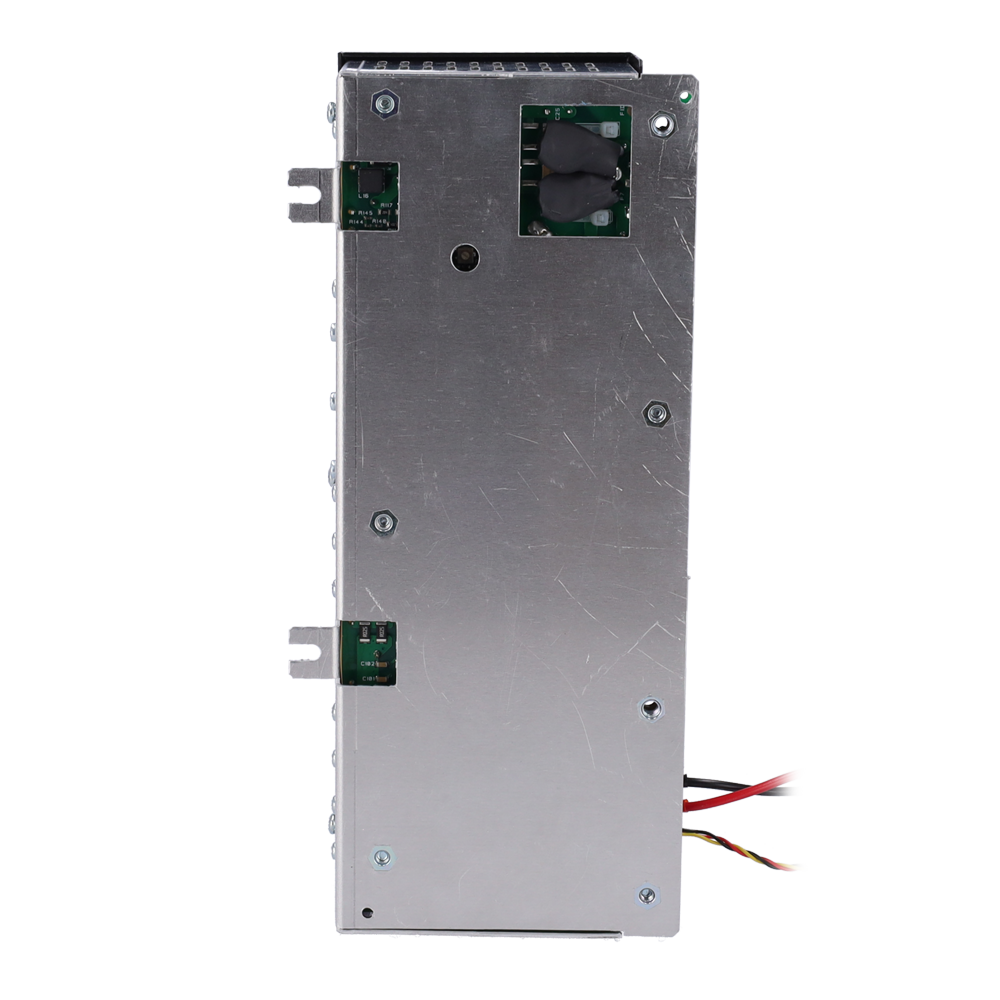

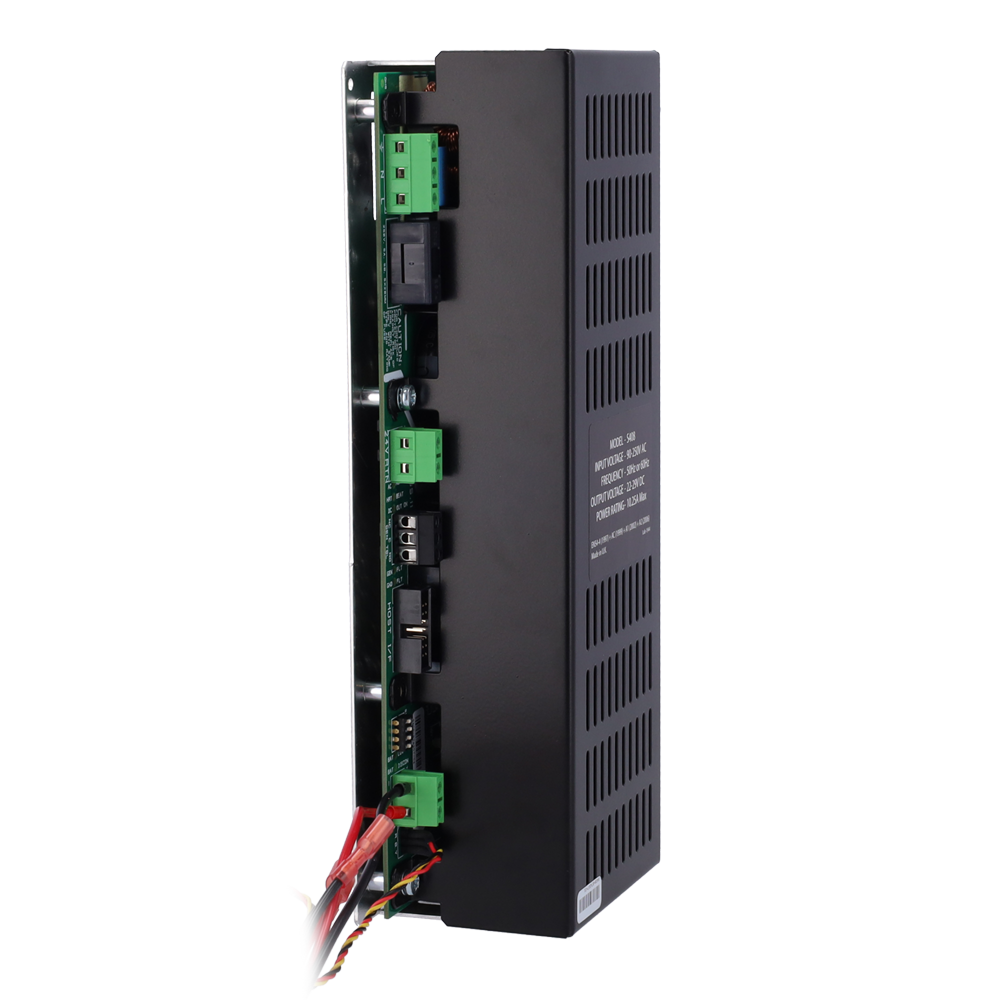

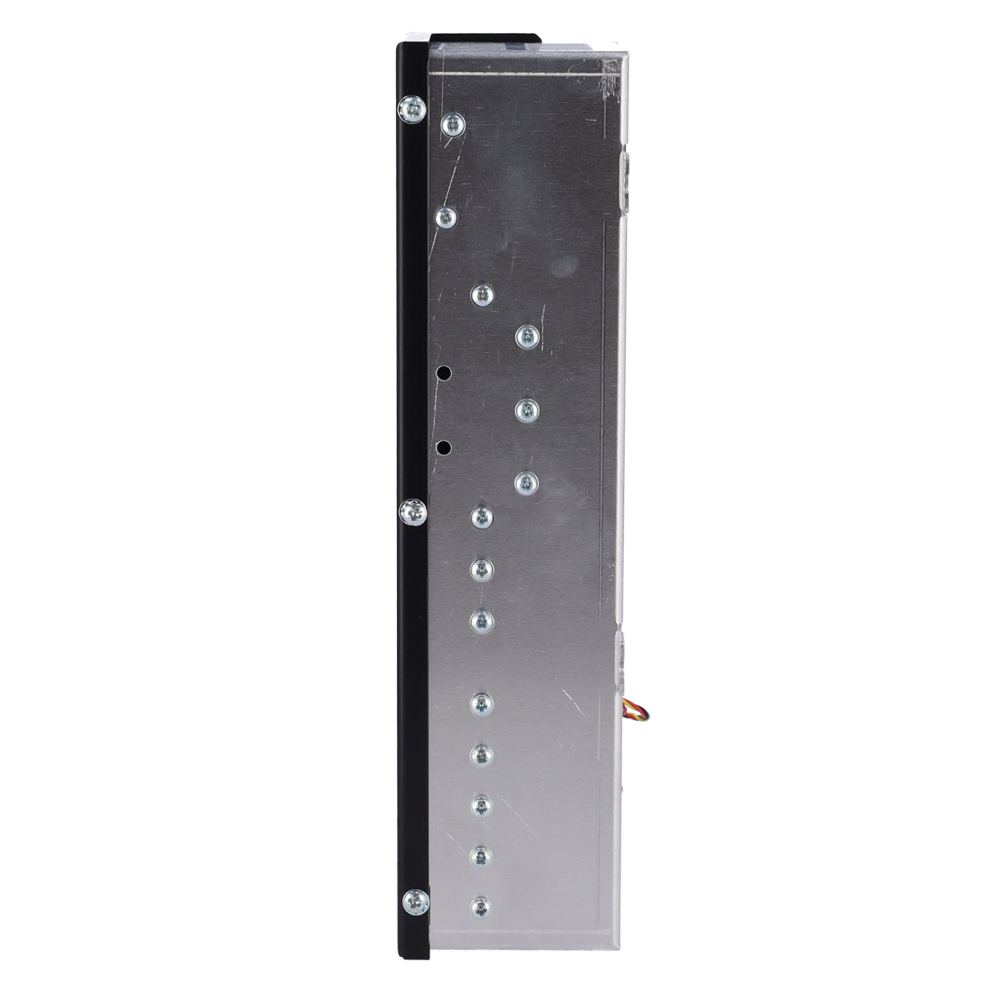

K408 is a high-capacity (10.25A) switching power supply designed exclusively for the Latitude fire control platform. This module intelligently manages battery charging and power distribution to the panel and peripheral devices, ensuring uninterrupted service even during conditions of maximum audible and visual alarms.
- 10.25A capacity
- 24Vdc stabilized output
- Protections: Short circuit, overload, and thermal overload
- 230 Input value
- EN54-4
Specifications
| Input Voltage | 230 V AC (Nominal) |
| Output Voltage | 24 V DC (Regulated) |
| Total Current | 10.25 A |
| Battery Charging | Microprocessor-controlled (up to 2 x 45Ah) |
| Dimensions | 230 mm x 135 mm x 50 mm |
| Weight | 1.15 kg |
| Protections | Short circuit, overload, and thermal overload |
In the box
- 1 x Power Supply Module K408.
- Interconnect cabling
- Battery jumpers
- Installation Manual
- Hardware kit
