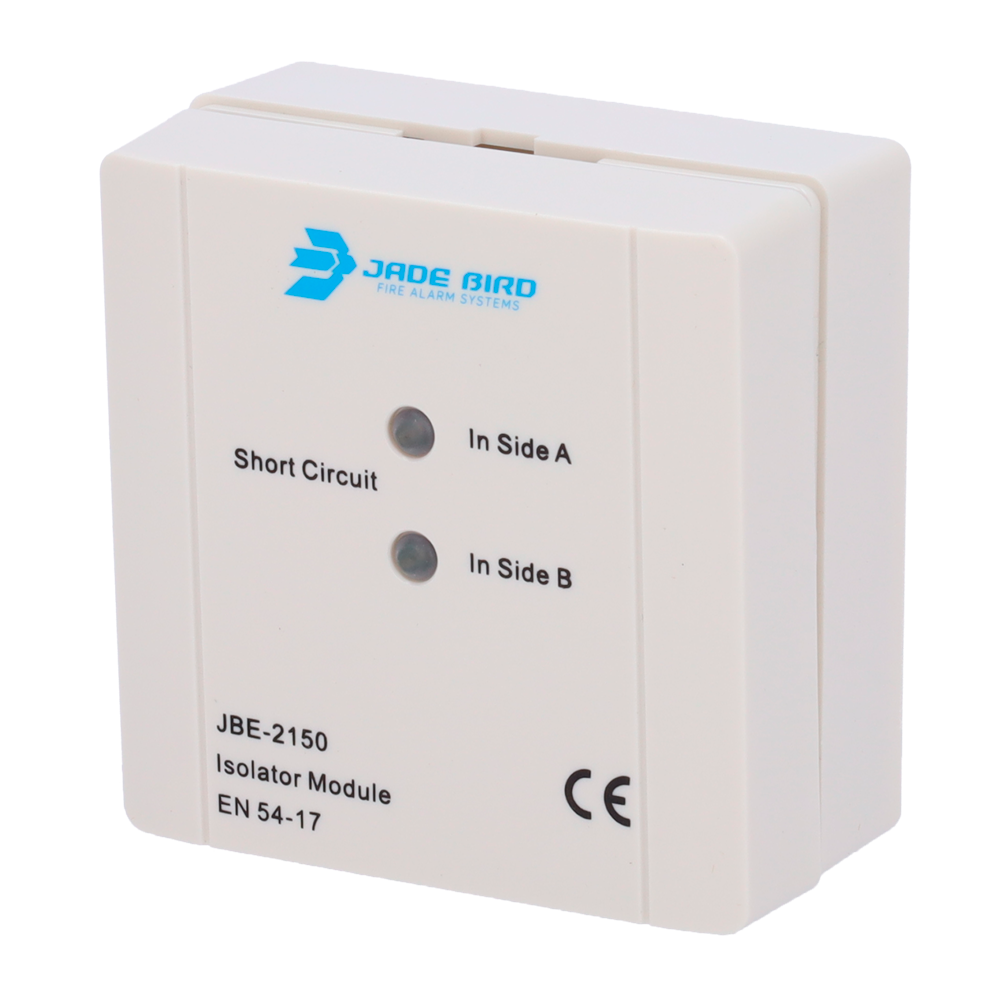

JBE-2150
- Jade Bird analog module
- Short-circuit insulator
- Powered by loop
- Conductor cable up to 2.5mm2
- Max 32 devices per segment
- Certified EN 54-17
- Jade Bird - Módulo aislador
- Provides circuit protection against short circuits or power failures
- Loop powered
- Front LED indicator
- Isolator modules do not occupy loop address and do not require programming
- Certified EN 54-17
Specifications
| Brand | Jade Bird |
| Type | Isolator |
| Operating voltage | DC 20 - 30 V |

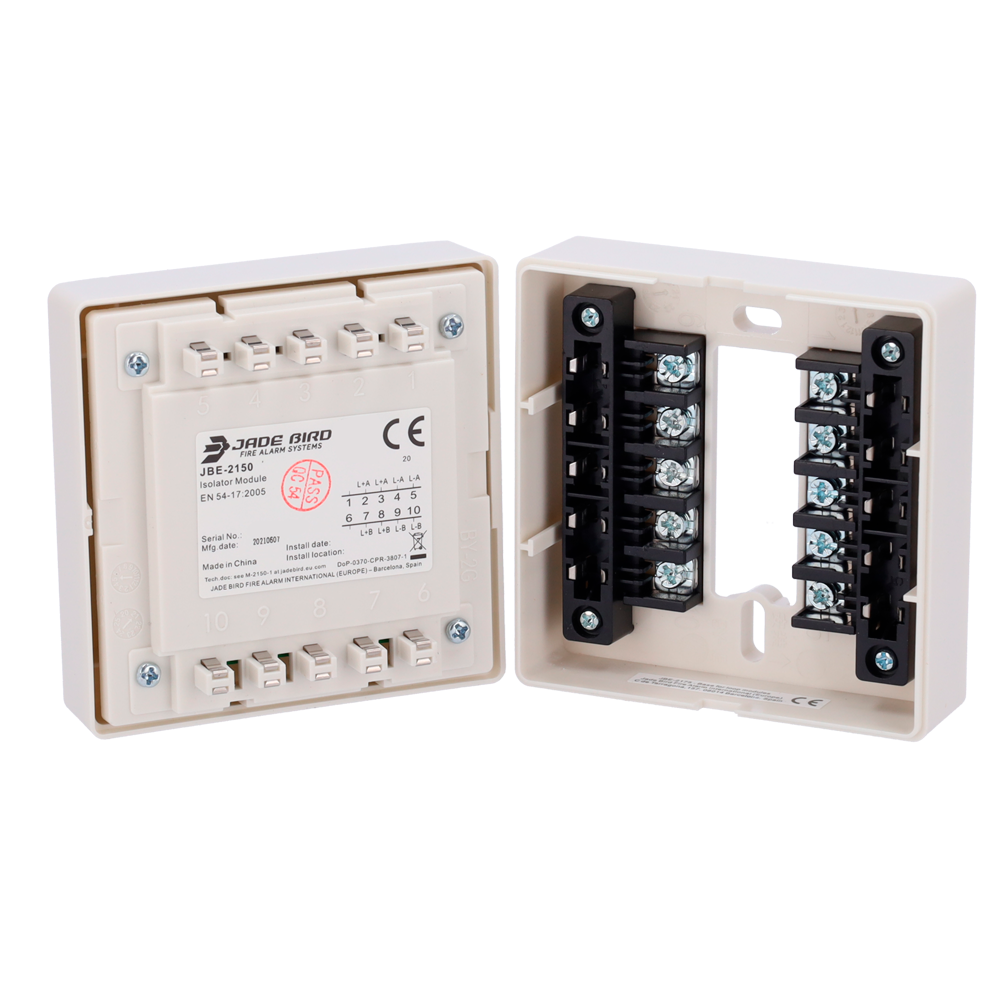

| Connection | JBE communication bus 2-hilos, without polarity |
| Wired | Twisted pair without braid 0.5 - 2.5 mm2 |
| Consumption in idle mode | so ≤ 0.25mA @27VDC |
| Active consumption | ≤ 15mA @27VDC |
| Maximum number of devices between insulators | 32 |
| Temp. of work | 0℃ ~ +40℃ |
| Temp. storage | -20℃ ~ +60℃ |
| Environment | ≤ 95% HR (40±2℃) (no condensation or icing) |

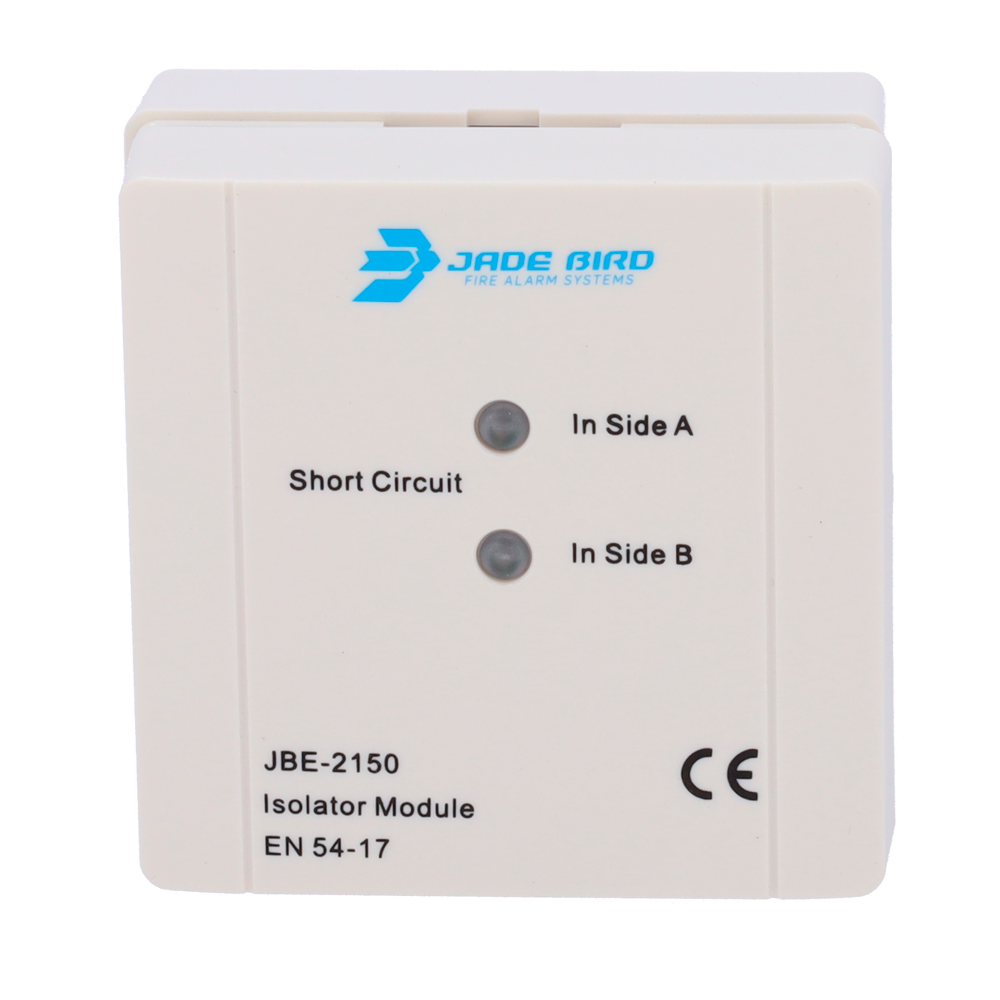

| Led indicator Orange (FAULT) | Rest: Both LEDs off A-side short circuit: Top LED on Short circuit B side: Lower LED on |
| Dimensions | 85×85x41 mm (length x width x height) |
| Weight | 0.1 kg (including base) |
| IP Rating | IP40 |

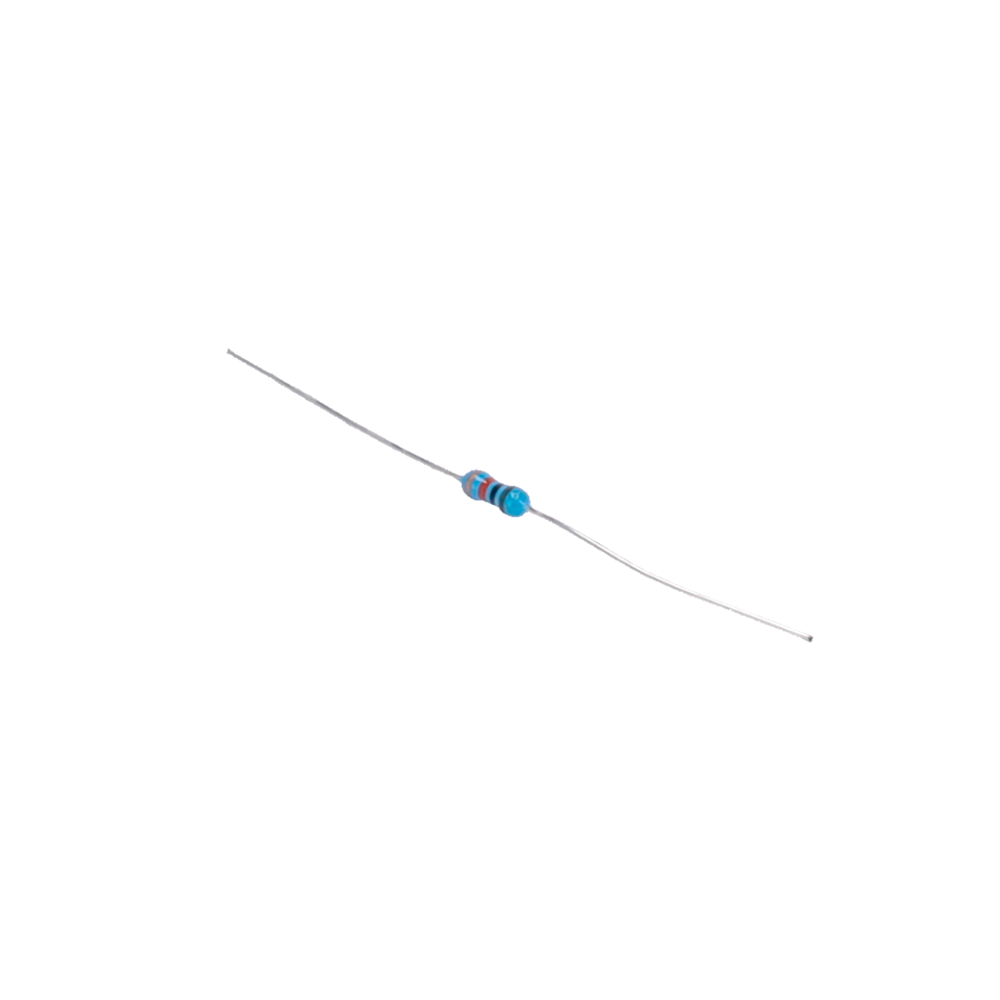

| Remote indicator | LED with or without series resistor (Rs <4 kOhm) |
| Certificado | EN 54-17:2005 EN 54-17:2005/AC:2007 |
In the box
- Módulo analógico
