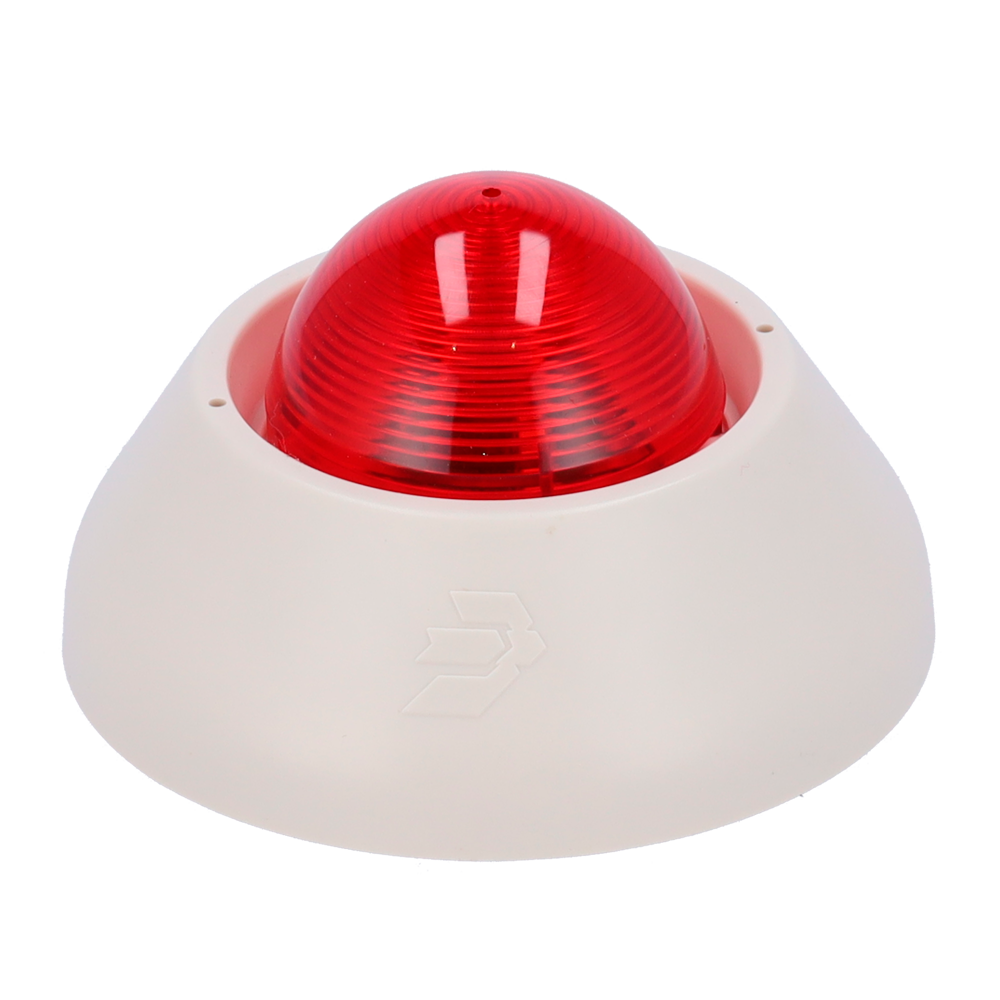

JBE-2145
- Jade Bird analog siren
- High power output 100 dB(A) @ 1m
- Requires auxiliary power supply of 24 VDC
- Base not included
- Indoor installation
- Certified EN 54-3
- Jade Bird - Sirena analógica con indicador visual
- High power output 100 dB(A) @ 1m
- Without isolator
- Address programmable by means of the JBE-AT1 tool
- Requires auxiliary power supply of 24 VDC
- Indoor installation
- Base not included
- Compatible with BE-2165 base
- Certified EN 54-3
Specifications
| Brand | Jade Bird |
| Type | High power siren |
| Operating voltage | DC 16 - 30 V |
| Connection | JBE communication bus 2-hilos, without polarity Power supply 24V DC to 2-hilos (required) |
| Wired | Twisted pair without mesh 0.5 - 2.5 mm² |
| JBE bus consumption Bus consumption 24V DC | ≤ 0.25 mA @24 V ≤ 50 mA @24 V; ≤ 1.2 W @24 V (active) |
| Sound pressure level | 100 dBA @1 m; 1-2 kHz Swept Tone (0.25 Hz) |
| Working temperature | -10℃ ~ +55℃ |
| Storage temperature | -20 to +60ºC |
| Environment | ≤ 95% RH (without condensation or ice formation) |
| Address | Addressing tool JBE-AT1 |
| Address range | 1-200 |
| Dimensions (ØxH) | Ø100 × 67 mm |
| Weight | 0.1 kg (including base) |
| Protection Grade | IP31 |
| Compatible base | JBE-2165 |
| Certified | EN 54-3:2001 EN 54-3:2001/A1:2002 EN 54-3:2001/A2:2006 |
In the box
- Jade Bird Siren
