INJ-POE-G-12W-24
Ga direct naar de productinformatie
INJ-POE-G-12W-24
- Passive PoE Injector
- Input/Output RJ45 10/100/1000 Mbps
- 24V 0,5A
- Maximum distance 100 m
- Suitable for Reyee radio links
- Stabilized and protected
- Passive PoE Injector
- Allows injecting data and power into a UTP cable to power passive PoE devices (24v 0.5A) remotely
- Maximum distance 100 metres
Specifications

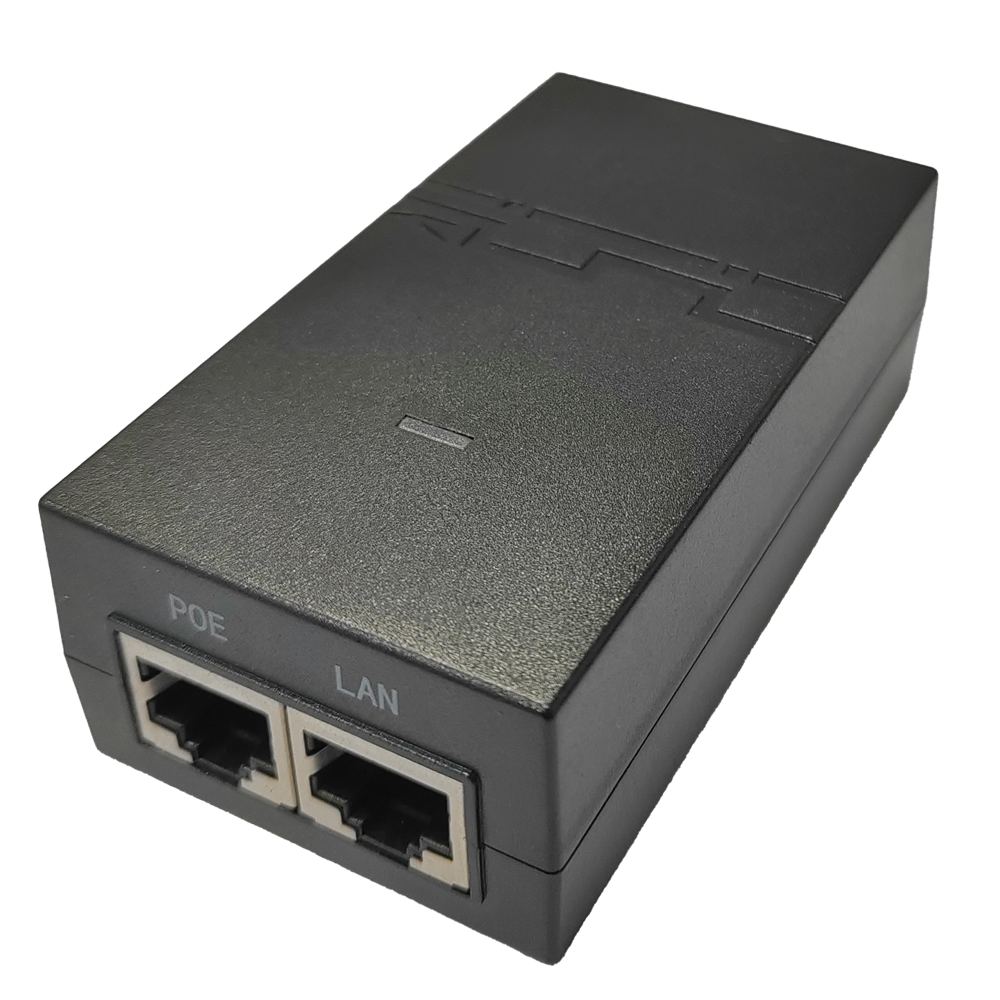

| Interface | Input / Output RJ45 of 10/100/1000Mbps |
| Use cases | Passive PoE power supply for Reyee radio links and other brands that can use passive PoE |
| Power supply | 24V 0,5A |
| PoE features | Passive PoE Pins 4-5 positive Pins 7-8 negative |
| Maximum range | 100 meters |
| Input power | AC100-240V, 50/60Hz |

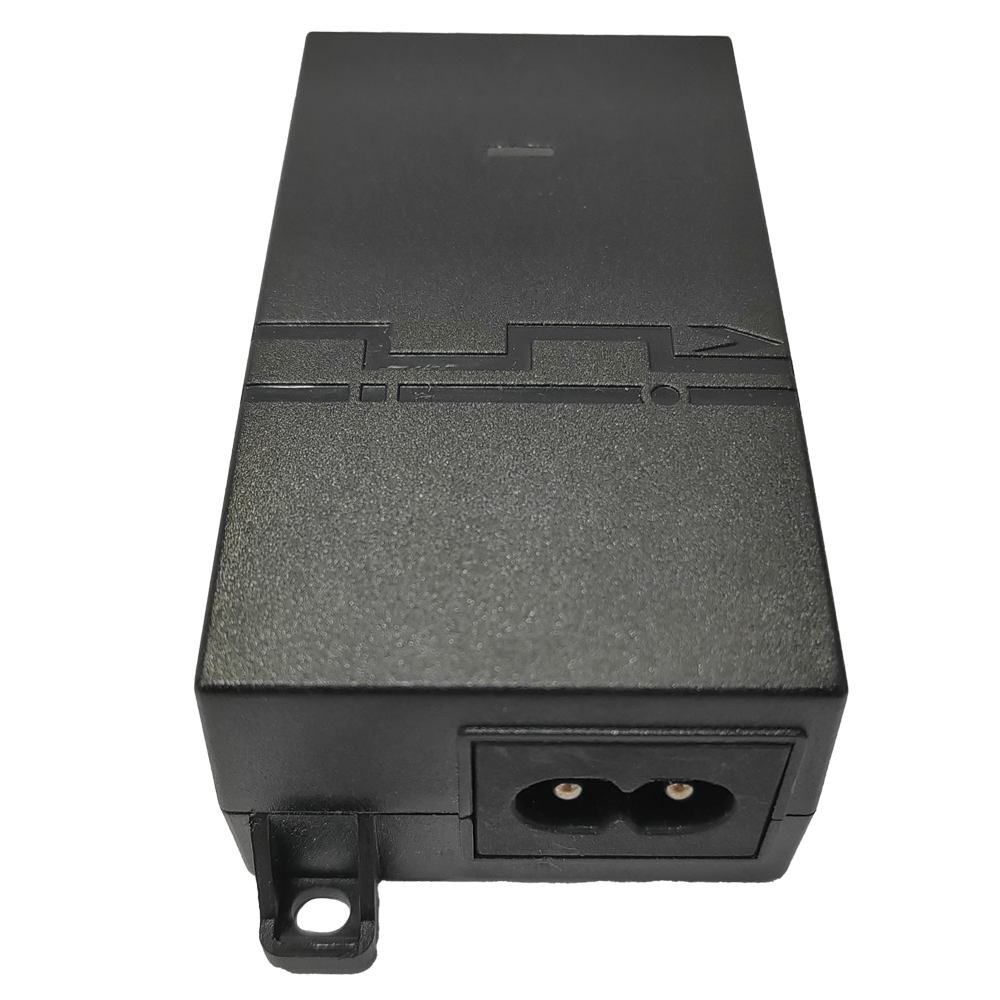

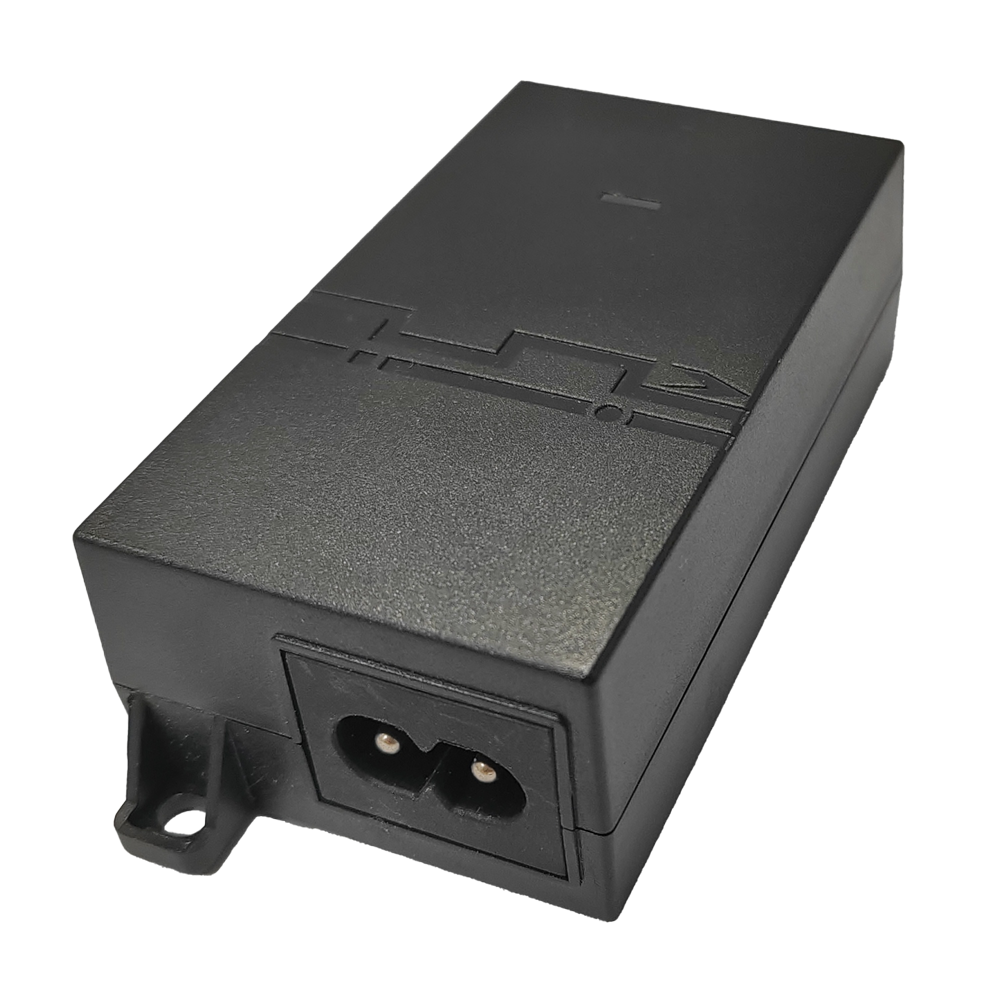

| Power supply connector | 2-polos type C8 |
| Operating temperature | 0º C ~ 40º C |
| Operating Humidity | 35 ~ 90 % (non-condensing) |
| Dimensions | 92.5 (D) x 29,8 (H) x 47 (W) mm |
| Weight | 0,1 Kg |
In the box
- Passive PoE Injector
- Quick installation guide
