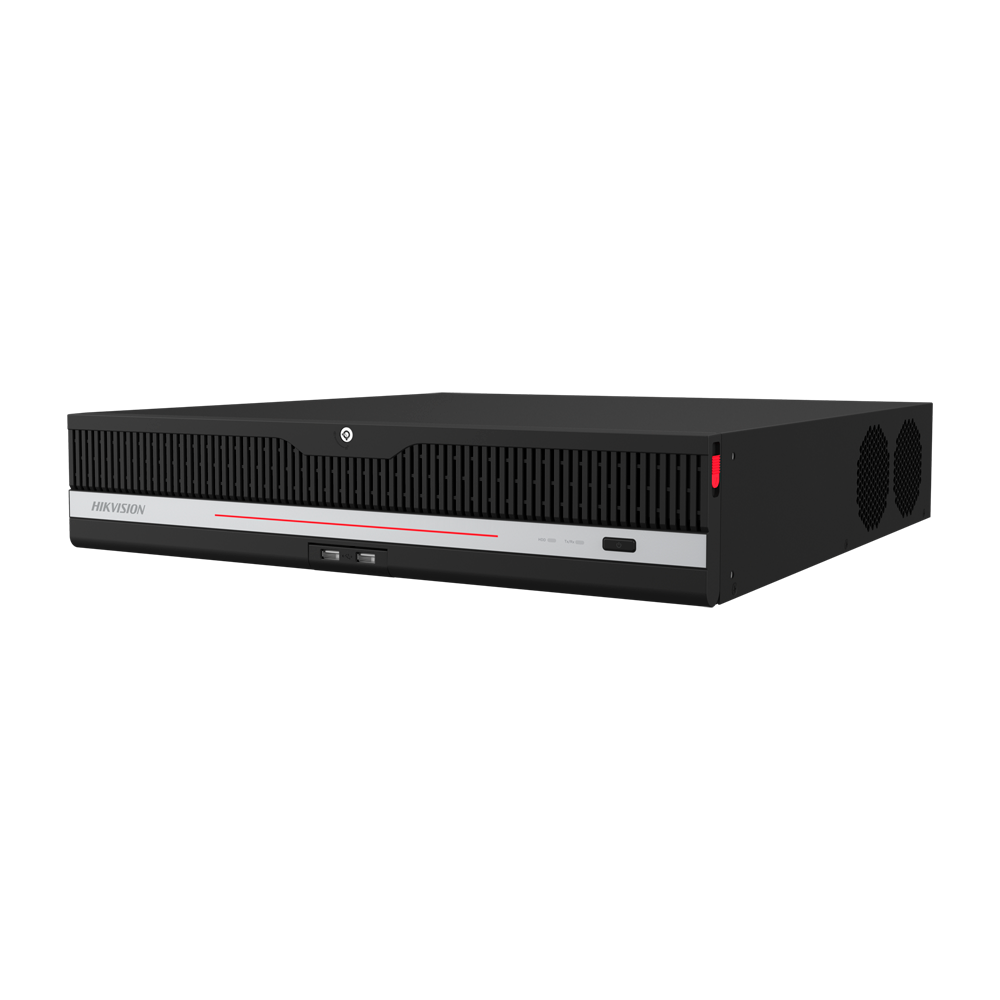

iDS-9632NXI-P8R
Ga direct naar de productinformatie
iDS-9632NXI-P8R
- Hikvision NVR Recorder 32CH range SOLUTIONS
- 32Mpix resolution
- AcuSeek, text-based search
- Resolution 32 Mpx | Alarms | AcuSense | 8 HDD
- Bandwidth 320 Mbps | Video Structure | RAID
- Motion detection 2.0 | Face Recognition
- Hikvision
- SOLUTIONS range
- DeepInMind NVR Recorder for IP cameras
- 32 CH
- Supported incoming bandwidth 320 Mbps
- Maximum resolution 32 Mpx
- Compression H.265+/H.265/H.264+/H.264
- HDMI output 8K, HDMI 4K and 2 x VGA
- Artificial intelligence based on large-scale algorithm Guanlan
- Motion detection 2.0
- AcuSense, false alarm filter for vehicles and people
- AcuSeek, text-based search in natural language
- AcuSearch, target image search on all channels
- Video Structure, feature analysis
- Facial recognition in up to 32 channels
- Storage of up to 100.000 face images
- Comparison by match level or by stranger
- ANPR, license plate recognition
- Alarms
- Audio
- RS-485
- RS-232
- RAID
- IP Dual Stream Access
- Mouse
- Space for 8 HDD
- WEB, CMS and Smartphone interface
- ONVIF Compatible
Specifications
| Brand | Hikvision |
| Range | SOLUTIONS |
| Inputs for IP cameras | LAN port up to 32 channels |
| IP compatible cameras | HIKVISION (native protocol), ONVIF |
| Bidirectional audio | 1 RCA input / 2 RCA output |
| Video outputs | 1xHDMI 4K, 1xHDMI 1080p, 2xVGA (simultaneous HDMI 4K and VGA 1, simultaneous HDMI 1080p and VGA 2) |
| Display resolution | HDMI 1: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz HDMI 2: 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz (When the HDMI output 1 is 8K, the maximum output by the HDMI 2 is 1080p) VGA 1: 1920x1080 VGA 2: 1920x1080 |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/MP2L2 |
| Total bandwidth | 320 Input Mbps / 400 Output Mbps |
| Stream Type | Video / Video + Audio |
| Main Stream recording | 32MP /24MP /12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding capacity | 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Motion Detection | Motion detection 2.0 with classification of humans and vehicles applied in motion detection Available in all channels. |
| Intelligent functions | The equipment has several operating modes: For NVR: AcuSense, Facial Recognition, Video Structure, AcuSearch, AcuSeek With cameras with this operating mode: AcuSense, Facial Recognition, Video Structure, AcuSearch, Motion Detection 2.0, ANPR, People Counting No more than 2 modes can be enabled at the same time. 1 GPU engine, for AcuSeek and OVD. 2 GPU engines, each engine can run an intelligent algorithm, the engine mode is adjustable, performance of each engine (choose 1 from 4): Facial recognition: video target capture from 8 (4 MP channels) or image comparison from 32 channels. Perimeter prevention: video analysis of 12 (2 MP channels) or image analysis of 32 channels Video structuring: structured video analysis of 8 channels (2 MP) AcuSearch: supports 16 (2 MP) channels per NVR Note: To enable AcuSeek, at least one engine must be enabled in AcuSearch mode. |
| AcuSense | With the NVR: Perimeter protection with large-scale Guanlan algorithm: 12 channels of 2 MP, 8 channels of 4 MP or 4 channels of 8 MP. (1 GPU engine for live video analysis, 1 GPU engine for secondary analysis with large-scale algorithm, capable of performing secondary analysis of 2 events/s). Perimeter protection without large model: 24 channels of 2 MP, 16 channels of 4 MP or 8 channels of 8 MP. With AcuSense cameras: Perimeter protection with large-scale algorithm and AcuSense cameras: all channels |
| Facial recognition | Facial image comparison, human face capture, facial image search. Storage 32 Libraries with up to 100.000 faces in list library. In images captured by the NVR: Up to 16CH (2 MP-8 ch/4 MP-8 ch/8 MP-4 ch for each engine) In images captured by cameras: 32 channels (32 channels for each engine); Comparison speed: 32 frames per second. |
| Video Structure | Characteristic analysis up to: 16CH with a maximum resolution of 2 Mpx. 12CH with a maximum resolution of 4 Mpx. 6CH with a maximum resolution of 8 Mpx. |
| AcuSearch | Video search from target images. Several targets can be detected at the same time in the image and the target to be searched for can be selected. Access to normal IP cameras up to 16 2 MP/8 channels of 4 MP/4 channels of 8 [%VAR%] MP channels to achieve AcuSearch. (1 GPU engine for target capture, 1 GPU engine for AcuSearch modeling). If the cameras support AcuSense technology and have AcuSearch enabled, the NVR supports AcuSearch on all channels and is capable of modeling 600 000 targets per day. |
| AcuSeek | Searching through large amounts of video recordings using natural language text descriptions. The NVR supports normal 16 IP camera access from 2 MP channels, 8 4 4 MP channels and 8 [%VAR%] MP channels to achieve AcuSeek. (1 GPU engine for target capture, 1 GPU engine for AcuSearch modeling and 1 GPU engine for AcuSeek modeling). If the cameras support Hikvision AcuSense technology and have the AcuSearch feature enabled, the NVR supports AcuSeek on all channels, with the ability to model 600.000 targets up to date. |
| ANPR | License plate recognition: license plate number, color of license plate, type of license plate. Vehicle attribute recognition: vehicle brand, color of vehicle, type of vehicle. Available on all channels with ANPR-enabled cameras. |
| Alarms | 16 inputs / 9 relay |
| Recording method | Manual, programmed, motion detection |
| External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote connections | 128 |
| Internal memory | 8 HDD SATA 3.5" of up to 20 TB each (not included) |
| RAID | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Communication | 2 x USB 2.0 front, 1 x USB 3.0 rear side / 2 x RJ45 10/100M (Ethernet) / 1 x RS-485 / 1 x RS-232 / 1 x e SATA |
| Power | AC 100~240 V, ≤ 50 W (without HDD) |
| Power supply output | DC 12 V, 1 A |
| Operating temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions | 88 (H) x 442 (W) x 540 (D) mm |
| Weight | ≤ 8 kg (without HDD) |
In the box
- Hikvision NVR recorder
- Mouse
- Ethernet Cable
- Instructions Manual
- Hard disk connection wiring
- Power supply
