IB-TE-YL-75E2-V3
IB-TE-YL-75E2-V3

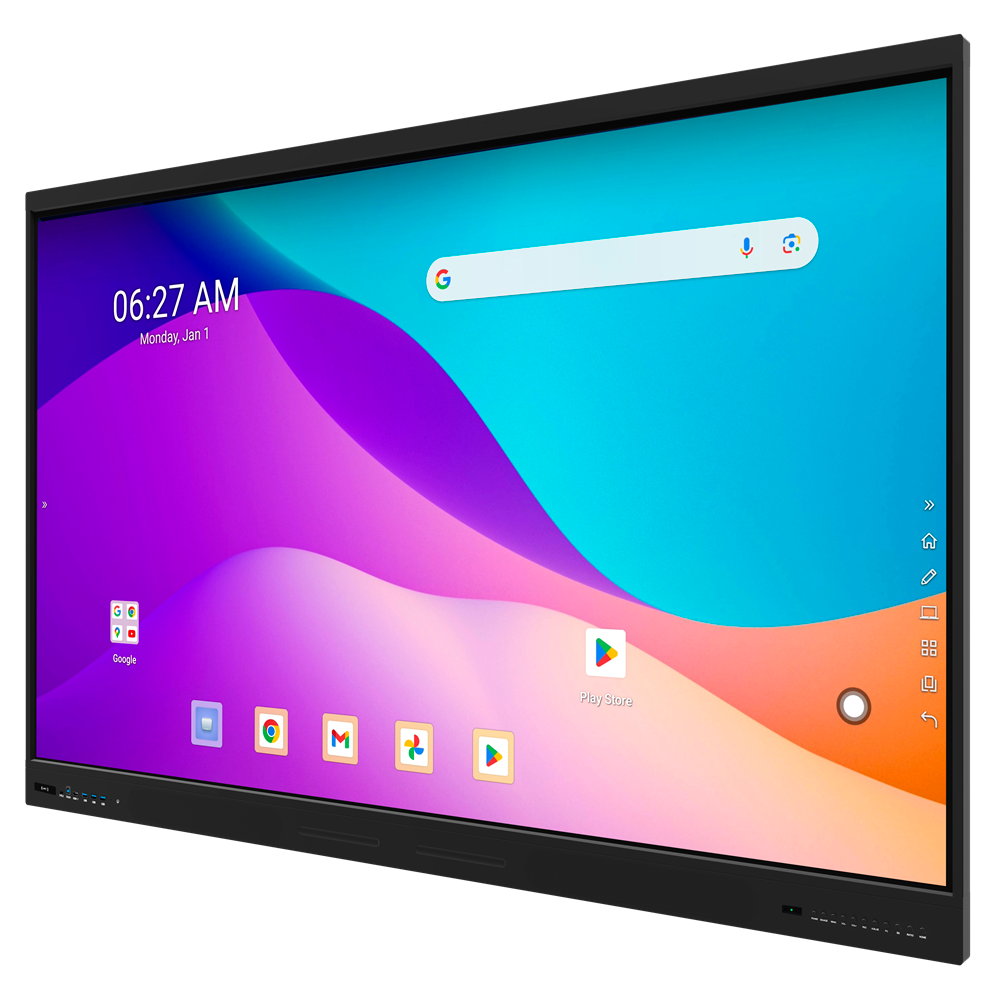

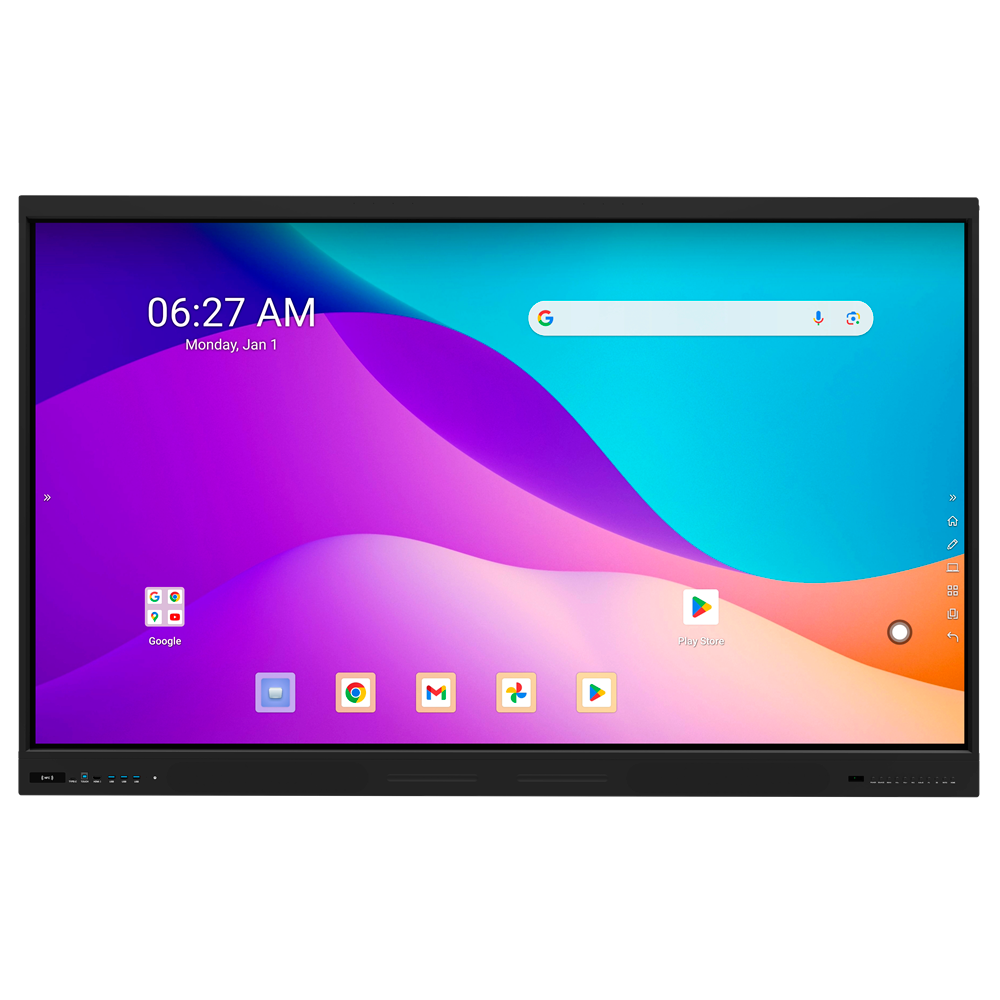

- Interactive monitor 75"
- Resolution 4K
- Android 13
- EDLA Certification
- 8 GB of RAM and 128 GB of ROM
An interactive display is a digital device with touch technology that allows direct interaction with its own software or with a PC (connected as a peripheral or through the use of an OPS), fostering collaboration, productivity and active user participation. These displays integrate advanced functionalities, such as touch typing, real-time annotation tools and multi-device connectivity, making them a versatile and adaptable solution for a variety of needs.
In addition, having Google EDLA certification offers advantages such as high security, access to Google Play to download and use applications, and compatibility with various videoconferencing tools, allowing peripherals to be connected for use, among other benefits, which significantly improves the user experience.
- IBOARD
- Interactive monitor 75"
- Resolution 4K
- Android 13
- Google EDLA Certification
- Brightness 500 cd/m2
- Processor 4x A73 + 4 x A53
- 8 GB RAM
- 128 GB ROM
- Integrated microphones
Specifications
General |
|
| Brand | IBOARD |
| Type | Interactive monitor |
| Size | 75" |
Panel | |
| Resolution | 3840x2160 |
| Refresh rate | 60 Hz |
| Brightness | 500 cd/m2 |
| Contrast | 1200:1 |
| Response time | 8 ms |
| Backlight | D-LED |
| Viewing angle (horizontal / vertical) | 178º / 178º |
| Service life | 50.000 h |
Tactility | |
| Touch technology | Infrared frame |
| Simultaneous touches | ≤ 40 |
| Tactile precision | 90 % (±1,5 mm) |
Connectivity | |
| Inputs | 3 x HDMI 2.0 1 x DP 1 x VGA 1 x OPS 1 x LAN 1 x USB 2.0 5 x USB 3.0 2 x Type-C (touch, video, audio and data) 3 x Touch 1 x Audio 1 x RS232 1 x TF card 1 x MIC |
| Outputs | 1 x HDMI 1 x Coaxial 1 x Audio (3,5 mm) 1 x LAN |
| Bluetooth | 5.0 |
| WiFi | WiFi 5 WiFi 6 |
| Network | 10 / 100 / 1000 Mbps |
System | |
| Operating system | Android 13.0 |
| Google EDLA Certification | Yes |
| Processor | 4 x ARM A73 (2,28 GHz) + 4 x A53 (2,28 [%VAR%] GHz) |
| GPU | MailG52 MP8 |
| RAM | 8 GB |
| ROM | 128 GB |
Audio | |
| Speaker | 2x20 W + Subwoofer 20 W |
Physical appearance | |
| Brightness sensor | Yes |
| Dimensions | 1700 (W) x 1068 (H) x 82,6 (D) mm |
| VESA | 600x400 mm |
| Weight | 51 Kg |
Energy | |
| Power | AC 100 V ~ 240 V, 50/60 Hz |
| Power consumption without OPS | 350 W (max.) |
In the box
- Interactive monitor
- Power supply cable
- 2x Passive Pencil
- Remote control
- Fixed wall bracket
