HY-AC010
Ga direct naar de productinformatie
HY-AC010
- Standalone access control
- Fingerprint and EM card
- 3.000 recordings | 160.000 records
- TCP/IP, RS485 and Wiegand
- Integrated controller
- Free eTime software
- Hysoon
- Stand-alone biometric access reader
- Identification by EM card, fingerprint and/or combinations
- 2.8" TFT Screen & keypad
- Capacity 3.000 fingerprints/cards, 160.000 records
- TCP/IP, RS485 and Wiegand communication
- Integrated controller (door sensor, push button, bell and relay)
- eTime management software with access control module included free of charge
Specifications
| Brand | Hysoon |
| CPU | 320 MHz |
| Activation sensor | Keystroke or biometric reader |
| Keypad | Mechanical keypad |
| Capacity | Up to 3.000 users |
| Records | Up to 160.000 records |
| Read time | < 0.5 sec |
| FAR (False Acceptance Rate) | > 0.0001% |
| FRR (False Rejection Rate) | > 1% |
| Identification modes | Fingerprint, RFID card (EM 125 KHz) and/or combinations |
| Screen | 2.8" TFT color (320 x 240 pixel) |
| PC communication | TCP/IP, USB and RS485 |

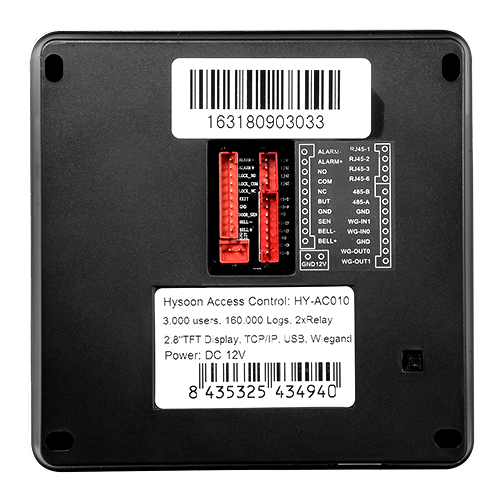

| Inputs | Wiegand IN, door sensor and opening push button |
| Outputs | Wiegand OUT (26/34), relay NO/NC and buzzer |
| Temperature | 0º C ~ +45º C |
| Power | DC 12 V / 2 A max. |
| Dimensions | 32 (D) x 114 (W) x 114 (H) mm |
| Weight | 300 g |
In the box
- Hysoon standalone reader
- Mounting material
- User instructions
