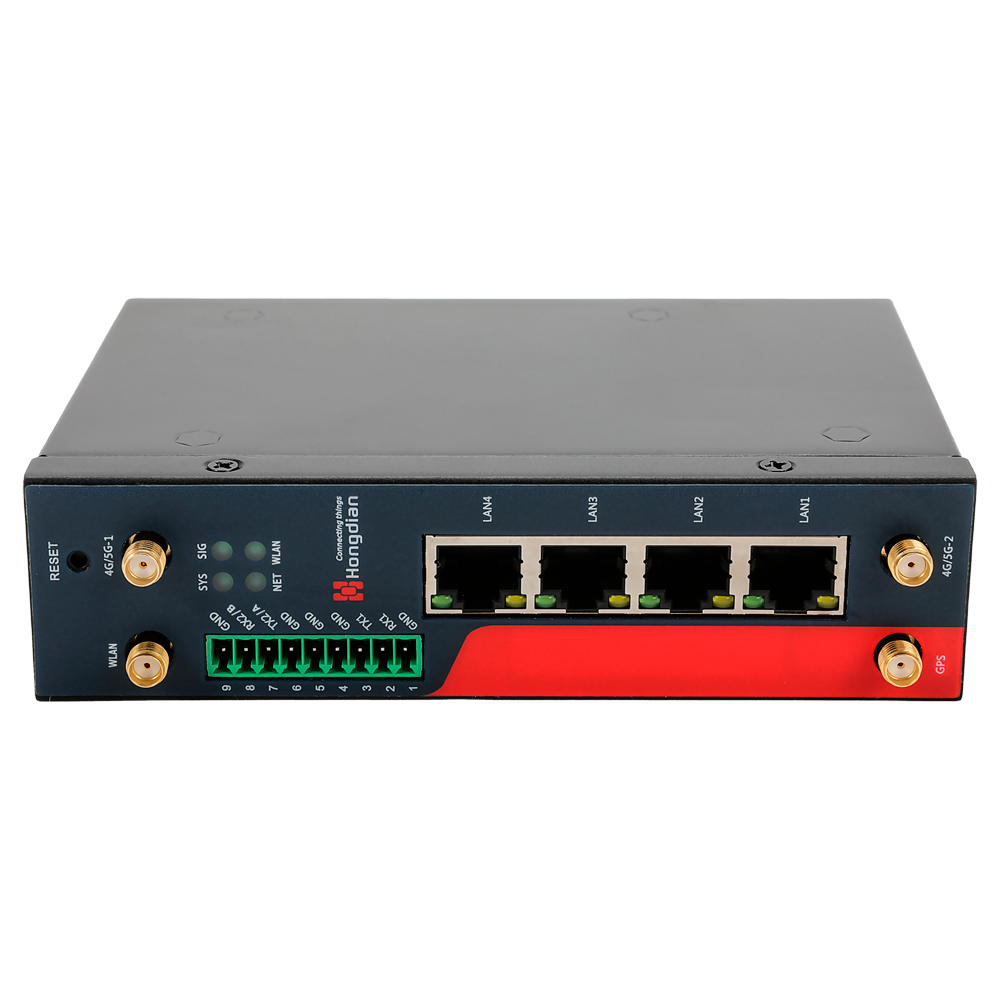

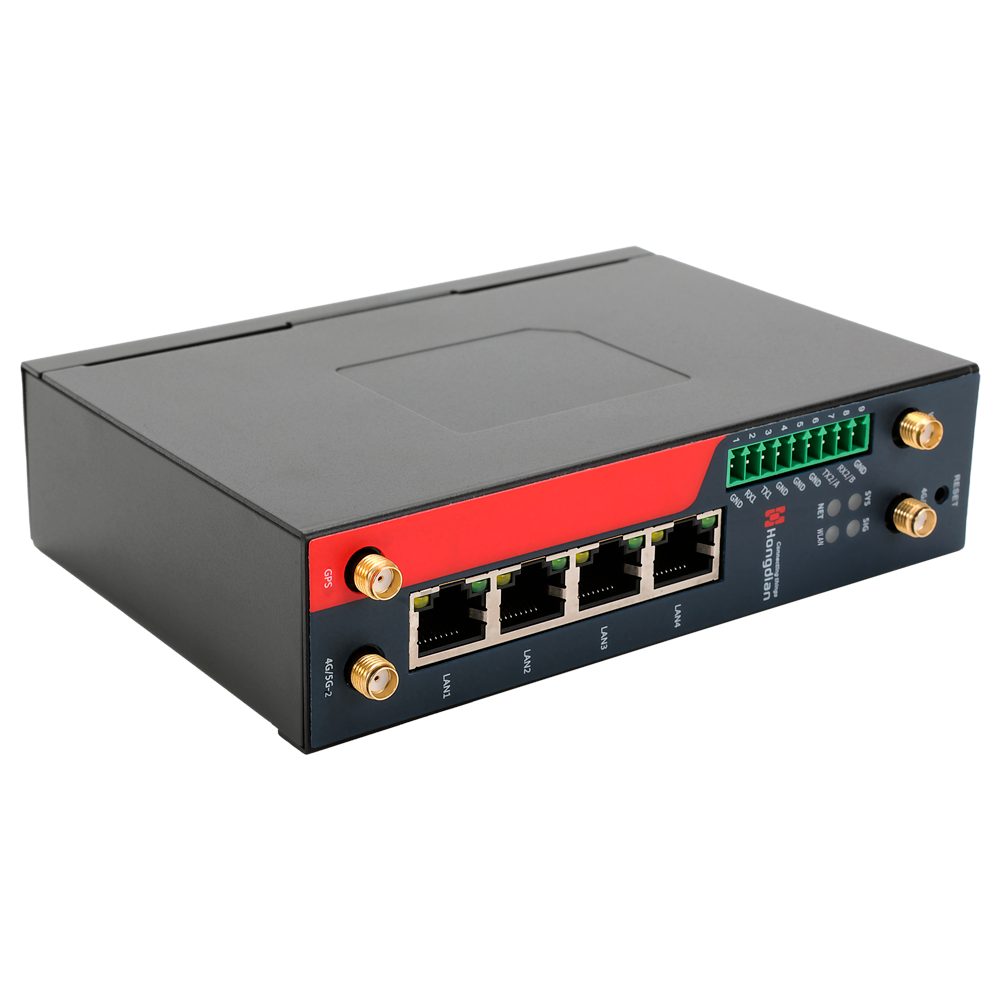

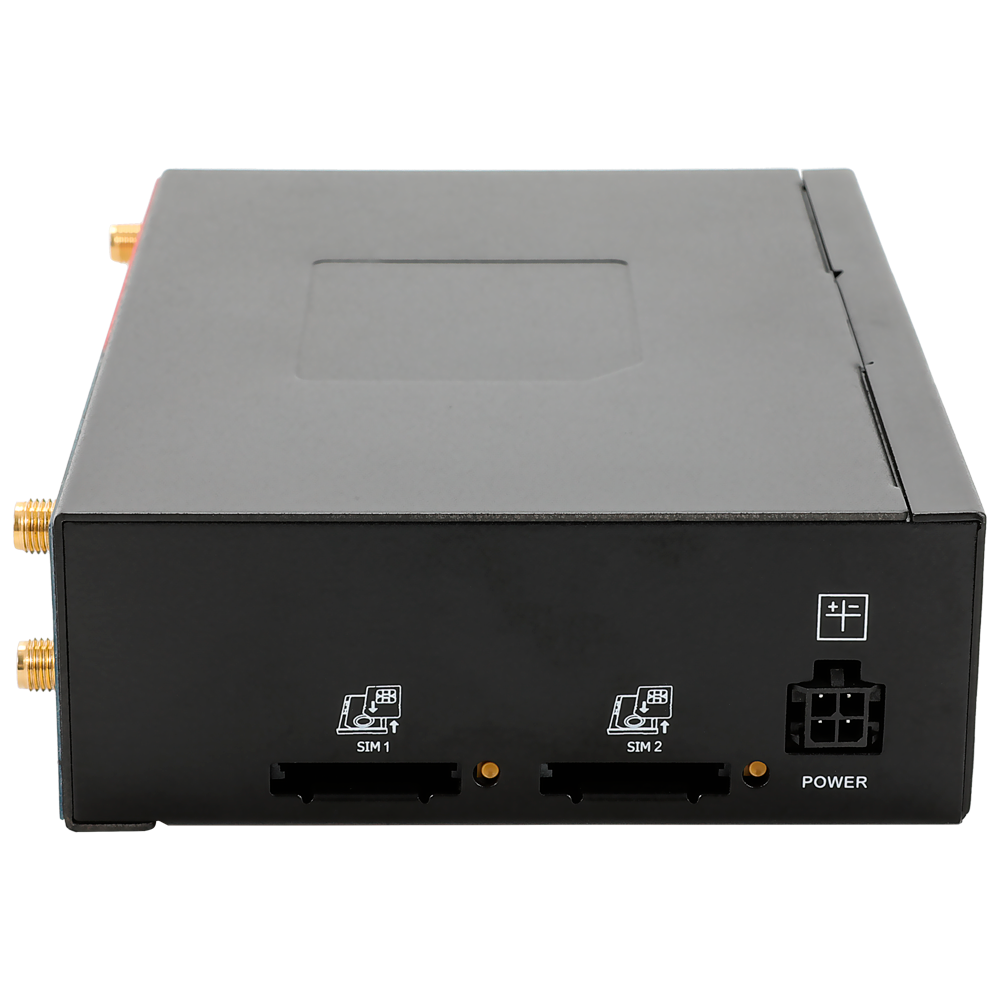

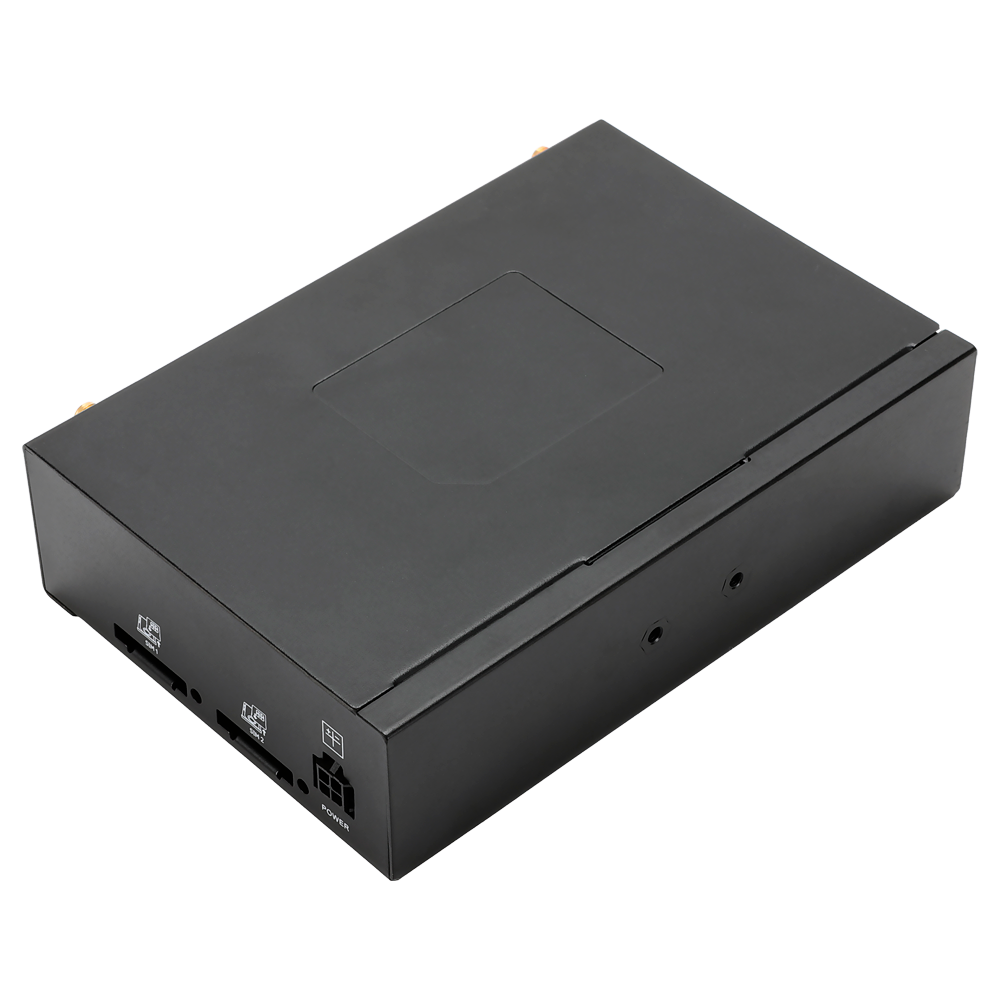

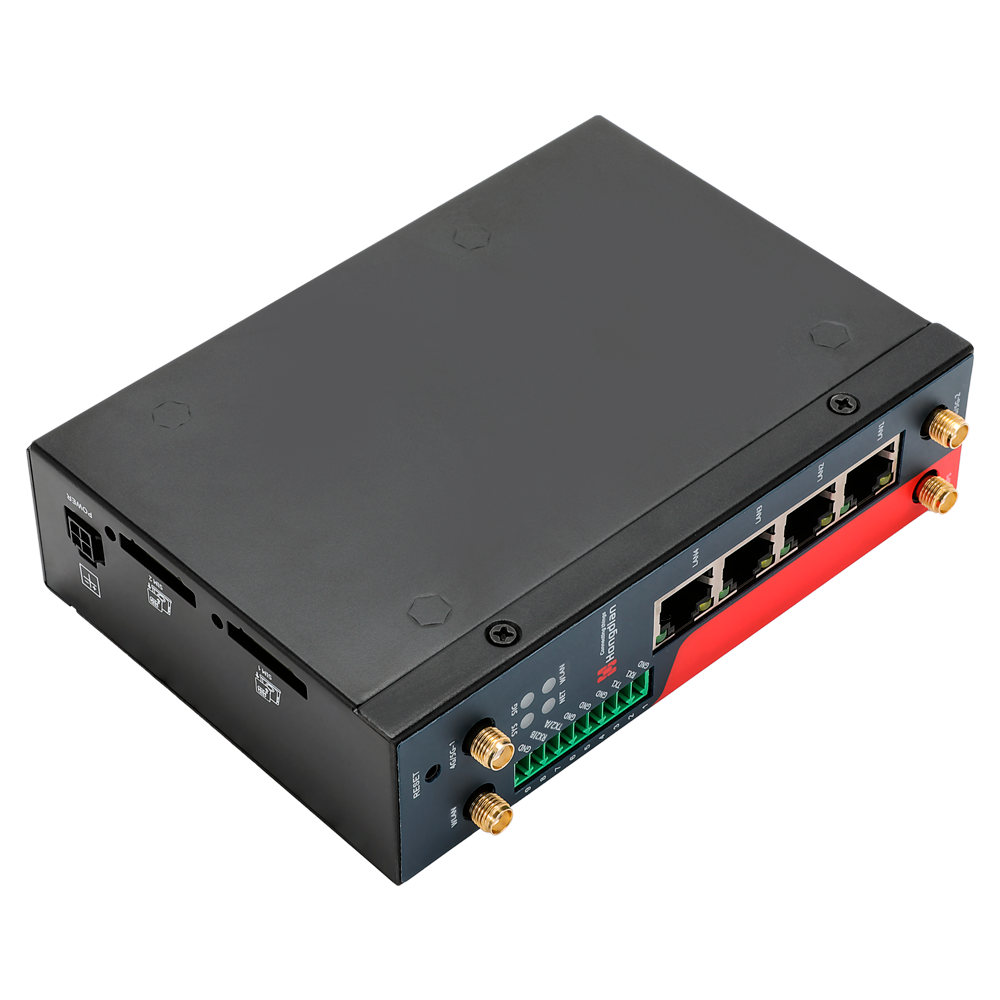

HG-H7960-L4EA-CS-WG-PSE

• Hongdian Router Industrial 4G LTE Cat 4
• Reliable connectivity with auto-failover
• Wi-Fi 802.11b/g/n at 2.4 GHz with 150 Mbps
• Advanced VPN: IPSec, OpenVPN and WireGuard
• 4 Ethernet ports 10/100 with POE+ output
• Hardware watchdog and self-recovery

The H7960 POE+ router is designed to provide a robust cellular network for mission-critical IoT applications and has been adopted by numerous customers across various industries. It offers stable, high-speed mobile data transmission, making it ideal for meeting the demands of public transportation, security video surveillance, fleet management, and smart grid networks. Its key feature is its ability to function as a Power Sourcing Equipment (PSE), delivering up to 30W of power per Ethernet port, which greatly simplifies the deployment of remote devices by eliminating the need for additional electrical wiring.

Technically, the device is based on a powerful 580 MHz MIPS architecture with 128 MB of RAM, designed for uninterrupted operation 7x24 through automatic cellular backup functions between interfaces. Information security is ensured through private VPN tunnels with advanced encryption, providing end-to-end protection for M2M communications. Its industrial-grade hardware, protected by a IP30,-certified metal housing, includes versatile interfaces such as RS232 and RS485 for telemetry and precise GNSS positioning, as well as support for DIN rail mounting, ensuring durability and flexibility in the most demanding operating environments.

• Hongdian
• Industrial Router 4G with WiFi, GPS and PoE
• 4 Ethernet ports RJ45 10/100/1000 (1xWAN+4xLAN)
• 4 PoE ports (ports 1~4) 802.3 af/at
• Serial Ports RS232/RS485
• Wi-Fi 802.11b/g/n 2.4GHz
• SIM card slot 4G/3G (not included)
• LTE 4G CAT4
• WiFi, LTE and GPS antennas included
• Wall or tabletop din rail installation
• DC power 9 to 54V (12V 1,5A power supply included)
• Status LEDs

Specifications

In the box

• 1x H7960 4G POE+ Router
• 2x Antenna 4G
• 1x GPS Antenna
• 1x Power adapter (EU type, 4 pins)
• 1x Wi-Fi Antenna
• 1x Cable RJ45
• 1x Installation kit and DIN rail socket
