HDMI-SPL-1x4-4K30-CAT6
Ga direct naar de productinformatie
HDMI-SPL-1x4-4K30-CAT6
- HDMI Signal Splitter Extender
- Range 40 m
- Resolution 4K
- Allows 1 connections:4
- HDMI Loop out
- POC - Cable power supply
Signal extenders are equipment designed to carry a signal further than conventional cables allow, maintaining the original quality without losses. Its main function is to ensure that the communication between a transmitting device and a receiving device remains stable, even when the two are far apart.
Thanks to this technology, it is possible to connect equipment in meeting rooms, control centers, educational or entertainment facilities without worrying about the physical limitation of cables. In this way, the extenders provide installation flexibility, increased coverage and reliable transmission in all types of environments.
- Maximum length 40 metres
- Supports resolution 4K
- Allows 1 connections:4 (1 sender and 4 receiver)
Specifications
| Maximum distance / Resolution | 40 m / 4K@30 Hz 70 m / 1080p@60 Hz |
| Extension cable | UTP Category 6 |
| HDCP | 1.4 |
| Connections | 1:4 (1 sender and 4 receiver) |
| Power | Transmitter: DC 12 V / 2 A Receiver: DC 5 V / 1 A (Optional) |

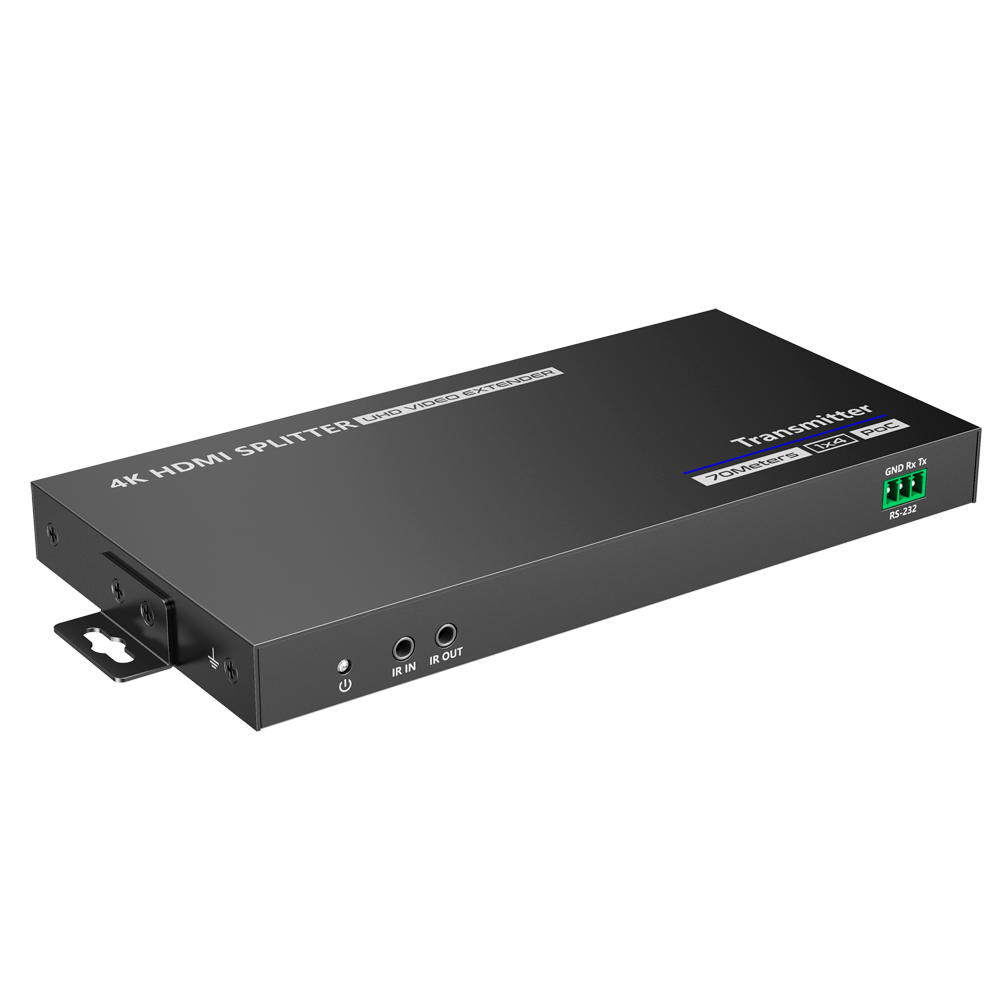

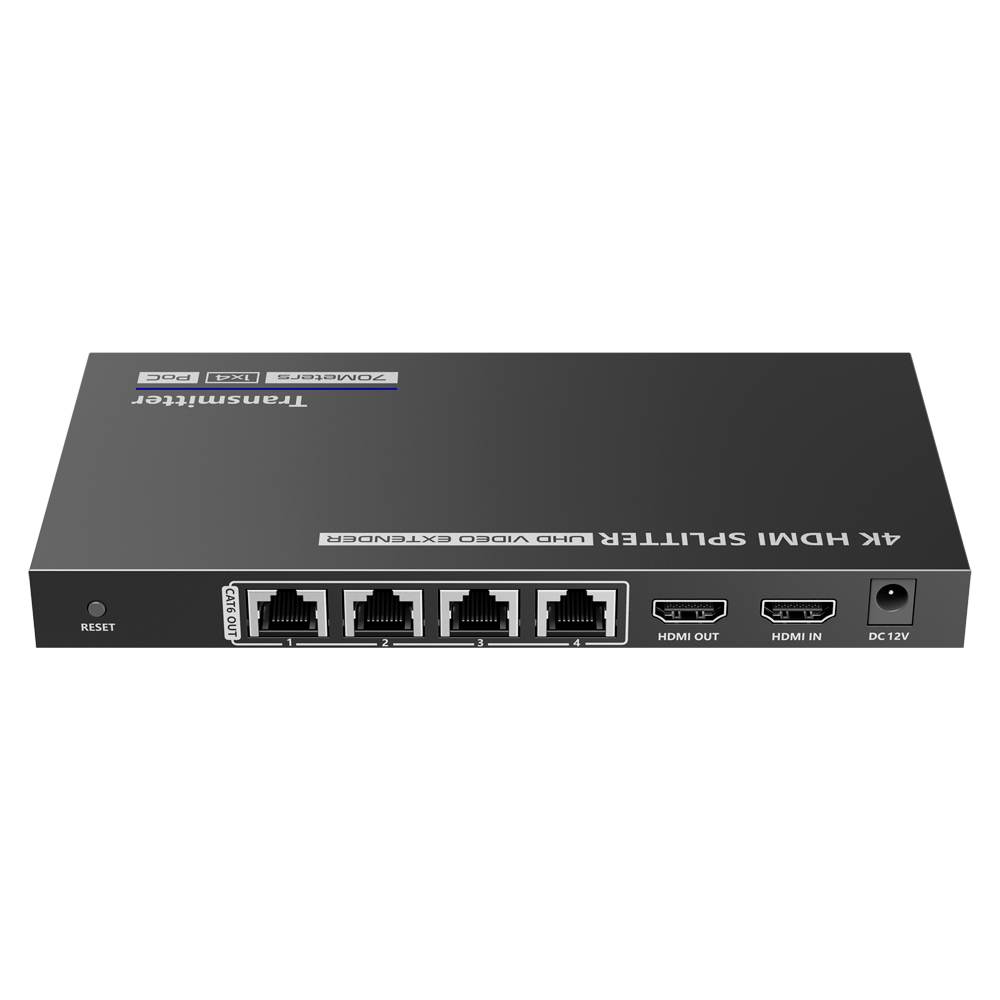

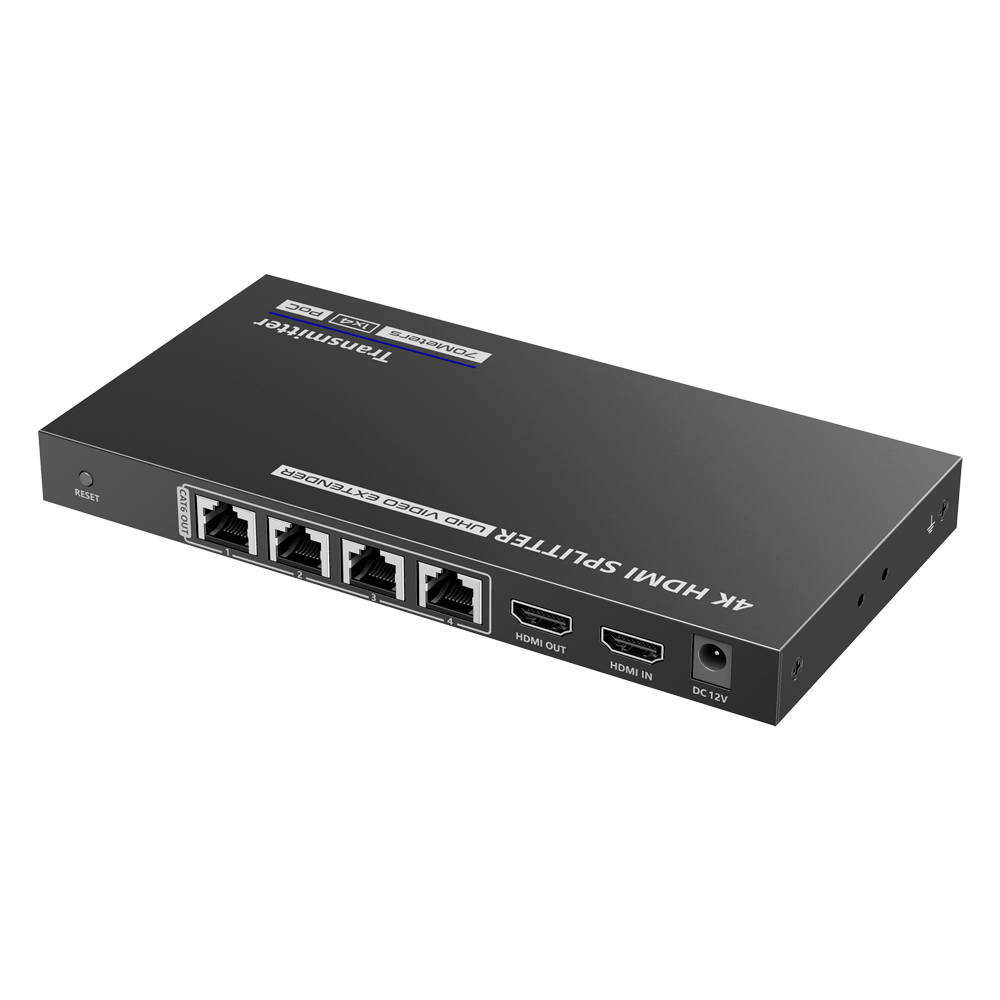

Transmitter | |
| Inputs | HDMI, IR and RS232 |
| Outputs | HDMI, IR and Ethernet x4 |
| Dimensions | 191,50 (W) x 19,00 (H) x 96,50 (D) mm |
| Weight | 435 g |
Receiver | |
| Inputs | IR and Ethernet |
| Outputs | HDMI, IR and Audio 3,5 mm |
| Dimensions | 75,00 (W) x 18,00 (H) x 80,00 (D) mm |
| Weight | 160 g |

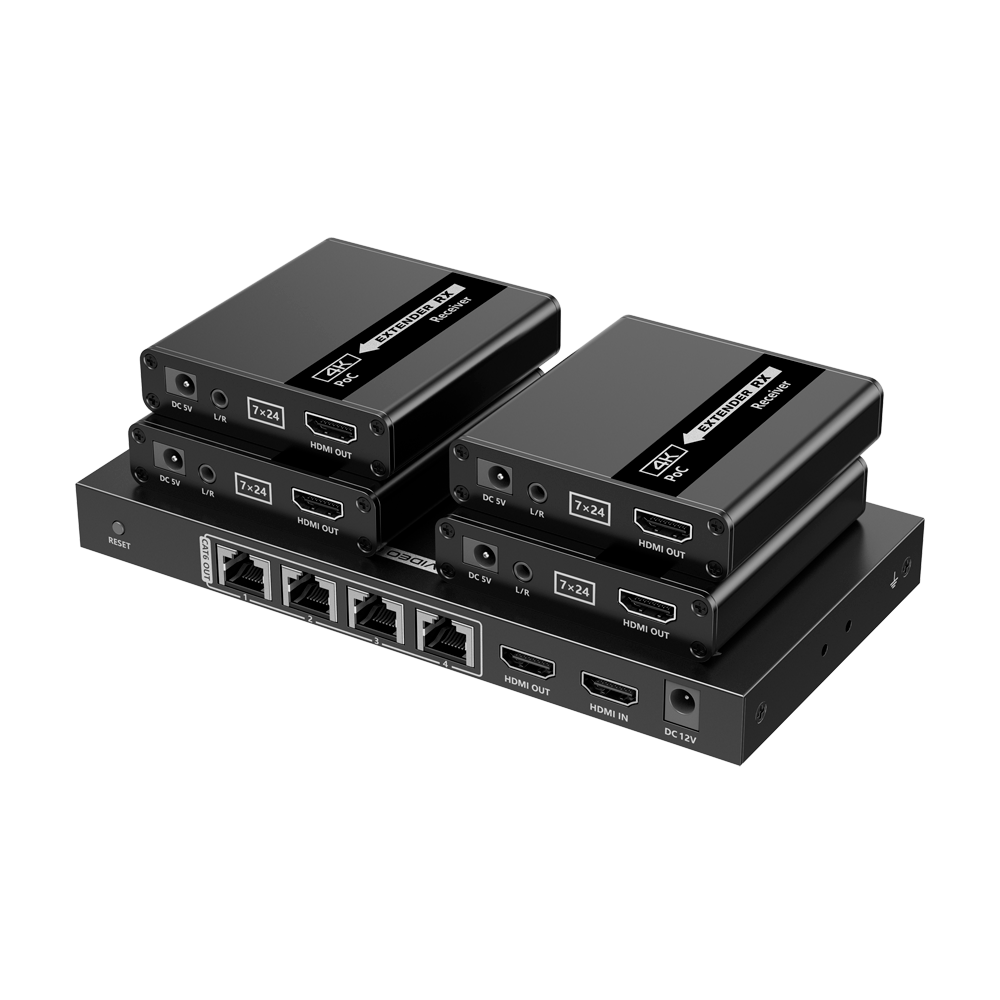

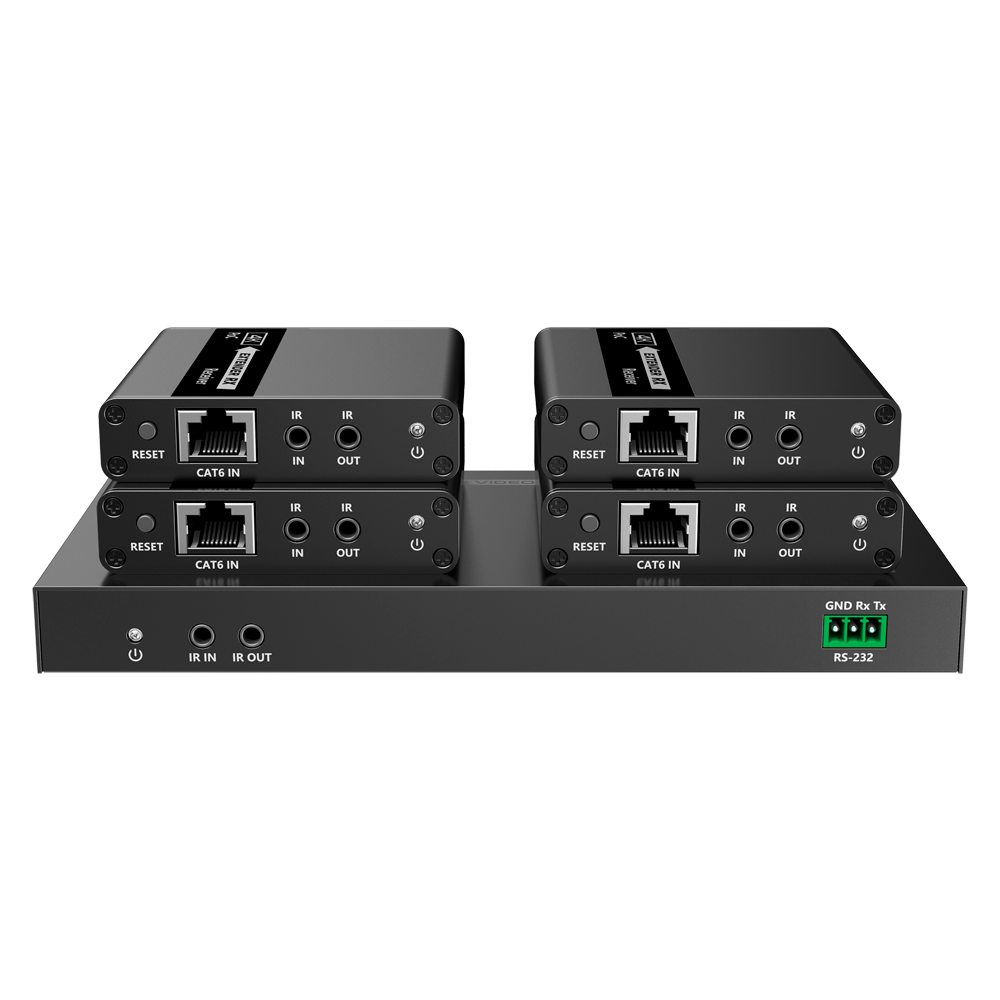

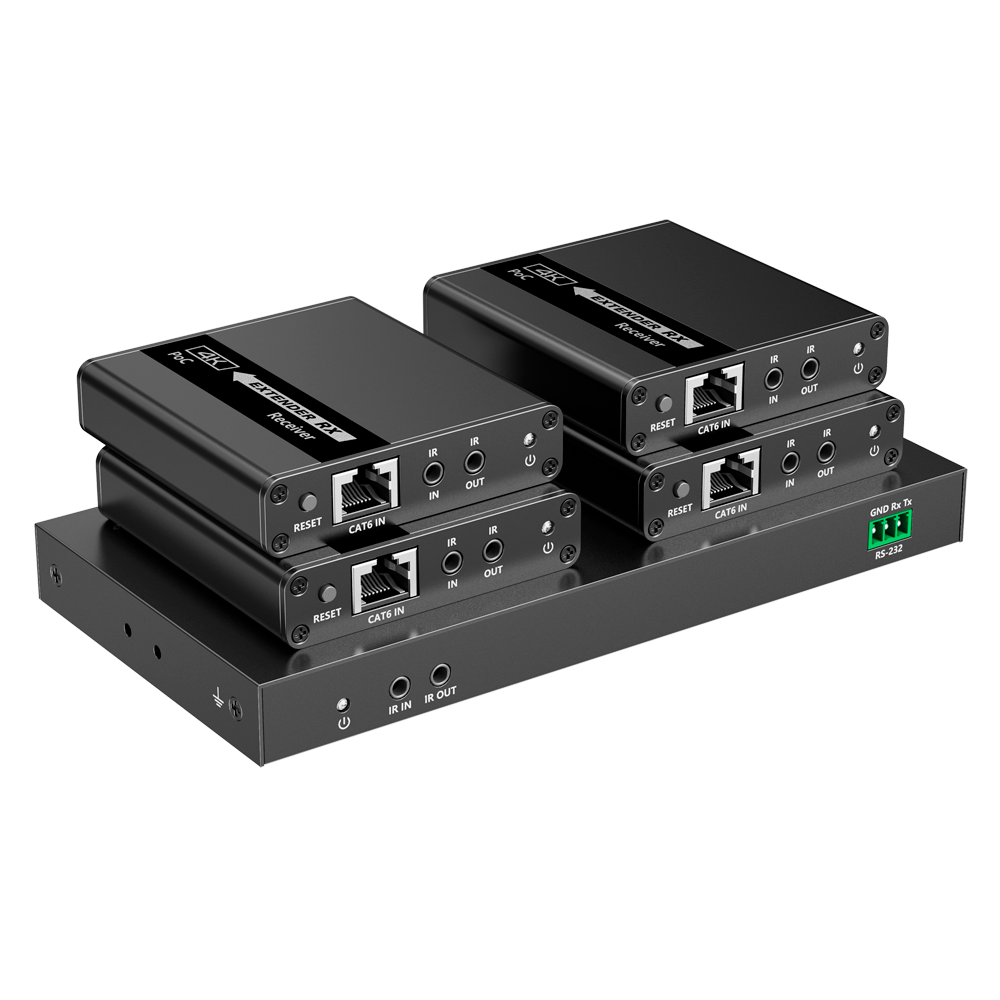

In the box
- Transmitter
- Receiver x4
- IR transmitter
- IR Receiver x4
- Euroblock RS-232
- Mounting brackets x2
- Screws x8
- Power supply DC 12 V / 2 A
- User manual
