HDMI-MATRIX-PRO-4K
- HDMI IP signal matrix
- Enables NxM
- Resolution 4K

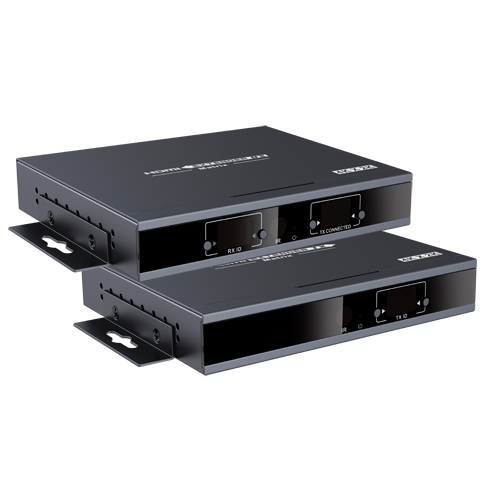

- Includes 1 sender and 1 receiver
Switching matrices are equipment designed to manage and distribute multiple signals between different sources and destinations in an organized and efficient manner. Its main function is to facilitate the selection and routing of the desired signal without loss of quality.
- Enables NxM
- Supports resolution 4K
Specifications
| Allows | NxM (N emitters and M receivers) |
| Resolution | 4K@30 Hz |
| HDCP | 1.4 |
| EDID settings | No |
| Control | Keypad PC Software |
| Power | Transmitter: DC 5V / 2A Receiver: DC 5V / 2A |

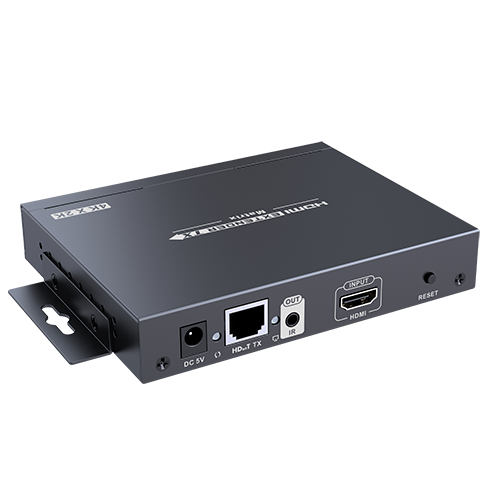

Transmitter | |
| Inputs | HDMI |
| Outputs | IR and Ethernet |
| Dimensions | 107,60 (W) x 23,60 (H) x 164,00 (D) mm |
| Weight | Transmitter: 320 g |

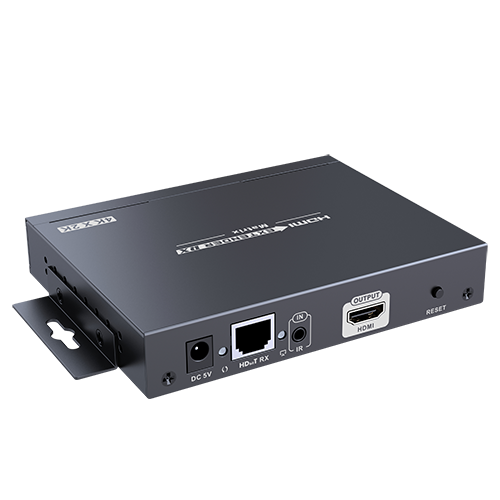

Receiver | |
| Inputs | IR and Ethernet |
| Outputs | HDMI |
| Dimensions | 107,60 (W) x 23,60 (H) x 164,00 (D) mm |
| Weight | 310 g |
In the box
- Transmitter
- Receiver
- IR transmitter
- IR receiver
- Mounting brackets x4
- Screws x8
- Remote control
- DC power supply 5 V / 2 A x2
- User manual
