HDMI-EXT-PRO-W-4K60-KVM

HDMI-EXT-PRO-W-4K60-KVM

Log in voor B2B prijs
  • Wireless KVM Extender
  • Range 50 m
  • Resolution 4K
  • Allows 1 connections:M
  • HDMI Loop out

Signal extenders are equipment designed to carry a signal further than conventional cables allow, maintaining the original quality without losses. Its main function is to ensure that the communication between a transmitting device and a receiving device remains stable, even when the two are far apart.

Thanks to this technology, it is possible to connect equipment in meeting rooms, control centers, educational or entertainment facilities without worrying about the physical limitation of cables. In this way, the extenders provide installation flexibility, increased coverage and reliable transmission in all types of environments.

  • Maximum length 50 metres
  • Supports resolution 4K
  • Allows 1 connections:4 (1 sender and 4 receivers)

Specifications

Maximum distance / Resolution 50 m / 4K@60 Hz
WiFi 5,18 - 5,24 GHz
HDCP 2.2
Connections 1:M (1 transmitter and M receivers, maximum 4):
1:1 - 50 m / 4K@60 Hz
1:2 - 30 m / 4K@60 Hz
1:3 - 20 m / 4K@60 Hz
1:4 - 15 m / 4K@60 Hz
Power Transmitter: DC 5 V / 2 A
Receiver: DC 5 V / 2 A

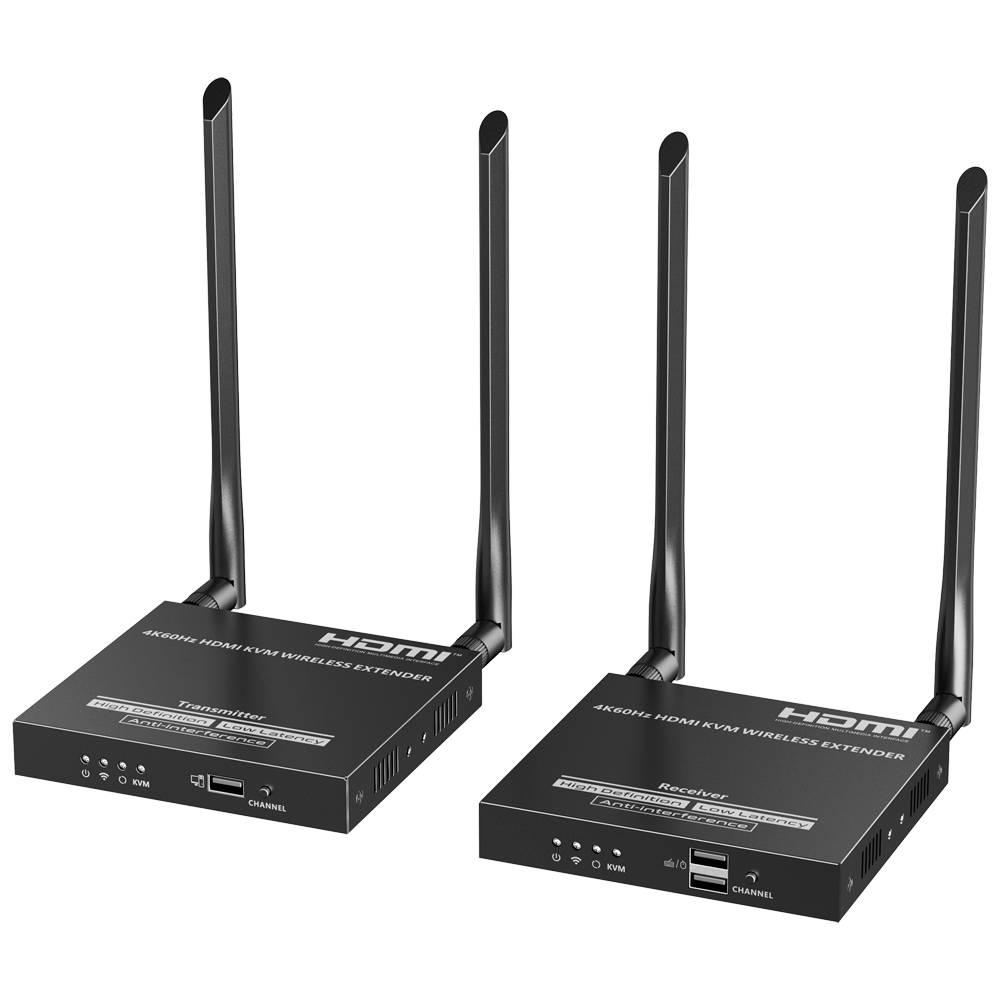

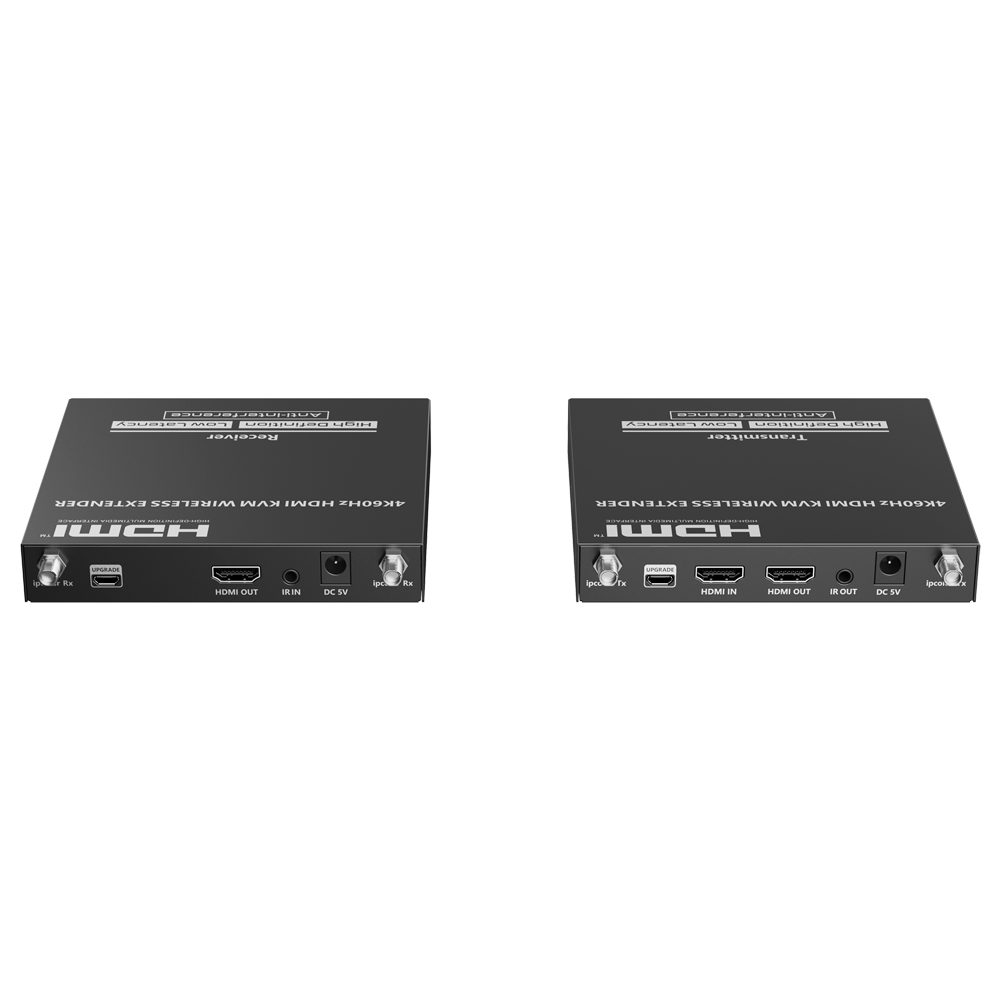

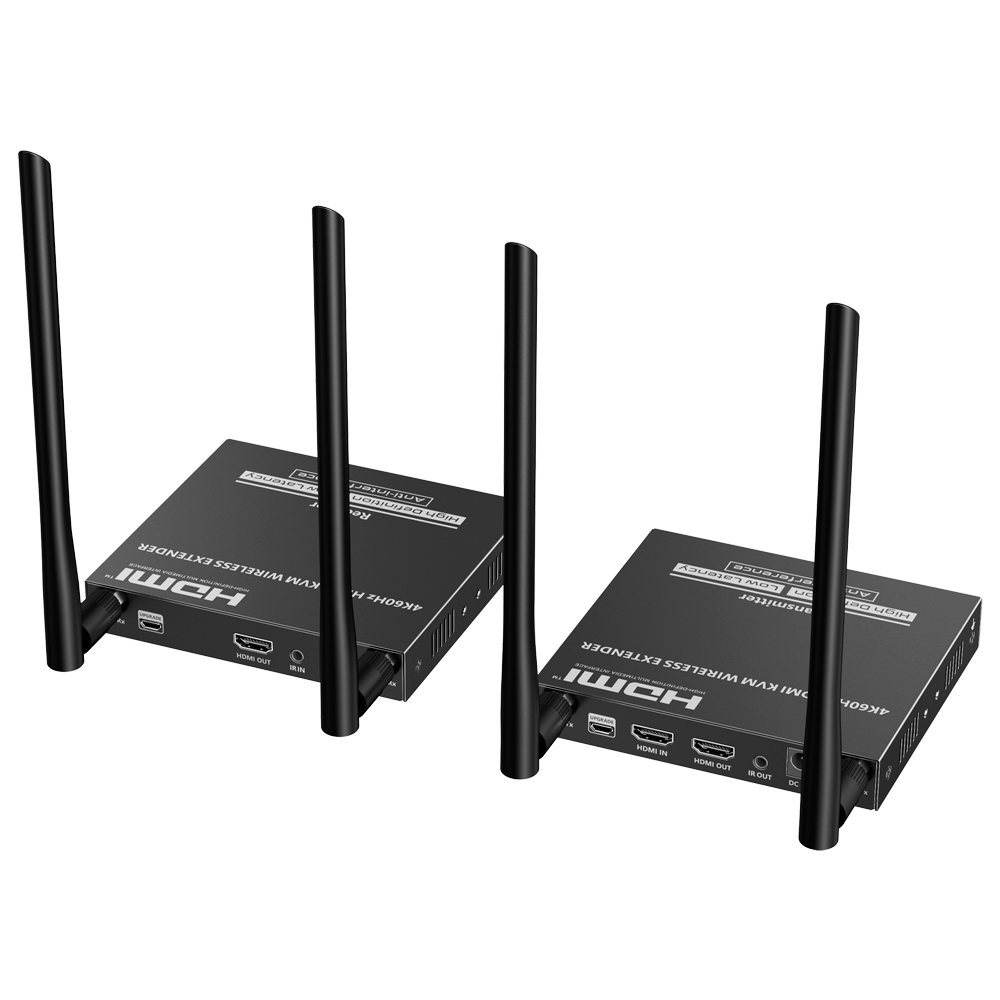

Transmitter

Inputs HDMI and micro USB
Outputs HDMI, USB and IR
Dimensions 115,00 (W) x 20,60 (H) x 125,00 (D) mm
Weight 349 g

Receiver

Inputs IR, Micro USB, USB Mouse and USB Keyboard
Outputs HDMI
Dimensions 115,00 (W) x 20,60 (H) x 125,00 (D) mm
Weight 326 g

In the box

  • Transmitter
  • Receiver
  • IR transmitter
  • IR receiver
  • USB Cable
  • Antenna x4
  • Mounting brackets x4
  • Screws x10
  • DC power supply 5 V / 2 A x2
  • User manual
