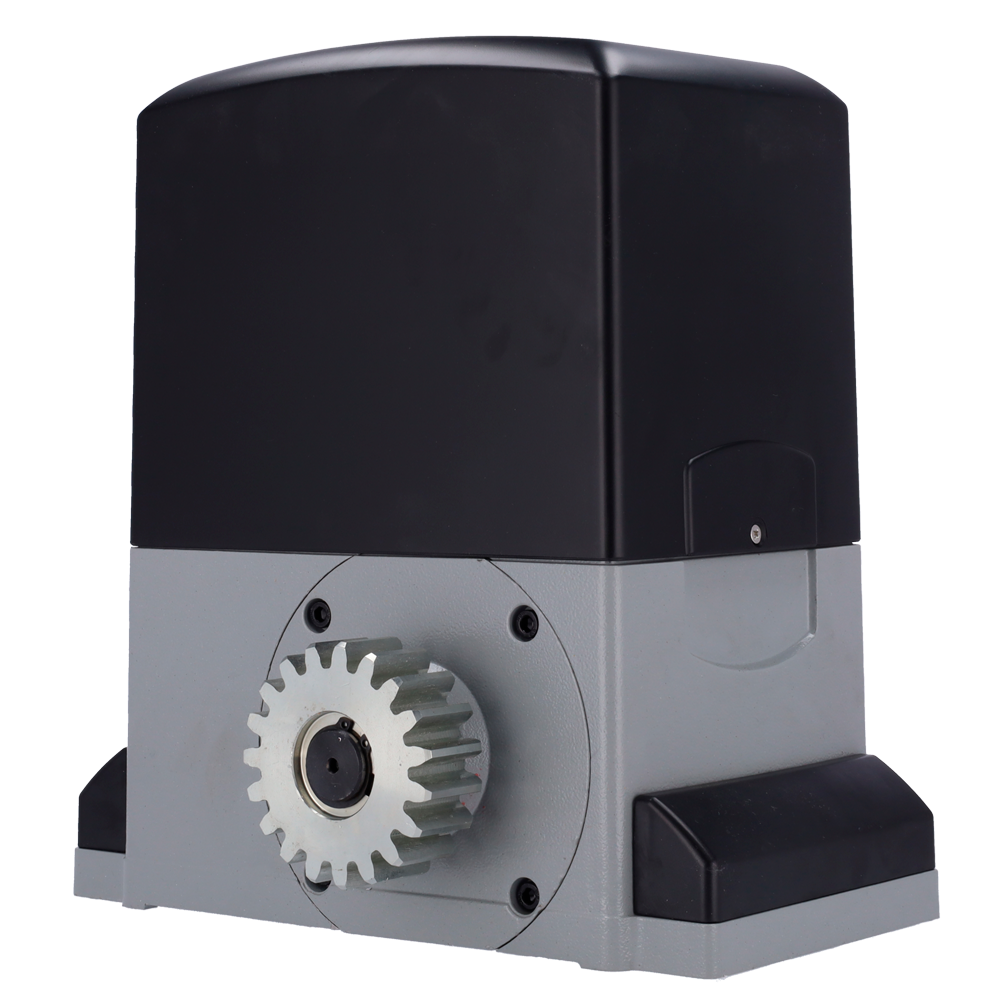

GATEOPENER-BL360ENC
- Sliding gate operator
- Up to 2000 kg
- Position control encoder
- Actuating force regulation
- Automatic drive
- Power supply DC36V | Suitable battery back-up
- Electromechanical operator for sliding doors
- For doors up to 2000 kg

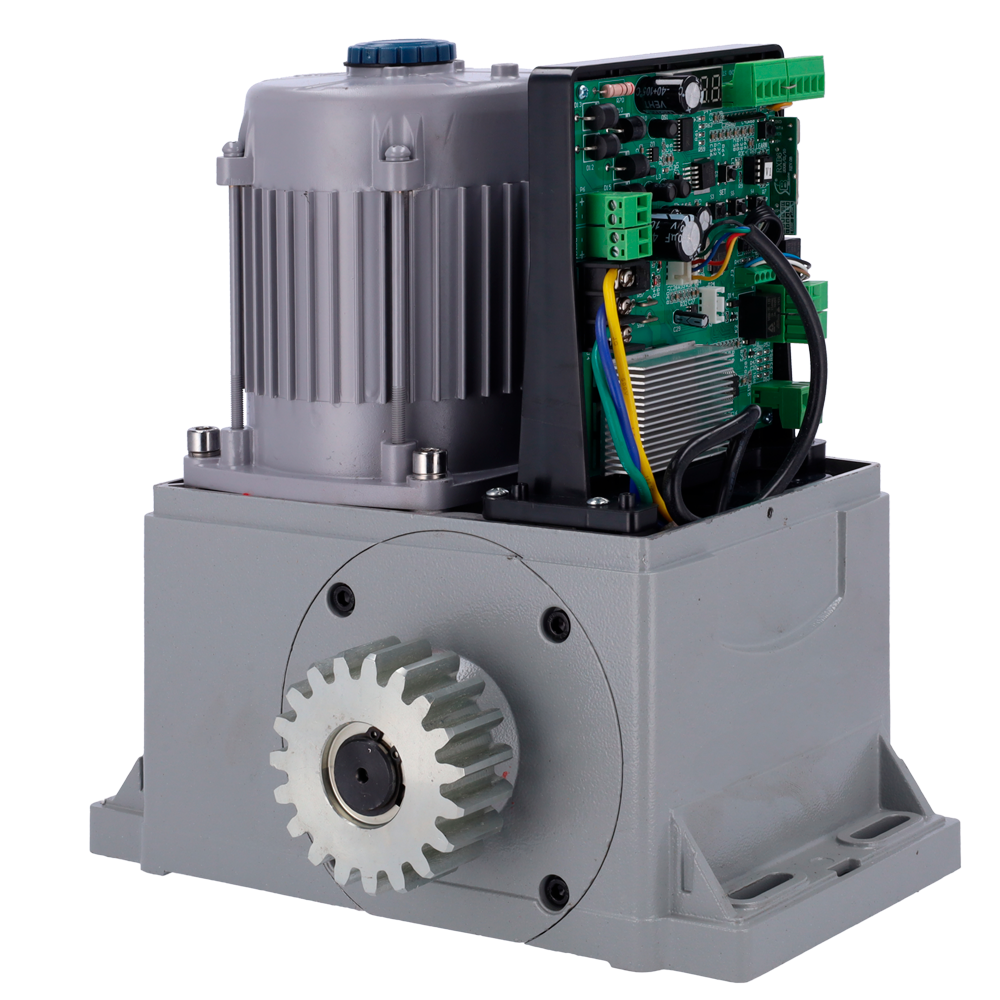

- Brushless brushed motor
- Position control encoder
- Force regulating potentiometer
- Automatic drive
- Opening and locking by remote or push-button control

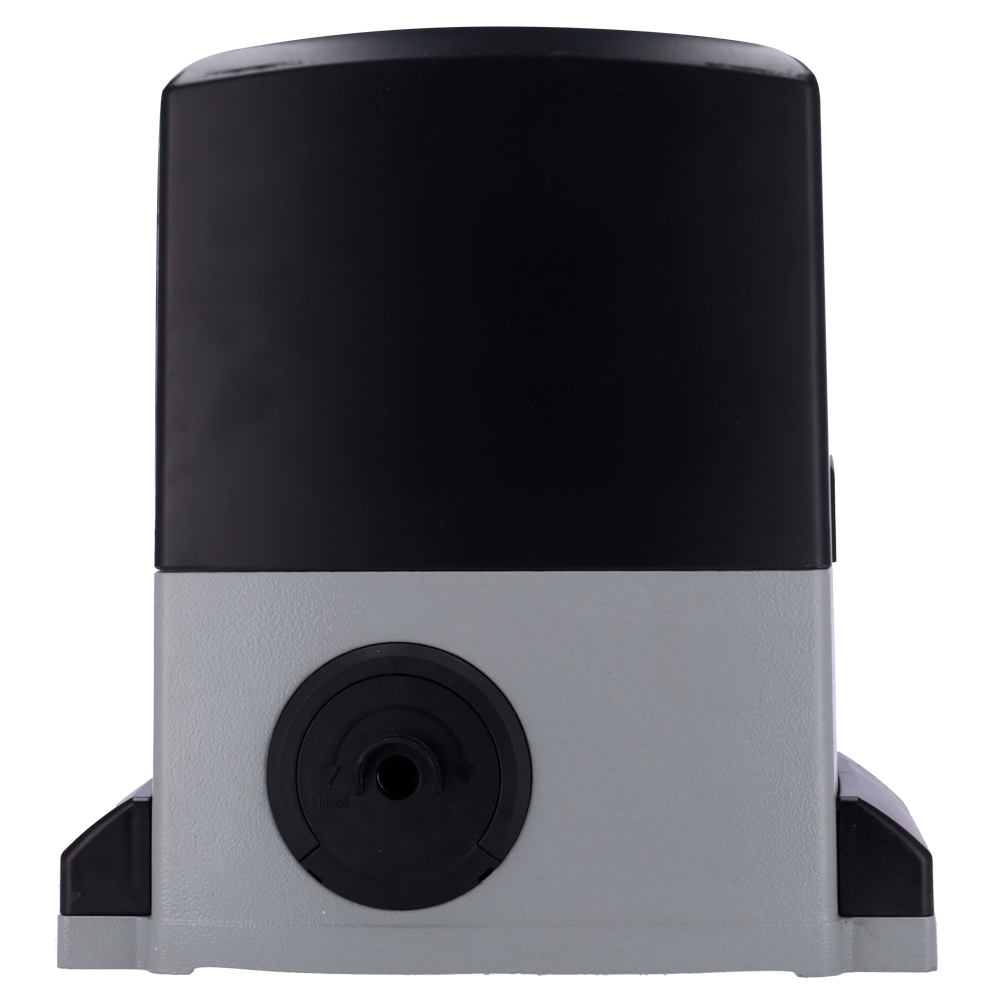

- Manual emergency release
- Configurable self-closing
- Deceleration in opening and closing phase
- Surface installation
- Made of aluminium alloy
- Power supply DC 36 V
- DC output 12 V
- Suitable for battery backup
Specifications
| Model | GATEOPENER-BL360ENC |
| Mechanism operation | Rack and pinion system |
| Door type | Slide up to 2000 kg |
| Engine | Brushless brushed motor Power of 350 W |
| Limit switch | Position regulator encoder |
| Operation | Remote control Manual release |
| Reliability | 100.000 maintenance-free cycles |
| Power | DC 36 V Suitable for battery backup DC output 12 V / 5 W max. |
| Material | Aluminum alloy (body) and plastic (cover) |
| Temp. operation | -20º C ~ +55º C |
| Dimensions | 317 (H) x 298 (W) x 117 (D) mm |
| Weight | 15 kg |
In the box
- Door operators

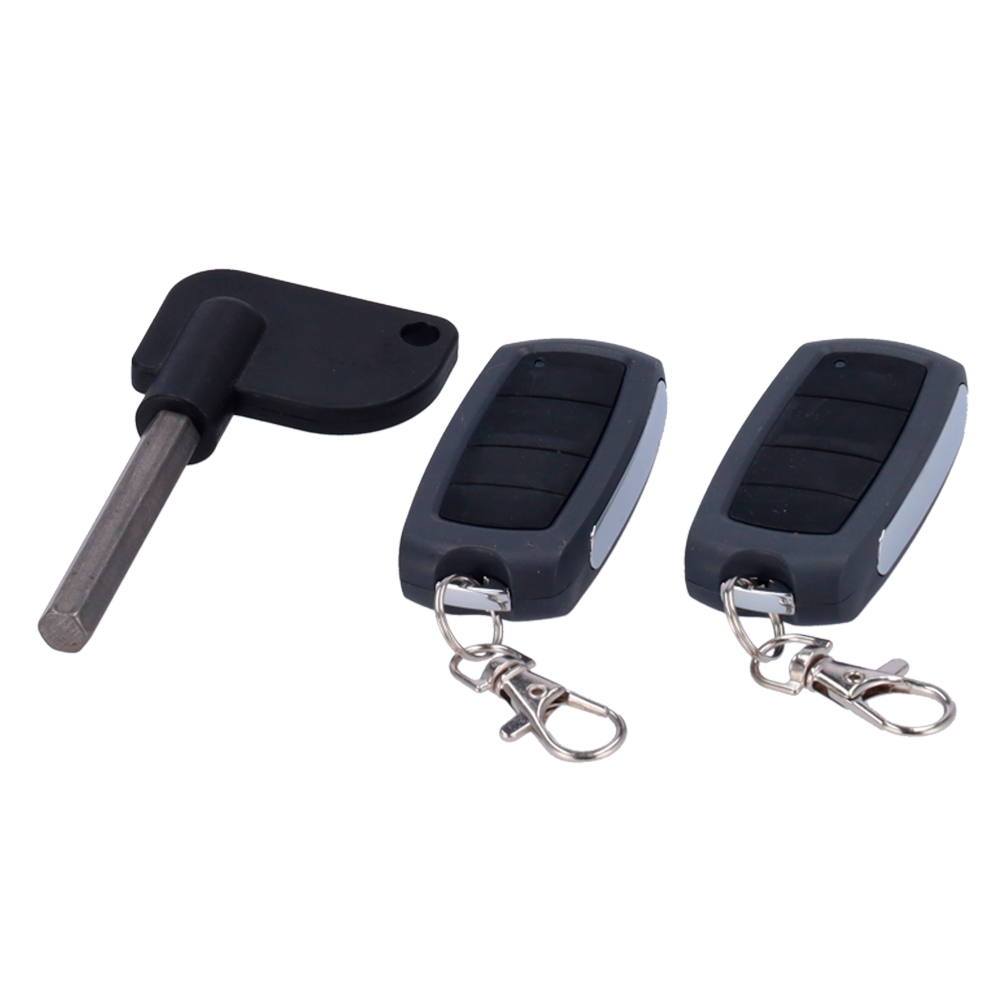

- 2 x Remote control
- Installation material
- User instructions
