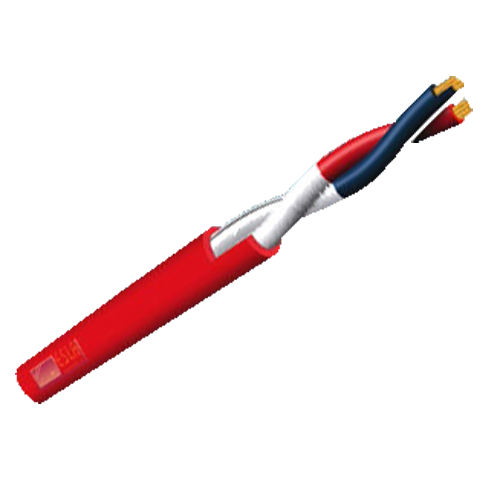

FRC25-500-C
Ga direct naar de productinformatie
FRC25-500-C
- Shielded braided cable drum
- Fire resistant RF 120 minutes
- Bobbin of 500 meters
- Copper conductor 2x2.5mm2
- CPR certificate Cca -1sb, a1, d1
- Certified EN 50575
- Resistance 8.3 Ω/Km
- Fire-resistant twisted pair cable bobbin
- 500 m
- Specially for fire
- Shielding
- 2 conductors
- Inner conductor Flexible polished copper Class 5 2.5mm2
- 25 turns/meter
- Silicone Ceramic CR1 Fire Resistant 3.4mm
- Screen Aluminium Mylar+Drain CuSn
- Cover Polyolefin EVA 8.0 mm
- Certified EN 50575
- Resistance 8.3 Ω/Km
Specifications
| Length | 500 m |
| Interior conductor | Flexible polished copper Class 5 2.5mm2 |
| Isolation | Silicone Ceramic CR1 Fire Resistant 3.4mm |
| Active time to fire | Constructive resistance to fire exposure RF 120 minutes Service resistance to fire exposure PH 90 minutes |
| Colour | Red and Black - more than 25 turns/meter |
| Screen | Mylar Aluminum Tape to Assembly / Coverage 96 % RFI / CuSn drain wire 7x0,20 |
| External cover | Halogen Free EVA Polyolefin 8.3mm |
| Resistance | 8.3 Ω/Km |
| Working voltage | 500V |
| Capacity | 98 pF/m |
| Working voltage | -40º ~ +70º |
| Certification | CPR (Cca -1sb, a1, d1), UNE EN 50575, UNE EN 60332-1-2,50399,61034-2, UNE EN 60754-2 |
In the box
- Bobbin of cable
