FRC15P-100-C
Ga direct naar de productinformatie

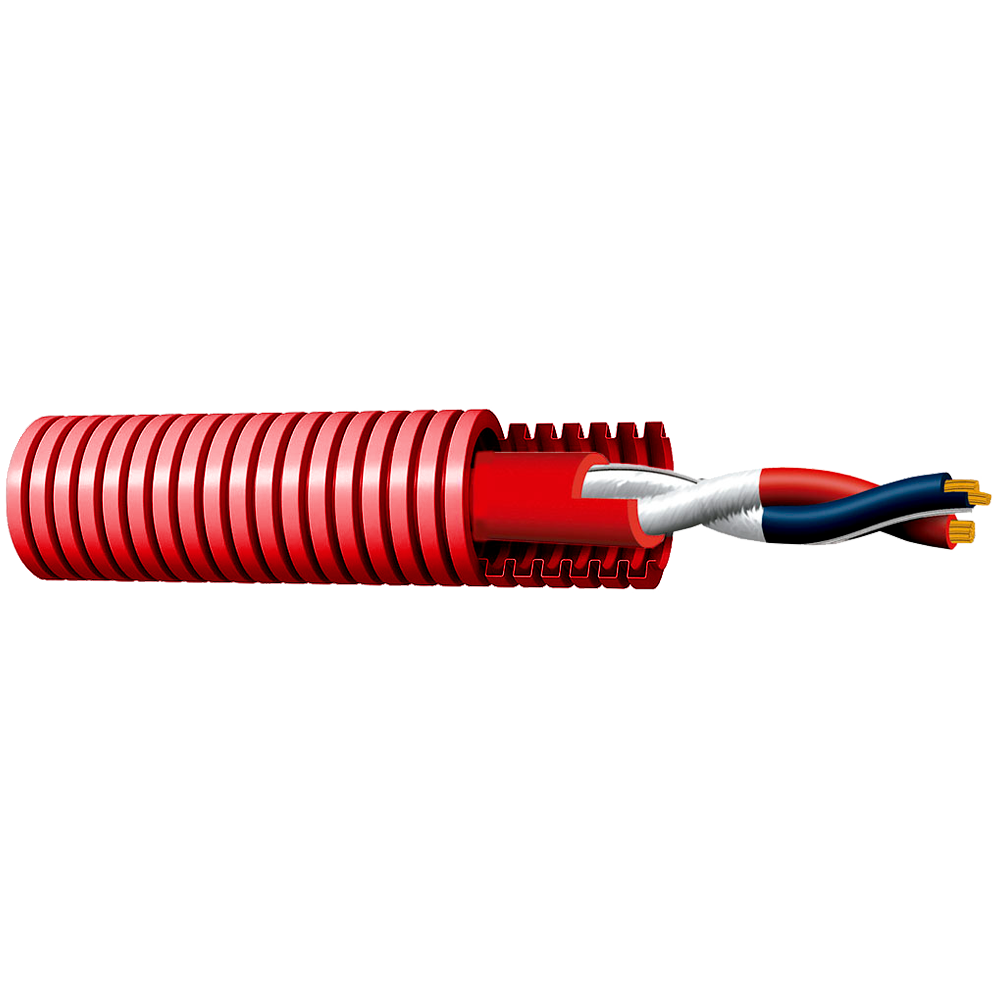

FRC15P-100-C
- Shielded braided cable drum
- Fire resistant RF 120 minutes
- Bobbin of 100 meters
- Copper conductor 2x1.5mm2
- CPR certificate Cca -1sb, a1, d1
- EN Certificate 50575 | Resistance 13.9 Ω/Km
- Pre-wired in corrugated pipe
- Fire-resistant twisted pair cable bobbin
- 100 m
- Specially for fire
- Pre-wired in corrugated pipe
- Shielding
- 2 conductors
- Inner conductor Flexible polished copper Class 5 1.5mm2
- 25 turns/meter
- Silicone Ceramic CR1 Fire Resistant 2.8mm
- Screen Aluminium Mylar+Drain CuSn
- Cover Polyolefin EVA 7.0 mm
- Certified EN 50575
- Resistance 13.9 Ω/Km
Specifications
| Length | 100 m |
| Interior conductor | Flexible polished copper Class 5 1.5mm2 |
| Isolation | Silicone Ceramic CR1 Fire Resistant 2.8mm |
| Active time to fire | Constructive resistance to fire exposure RF 120 minutes Service resistance to fire exposure PH 90 minutes |
| Colour | Red and Black - more than 25 turns/meter |
| Screen | Mylar Aluminum Tape to Assembly / Coverage 96 % RFI / CuSn drain wire 7x0,20 |
| External cover | Halogen Free EVA Polyolefin 7-7.4mm |
| Resistance | 13.9 Ω/Km |
| Working voltage | 500V |
| Capacity | 98 pF/m |
| Working voltage | -40º ~ +70º |
| Certification | CPR (Cca -1sb, a1, d1), UNE EN 50575, UNE EN 60332-1-2,50399,61034-2, UNE EN 60754-2 |
In the box
- Bobbin of cable
