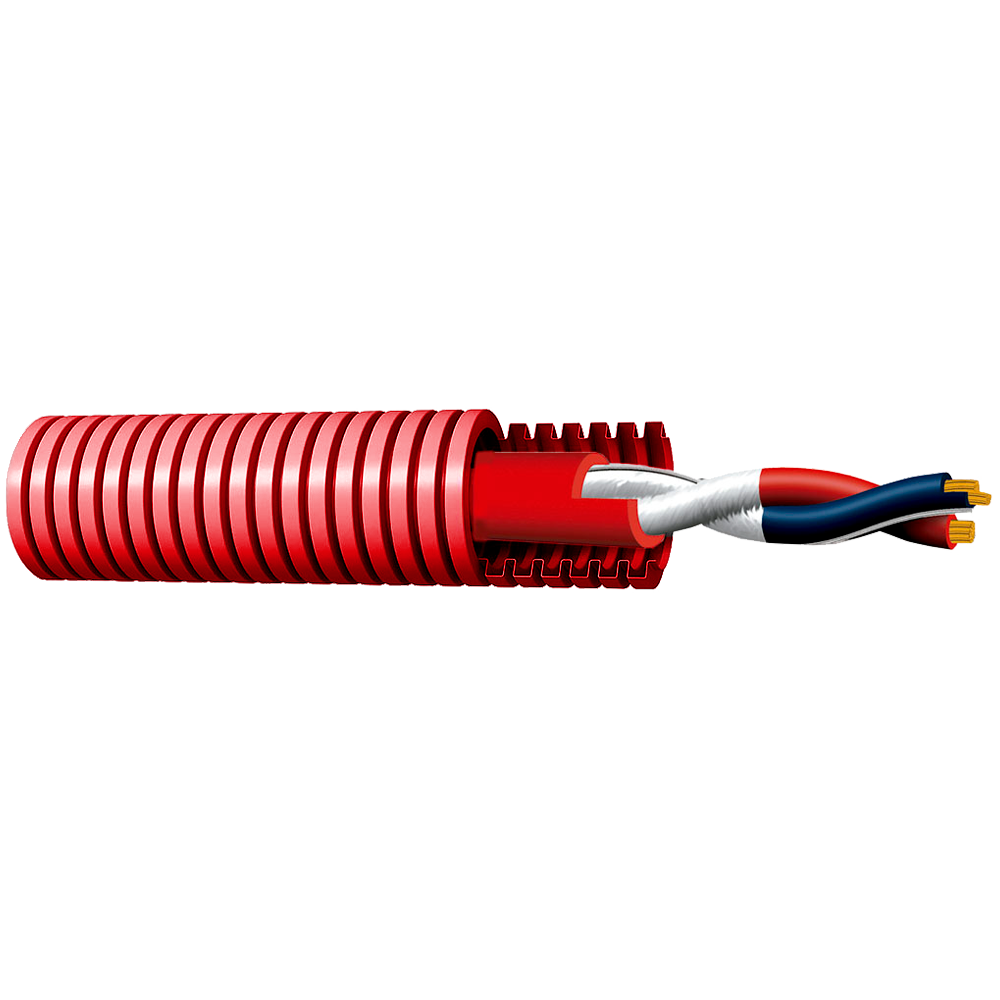

FC15P-100-C
Ga direct naar de productinformatie
FC15P-100-C
- Special cable for fire protection systems
- Pre-wired twisted pair in corrugated tube 16mm
- Conductor Flexible copper Class 5
- Bobbin of 100 meters
- Halogen free
- CPR certificate Cca -1sb, a1, d1
- Bobbin of cable
- 100 m
- Especially for fire fighting systems
- Pre-wired twisted pair in corrugated tube 16mm
- Inner conductor Class 5 Flexible copper 2x1.5 mm2
- Polyolefin insulation
- Shielding
- Halogen free
- CPR certificate Cca -1sb, a1, d1
Specifications
| Length | 100 m |
| Interior conductor | Flexible Copper 1.5mm2 Class 5 |
| Isolation | Halogen-free polyolefin |
| Formation of the wires | Twisted |
| Screen | Yes, it has |
| External cover | Corrugated pipe with diameter 16mm |
| Number of conductors | 2 signal |
| Temp. operation | -10º C ~ 70º C |
| Certification | CPR (Cca -1sb, a1, d2), UNE EN 50575, UNE EN 60332-1-2,50399,61034-2, UNE EN 60754-2 |
In the box
- Bobbin of cable
