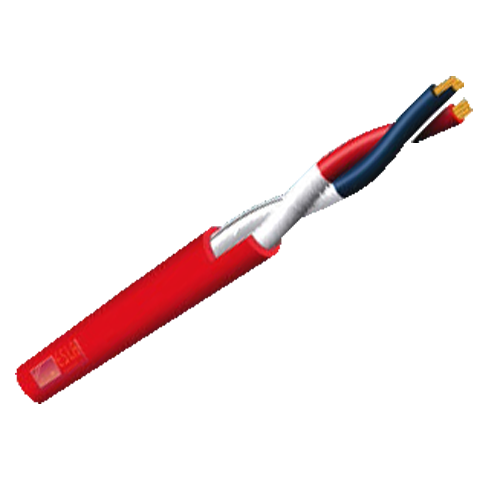

FC15-500-C
Ga direct naar de productinformatie
FC15-500-C
- Shielded braided cable drum
- Bobbin of 500 meters
- Copper conductor 2x1.5mm2
- CPR certificate Cca -1sb, a1, d1
- Certified EN 50575
- Resistance 13.9 Ω/Km
- Twisted pair cable bobbin
- 500 m
- Specially for fire
- Shielding
- 2 conductors
- Inner conductor Flexible polished copper Class 5 1.5mm2
- 25 turns/meter
- Halogen-free insulation 2.8mm
- Screen Aluminium Mylar+Drain CuSn
- Cover Polyolefin EVA 6.6 mm
- Certified EN 50575
- Resistance 13.9 Ω/Km
Specifications
| Length | 500 m |
| Interior conductor | Flexible polished copper Class 5 1.5mm2 |
| Isolation | Halogen-free 2.8mm |
| Colour | Red and Black - more than 25 turns/meter |
| Screen | Mylar Aluminum Tape to Assembly / Coverage 96 % RFI / CuSn drain wire 7x0,20 |
| External cover | Halogen Free EVA Polyolefin 6.6mm |
| Resistance | 13.9 Ω/Km |
| Working voltage | 500V |
| Capacity | 86 pF/m |
| Working temperature | +20º ~ +70º |
| Certification | CPR (Cca -1sb, a1, d1), UNE EN 50575, UNE EN 60332-1-2,50399,61034-2, UNE EN 60754-2 |
In the box
- Bobbin of cable
