EP-IPT220A-4
Ga direct naar de productinformatie
EP-IPT220A-4

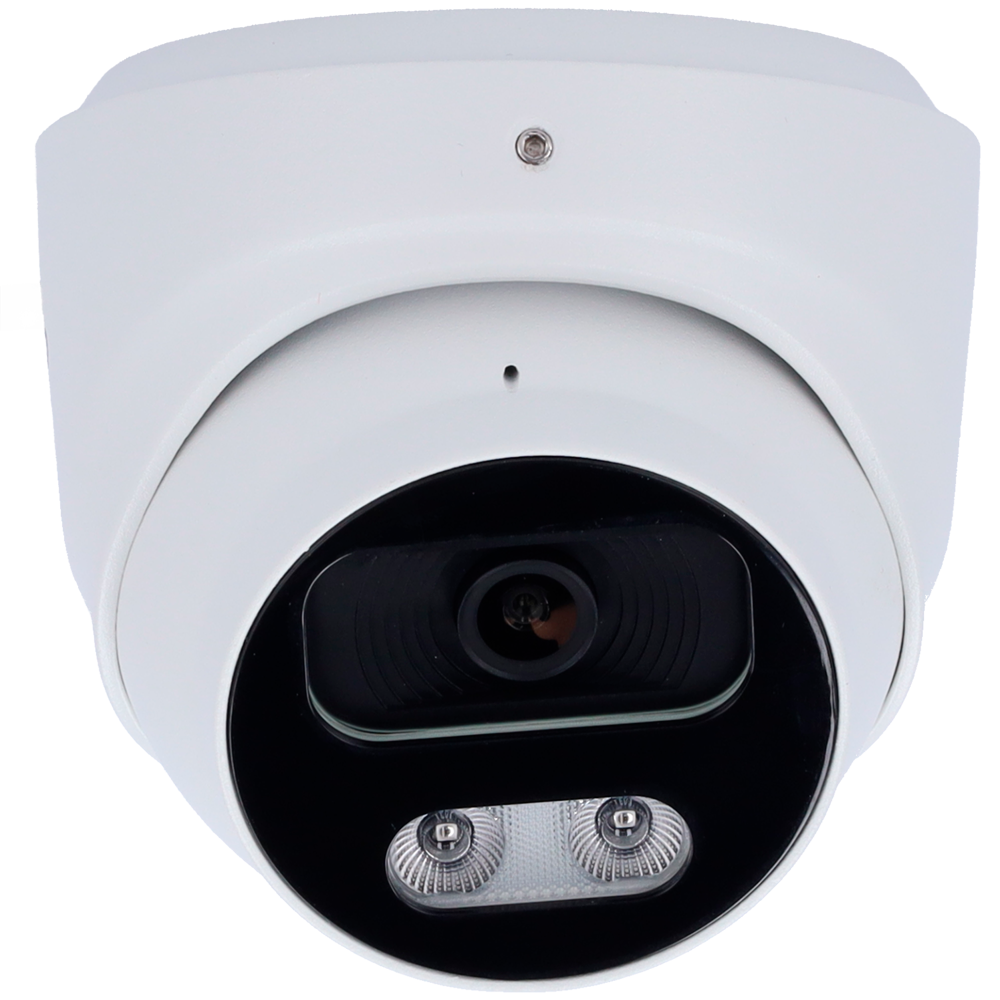

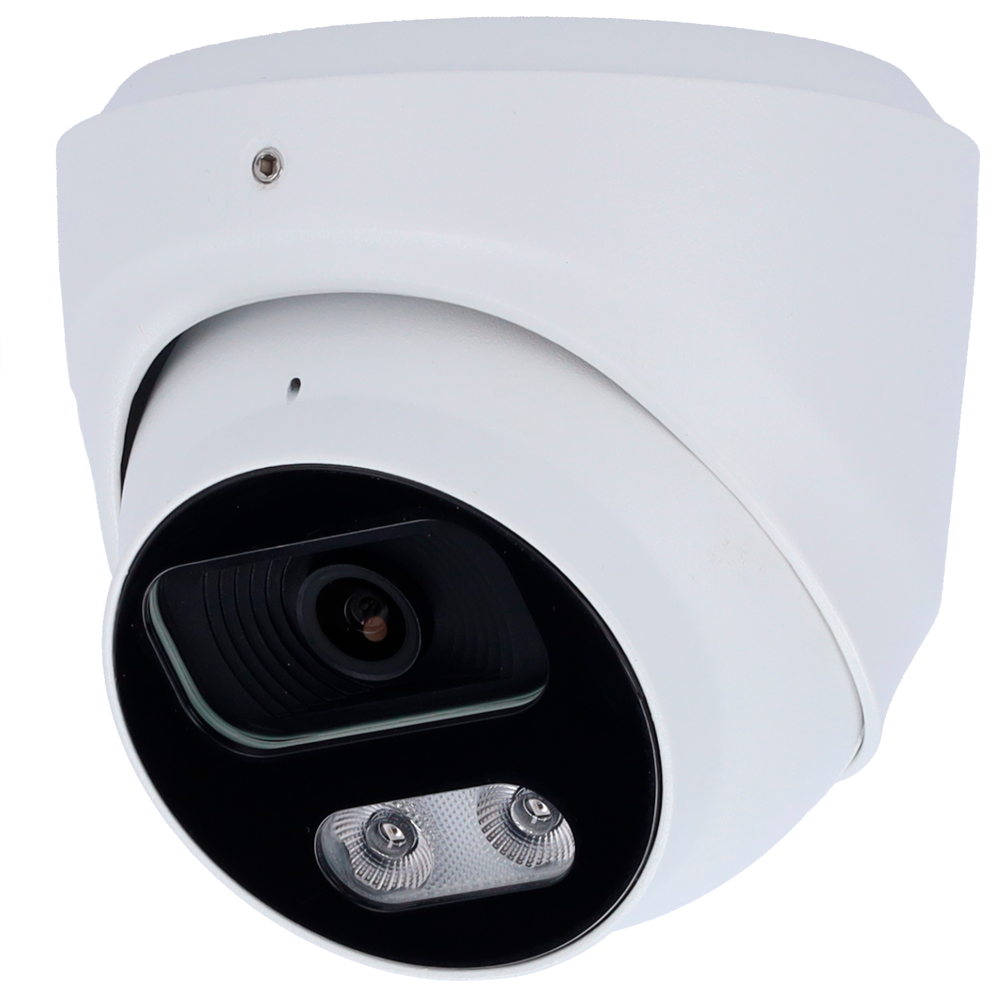

- Turret IP AI EASY-P Turret IP Camera
- 4MP | Lens 2.8 mm
- IR 25 m | Mic
- Plug & Play installation
- AI by Humans and/or Vehicles
- IP67 | PoE | P2P | Metal
EasyP's 4 MP turret camera delivers sharp, high-resolution images, ideal for accurate and reliable surveillance. Its rugged metal housing with IP67 certification ensures excellent protection against dust and rain, allowing outdoor use in adverse weather conditions. Equipped with a 2.8 mm lens, it provides a wide field of view to cover more area with fewer blind spots. In addition, it features intelligent detection technology that recognizes and triggers alerts only in the presence of people and/or vehicles, reducing false alarms and improving monitoring efficiency.
- Easy-P with Artificial Intelligence
- Turret IP Camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2688x1512)
- 2.8mm fixed lens
- Minimum illumination 0.03 Lux | 0 Lux with IR
- IR Range 25 m
- DWDR
- Integrated microphone
- AI: intrusion detection, motion detection based on human detection. Reduces false alarms
- ONVIF Compatible
- P2P
- Weatherproof IP67
- PoE
Specifications
| Brand | EASY-P |
| Image sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688*1512) |
| Minimum illumination | Colour: 0.03 Lux @(F1.6, AGC ON) |
| Lighting Scope | IR up to 25m |
| Day/Night | Removable mechanical ICR filter |
| Electronic Shutter | 1/3~1/100000 s |
| Main Stream rate | 2688*1512@25fps, 2560*1440@30fps, 1920*1080@30fps, 1280*720@30fps |
| Extra Stream rate | 1280*720@30fps, 720*480@30fps |
| Compression | H.264 / H.264+ / H.265 / H.265+ / JPEG / AVI / MJPEG |
| Bitrate | 64 Kbps ~ 6 Mbps |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | H: 95°, V: 55°, D: 114° |
| Image improvements | DWDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| Motion detection and UMD | Supports both functions |
| Smart Features | Native support of Motion Detect 2.0 and UMD |
| Audio | Integrated microphone |
| Audio Compression | G711A / U, AAC |
| Network interface | Ethernet 10 / 100M BaseT |
| Remote access | Web Browser, APP |
| Interoperability | ONVIF, plug&play with Uniview and Hikvision |
| P2P | Yes |
| Power | DC 12 V / 9 W max. / IEEE802.3af PoE |
| Degree of protection | Weatherproof IP67 |
| Material | Metallic |
| Temp. operation | -20º C ~ +60º C |
| Dimensions | 96 (Ø) x 90 (h) mm |
| Weight | 800 g |
In the box
- Turret IP EASY-P Camera
- Installation material
- Installation quick guide
