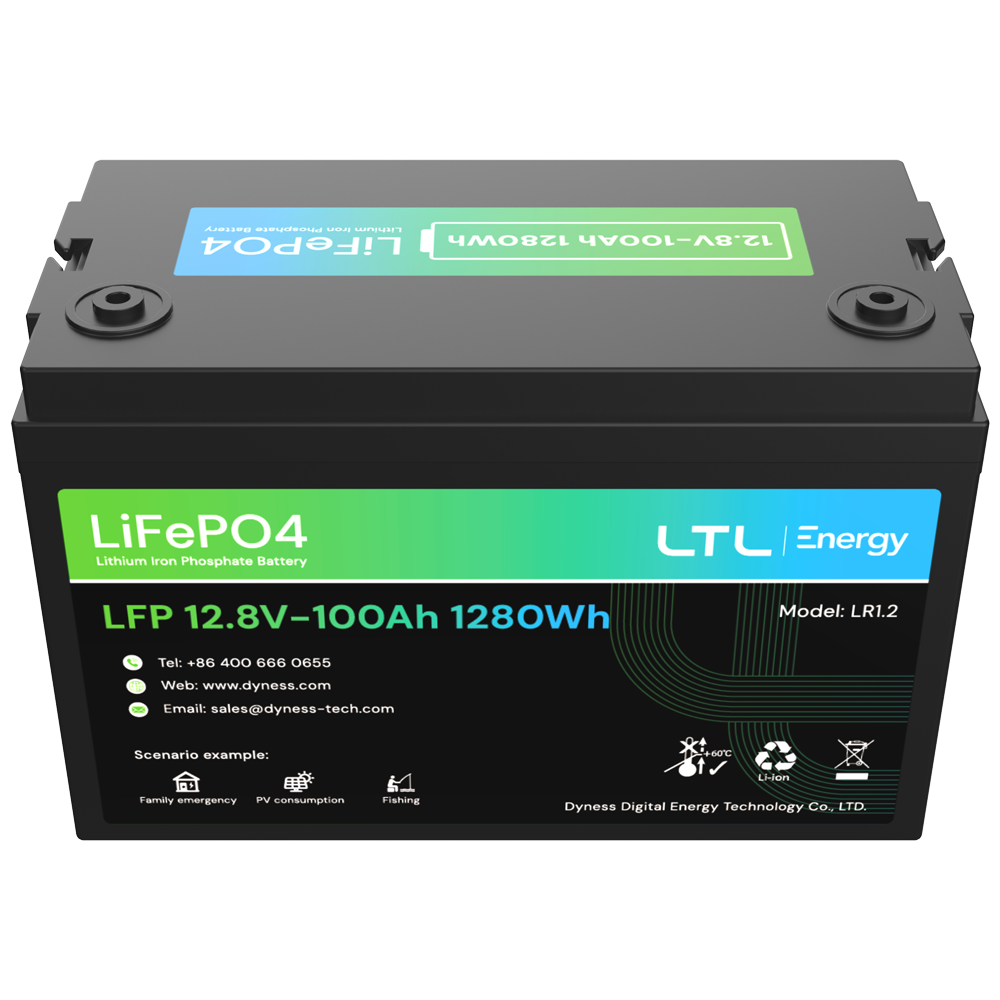

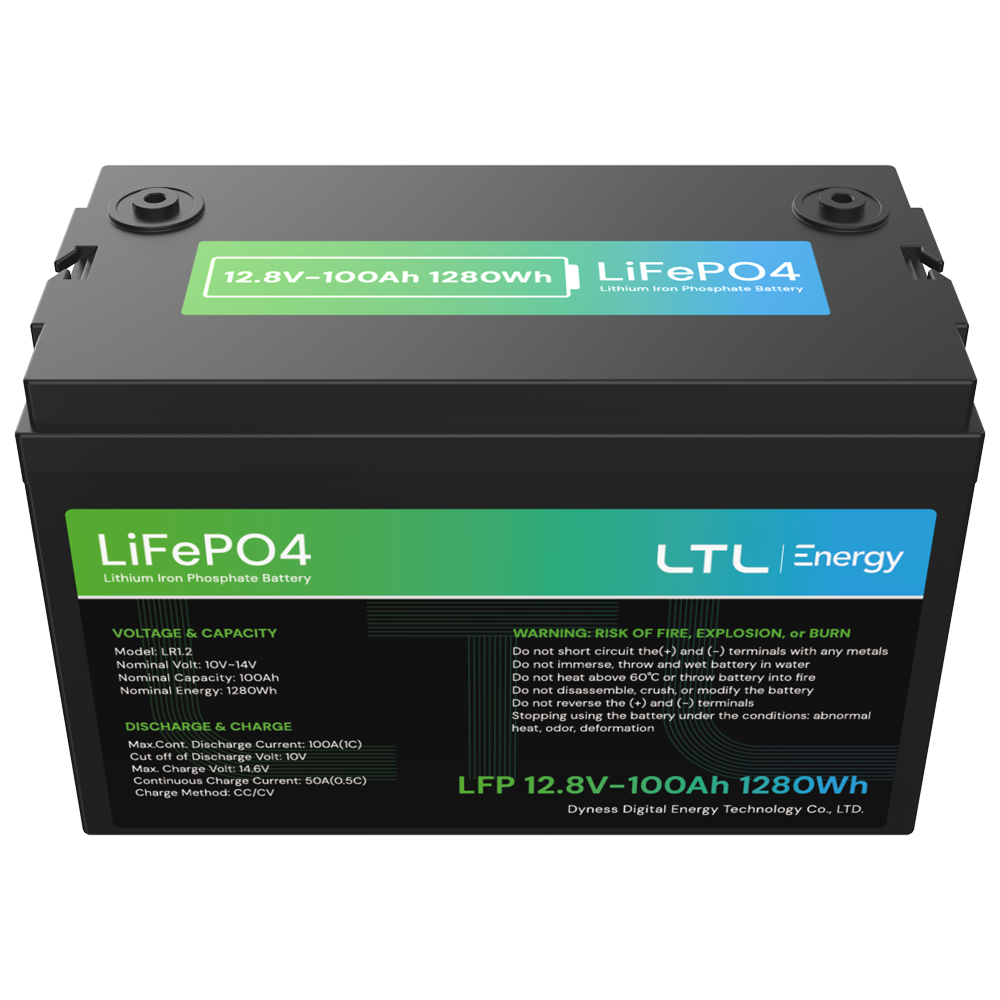

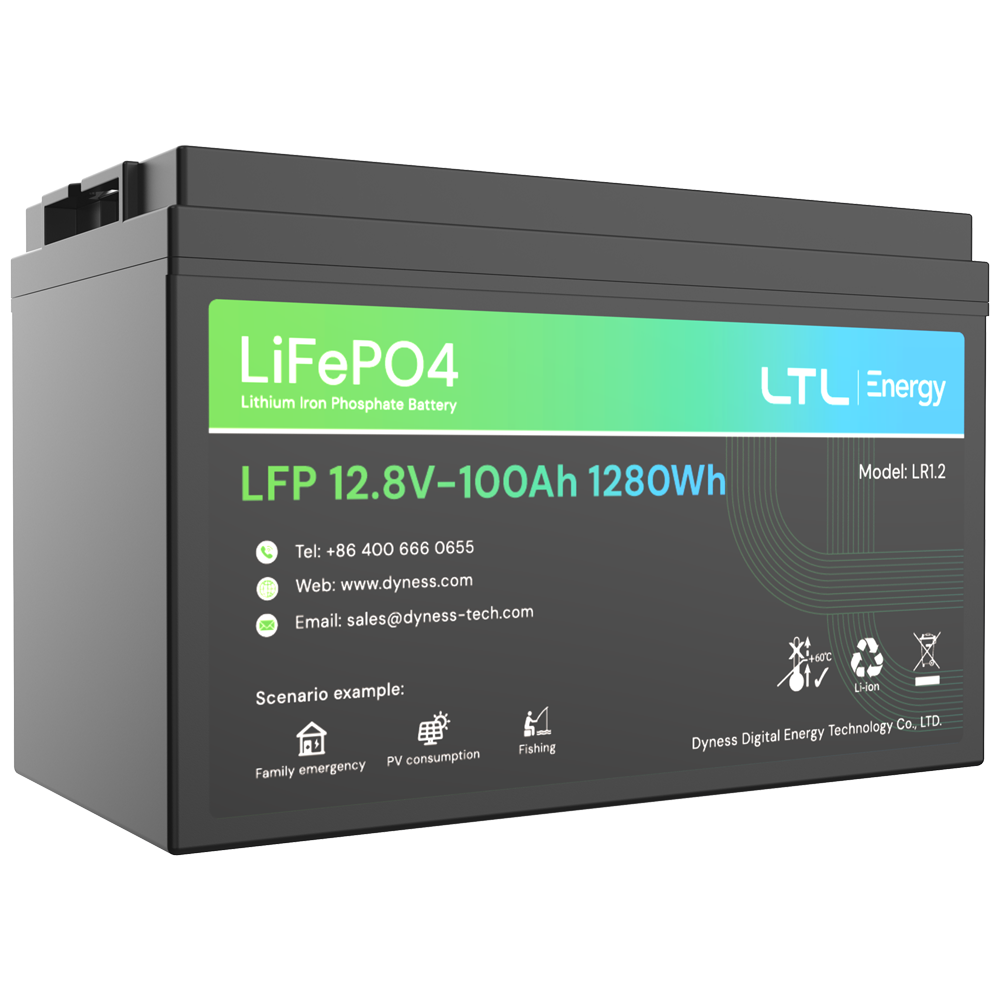

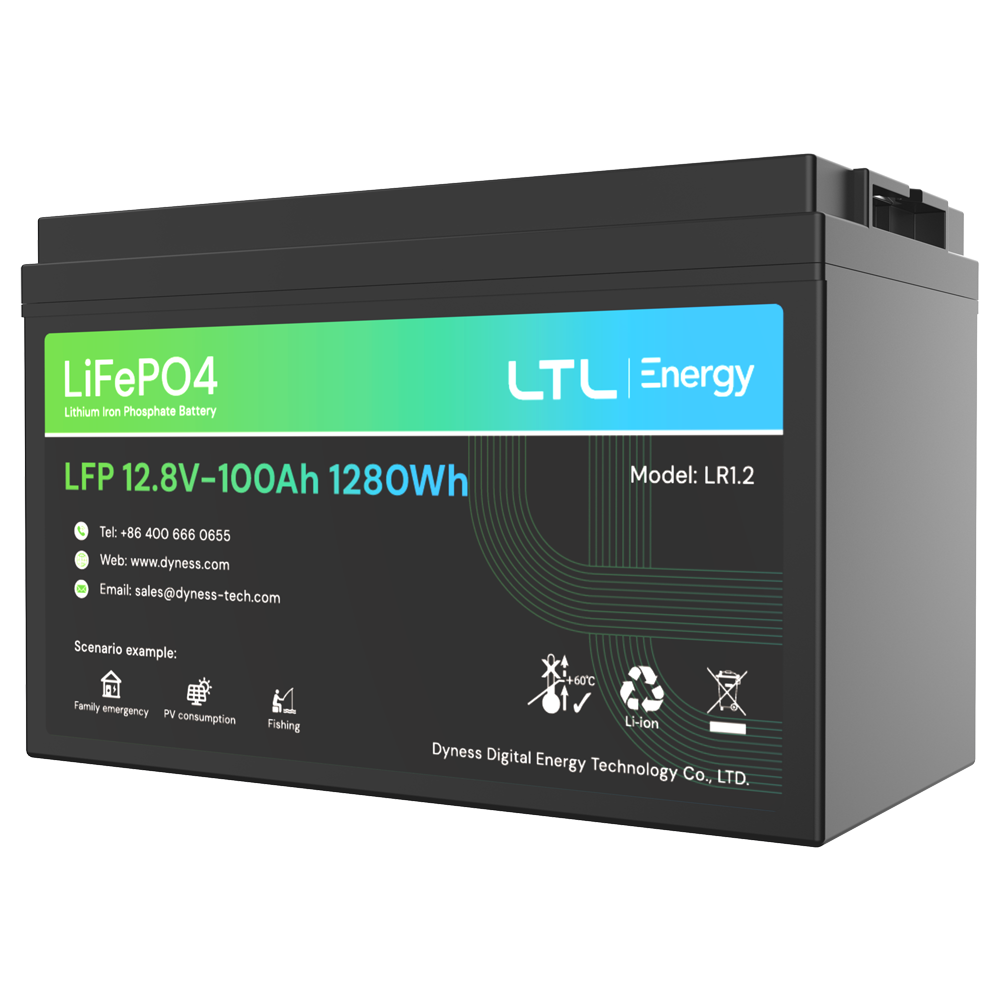

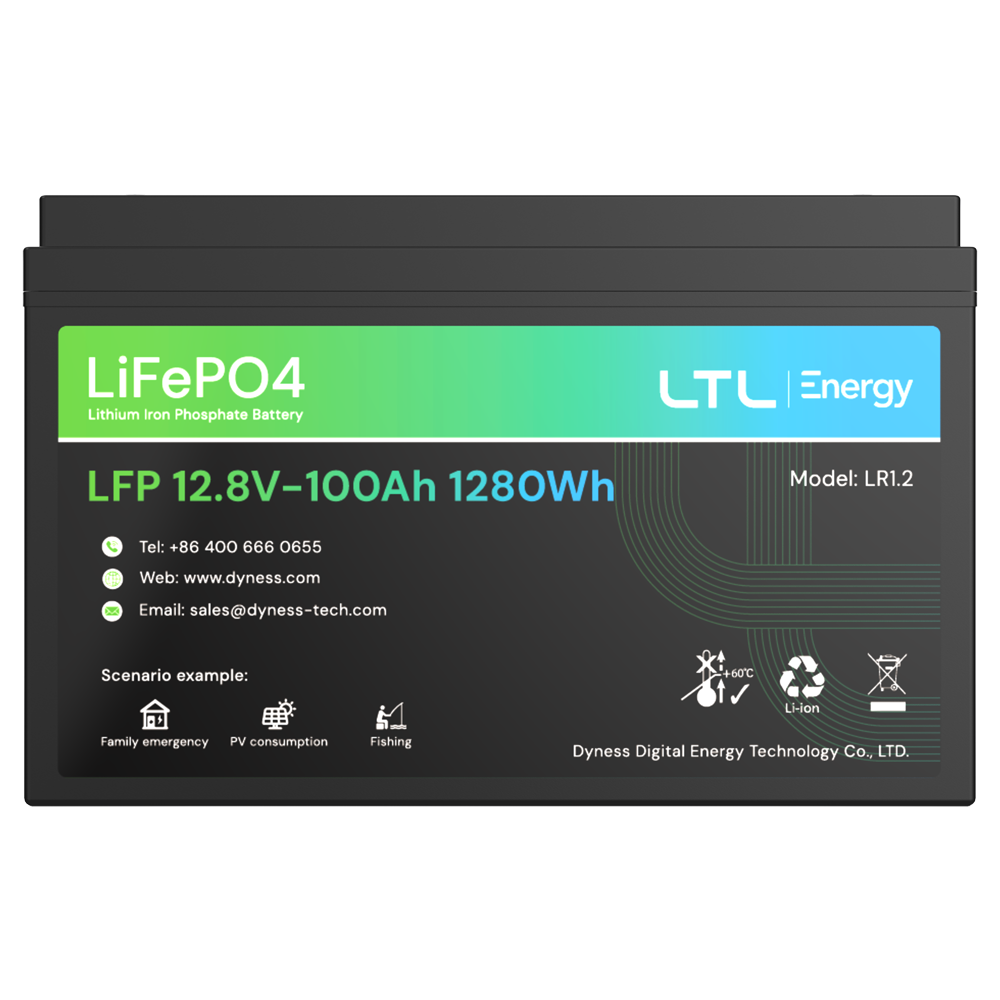

DY-AR-1200
- Stationary battery
- Capacity 1280Wh
- LiFePO4 12V / 100Ah
- 3000 life cycles
- Up to 16 units in parallel
- IP 65
The Dyness DY-AR-1200 battery is a very interesting application for stand-alone systems where there is a need to operate at 12V, such as recreational vehicles, motor homes or other security system applications.
Unlike other batteries typically used in these applications, it is Lithium technology, which increases its useful life and efficiency when it comes to producing energy. It has IP65, so it is suitable for outdoor environments.
- Dyness
- Battery
- Maximum capacity 1280Wh
- LiFePO4 12V / 100Ah Battery
- Compatible with most inverters on the market
- IP65
- Scalable up to 16 series and parallel units
- 3000 life cycles
- For On-Grid and Off-Grid applications
- Indoor and outdoor applications
- Slight
Specifications
| Brand | Dyness |
| Capacity | 1280Wh |
| Nominal capacity | 100 Ah |
| Battery type | LiFePO4 12V / 100Ah |
| Nominal voltage | 12 V |
| Operating voltage | 10 ~ 14.8 V |
| Load current at full power | 100 A |
| Discharge current at full power | 100 A |
| Life Cycle | +3000 |
| Depth of discharge (DOD) | 100% |
| Maximum discharge | 1C |
| Temp. Operation (load) | 0 - 50 ℃ |
| Temp. Operation (download) | -20 - 55 ℃ |
| Dimensions | 330(W) x 172(D) x 214(H) mm |
| Weight | 11.5 Kg |
| Protection | IP65 |
| Expansion | Up to 16 units in series (4) and parallel (4) |
In the box
- Dyness Battery
- Earth cable
- User manual
- Installation material
