DV-MOSKITO-F
Ga direct naar de productinformatie
DV-MOSKITO-F

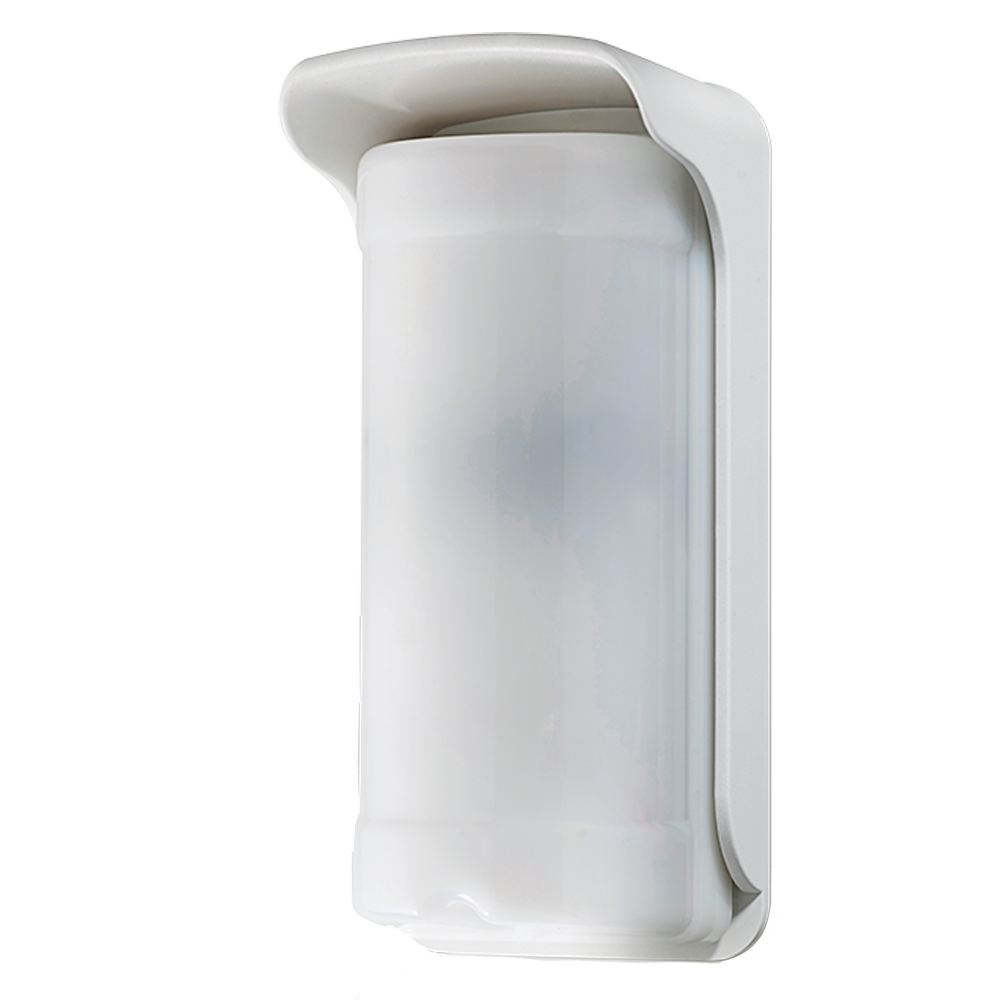

- Duevi wired outdoor detector

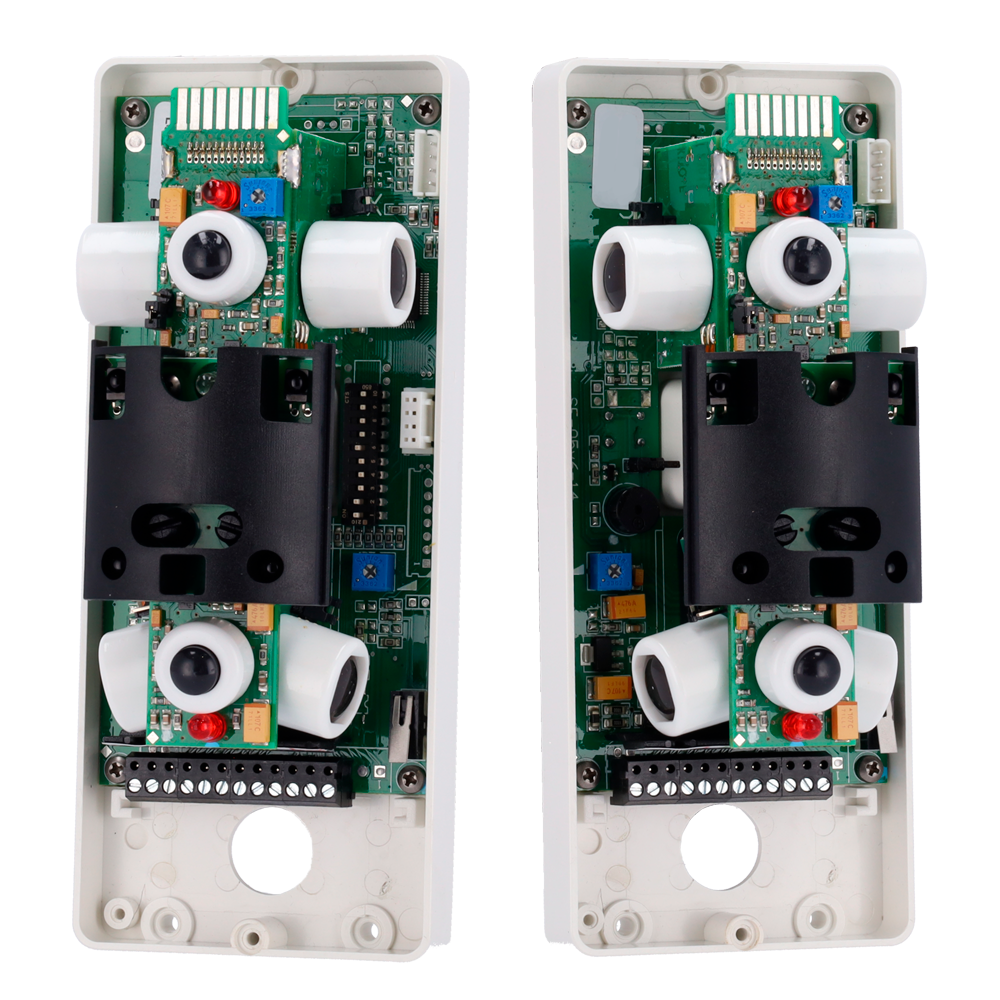

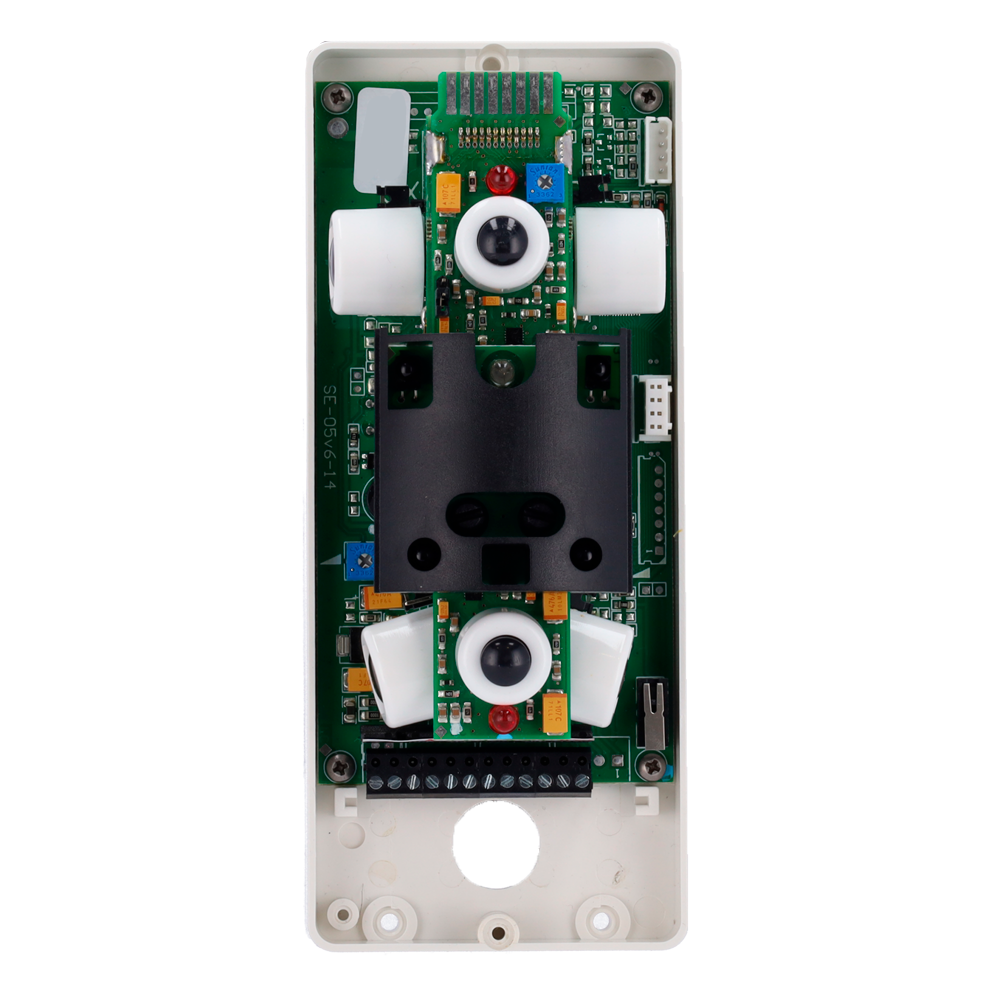

- Double PIR on each side and double PIR on the front side
- Total coverage 180º / Antimasking
- Power supply 9.6 ~ 14.5 VDC
- Compatible with wired alarm systems
- Outdoor use IP54 / Antivandalic IK10
- Duevi
- Wide-angle wired outdoor detector
- Double PIR on each side and double PIR in the middle
- Anti-masking technology

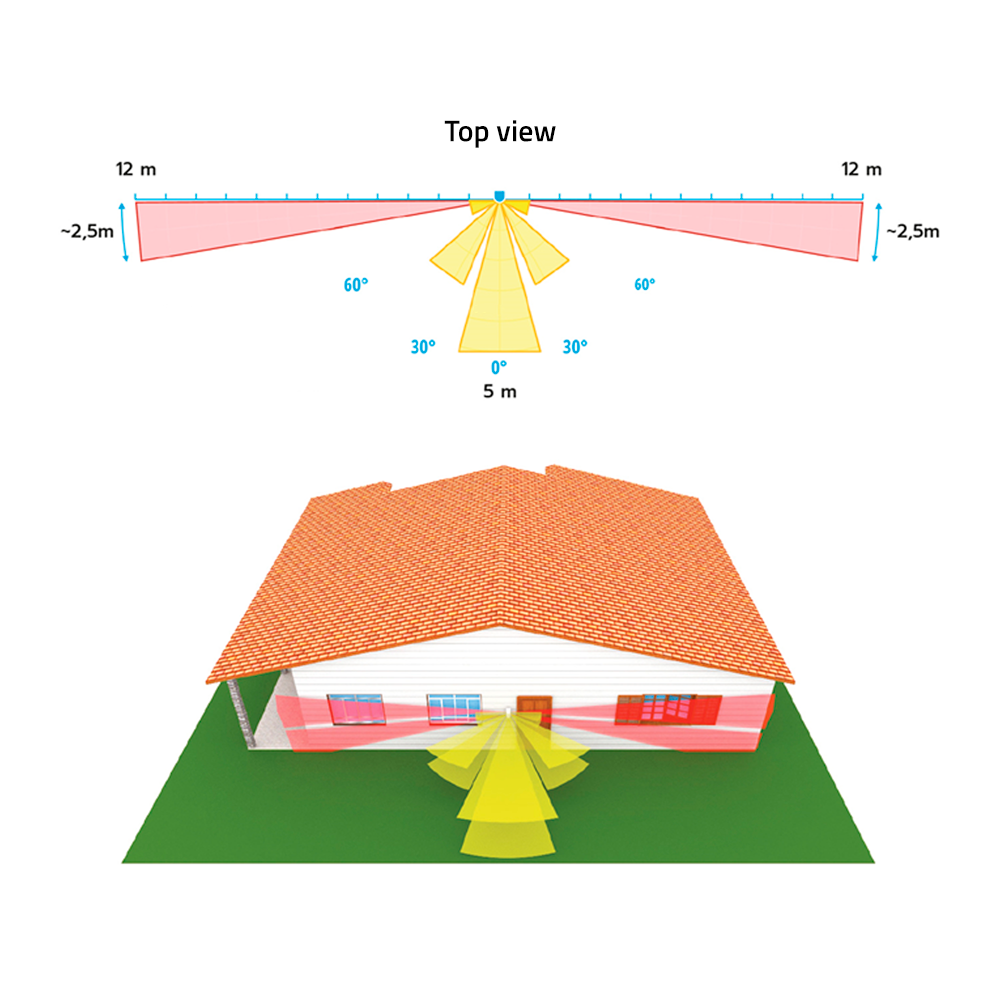

- Detection: Range 12 m on each side (10º) / 5 m front (180º)
- Motion detection indicator
- Tamper-resistant opening
- Power supply 9.6~14.5 VDC
- Compatible with wired alarm systems
- Outdoor use
- Degree of protection IP54 and anti-vandalism IK10
Specifications
| Brand | Duevi |
| Model | Moskito F |
| Technology | Double side PIR (both sides) and double front PIR |
| PIR lens | Adaptive lenses in 3 positions |
| Lateral detection field | Configurable on each side: 3 m to 12 m (in 3 levels) / 10º |
| Front detection field | Configurable: 2 m to 5 m (in 3 levels) / 180º |
| Installation height | Recommended 2.2 m (from 1 to 1.4 meters) |
| Masking | Available: from 0ºC, always on (through App) or disabled |
| Sensitivity | Adjustable on each side and front (potentiometer and jumper) |
| Tamper-resistant opening | Available |
| Anti-sabotage tamper | Available (motion accelerometer) |
| LEDs indication | Alarm (blue) and Walk test (6 red LEDs: one for each PIR / blue: alarm confirmation) |
| Sound indication | Integrated buzzer for easy installation: alarm, sabotage, antimasking |

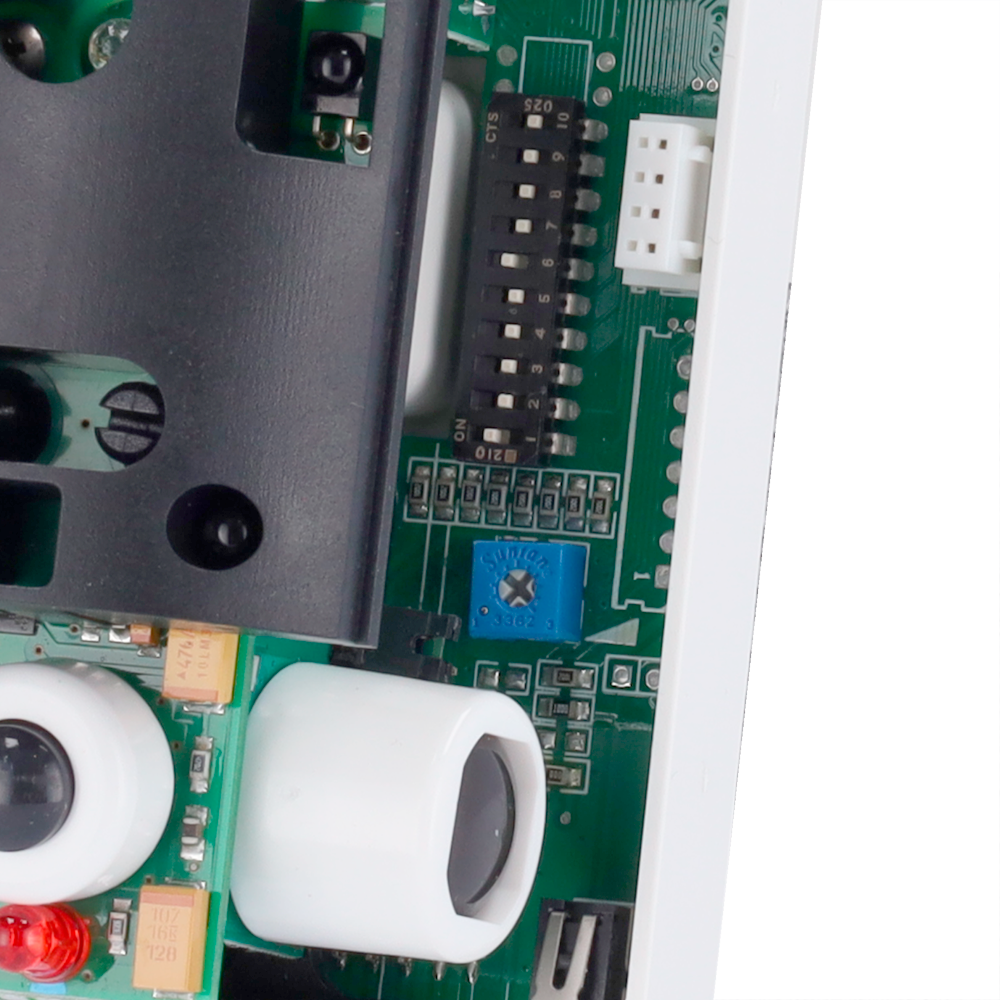

| DIP Switch configuration | 1 - Antimasking (On/Off) 2- Front pre-alarm (On/Off) 3- Front walk-test (On/Off) 4- Walk-test right (On/Off) 5- Walk-test left (On/Off) 6- Alarm LED (On/Off) 7- Programming by App (On/Off) 8 y 9 - Side configuration (all sides active / left, right or front excluded) 10- Alarm unification in one output (On/Off) |
| Additional configuration in App | Antimasking (from 0ºC, always on or disabled) / Independent sensitivity adjustment per side |
| Configuration by App | DV-BTLINK module required and download View Sensor App (Android) |

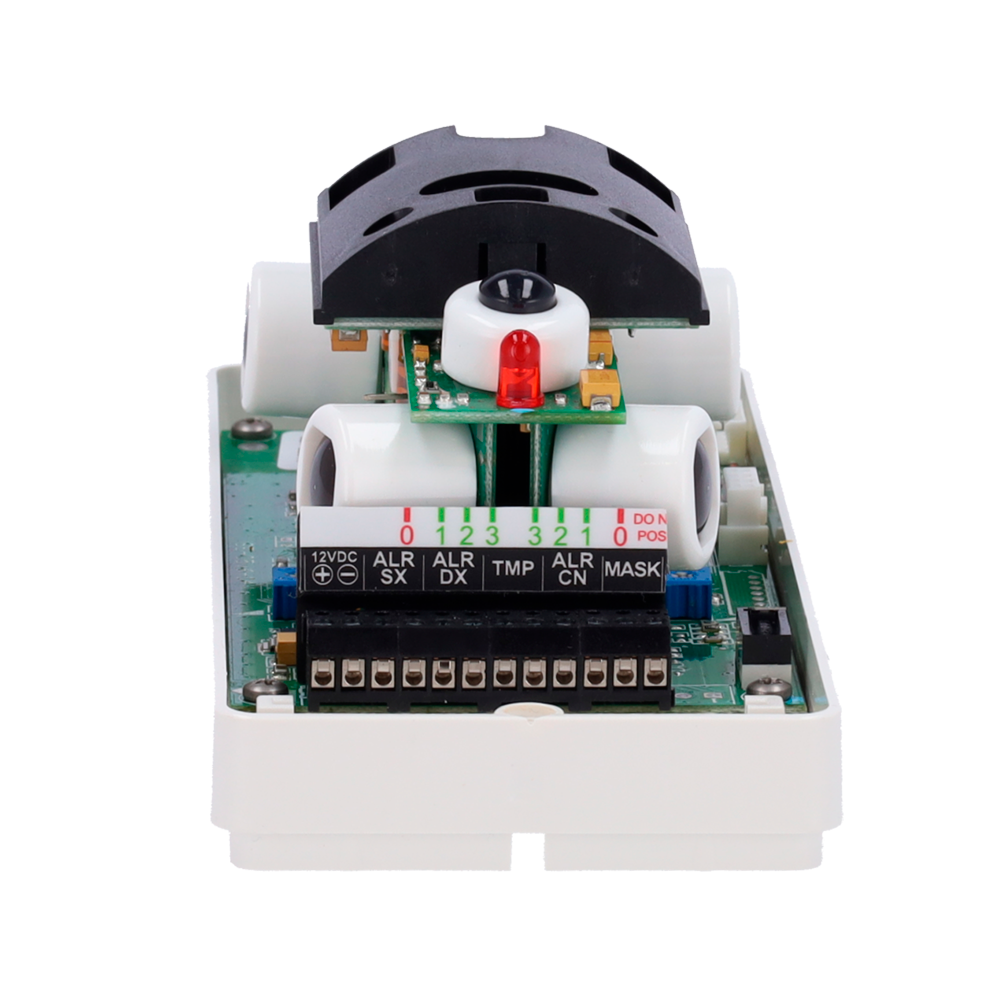

| Wired outputs | Left side alarm, right side alarm, front alarm, tamper and anti-masking alarm |
| Power | 9.6 at 14.5 VDC |
| Temp. operation | -40 ºC ~ +70 ºC |
| Degree of protection | IP54, Antivandalic IK10 |
| Dimensions | 190 (H) x 85 (W) x 75 (D) mm |
In the box
- Duevi outdoor detector
- Mounting material
