DSPPA-PAVA9002

DSPPA-PAVA9002

Log in voor B2B prijs
  • Network control terminal
  • Audio transmission
  • Control software

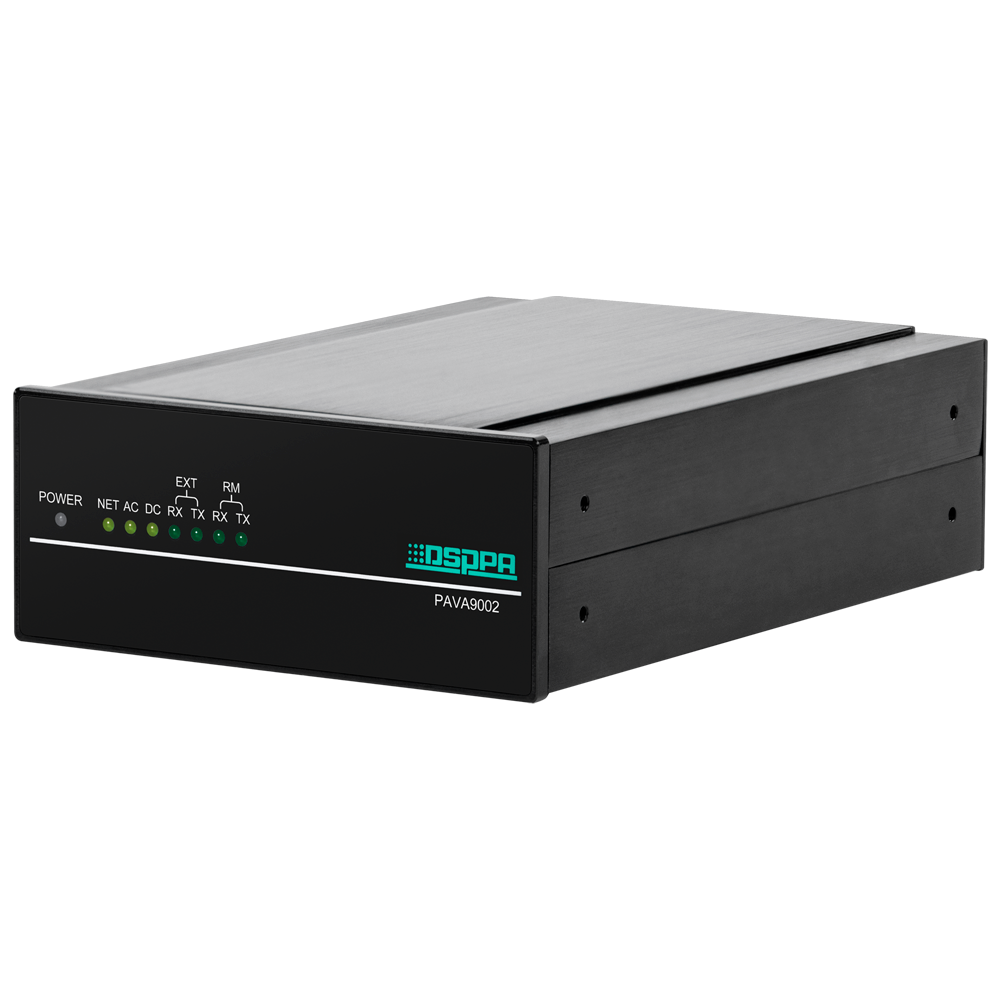

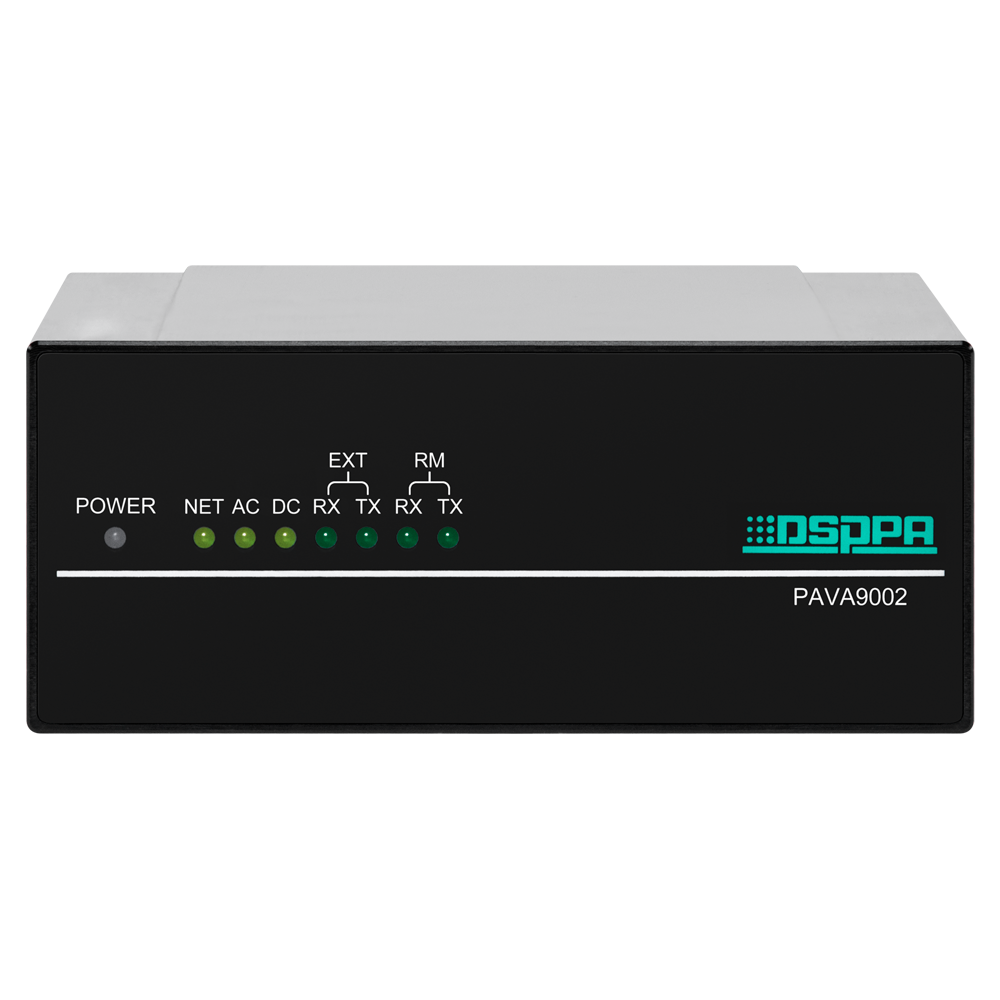

  • LED indicators

Network control terminals are essential devices in public address and voice evacuation systems. They can manage emergency messages, announcements and background music through a network, connecting and coordinating different equipment from a central point. They are designed under standards such as EN54-16, which ensures their reliability in critical situations.

This equipment is used in places such as airports, hospitals or shopping malls, where clear and fast communication is key. They facilitate the sending of messages to specific zones, remote control of the system and integration with other security solutions, offering an efficient response to emergencies.

  • Network control terminal
  • Voice alarm EN54-16 and general public address system
  • Compatible with DSPPA-PAVA9500 and DSPPA-PAVA9008
  • Connection of up to 600m, 300m if 3 devices are connected to the same port

Specifications

Model PAVA9002
Connection with microphones (TX RM1-2)) - Sensitivity: ±3000mV (±300mV)
- Power supply: DC48V (±5V)
- LED indicator
- ±3000mV (±300mV)
Amplifier Expansion (RX EXT1-2)) - Sensitivity: ±1500mV (±150mV)
- LED indicator
Host Reception (RX RM1-2)):
- Frequency response: 100Hz～12kHz (±3dB)
- LED indicator

Shipment (TX EXT1-2)):
- Frequency response: 50Hz~16kHz (±3dB)
- LED indicator
- ±1500mV (±150mV)
Distortion <1%
SNR (Signal to Noise Ratio) ≥76dB
Alimentación AC110V-240V 50/60Hz

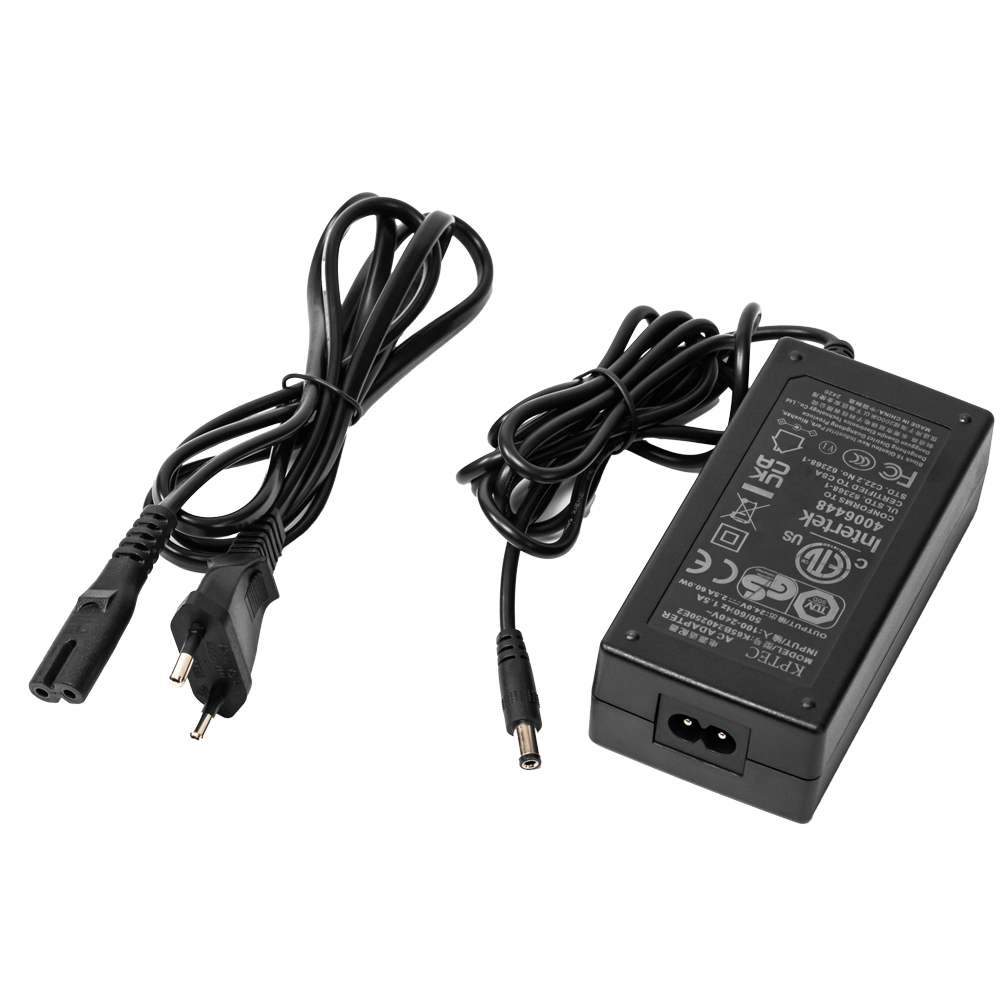

Transformador DC24V/2.5A (±3V)
Fuente de alimentación de reserva: DC24V, 2.5A
Rango de tensión de funcionamiento DC21V-28V

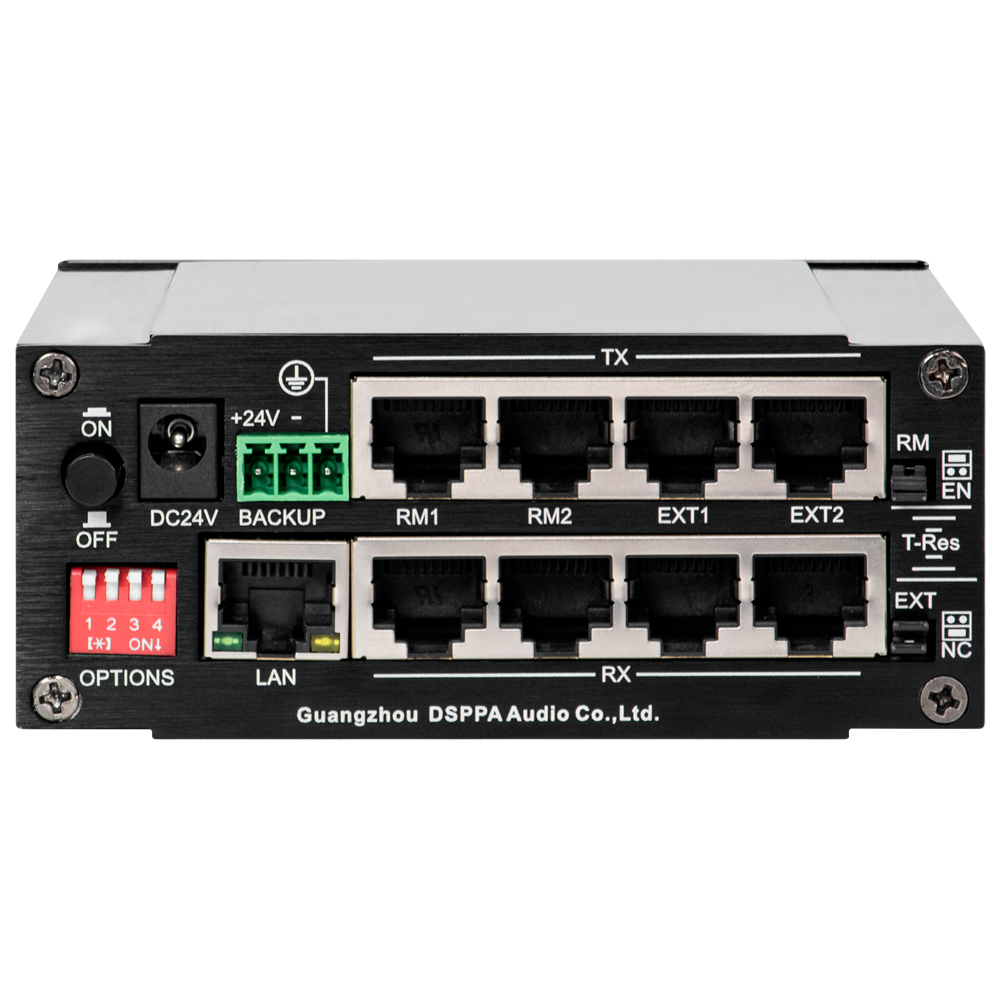

Puertos - 1 x Alimentación
- 1 x Alimentación de reserva
- 2 x RJ45 (TX RM1-2)
- 2 x RJ45 (TX EXT1-2)
- 1 x RJ45 (LAN)
- 2 x RJ45 (RX RM1-2)
- 2 x RJ45 (RX EXT1-2)
Condiciones de funcionamiento - Temperatura: -20℃ ~ +50℃
- Humedad: 20% ~ 80% (sin condensación)
Dimensiones 165mm (An) x 115mm (Al) x 55mm (Pr)
Peso 0.65kg

In the box

  • Amplificador
  • Material de instalación
  • Instrucciones de uso
