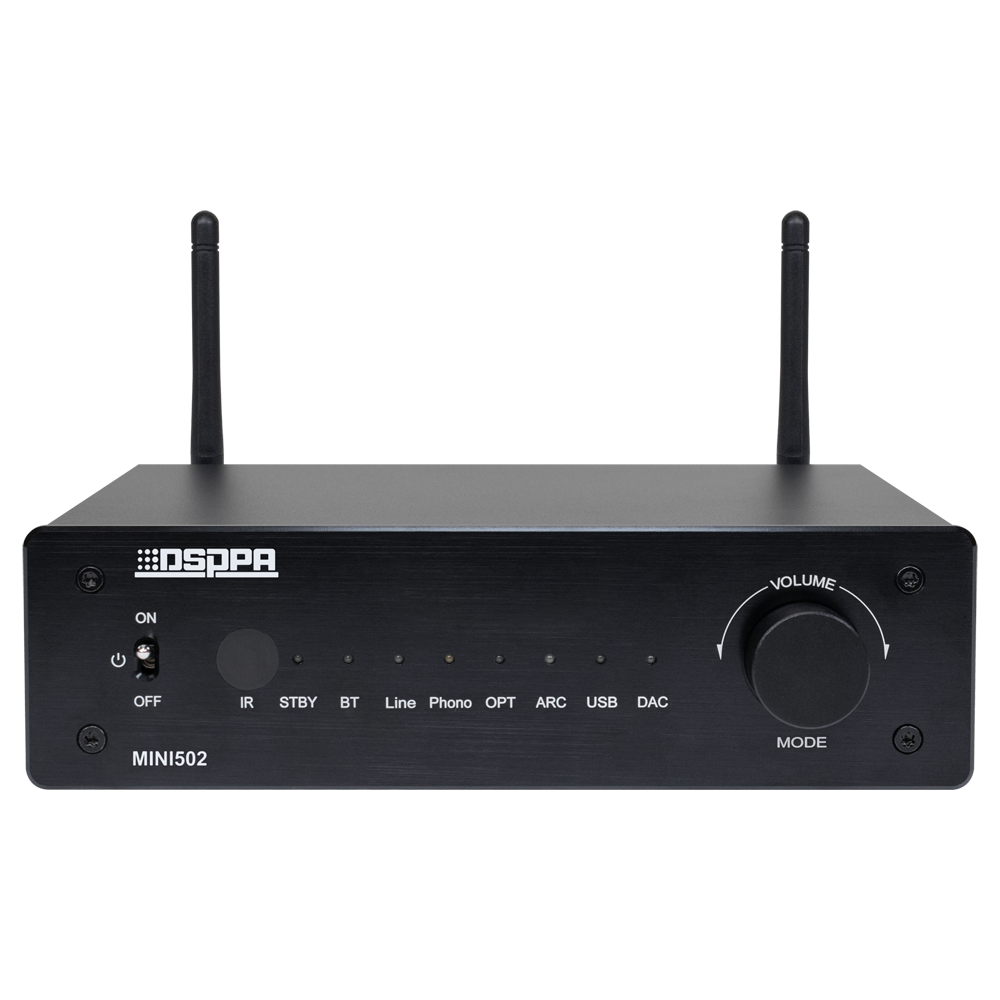

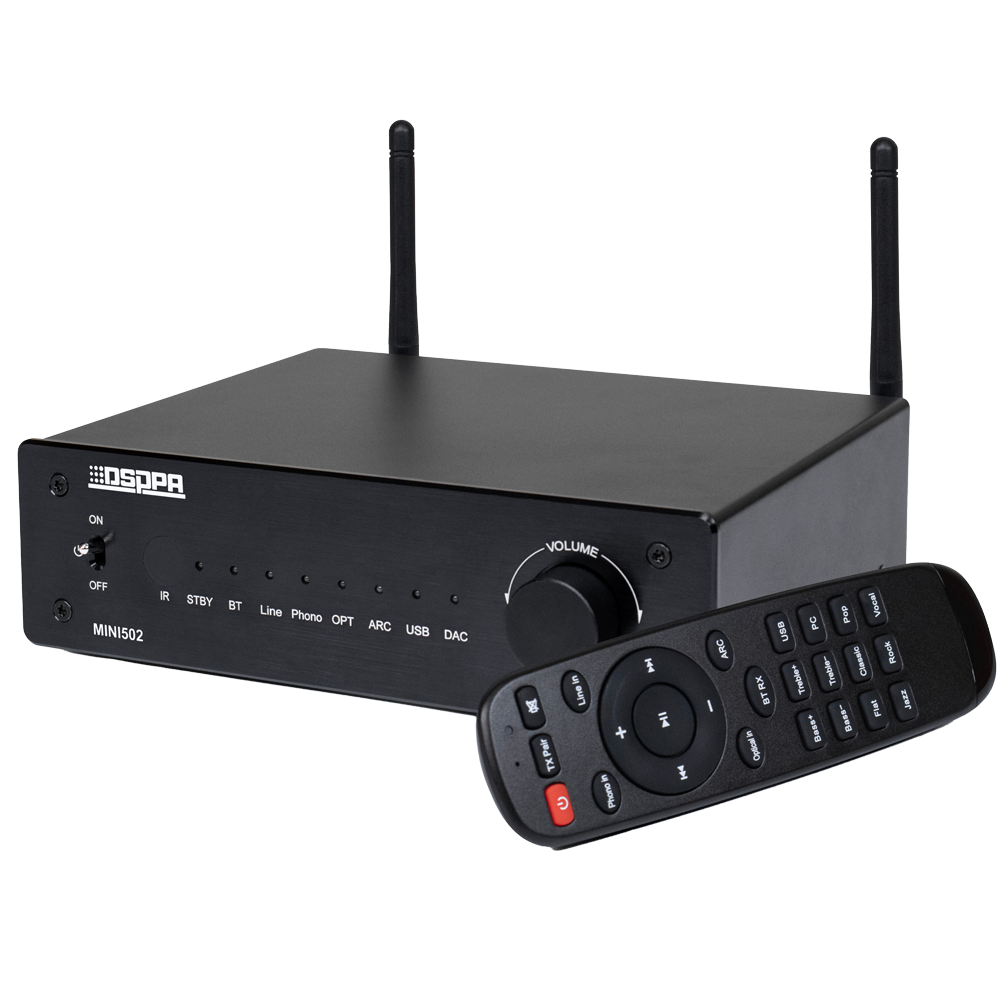

DSPPA-MINI502
DSPPA-MINI502
- Amplifier player
- 2 x 50W
- Dual Bluetooth connection
- USB playback
- Settings for equalization
- Remote control
The amplifiers with integrated player are designed to provide efficient sound solutions in small spaces such as classrooms, offices, stores or meeting rooms. Despite their small size, they incorporate essential functions such as audio inputs, speaker output, volume control and direct playback of files from USB devices (for example). This makes them an all-in-one solution for those looking for a simple yet complete audio system.
This type of product is designed to be easily integrated into fixed sound systems, providing the necessary amplification for low impedance loudspeakers. Its compact format and ease of installation make it ideal for projects requiring efficiency, discretion and reliable sound performance.
- Amplifier player
- 2x50W
- BT, USB and AUX playback
- Allows simultaneous connection of 2 devices via BT
- Remote control
Specifications
| Model | MINI502 |
| Type | Amplifier player |
| Power | 2 x 50W (4Ω) 2 x 30W (8Ω) |
| Impedance | 4Ω / 8Ω |
| Frequency response | 20Hz - 32kHz |
| Distortion | ≤ 0.01% (1kHz / 1W) |
| SNR (Signal to Noise Ratio) | > 93dB (max.) |

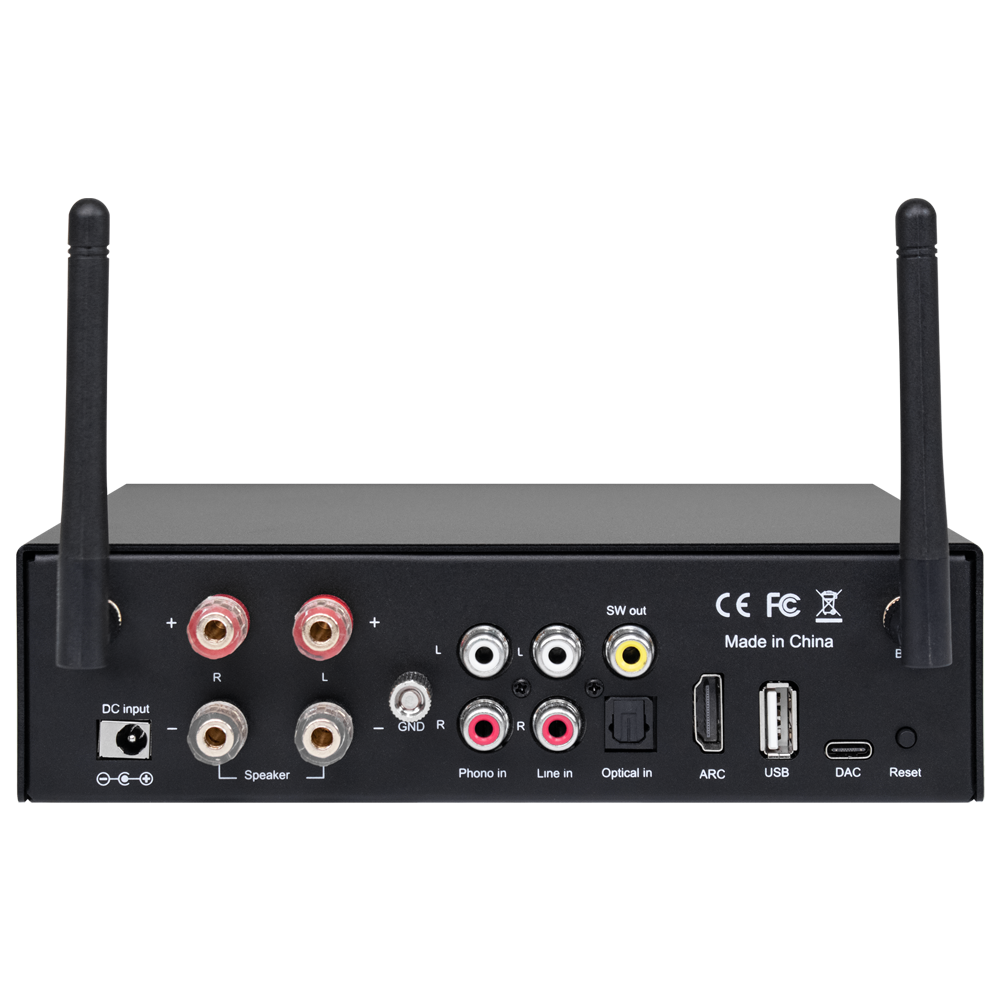

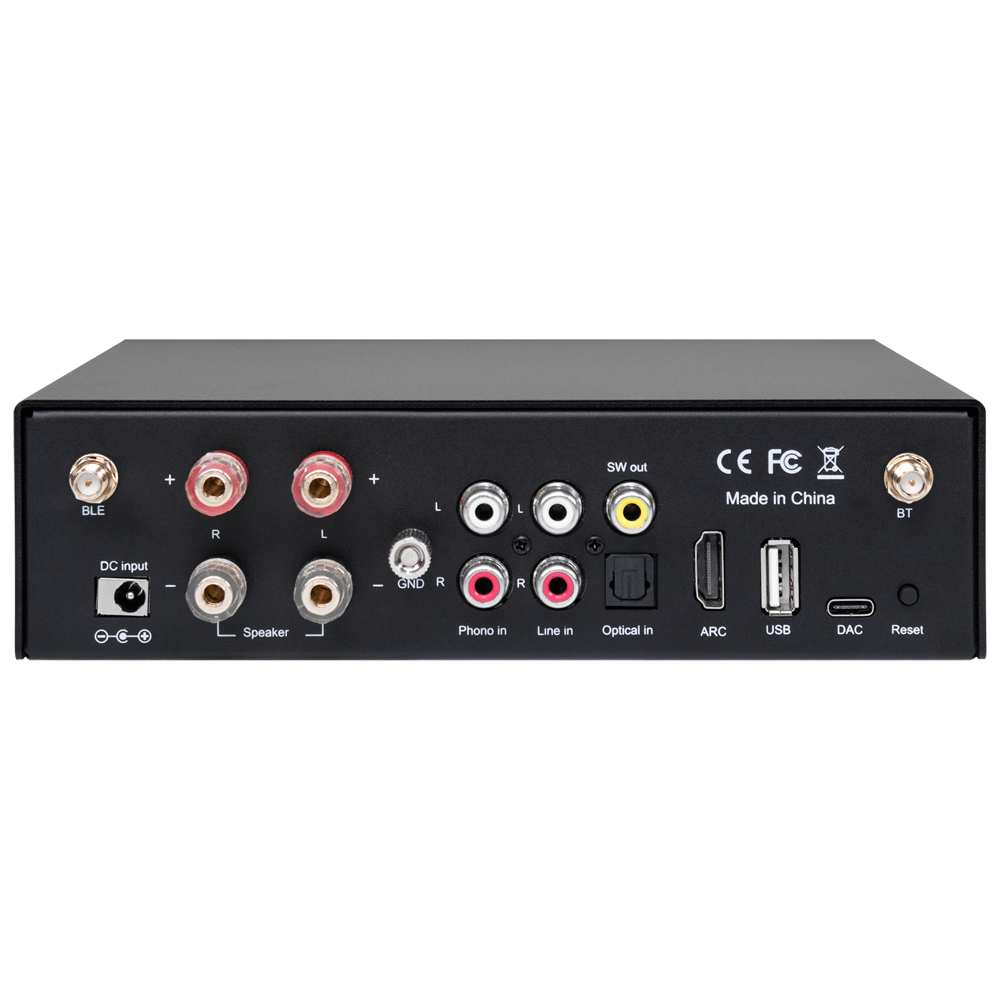

| Ports | Inputs: 1 x RCA (LINE IN - Max. 2V RMS) 1 x RCA (PHONO IN - Supports MM/MC 1 x Optical IN (Up to 192kHz/24bits only PCM) 1 x TV ARC (PCM only, does not support CEC) 1 x USB (Supported formats Fat16, Fat32, exFAT, up to 128GB. Supports codecs mp3 up to 384kbps, mp4, wma, mov, m4a, aac, flac 96kHz/24bit, ape) 1 x USB-C (For PC connection, up to 48kHz) Outputs: 1 x Subwoofer (Max. 3V RMS) 1 x Speaker OUT (50W per channel @ 4Ω) |
| Bluetooth connection | - Bluetooth 5.2 - Allows connection of two transmitting devices (loudspeakers or headphones) and receiving devices simultaneously -Supported codecs: aptX HD, aptX LL, aptX AD, AAC, SBC |
| Power | 24V DC, 4.16A |
| Dimensions | 185mm (W) x 50mm (H) x 155mm (D) |
| Weight | 0.9kg |
In the box
- Amplifier player

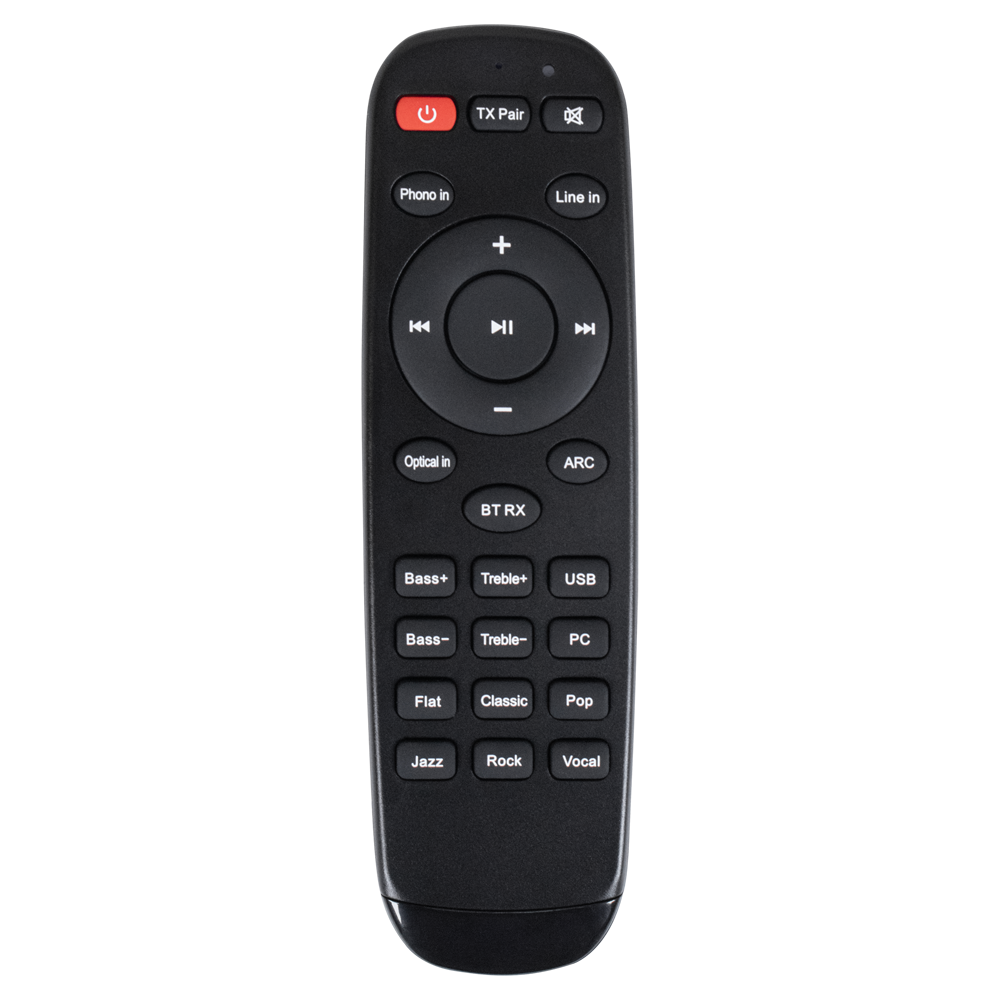

- Remote control

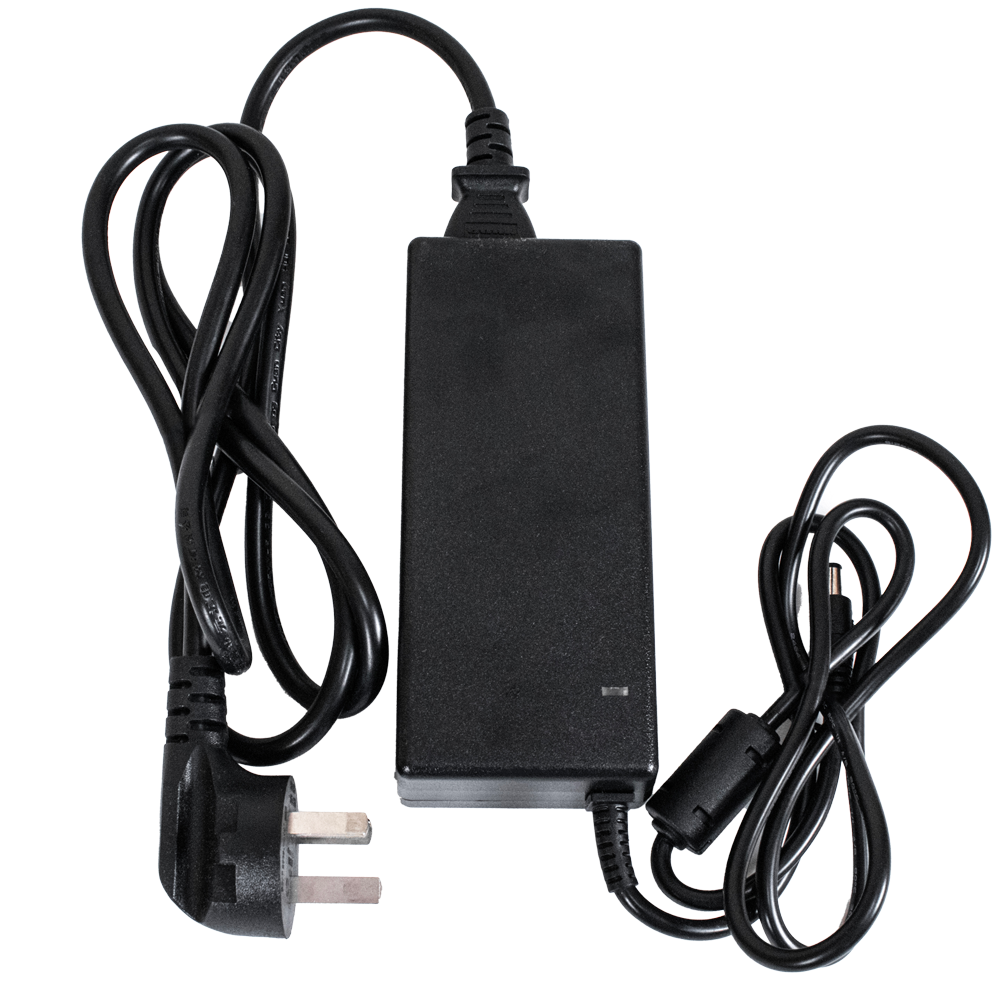

- Power
- 2 x Antenna (3dBi)
- User's manual
