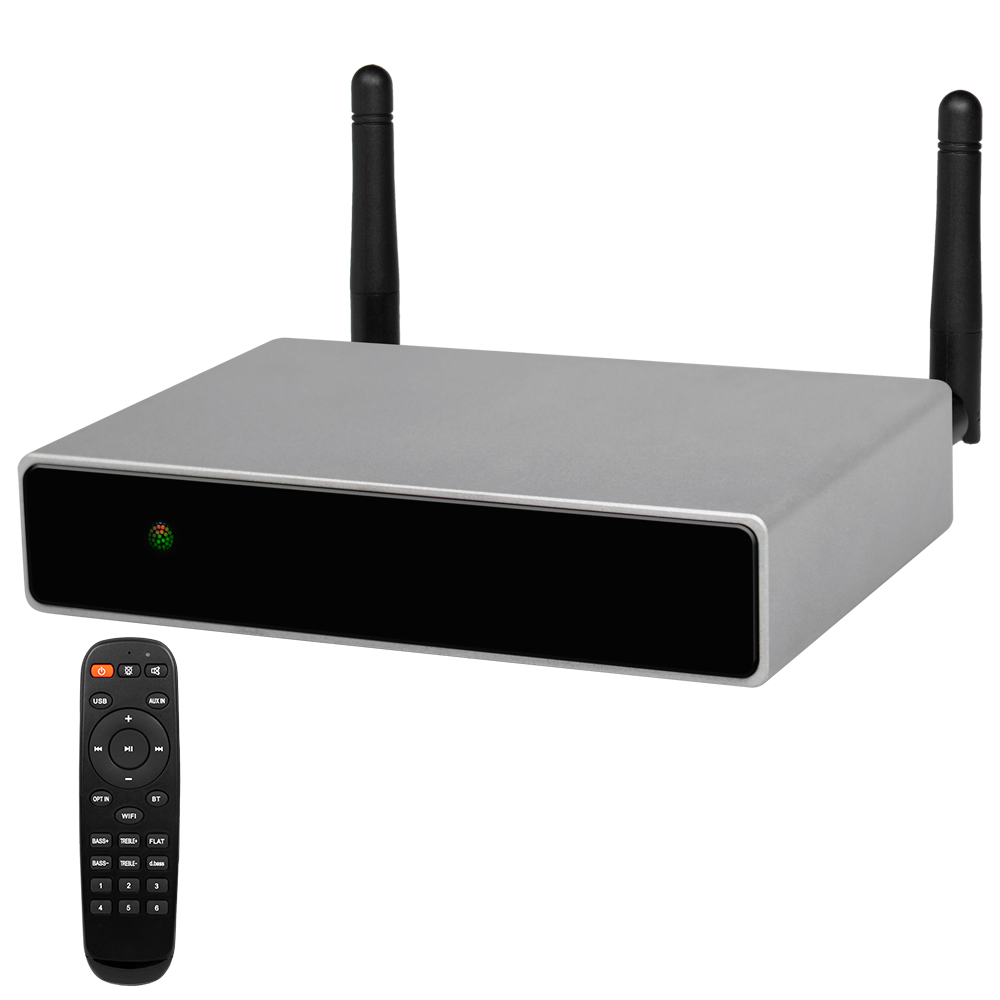

DSPPA-DW0235
DSPPA-DW0235
- Amplifier player
- Wireless
- 2 x 35W
- Bluetooth connection
- USB playback
- Remote control
The amplifiers with integrated player are designed to provide efficient sound solutions in small spaces such as classrooms, offices, stores or meeting rooms. Despite their small size, they incorporate essential functions such as audio inputs, speaker output, volume control and direct playback of files from USB devices (for example). This makes them an all-in-one solution for those looking for a simple yet complete audio system.
This type of product is designed to be easily integrated into fixed sound systems, providing the necessary amplification for low impedance loudspeakers. Its compact format and ease of installation make it ideal for projects requiring efficiency, discretion and reliable sound performance.
- Wireless player amplifier
- 2x35W
- BT, USB, NAS or streaming playback
- Remote control
Specifications
| Model | DW0235 |
| Type | Wireless player amplifier |
| Impedance | 4Ω / 8Ω |
| Power | 2 x 35W (24V - 4Ω) 2 x 18W (24V - 8Ω) |
| Frequency response | 20Hz -20kHz |
| Distortion | 0.03% (1kHz) |

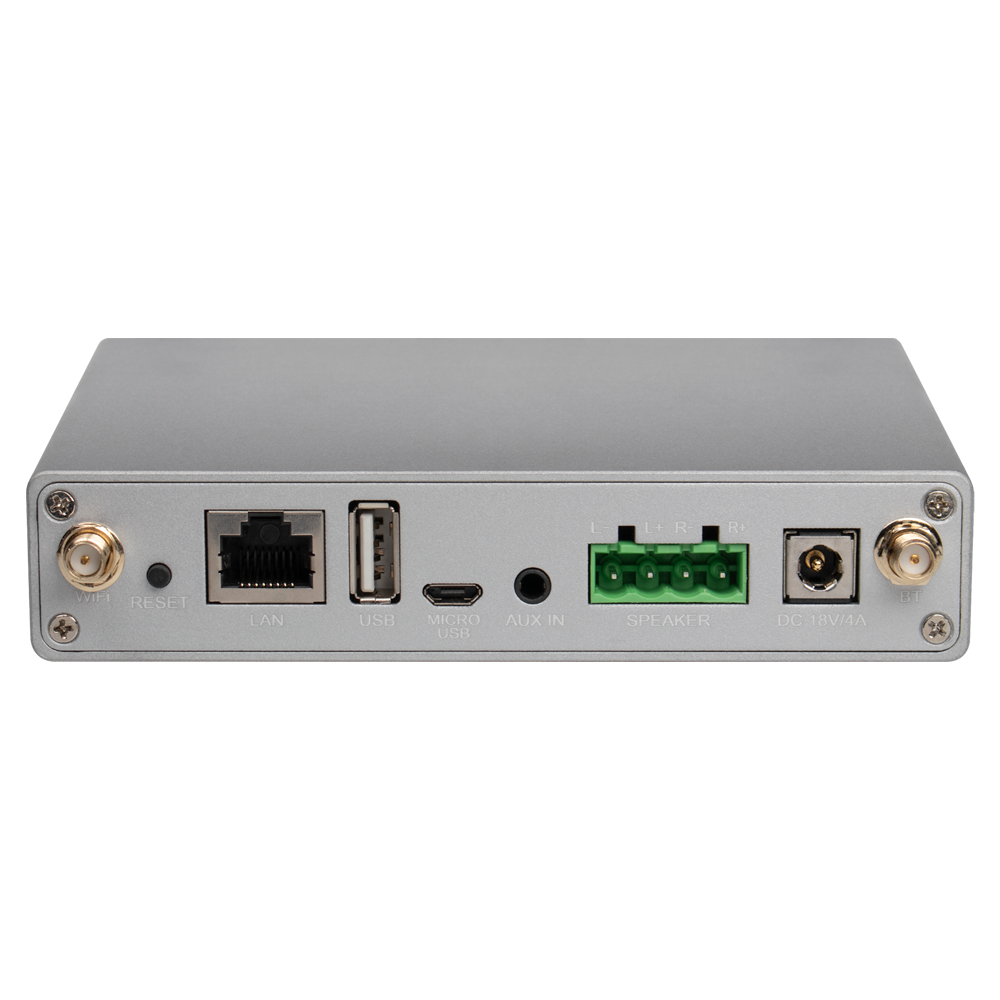

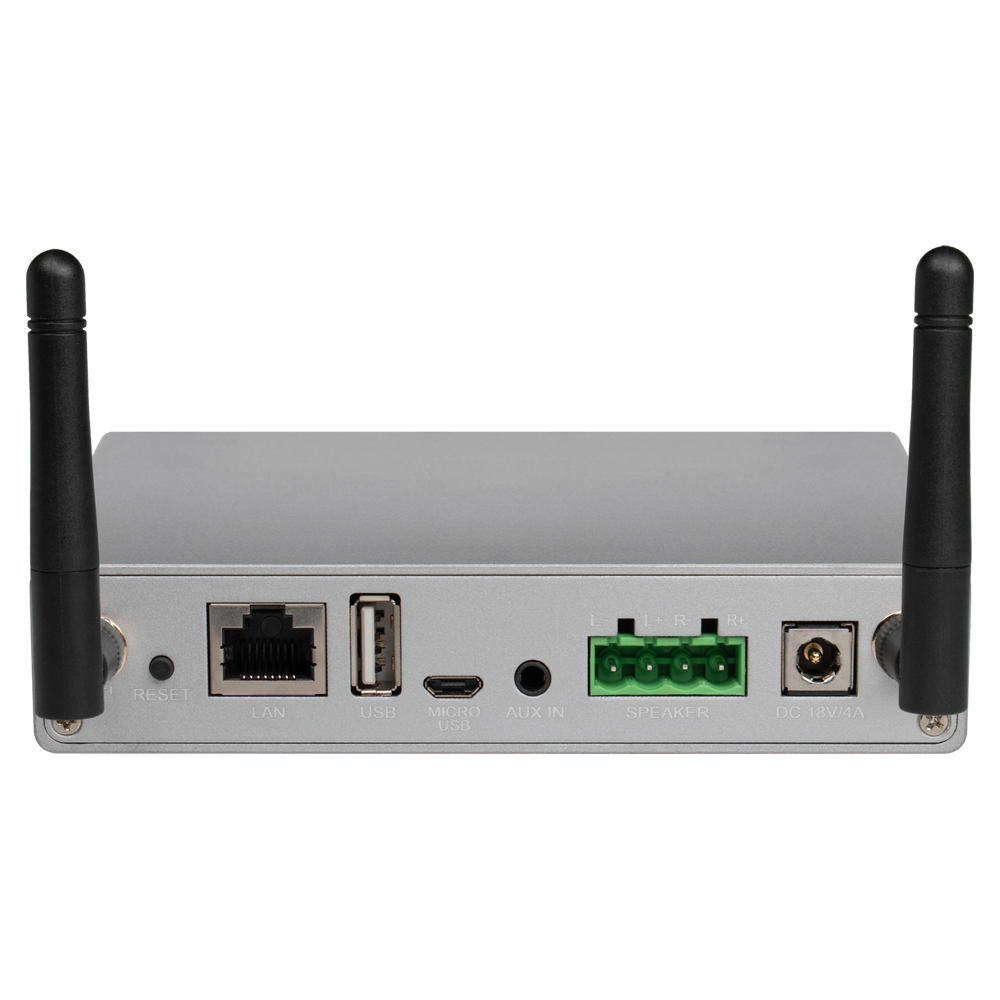

| Ports | 1 x RJ45 (LAN 10/100MBps) 1 x USB 2.0 1 x Micro USB (PC connection) 1 x Bluetooth Antenna 1 x Power 1 x Jack 3.5mm (LINE IN) 2 x Speaker output |
| Connections | - WiFi IEEE802.11 b/g/n 2.4G - Bluetooth 5.0 (connection up to 15m) (connection up to [%VAR%]) |
| Supported audio formats | MP3 AAC IAAC+ ALAC APE WAV FLAC Allows connection to applications such as Spotify, Amazon Music, etc. via 4STREAM or other DLNA applications |
| Audio decoding | Up to 24bits / 192kHz |
| Other | - IOS and Android application - Remote control - Equalization via remote control or app - Saving playlists for one-click playback |
| Power | 18V DC, 4A |
| Dimensions | 131.8mm (W) x 27mm (H) x 85.5mm (D) |
| Weight | 0.35kg |

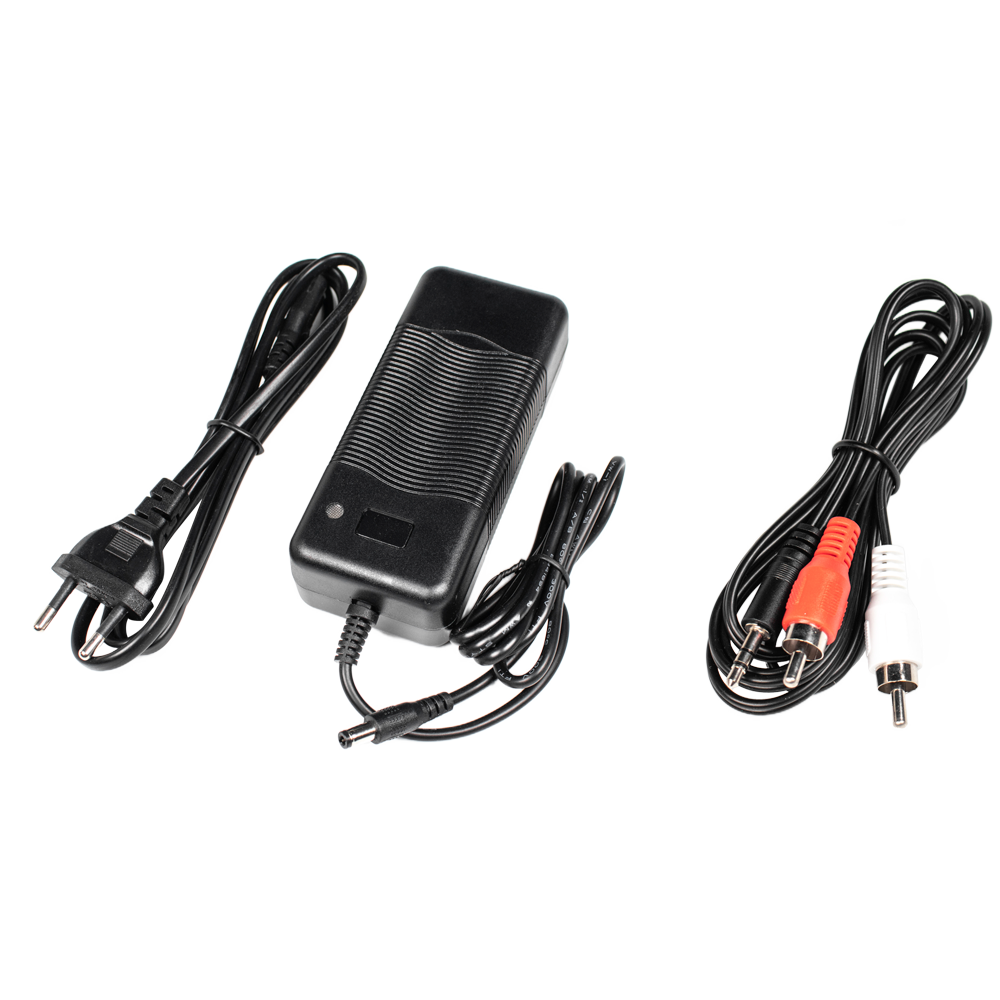

In the box
- Amplifier player
- Remote control
- Power
- 1 x RCA-RCA Cable
- 1 x RCA-Mini jack cable
