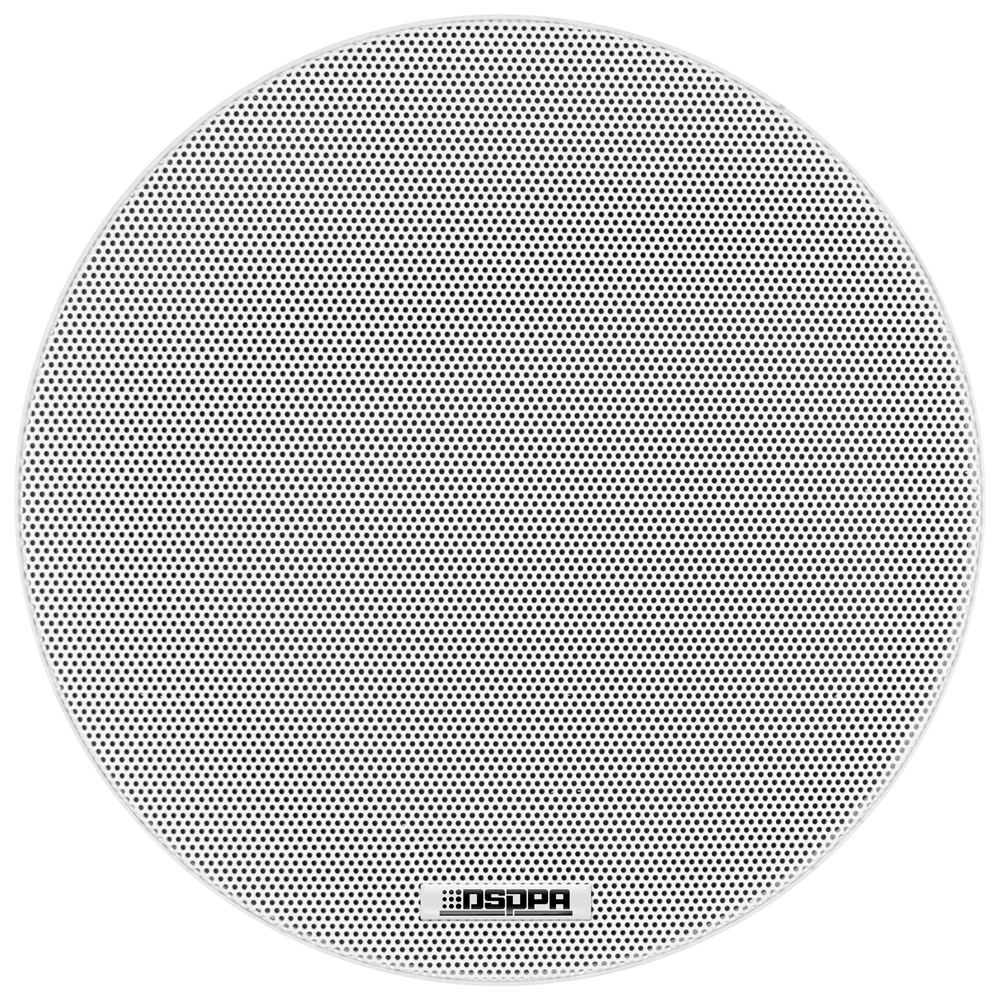

DSPPA-DSP5011
DSPPA-DSP5011
- Ceiling speaker
- Full range speaker 6.5"
- Power 70V / 100V
- Sensitivity 93dB
- Range 140Hz - 18kHz
Public address wall speakers are a practical and discreet solution for indoor sound installations. Designed to be mounted directly on walls, they offer excellent audio quality for speech and background music, ideal for schools, offices, stores, hospitals or public buildings. Compact form factor allows for aesthetic integration into any environment without sacrificing power or sound clarity.
They operate through 70V or 100V, line systems, allowing multiple loudspeakers to be connected over long distances with a single amplifier, maintaining uniform performance in all zones. Thanks to their ease of installation and rugged construction, they are a reliable and efficient choice for professional public address and communication systems.
- Recessed ceiling speaker
- General public address system
- Full range speaker 6.5"
- Power 70V / 100 V
- Sensitivity 93dB
- Frequency response 140Hz / 18kHz
- Anti-dust and anti-drip cloth cover
Specifications
| Model | DSP5011 |
| Speaker type | Ceiling speaker (flush mount) |

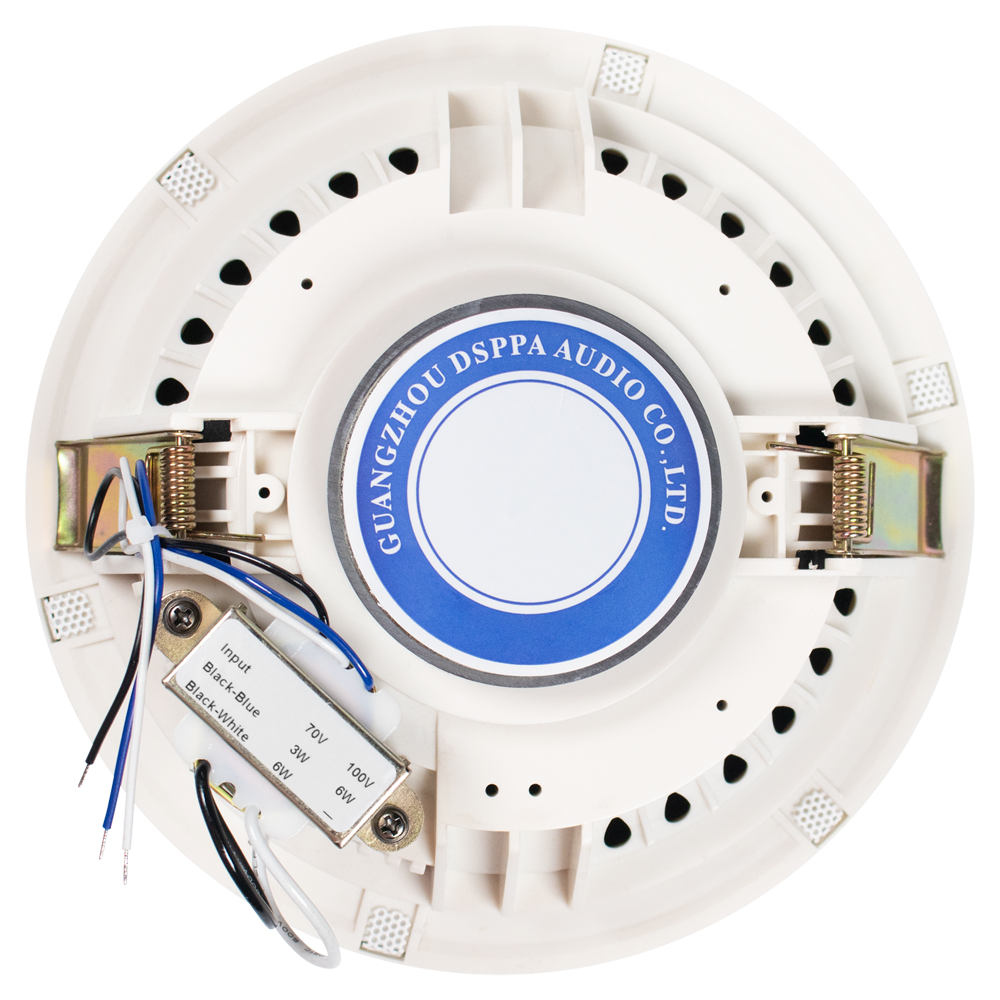

| Connection | Push-wire connection (Bridging terminal - type 2 derivations) |
| Nominal input (high impedance) | - Line 70V: 3W / 6W - Line 100V: 6W |
| Speaker component | 6.5" |
| Sensitivity: (1W, 1m) | 93dB ± 2dB |
| Frequency response | 140Hz - 18kHz |
| SPL (max) | 98dB ± 2dB (1m) |
| Finished | Dust cover |
| Dimensions | 185mm (ø) x 69mm (Pr) |
| Mounting hole dimensions | 165mm (ø) - 170mm (ø) |
| Weight | 0.75Kg |
In the box
- Ceiling speaker
