DS-TVB200(1 module)
Ga direct naar de productinformatie
DS-TVB200(1 module)
- Hikvision LED parking information display
- 1 module (320×160 mm)
- RS-485, RS-232, RJ45 communication
- 57600 baud rate/Network communication
- Pixel 1R1G Dual-color
- Power supply AC 110-220 V

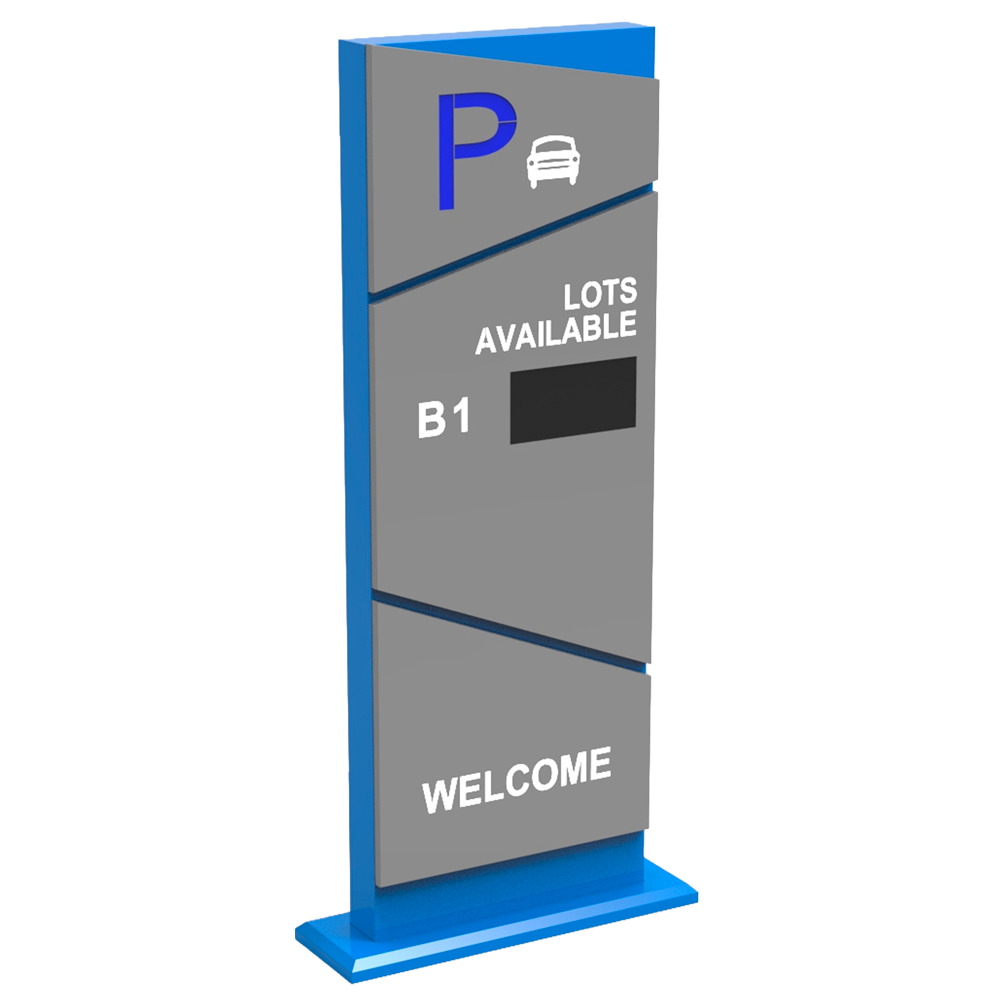

The DS-TVB200 entry information display can be placed at the entrance of a parking lot to display welcome messages and information about free spaces throughout the parking lot to guide the driver.
Can display standard English letters and numbers.
The standard communication methods are RS232, RS485 and RJ45, and can be used independently or over the network.
The content of the display includes information for the entire parking lot as well as for each zone. The occupancy of each parking space is sent to the management system and displayed on the screen. Drivers can easily find the address by consulting the LED display.
- Hikvision
- LED parking information display
- 1 module (320×160 mm)
- Allows customization of color and characters
- RS-485
- RS-232
- RJ45
- Communication rate 57600 baud rate/Network communication
- Maximum communication distance: Serial port: 1200 m, Network cable: 120m (can be extended with auxiliary device)
- Pixel composition 1R1G Dual-color
- AC 110-220 V
Specifications
| Brand | Hikvision |
| Product type | Parking information |
| Function | 1 module Allows customization of color and characters |
| Module size | 320 (H) ×160 (W) mm |
| Communication | RS-485, RS-232, RJ45 |
| Communication rate | 57600 baud rate/Network communication |
| Maximum communication distance | Serial port: 1200 m Network cable: 120 m (can be extended with auxiliary device) |
| Module pixel composition | 1R1G Dual-color |
| Power | AC 110-220 V |
| Dimensions | 700 (W) x 2000 (H) x 150 (D) mm |
In the box
- LED display
- Installation material
