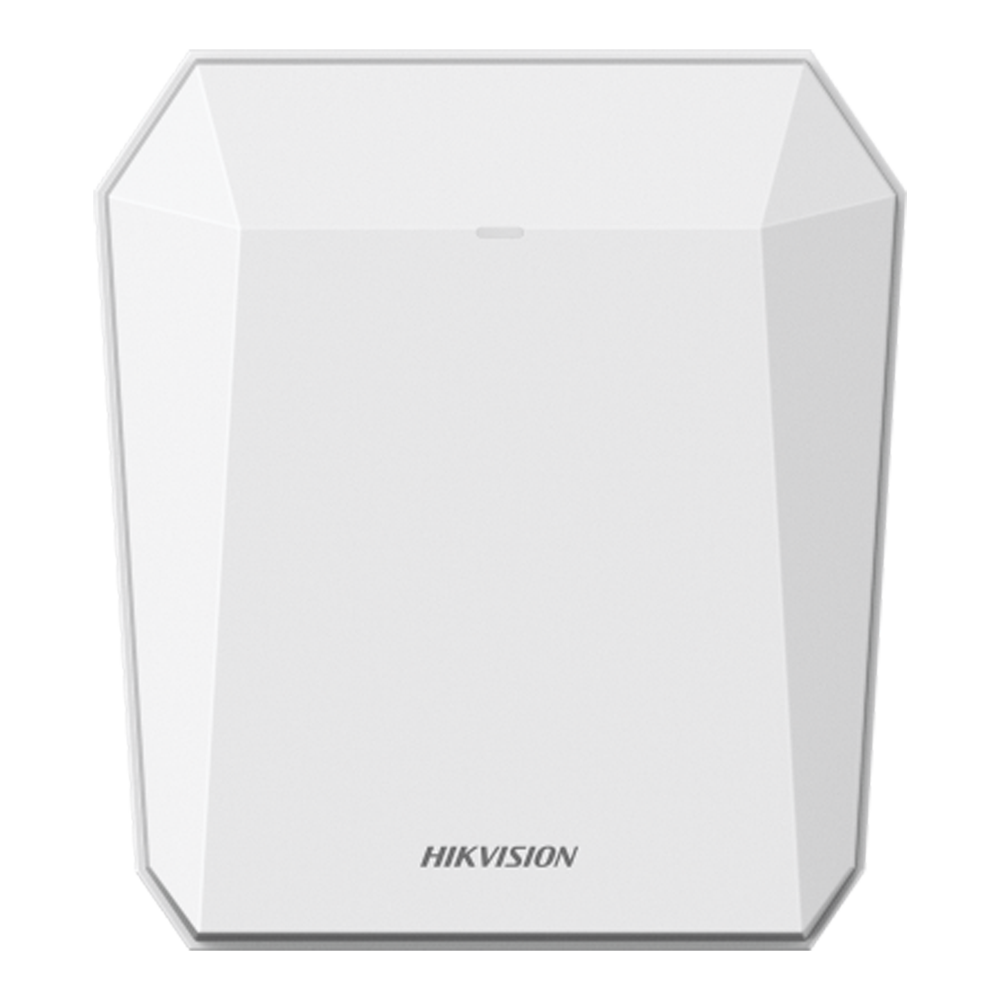

DS-TDSB0G-FK/60m
Ga direct naar de productinformatie
DS-TDSB0G-FK/60m
- Radar for security and intruder detection
- Human and vehicle detection
- Detection: 30° (V), 120° (H) | Distance 120 m
- Detection of up to 32 targets
- Built-in memory card 128 GB | Alarms
- IP67, IK10, NEMA corrosion protection 4X
- Hikvision
- Radar for security and intruder detection
- Human and vehicle detection
- Up to 60 meters of detection range for humans
- Up to 120 meters of detection range for vehicles
- Detection of up to 32 targets
- Horizontal detection angle 120º
- Vertical detection angle 30º
- FMCW modulation waveform
- Sweep bandwidth 115 MHz
- Alarms
- Built-in memory card 128 GB
- RS-485
- RS-232
- RJ45 10 M/100 M/1000 M
- Software/App Hikvision
- Weatherproof IP66
- Anti-vandal IK10
- Anti-corrosion NEMA 4X
Specifications
| Brand | Hikvision |
| General function | Security and Intrusion Detection |
| Detection objectives | Humans and vehicles |
| Detection angle | 30° (V) / 120° (H) |
| Maximum number of detectable targets | 32 |
| Maximum number of detectable zones | 16 |
| Maximum number of detection lines | 4 |
| Detection distance | 60 m for humans 120 m for vehicles |
| Distance resolution | 1.3 m |
| Screening frequency | Up to 12 times per second |
| Distance measurement accuracy | ± 1.2 m |
| Angular resolution | 12º |
| Angle accuracy | ± 1º |
| Speed measurement range | -19~19 m/s |
| Accuracy in speed measurement | ± 0.1 m/s |
| Speed resolution | 0.075 m/s |
| Work frequency | 24.05~24.25 GHz |
| Modulation waveform | FMCW |
| Scan bandwidth | 115 MHz |
| Protocols | TCP/IP,HTTP,HTTPS,DHCP,DNS,RTP,RTSP,NTP,IPv4/IPv6,UDP,SSL/TLS,ARP |
| Interoperability | ISAPI, SDK |
| Users | Up to 16 users |
| Remote access | iVMS-4200 and Hik-Central |
| Network Interface | Ethernet RJ45 10/100/1000Mbps |
| Internal memory | Built-in memory card 128 GB |
| Alarms | 1 input / 4 outputs |
| Communication | 1 x RS-485, 1 x RS-232 |
| Smart tracking for PTZ | Supported |
| Tracking mode | Shutter priority, aperture priority, automatic switching between multiple targets, single-target priority |
| Map management | Supported |
| Power | DC 36 V, 0.67 A, max. 24 W AC 24 V, 1 A, max. 24 W |
| Temp. operation | -40 °C ~ 65 °C |
| Dimensions / Weight | 228 mm (H) × 206 mm (W) x 61 mm (D) |
| Weight | 1.8 kg |
| Protection | Weatherproof IP66 Anti-vandal IK10 Anti-corrosion NEMA 4X |
| Material | Cover: PC Main body: ADC12 |
| Installation height | 2 ~ 4 m |
In the box
- Radar sensor for security and intruder detection
