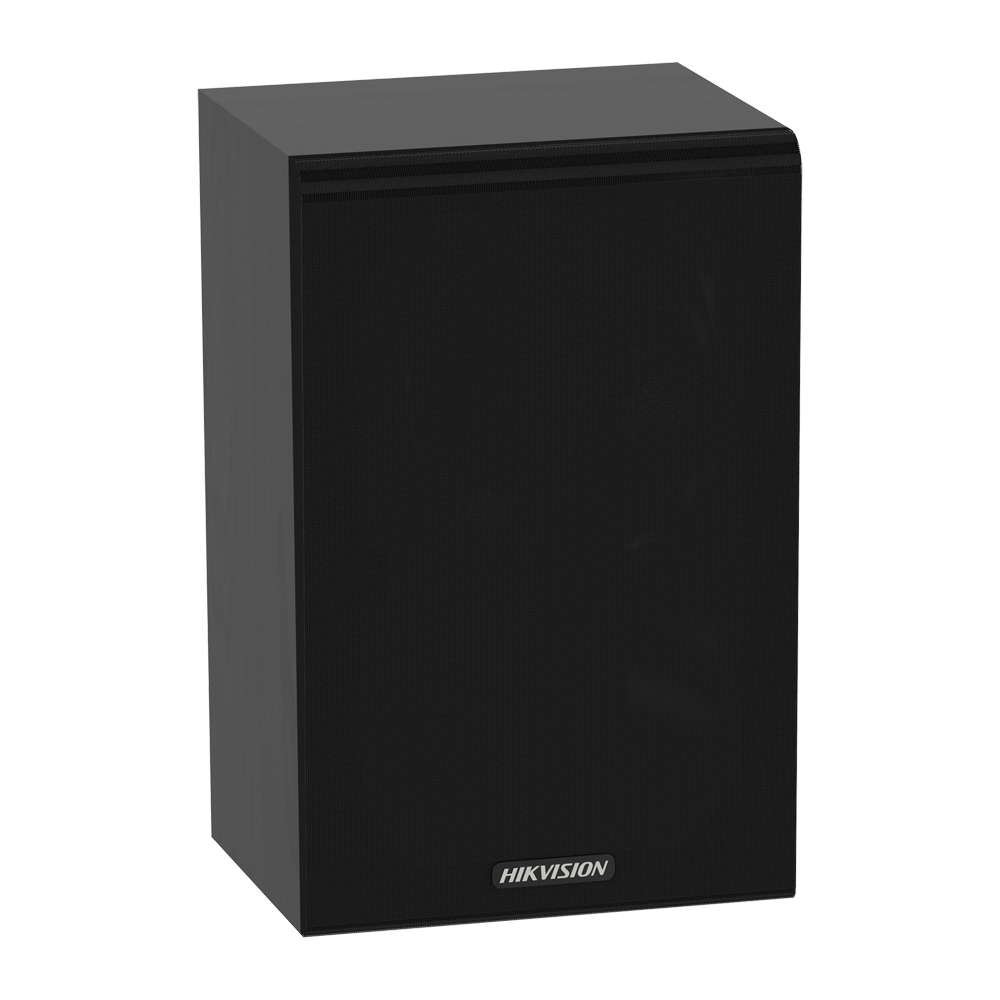

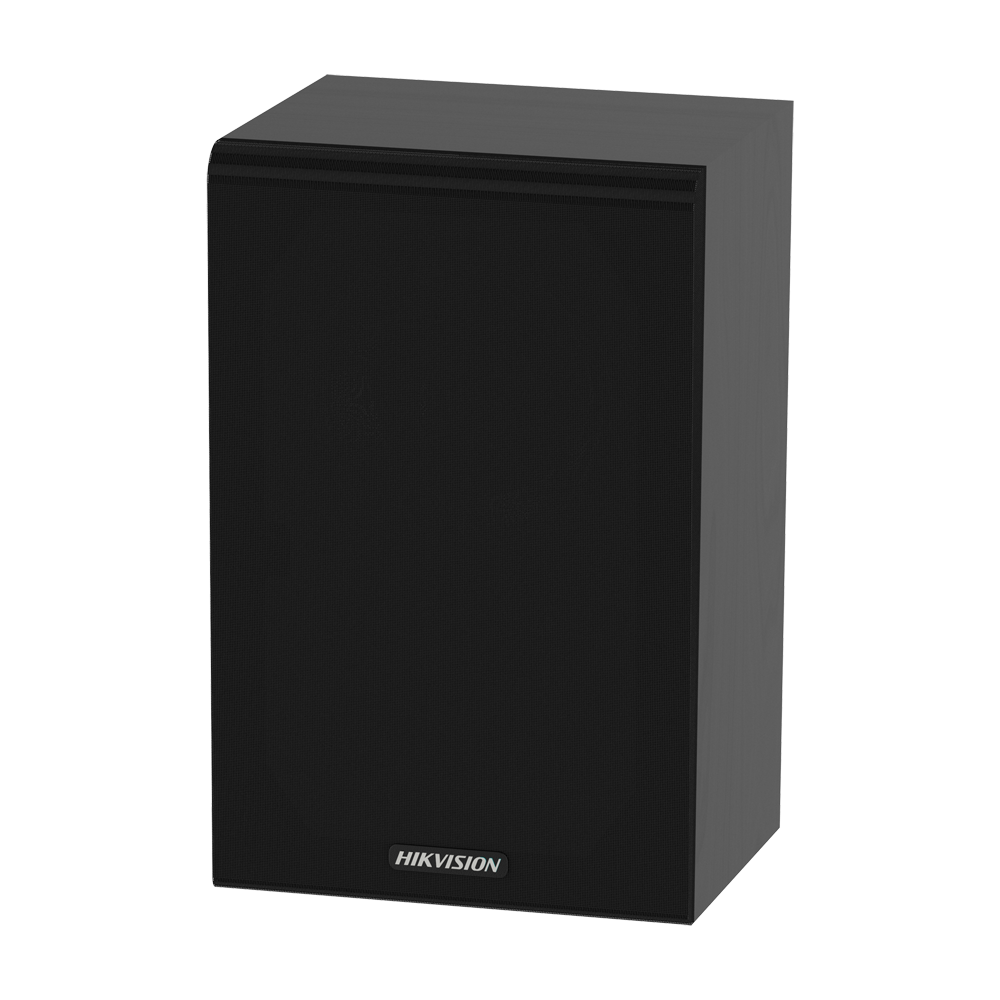

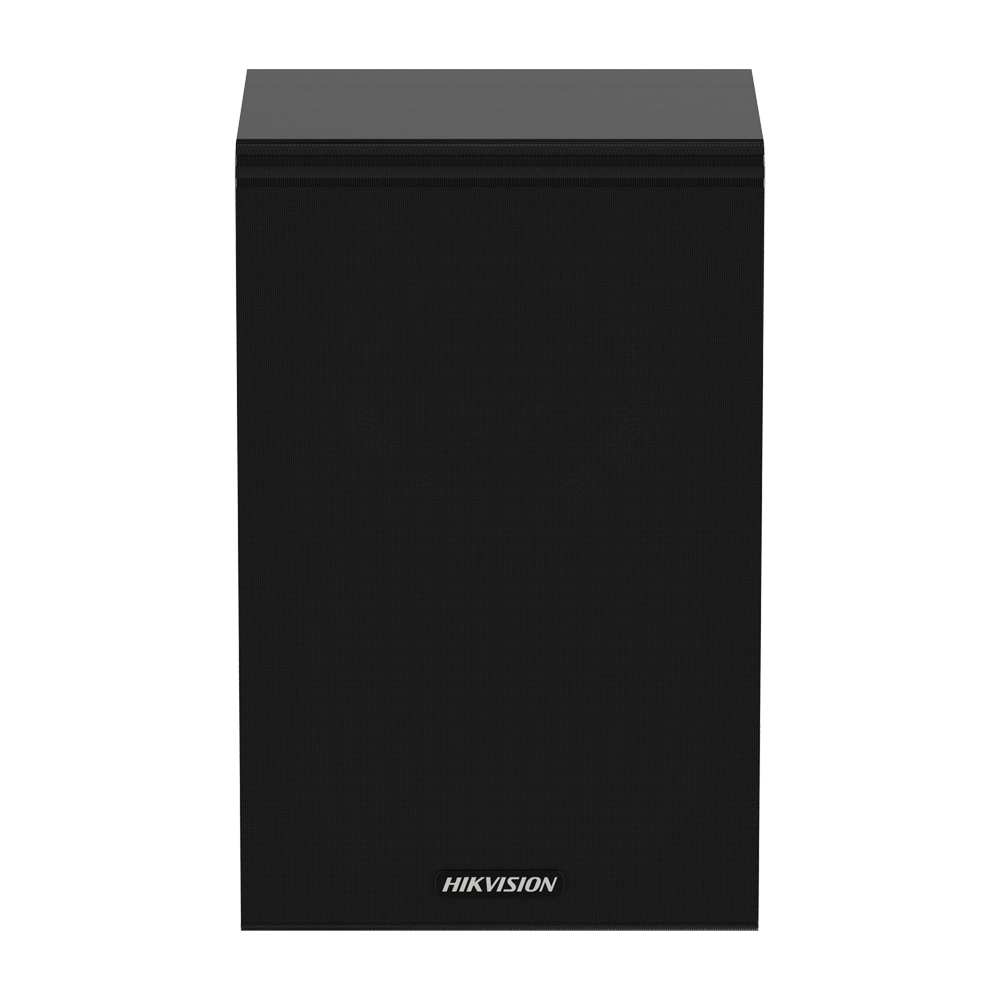

DS-QAZ1110G1-B
- Digital IP Speaker - Surface
- Power (8 Ω): 10 W
- Sensitivity 90 dB
- Hikvision
- Power 10 W
- Sensitivity 90 dB
- Respuesta en frecuencia 100 Hz - 20 kHz
- ONVIF
- RJ45 10 / 100 M
Specifications
Microphone |
|
| Type | MEMS |
| Quantity | 2 |
| Frequency response | 100 Hz ~ 20 kHz |
| Sensitivity | -42 dBV/Pa |
| Sampling frequency | 48 kHz |
| Quantification bits | 16 bit |
Speaker | |
| Nominal power | 10 W |
| Impedance | 8 Ω |
| SPL (max.) | 98 dB |
| Sensitivity | 90 dB (1 W @ 1 m) |
| Signal to noise ratio (SNR) | 83 dB |
| Frequency response | 100 Hz - 20 kHz |
| Speakers | 1x 5.25" (all frequencies) |
| Coverage angle | Horizontal: 105 º Vertical: 103 º |
Functions | |
| Audio algorithms | AEC, AGC, ANS, DRC, DRC |
| Audio bit rate | G.711ulaw (64 Kbps) / G.711alaw (64 Kbps) / MP3 (128 Kbps) Sample bits: 16 bits |
| Audio format | MP3, WAV |
| NTP Synchronization | Supported |
| Broadcast | Scheduled, direct, and emergency |
| Audio | Supports digital noise reduction, which can be manually adjusted in 5 levels to ensure communication and audio quality. |
| Bidirectional audio | Supported |
| Voice synthesis languages | English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French |
Network | |
| Network Protocols | IPv4, HTTP, HTTPS, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH |
| Application Programming Interface (API) | ISAPI, ISUP, SIP, RTP, ONVIF |
| Customer | Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone |
Communication | |
| Method of communication | Compatible with wired network and Bluetooth communication |
Interfaces | |
| Network | 1x RJ45 (10 / 100 M) |
| Internal memory | eMMC memory (4 GB) The available space for audio files is 1 GB |
| API | ISAPI, ISUP, SIP, ONVIF |
| Audio | 1x Audio IN (3,5 mm) 1 x Fixed resistance output (Phoenix, 8 Ω) |
| Led indicator | Solid green light: normal operation Flashing green light: ongoing communication Solid red light: network startup or shutdown Flashing red light: update |
| Reset | Supported |
| Volume knob | Yes |
| Bluetooth | 5.0 (10 (catchment area) |
General | |
| Power | 24 V DC @ 1,5 A |
| Material | Wood |
| Working conditions | Temperature: -10 ~ 50 °C Humidity: < 90 % (no condensation) |
| Colour | Black |
| Dimensions | 180,6 (W) x 280 (H) x 156 (D) mm |
| Weight | 2,5 Kg |
Certifications | |
| RF | CE-RED: EN 301489-1 V2.2.3 (BT or 2,4 GHz), EN 301489-17 V3.2.4 (BT or 2,4 GHz), EN 300 328 V2.2.2 (BT or 2,4 GHz), EN 62311 2020 (BT or 2,4 GHz) RCM: EN 300 328 V2.2.2 (BT o 2,4 GHz), AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev. 1), ARPANSA RPS S01 Advisory Note IC ID: RSS-247 (BT or 2,4 G) ANATEL: Resolution No. 680/2017, Act No. 14448/2017, Act No. 950/2018, Act No. 1120/2018 Translation made with the free version of the translator DeepL.com |
| EMC | CE-EMC: EN 55032:2015+A11:2020+A1:2020, IN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Edit 7 |
| Security | CB: IEC 62368-1:2014 CE-LVD: EN 62368-1:2014/A11:2017 |
| Environmental | CE-RoHS: 2011/65/UE Waste Electrical and Electronic Equipment: 2012/19/UE REACH: Regulation (EC) No. 1907/2006 |
In the box
- Speaker
- Adapter
- Screws
