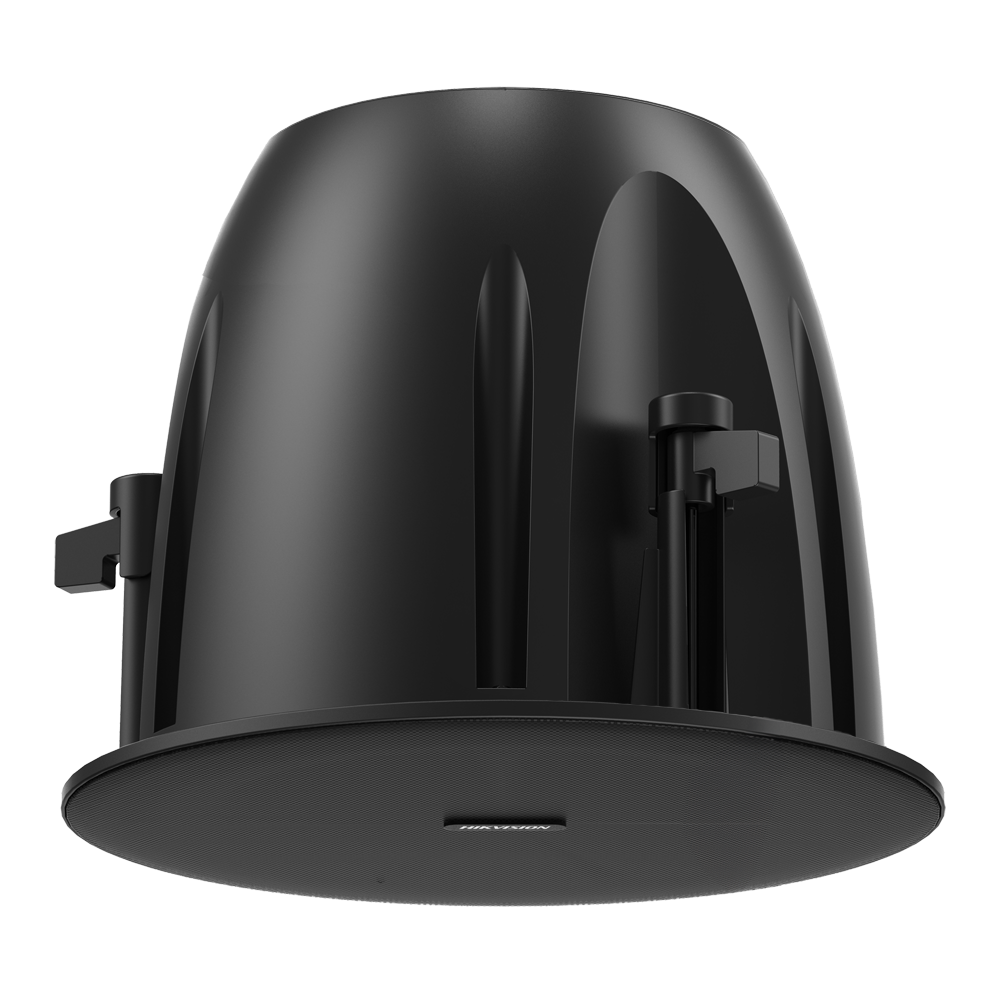

DS-QAZ0610G1/BLACK
- Analog Speaker - Ceiling
- Power (8 Ω): 10 W
- Power (70/100 V): 10, 5, 2,5, 1,25 W
- Sensitivity 89 dB
Ceiling speakers used in professional installations are typically part of analog audio systems based on 70V or 100V lines. This technology allows multiple speakers to be connected to a single amplifier with virtually no signal loss, as each speaker includes a transformer that adapts the power and facilitates its distribution.
They are mainly used in public address and background music systems in large spaces such as offices, stores, or public facilities. Their design ensures even audio distribution, making them particularly useful for background music and voice announcements, where clarity and reliability are essential.
- Hikvision
- Power 10 W
- Sensitivity 89 dB
- Respuesta en frecuencia 120 Hz - 20 kHz
Specifications
Speaker |
|
| Nominal power | 10 W |
| Impedance | 8 Ω |
| SPL (max.) | 98 dB |
| Sensitivity | 89 dB (1 W @ 1 m) |
| Frequency response | 120 Hz - 20 kHz |
| Speakers | 1x 1" (agudos) 1x 6,5" (low-pitched) |
| Coverage angle | Tapered: 88 º |
Interfaces | |
| Audio | 1x Audio IN (100 V, 8 Ω: 10 W, 5 W, 2,5 W) 1x Audio IN (70 V, 8 Ω: 10 W, 5 W, 2,5 W, 1,25 W) |
General | |
| Material | Housing: PC Base: ABS |
| Working conditions | Temperature: -10 ~ 45 °C Humidity: < 90 % (no condensation) |
| Colour | Black |
| Weight | 2,7 Kg |
| Dimensions | 242,78 (Ø) × 192,7 (H) mm |
In the box
- Speaker
