Name: DS-QAE1KA80120-2
Brand: HIKVISION
SKU: DS-QAE1KA80120-2
Price: 257.95 EUR
Availability: InStock

DS-QAE1KA80120-2

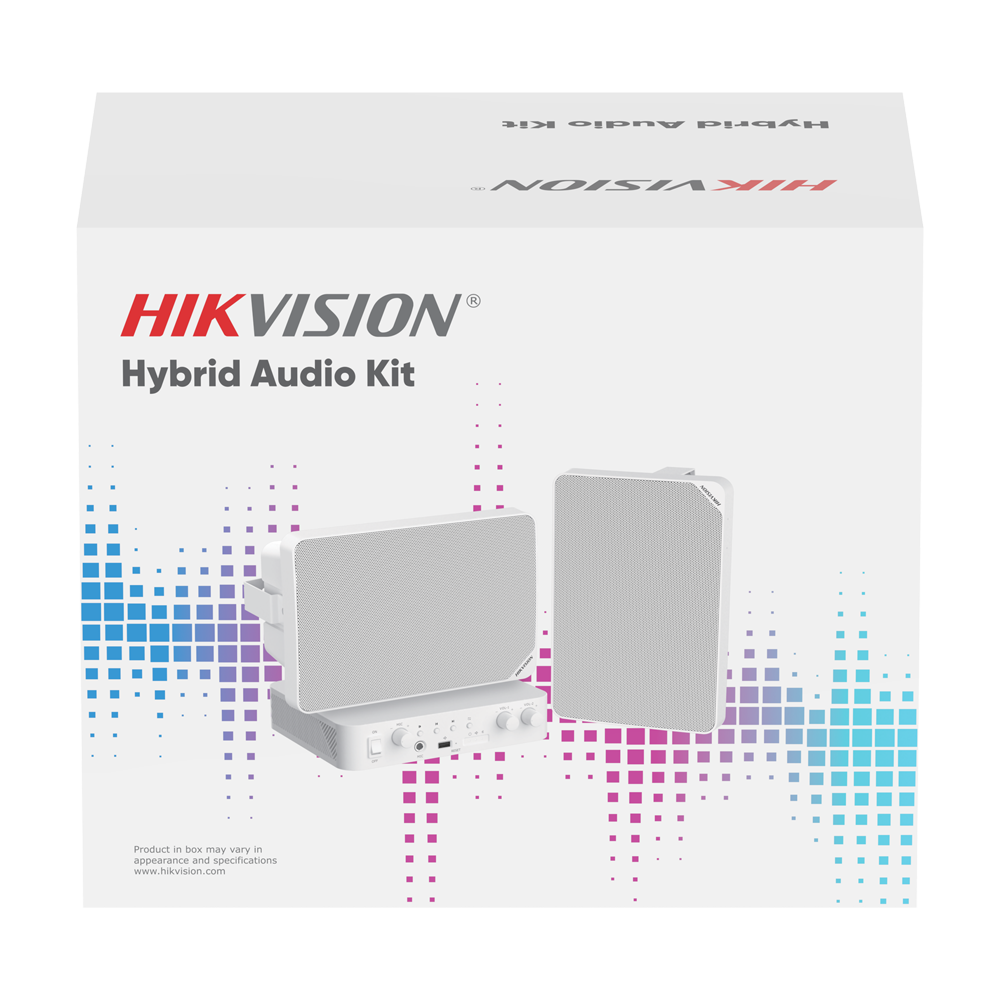

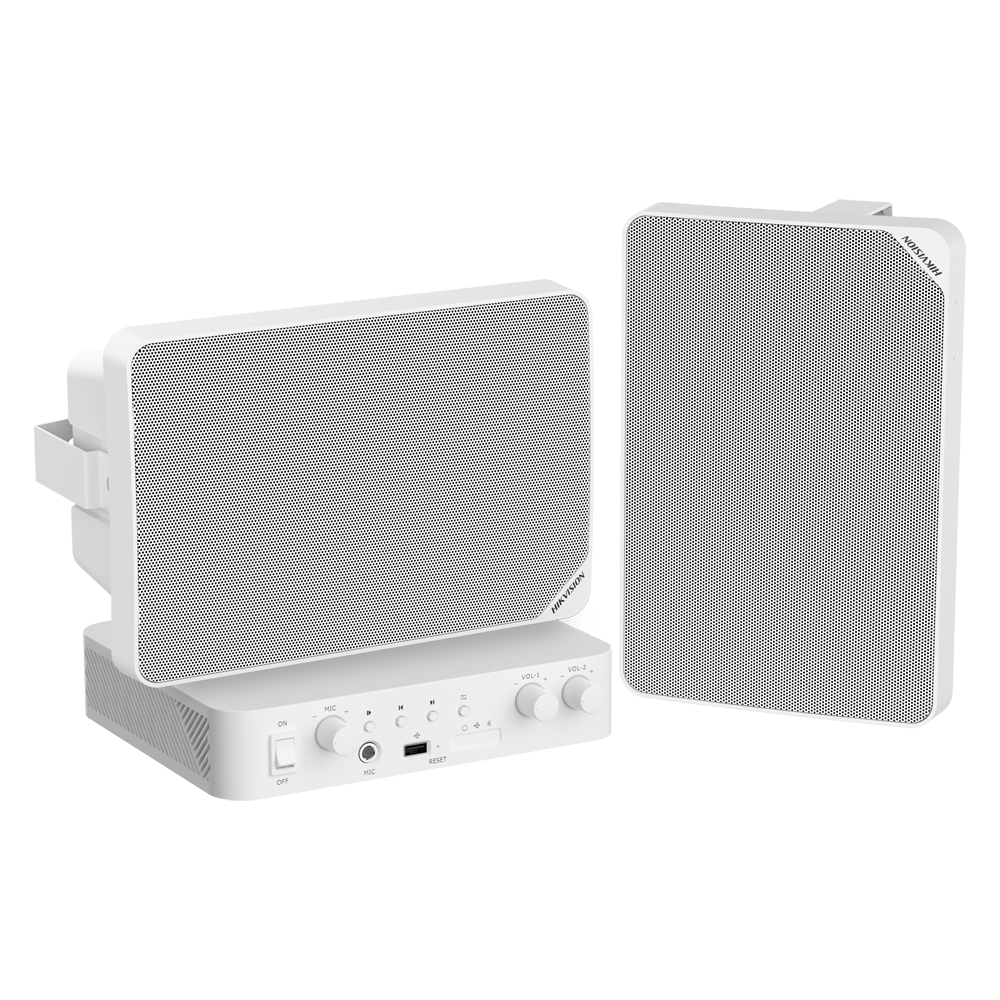

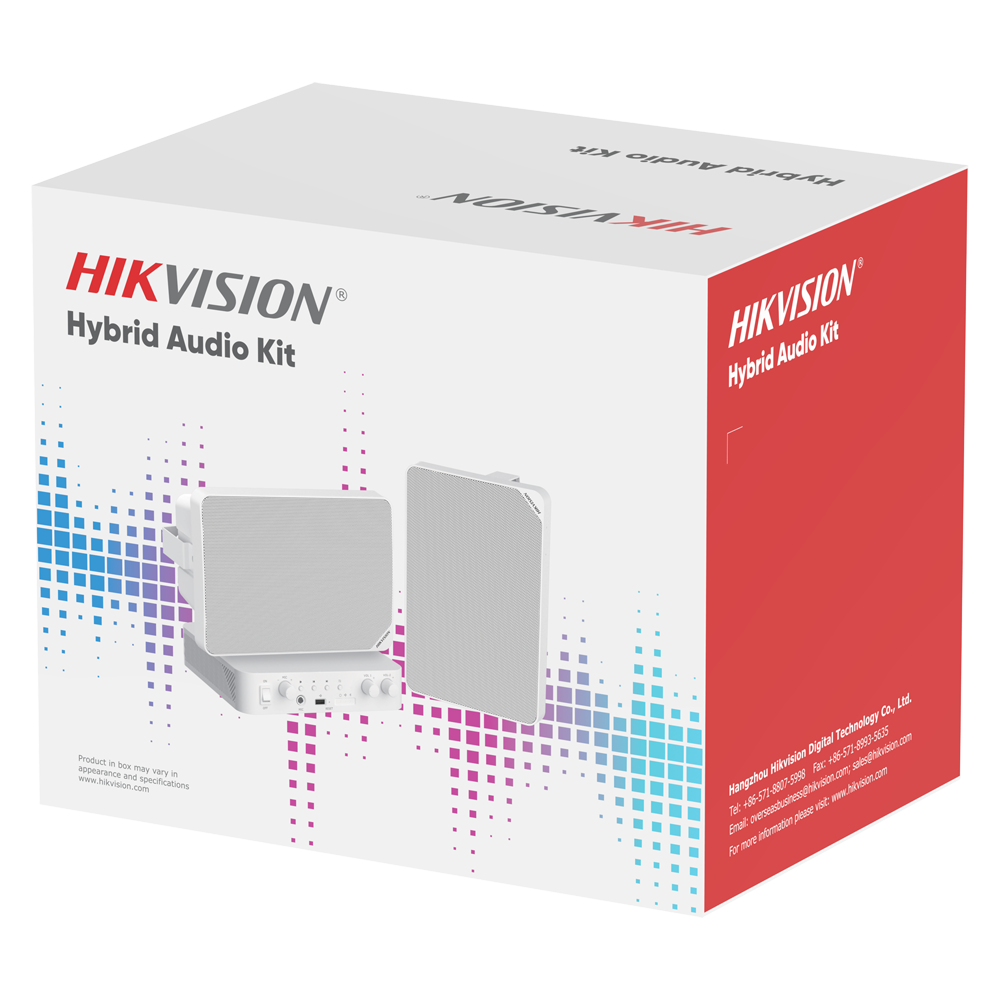

Audio kit
Amplifier 80 W
2 x Speakers 20 W
Power (8 Ω): 20 W
Rated power (70 / 100 V): 5, 10, 15, 20 W

El kit de audio DS-QAE1KA80120-2 es un sistema de sonido que incluye un amplificador y dos altavoces, diseñado para ofrecer una distribución uniforme del audio en distintos espacios. Its design allows for simple and discreet installation, blending seamlessly into ceilings to maintain a clean look without compromising sound quality.

This kit is primarily used to create ambiance in spaces such as offices, stores, homes, or commercial premises, providing music or announcements in a clear and balanced manner. It is a practical solution for those looking for an efficient and user-friendly background sound system.

Hikvision
Audio kit
Amplifier 80 W
2 x Speakers 20 W

Specifications

Speakers
Nominal power	20 W
Impedance	8 Ω
SPL (max.)	103 dB
Sensitivity	90 dB (1 W @ 1 m)
Frequency response	130 Hz - 17,5 kHz
Signal to noise ratio (SNR)	≥100 dB
Speakers	1x 5,25"
Amplifier
Nominal power	80W
Frequency response	80 Hz - 20 kHz
Total harmonic distortion (THD)	≤1 %
Audio bit rate	G.711ulaw（64 Kbps）/G.711alaw（64 Kbps）/MP3（128 Kbps）
Protections	Short circuits Undercurrents Overheating Static electricity Surge Electric shocks
Network protocol	HTTP, HTTPS, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
Application Programming Interface (API)	ISAPI, ISUP, RTP
Customer	HikCentral Professional
Internal memory	4 GB eMMC (The storage capacity for audio files is 1 GB)
Power	24 V DC
Consumption	Standby: 4,5 W Maximum: 90 W
Interfaces
Alarm	1 x IN Alarm 1 x Alarm OUT
Network	1 x RJ45 (10/100 Mbps)
Audio	Amplifier: 1 x MIC (-20 dBV, 4 kΩ, unbalanced, 6,35 mm jack) 1 x USB 2.0 1 x Bluetooth 5.0 (10 m) 2 x RCA IN (0 dBV, 5 kΩ, unbalanced, male) 2 x Constant voltage output 100 V (COM) 2 x RCA OUT (0 dBV, 100 Ω, unbalanced, male. Supports a daisy-chain connection of up to 3 amplifiers) 1 x USB 2.0 / 3.0 (File format: FAT32, maximum capacity: 128 GB) Speakers: 1 x Audio IN (70 V: 5 W, 10 W, 15 W, 20 W; 100 V, 8 Ω: 30 W, 15 W, 7,5 W)
Led indicator	Power indicator (steady white light): The device is working normally USB drive indicator (steady white light): The device is in USB mode Bluetooth indicator (steady blue light): The device is in Bluetooth mode
Volume control knob	1 x MIC 1 x Partition 1 1 x Partition 2
General
Material	Amplifier: plastic Speakers: plastic Speaker stands: metal
Working conditions	Amplifier temperature: -10 ~ 55 °C Speaker temperature: -30 ~ 60 °C Humidity: < 90 % (no condensation)
Colour	White
Weight	8,8 Kg
Dimensions	Amplifier: 190,8 (W) × 51,2 (H) x 230,8 (D) mm Speakers: 268,4 (W) x 125,12 (H) x 180,4 (D) mm
