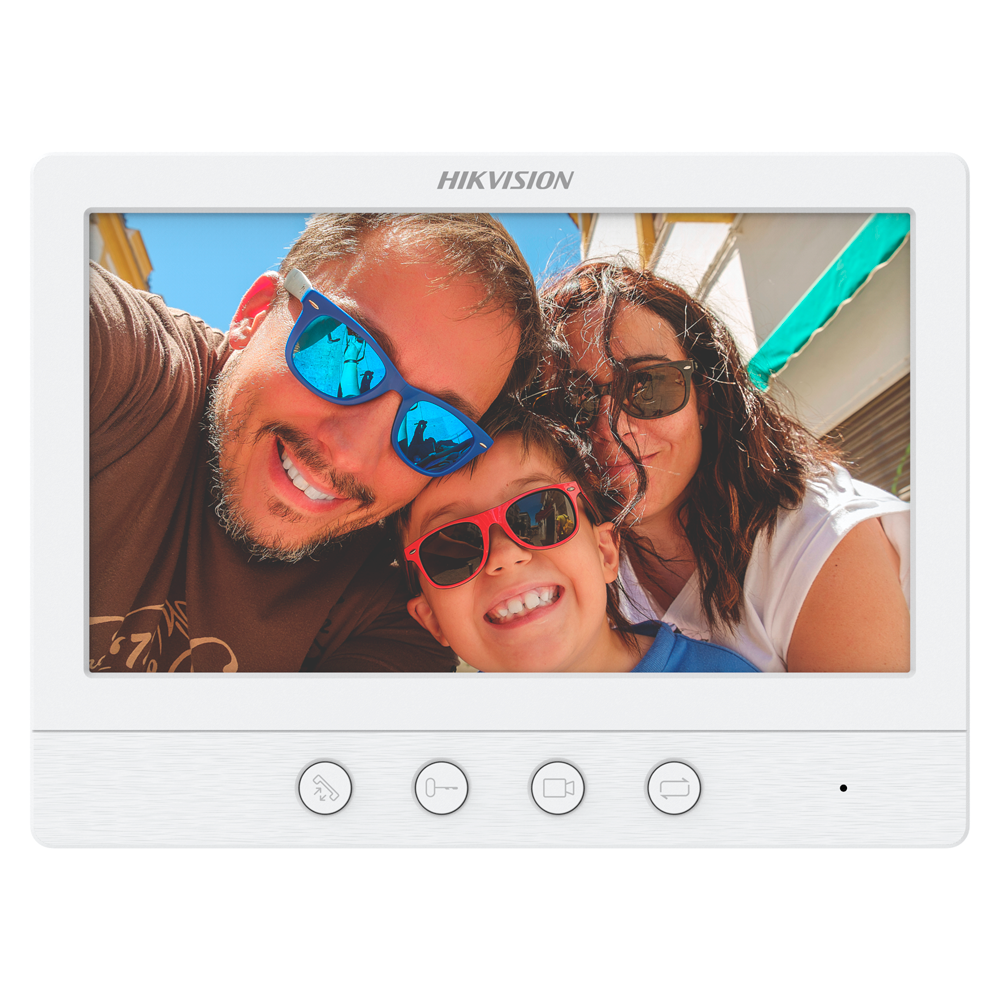

DS-KH2230T(B)
Ga direct naar de productinformatie
DS-KH2230T(B)
- Video door entry monitor
- 7" TFT Screen
- Bidirectional audio
- 4 analogue wires
- Mechanical button panel
- Surface mounted : White
The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
This model has a 7" display and physical buttons for easy operation by the user.
The 4 wire equipment communicates and is powered by conventional copper cables (called wires), making it possible to reuse conventional installations that already have this type of wiring.
- Hikvision
- TFT display for video door entry from 7" to 4 analog wires
- Built-in microphone and speaker
- Bidirectional audio
- 2 inputs of 2 wires, 2 outputs of 2 wires and 1 analog camera input
- Multiple screen extensions
- Internal calls between devices
- Surface mounting
- White colour
Specifications
| Brand | Hikvision |
| Model | DS-KH2230T(B) |
| Operating system | Embedded analog operating system |
| Screen type | 7" color TFT |
| Screen resolution | 1024 x 600 |
| Operation mode | 4 physical buttons |
| Inputs | 2 x 4 wires for external boards, 1 x analog camera |
| Outputs | 2 x 4 threads for inside monitor |
| Audio | Two-way audio with integrated microphone and loudspeaker |
| Connection | 4 analogue wires |
| Power | DC 12 V / 420 mA máx. |
| Temp. operation | -10 ºC ~ +50 ºC |
| Dimensions | 178 (H) x 132 (W) x 19 (D) mm |
| Weight | 335 g |
| Colour | White |
In the box
- Hikvision indoor video intercom monitor
- Installation material
- User instructions
