DS-KAS809EX
Ga direct naar de productinformatie
DS-KAS809EX
- Access control kit
- EM card and PIN
- Stand-alone, suction cup, profile, push button and card
- Integrated controller
- Surface mounting
- Hikvision
- Access control kit

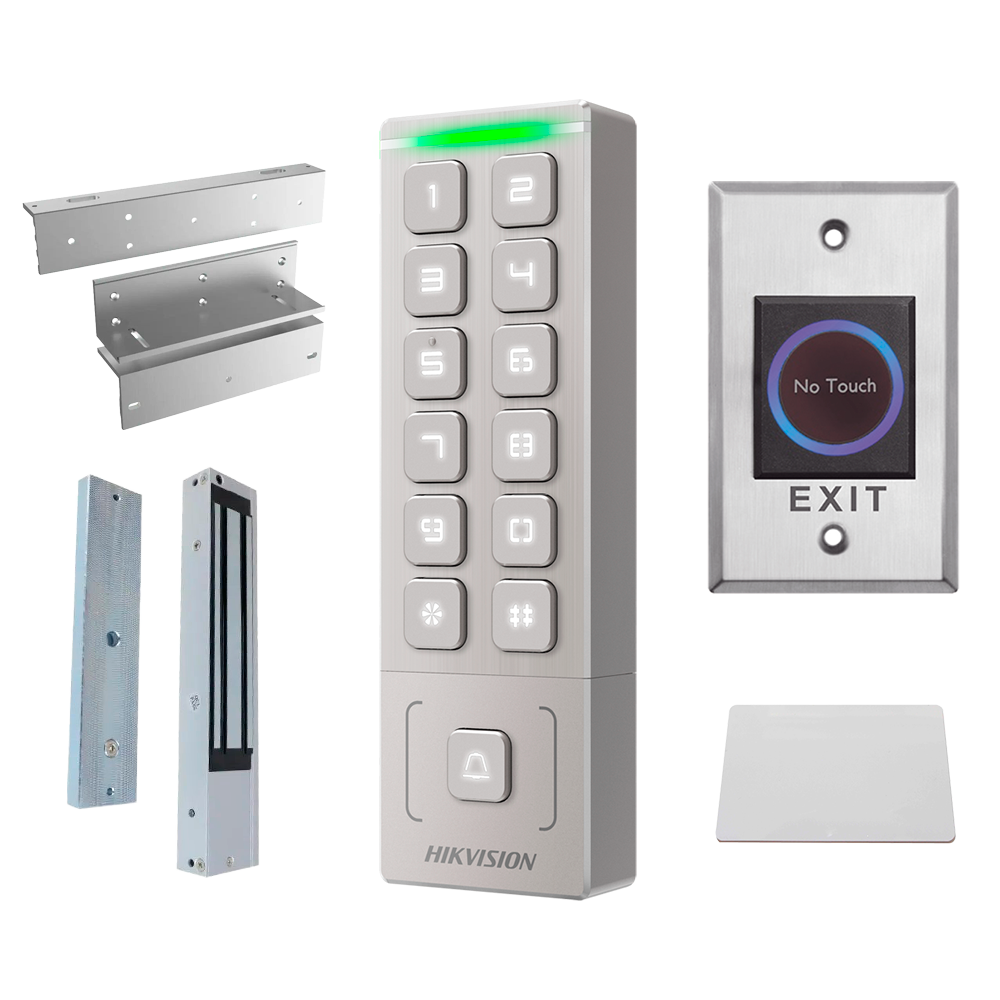

- Kit consisting of: DS-K1T809EX stand-alone access control with EM card and PIN, DS-K4H255S magnetic suction cup with 272 kg holding force, DS-K4H255-LZ Z-profile for magnetic suction cup installation, DS-K7P07 contactless output pushbutton and EM RFID card 125 kHz
Specifications

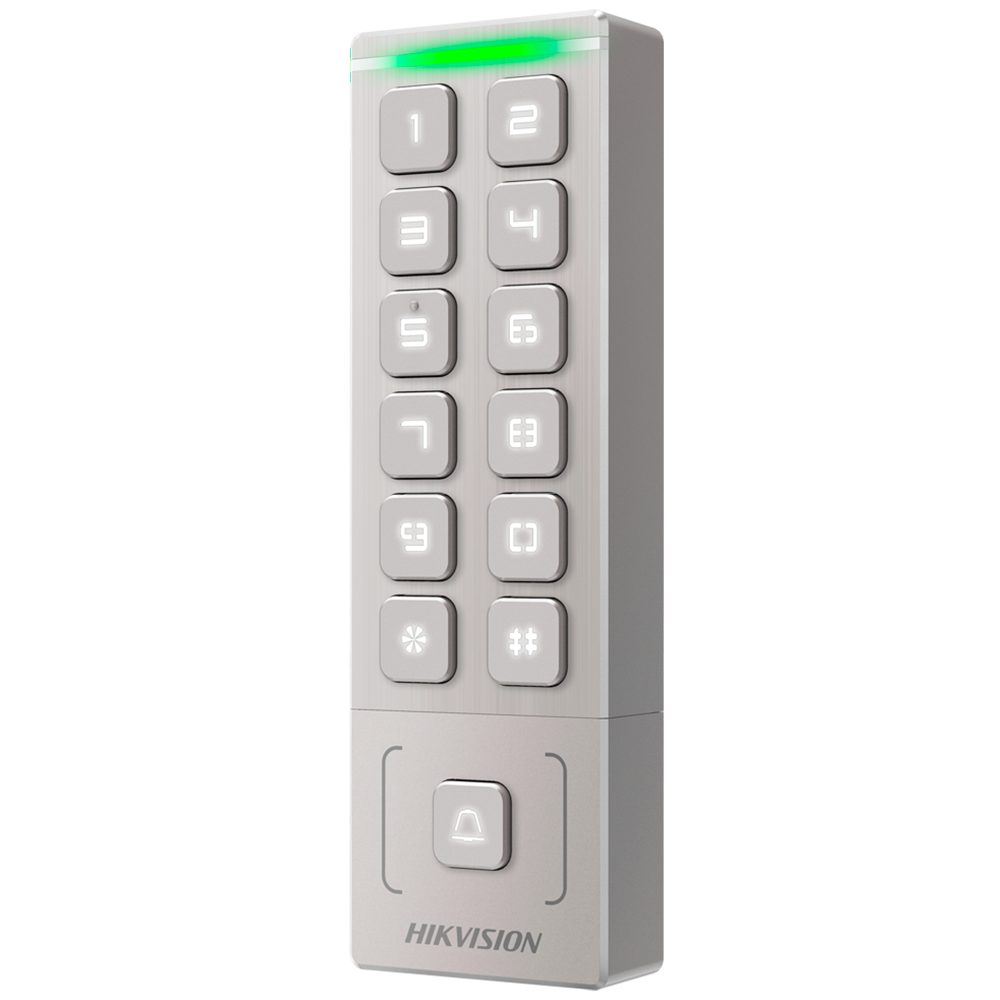

DS-K1T809EX |
|
| Brand | Hikvision |
| Model | DS-K1T809EX |
| Operating system | Linux |
| Capacity | Up to 1.000 users and 5.000 cards Up to 1 numeric password |
| Identification modes | Card, PIN and/or combinations |
| Proximity card | RFID EM (125 kHz) |
| Communication | Wiegand |
| Integrated controller | Wiegand 26/34, door sensor, pushbutton and relay |
| Alarms | 1 x bell output |
| Software | Stand-alone use without software (local configuration on the equipment) |
| Power | DC 12 V / 1 A max. |
| Degree of protection | Suitable for exterior IP65 |
| Temp. operation | -40º C ~ +65º C |
| Dimensions | 48 (W) x 151 (H) x 22 (D) mm |
| Weight | 220 g |

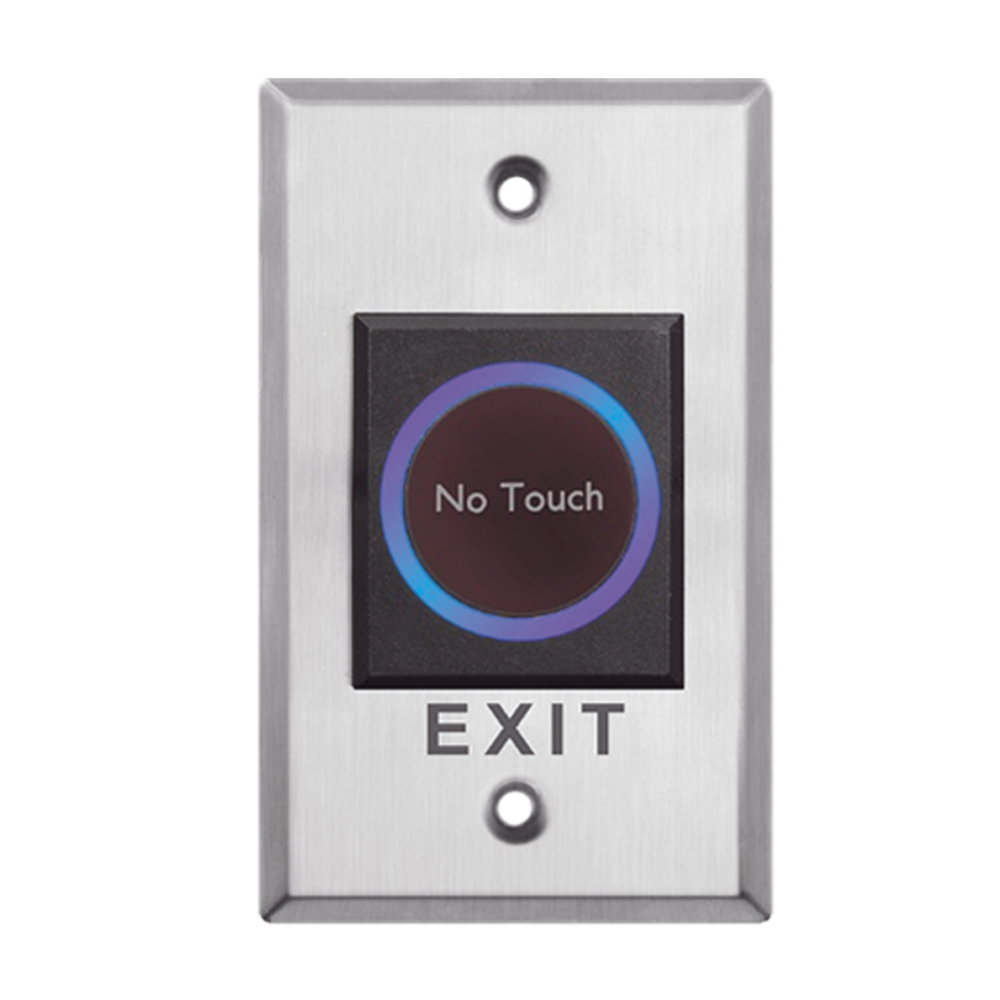

DS-K7P07 | |
| Brand | Hikvision |
| Model | DS-K7P07 |
| Power | DC 12-24 V |
| Contact | 1A / DC 30V |
| Exit contact | NO/NC/COM |
| Led indicator | Blue (stanby) / Green (activated) |
| Material | Stainless steel |
| Relative humidity | 0 - 95% |
| Temp. operation | -20 ºC ~ +55 ºC |
| Dimensions | 114 (H) x 70 (W) x 16 (D) mm |
| Weight | 130 g |

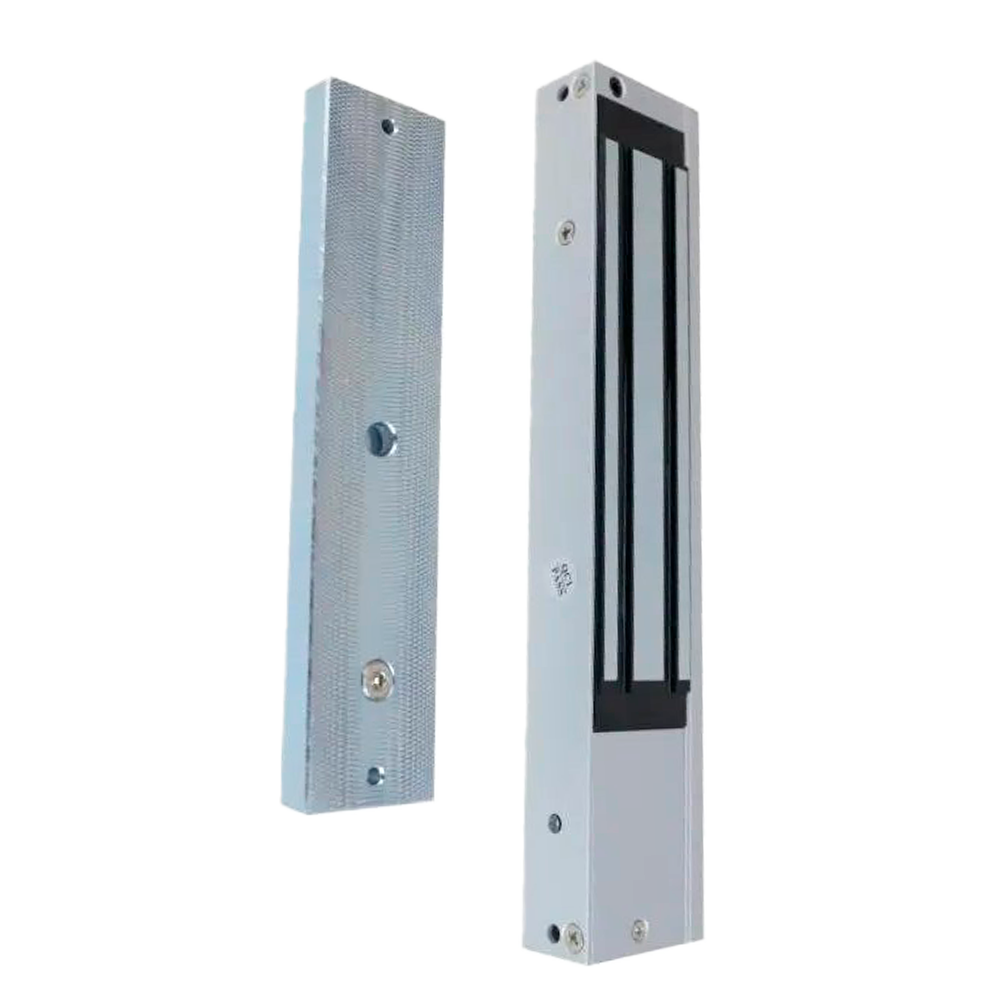

DS-K4H255S | |
| Brand | Hikvision |
| Model | DS-K4H255S |
| Door type | Simple: 1 folding sheet |
| Opening mode | Fail Safe / Inverted (NC) |
| Retention force | 272 kg |
| Power | DC 12 V / 470 mA máx. o DC 24 V / 235 mA max. |
| Mounting | Surface |
| Protection | Indoor |
| Material | Aluminium |
| Temp. operating | -10 ºC ~ +55 ºC |
| Dimensions | Maglock: 250 (W) x 48 (H) x 28 (D) mm Counterplate: 180 (W) x 38 (H) x 12 (D) mm |

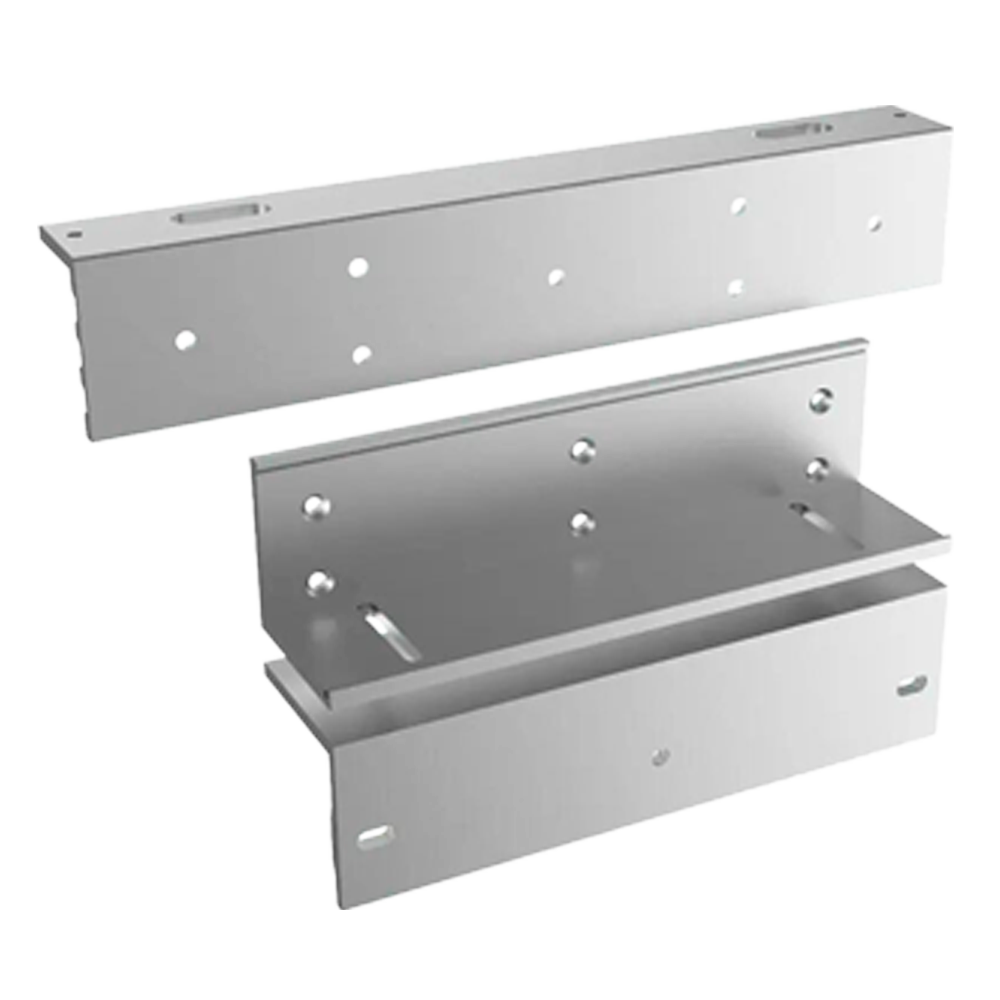

DS-K4H255-LZ | |
| Brand | Hikvision |
| Model | DS-K4H255-LZ |
| Compatibility | DS-K4H255S |
| L dimensions | 46 (D) x 30 (H) x 250 (W) mm |
| Z dimensions | 47 (D) x 47 (H) x 180 (W) mm |
| Weight | 500 g |
In the box
- Hikvision stand-alone device
- Magnetic suction cup
- Z-bracket for suction cup
- Non-contact output pushbutton

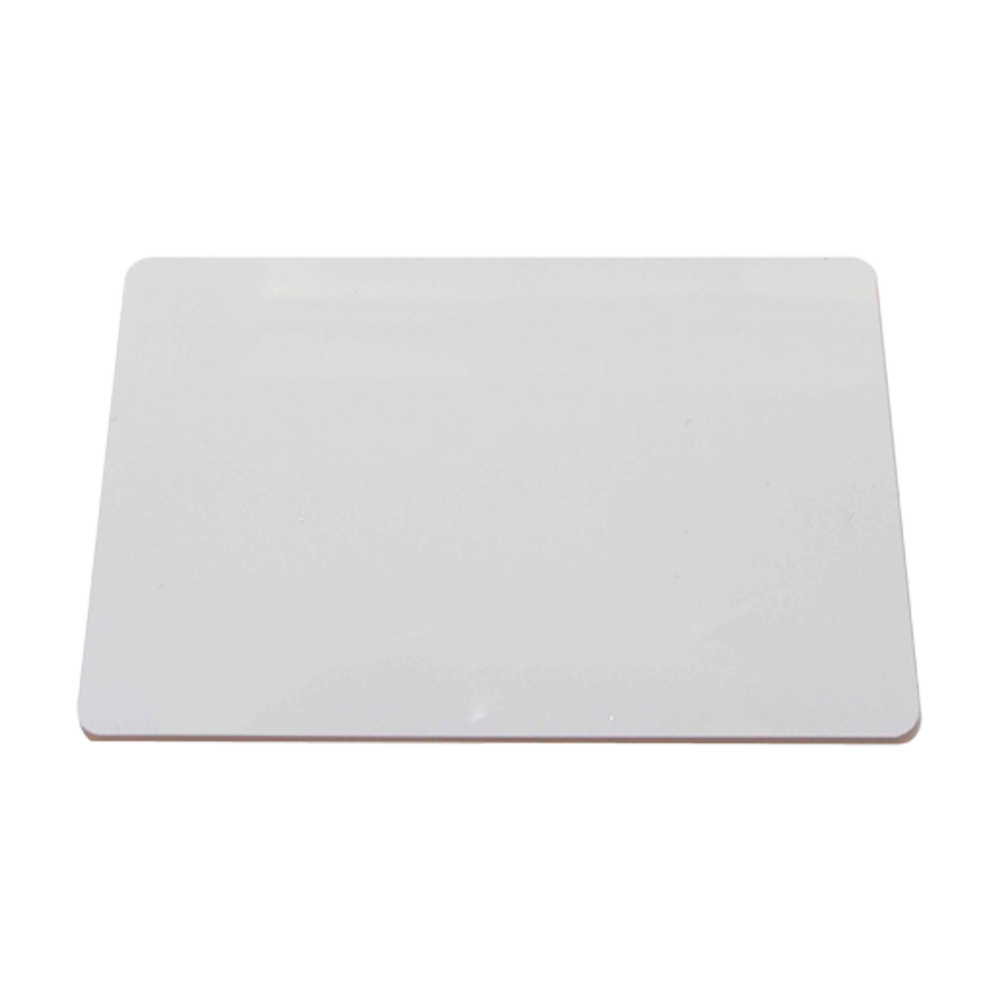

- EM Card
