DS-KAS321

DS-KAS321

Log in voor B2B prijs
  • Access control kit
  • Facial, fingerprint, MF card and PIN
  • Stand-alone, suction cup, profile, push button and card
  • 2.4" TFT | Integrated controller
  • Surface mounting
  • iVMS-4200 | Hik-Connect
  • Hikvision

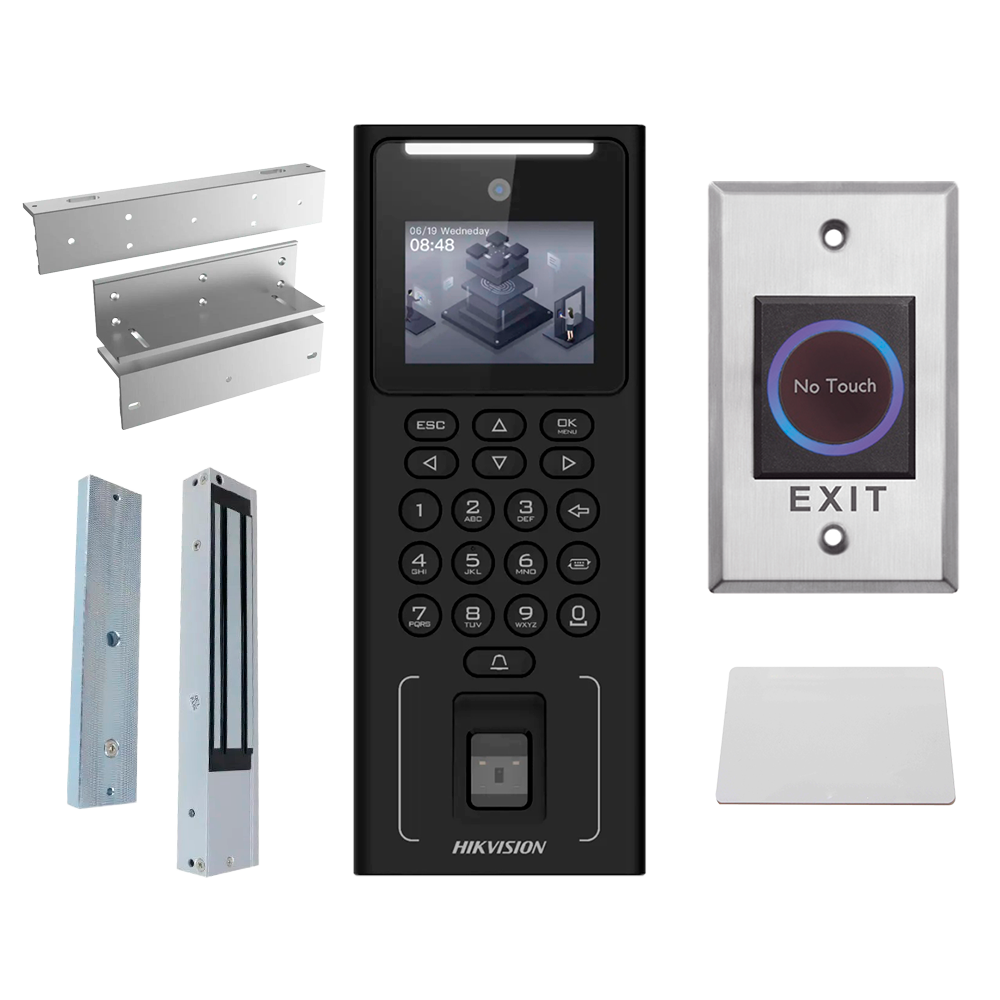

  • Access control kit
  • Kit consisting of: DS-K1T321MFWX autonomous access and presence control with facial recognition, fingerprint, MF card and PIN, DS-K4H255S magnetic suction cup with 272 kg holding force, DS-K4H255-LZ Z-profile for magnetic suction cup installation, DS-K7P07 contactless exit pushbutton and MF card 13.56 MHz
  • Monitoring through iVMS-4200 software or Hik-Connect mobile app

Specifications

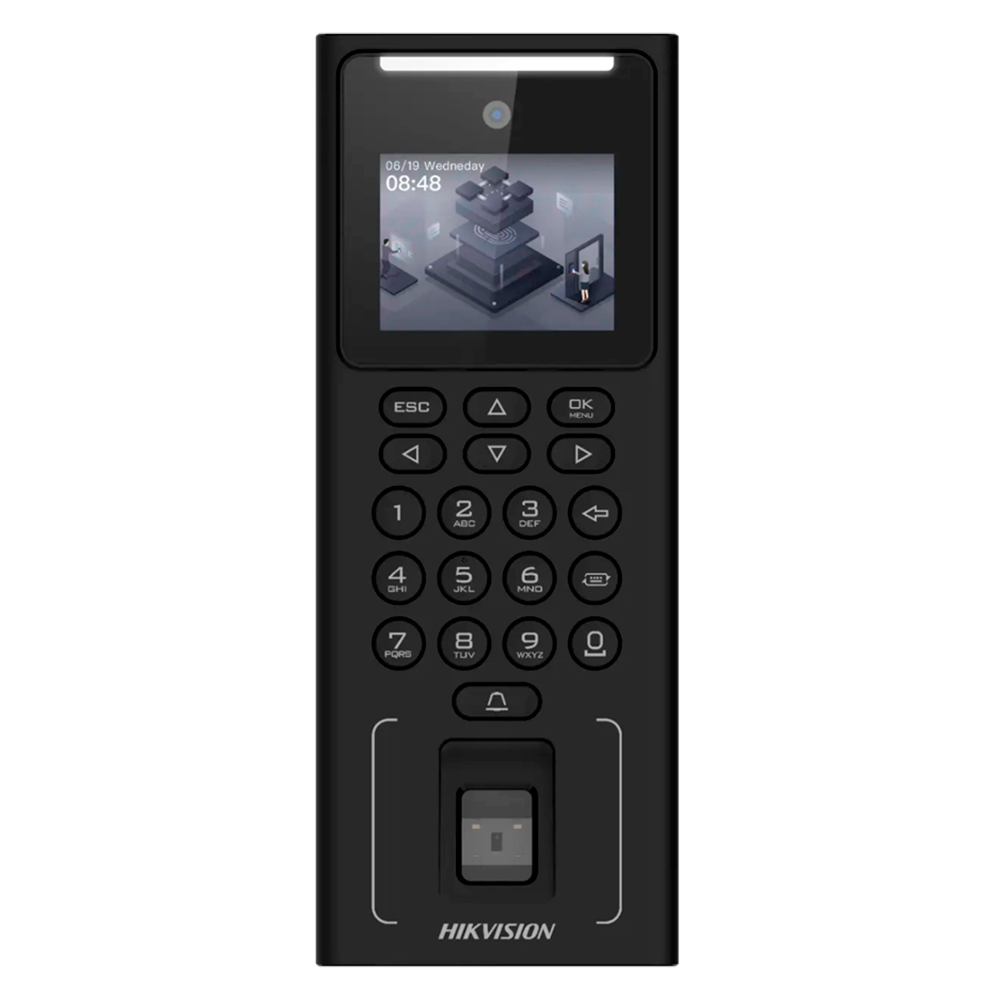

DS-K1T321MFWX
Brand Hikvision
Model DS-K1T321MFWX
Operating system Linux
Capacity Up to 500 faces, 3.000 fingerprints and 3.000 cards/passwords
Records 150.000 registers
Identification modes Facial recognition, fingerprint, card, PIN and/or combinations
Proximity card MF (13.56 MHz)
Screen 2.4" Color TFT LCD
Screen resolution 320 x 240
Camera 2 Mpx with white LED
Facial recognition verification time < 0.2 sec
Facial recognition accuracy > 99%
Facial recognition distance 0.3 m to 1.5 m
Fingerprint verification time < 1 sec
Communication TCP/IP, WiFi, USB and RS485
Integrated controller Door sensor, pushbutton and relay
Alarms Tamper
Software iVMS-4200 / iVMS-4200 AC
Mobile application Hik-Connect
Power DC 12 V / 500 mA máx.
Degree of protection Valid for interior
Temp. operation -10º C ~ +55º C
Dimensions 78 (W) x 200 (H) x 28 (D) mm
Weight 220 g

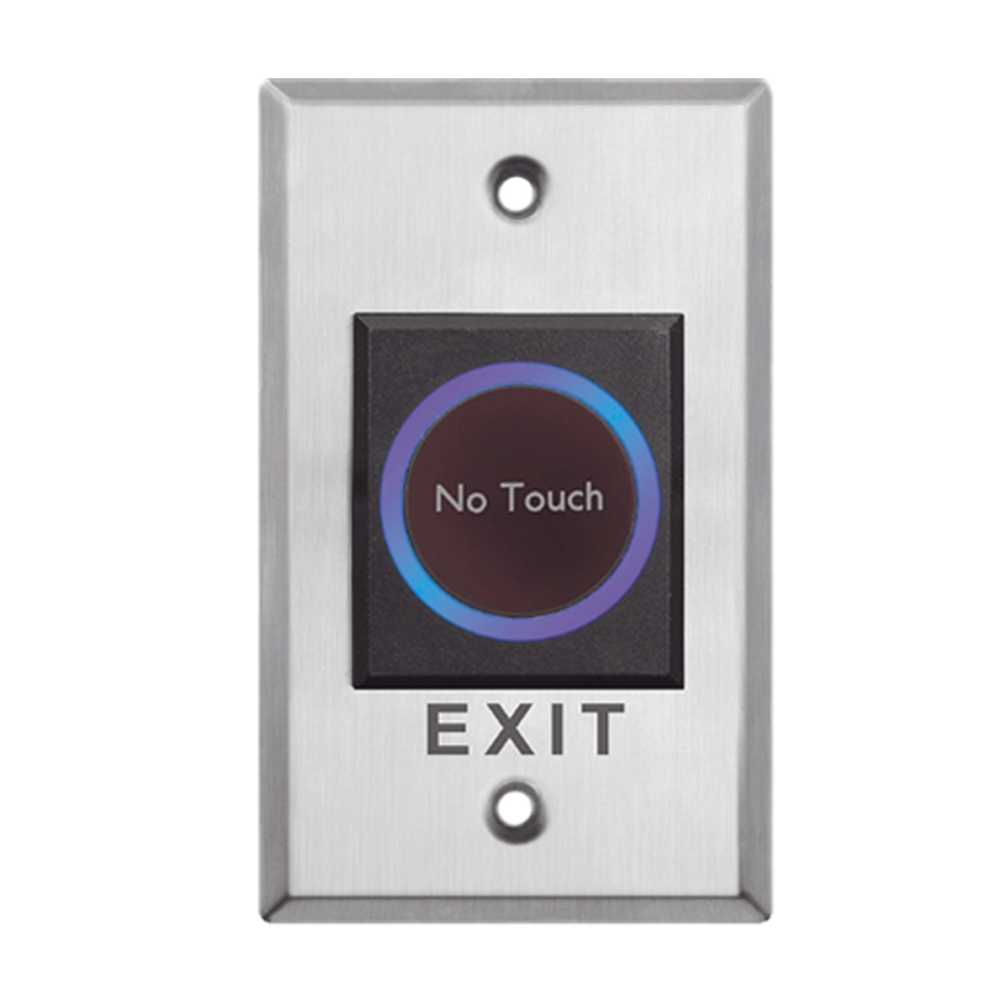

DS-K7P07

Brand Hikvision
Model DS-K7P07
Power DC 12-24 V
Contact 1A / DC 30V
Exit contact NO/NC/COM
Led indicator Blue (stanby) / Green (activated)
Material Stainless steel
Relative humidity 0 - 95%
Temp. operation -20 ºC ~ +55 ºC
Dimensions 114 (H) x 70 (W) x 16 (D) mm
Weight 130 g

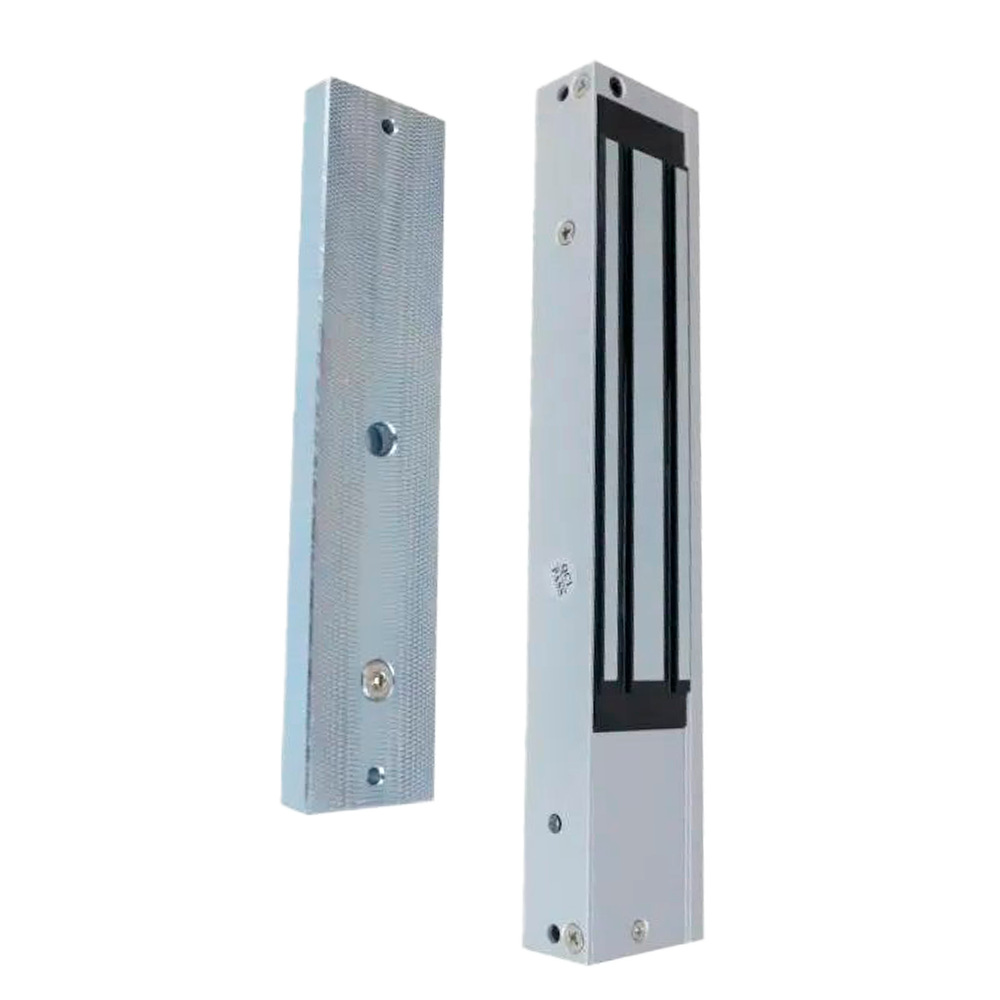

DS-K4H255S

Brand Hikvision
Model DS-K4H255S
Door type Simple: 1 folding sheet
Opening mode Fail Safe / Inverted (NC)
Retention force 272 kg
Power DC 12 V / 470 mA máx. o DC 24 V / 235 mA max.
Mounting Surface
Protection Indoor
Material Aluminium
Temp. operating -10 ºC ~ +55 ºC
Dimensions Maglock: 250 (W) x 48 (H) x 28 (D) mm
Counterplate: 180 (W) x 38 (H) x 12 (D) mm

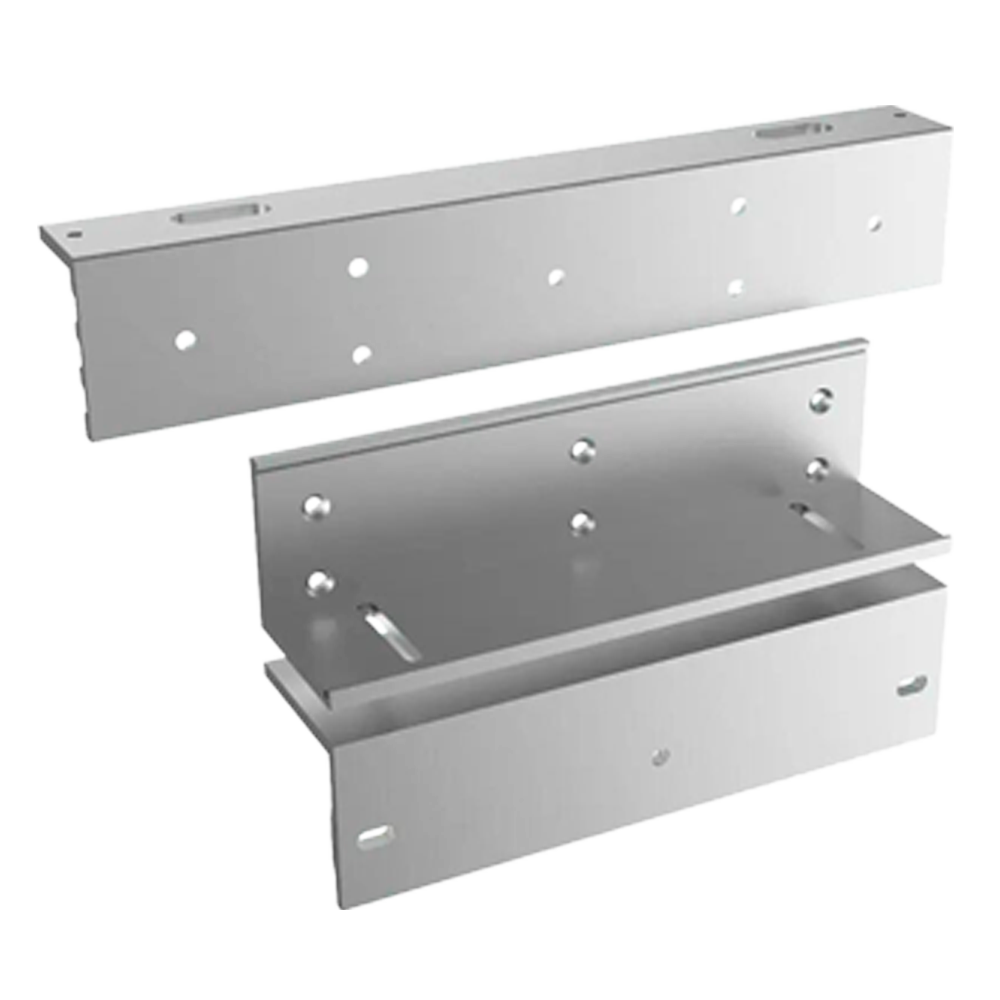

DS-K4H255-LZ

Brand Hikvision
Model DS-K4H255-LZ
Compatibility DS-K4H255S
L dimensions 46 (D) x 30 (H) x 250 (W) mm
Z dimensions 47 (D) x 47 (H) x 180 (W) mm
Weight 500 g

In the box

  • Hikvision biometric device
  • Magnetic suction cup
  • Z-bracket for suction cup
  • Non-contact output pushbutton

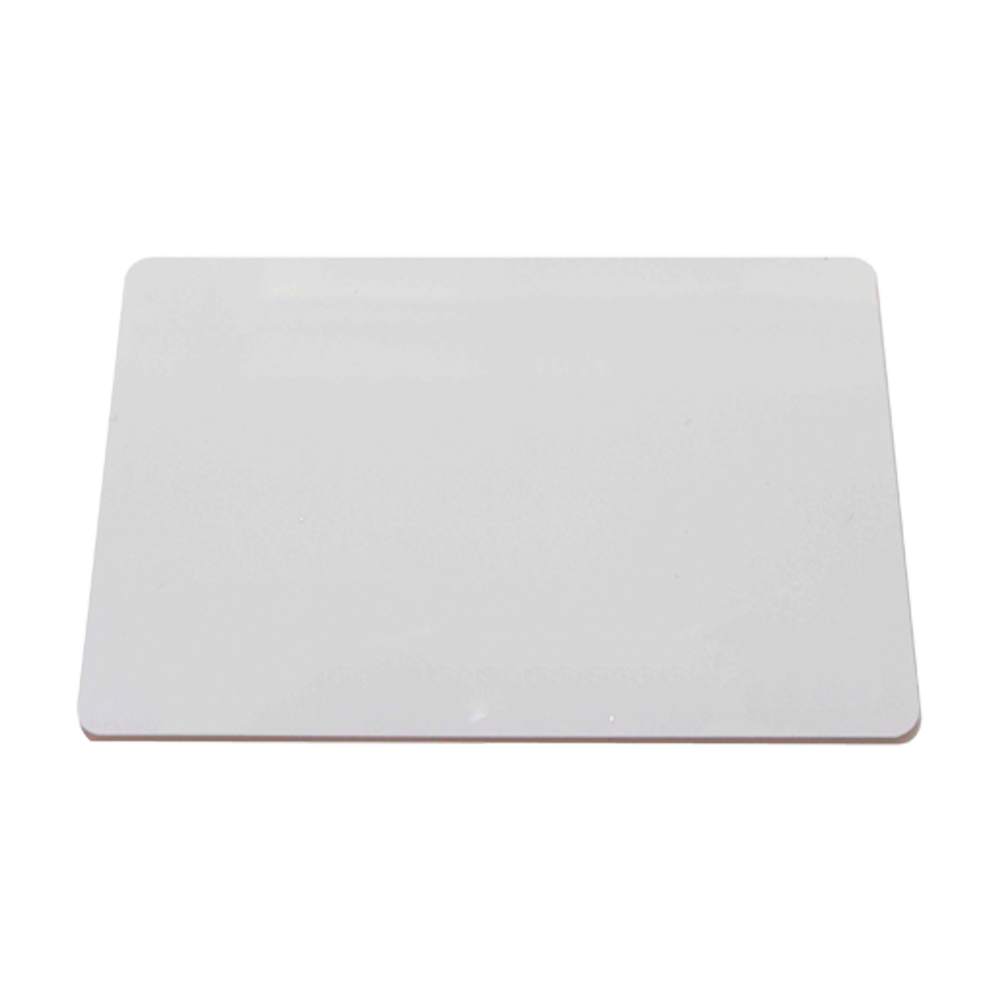

  • MF Card
