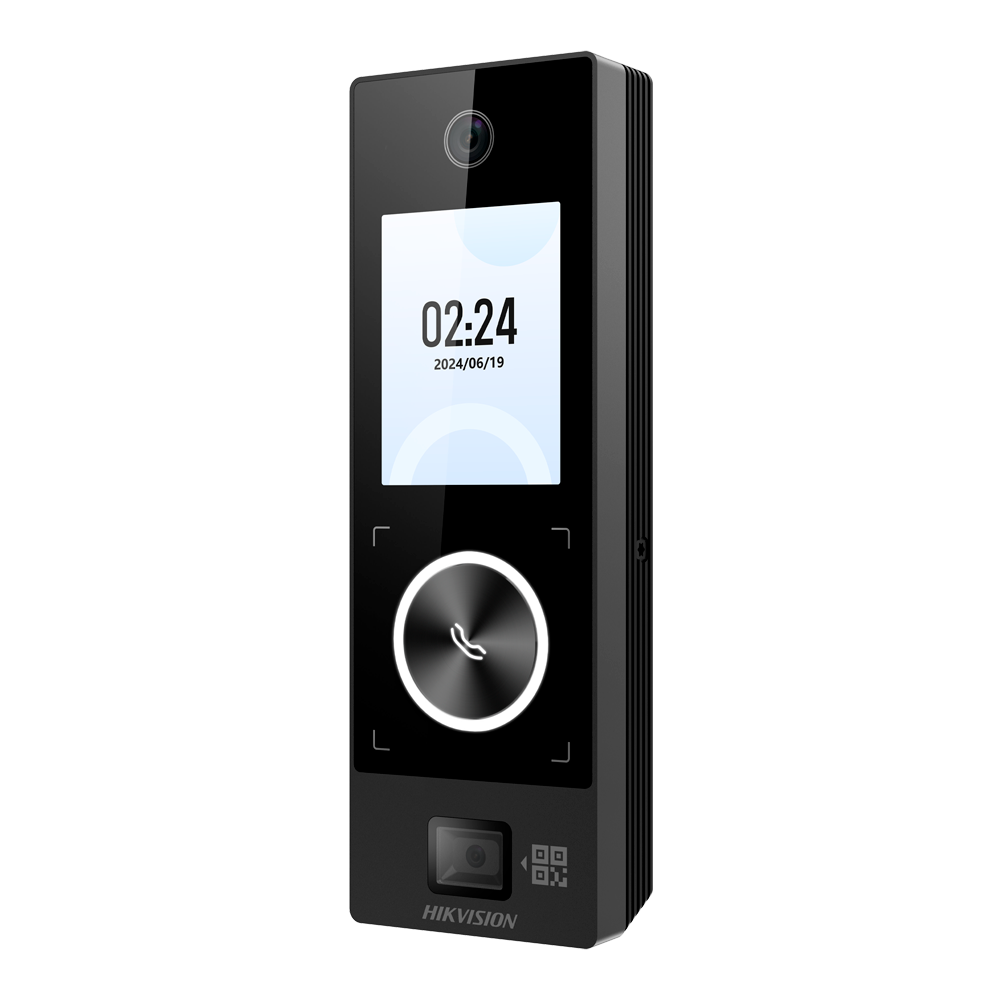

DS-K1T323EBWX-QRE1

• PoE access and presence control IP65
• Facial, EM card and dynamic QR
• 1.000 users | 150.000 records
• TCP/IP, WiFi and Wiegand
• 2.4" TFT | Integrated controller
• iVMS-4200 | Hik-Connect

A stand-alone access control device consists of a combination of a controller and a reader in a single unit: is able to identify users, decide whether or not they have permission to access the installation and operate the electronic lock through its relay. Hybrid terminals combine access control and time and attendance control, being able to perform time and attendance control of workers at the moment they identify themselves.

This equipment allows identification through cards or key fobs with RFID EM technology of 125 kHz, as well as biometrics with facial recognition.

Advanced configurable functions: 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE) and function as a video door entry panel.

Its exterior grade IP65 allows it to be installed outdoors.

From the software iVMS-4200 you can configure users, schedules and access groups, as well as special functions, relay opening times or reader reading time.

• Hikvision
• Autonomous biometric reader for access and presence control
• Identification by MF card, facial recognition, QR, Bluetooth (only supported with HikCentral and HikConnect Teams) and/or combinations
• Display 2.4" TFT color display
• Capacity of 1.000 faces, 3.000 cards and 150.000 records
• TCP/IP, WiFi and Wiegand communication
• Integrated controller (door sensor, push button and relay)
• Physical call button
• Output of 12 V for lock
• Camera with anti-spoofing technology
• Remote openings from Hik-Connect
• Compatible with software iVMS-4200
• Suitable for exterior IP65
• Standard PoE IEEE802.3af

Specifications

In the box

• Hikvision biometric device
• Mounting material
• User instructions
