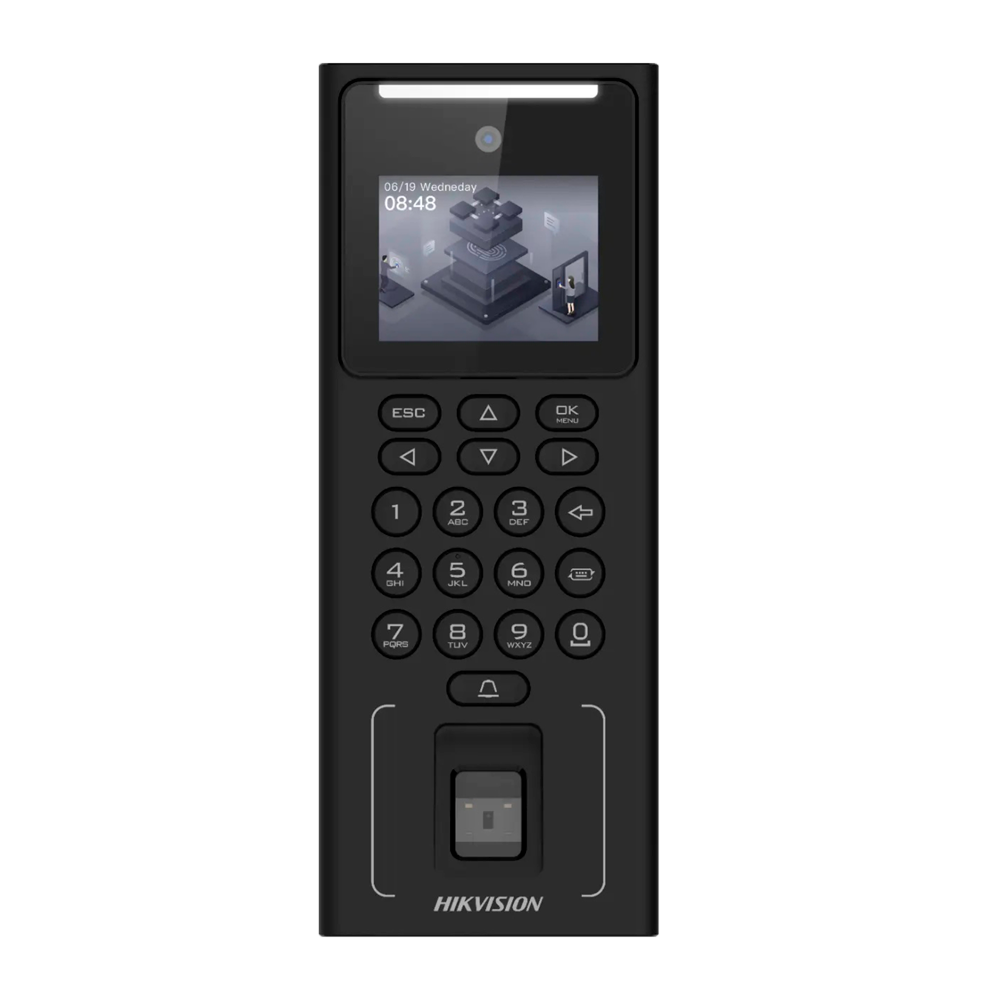

DS-K1T321MFWX

• Access Control and Time & Attendance
• Facial, fingerprint, MF card and PIN
• 500 users | 150.000 records
• TCP/IP, WiFi, USB and RS485
• 2.4" TFT | Integrated controller
• iVMS-4200 | Hik-Connect

A stand-alone access control device consists of a combination of a controller and a reader in a single unit: is able to identify users, decide whether or not they have permission to access the installation and operate the electronic lock through its relay. Hybrid terminals combine access control and time and attendance control, being able to perform time and attendance control of workers at the moment they identify themselves.

This equipment allows identification through cards or key fobs with MF technology of 13.56 MHz, as well as keypad for numeric codes and biometrics with fingerprint and facial recognition.

Its 2.4" screen facilitates the operation and configuration of the equipment locally, both to use it autonomously without software, and to set some parameters required to connect to the software, such as network configuration.

From the software iVMS-4200 you can configure users, schedules and access groups, as well as special functions, relay opening times or reader reading time.

• Hikvision
• Autonomous biometric reader for access and presence control
• Identification by MF-card, fingerprint, facial recognition, password and/or combinations
• Display 2.4" TFT color display
• Capacity of 500 faces, 3.000 cards, 3.000 fingerprints and 150.000 records
• TCP/IP, WiFi, USB and RS485 communication
• Integrated controller (door sensor, push button and relay)
• White LED camera with anti-spoofing technology
• Remote openings from Hik-Connect
• Compatible with software iVMS-4200

Specifications

In the box

• Hikvision biometric device
• Mounting material
• User instructions
• Power supply
