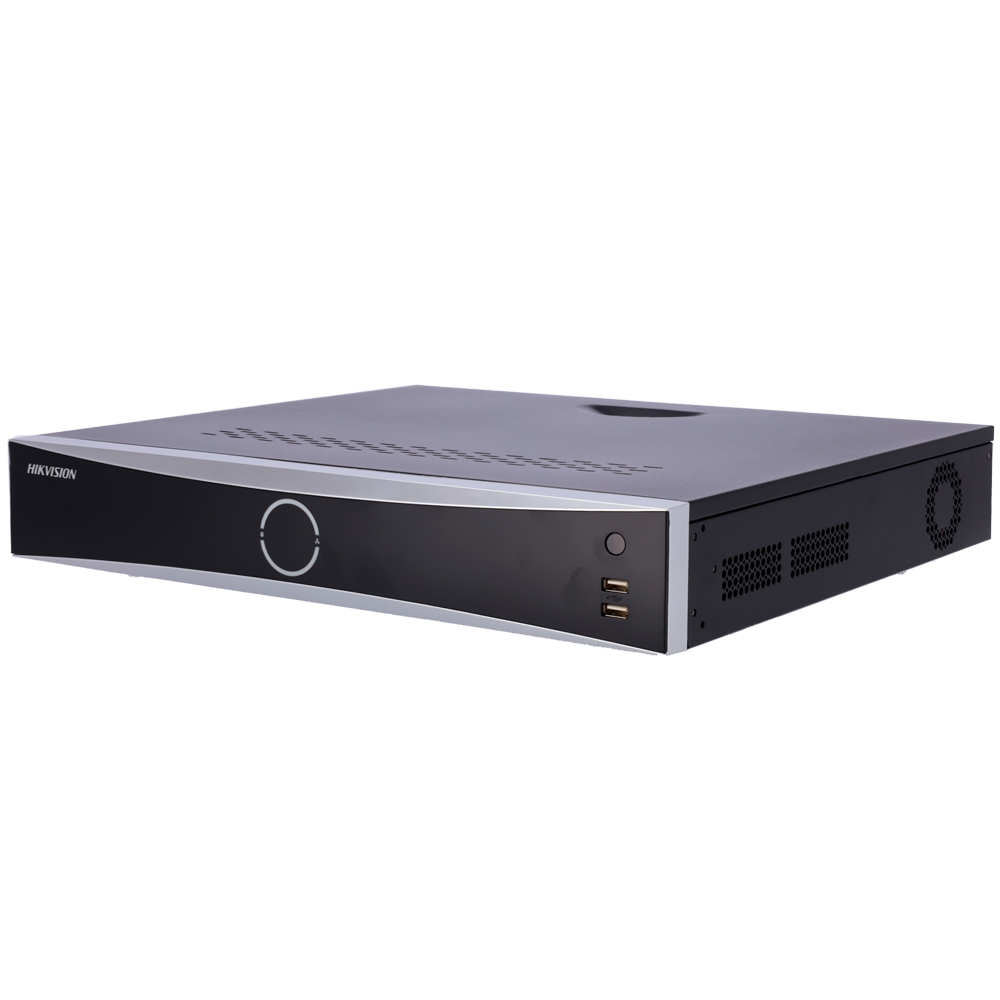

DS-7716NXI-I4/VPro
Ga direct naar de productinformatie
DS-7716NXI-I4/VPro
- Hikvision
- PRO Range
- NVR recorder 16 IP CH
- Maximum resolution 32Mpx : Alarms : AcuSense
- Bandwidth 192 Mbps | Supports 4 hard disks
- AcuSeek, text-based search up to 16CH
Hikvision's AcuSense VPRO range of recorders include artificial intelligence based on a large-scale algorithm, known as Guanlan. This range includes functionalities such as AcuSeek and AcuSearch in its 8CH.
AcuSeek: Searching through large amounts of video recordings using natural language text descriptions.
AcuSearch: Searching for events from a target image. The recorder is capable of searching for a target of interest, on all NVR channels.
- Hikvision
- AcuSense VPRO range
- NVR for IP cameras
- 16 CH
- Supported incoming bandwidth 192 Mbps
- Maximum resolution 32 Mpx
- Compression H.265+/H.265/H.264+/H.264
- Outputs 4K HDMI & VGA
- Artificial intelligence based on large-scale algorithm Guanlan
- Motion detection 2.0 all channels
- AcuSeek, text-based search
- AcuSearch, target image search on all channels
- Facial recognition
- AcuSense
- Alarms
- Audio
- POS
- Space for 4 HDD
- ONVIF Compatible
Specifications
| Brand | Hikvision |
| Range | PRO |
| Inputs for IP cameras | LAN port up to 16 channels |
| IP compatible cameras | HIKVISION (native protocol), ONVIF |
| Video outputs | 1xHDMI 4K, 1xHDMI 1080p, 1xVGA |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Display resolution | HDMI 1: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 HDMI 2: 1920x1080, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 * HDMI 1 and VGA are independent |
| Total bandwidth | 192 Mbps downstream / 256 Mbps upstream |
| Stream Type | Video / Video + Audio |
| Main Stream recording | 32MP /24MP /12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding capacity | 20CH@1080p 30fps (AI by NVR enabled) 32CH@1080p 30fps (AI by NVR disabled) |
| Motion Detection | Motion detection 2.0 with classification of humans and vehicles applied in motion detection Available in all channels. * Motion detection 2.0, Facial recognition and AcuSense cannot be enabled at the same time. Enabling one function will disable the other 2 functions |
| Facial recognition | Face Capture in 4 CH with a maximum resolution of 8 Mpx (Valid for cameras with HIKVISION or ONVIF protocol) Storage 16 Libraries with up to 50.000 faces Comparison by match level (Success/Failure) or by strangers Searches by: Type of comparison, image stored in library or by name * Motion detection 2.0, Facial recognition and AcuSense cannot be enabled at the same time. Enabling one function will disable the other 2 functions |
| Intelligent functions | AcuSense DeepLearning based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Area Entry, and Area Exit. Available in up to 4 channels with 2Mpx per channel * Motion detection 2.0, Facial recognition and AcuSense cannot be enabled at the same time. Enabling one function will disable the other 2 functions |
| AcuSeek | Searching through large amounts of video recordings using natural language text descriptions. If the cameras support AcuSense technology and have AcuSearch enabled, the NVR supports AcuSeek on all channels and is capable of modeling 300.000 targets per day. |
| AcuSearch | Video search from target images. Several targets can be detected at the same time in the image and the target to be searched for can be selected. If the cameras support AcuSense technology and have AcuSearch enabled, the NVR supports AcuSearch on all channels and is capable of modeling 300 000 targets per day. |
| ANPR | Supports license plate search on all channels with ANPR-enabled cameras |
| POS | Yes |
| Alarms | 16 In / 9 Out |
| Audio | 1 input / 1 output |
| Bidirectional audio | 1 RCA output |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Recording method | Manual, programmed, motion detection |
| External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote connections | 128 |
| Internal memory | 4 HDD SATA 3.5" of up to 20 TB each (not included) |
| Communication | 1 x USB 2.0 front side, 1 x USB 3.0 rear side / 2 x RJ45 10/100/1000M (Ethernet) |
| Power | AC 100~240 V, ≤ 50 W (without HDD) |
| Operating temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Racking | 1.5U |
| Dimensions / Weight | 72 (H) x 440 (W) x 391 (D) mm / 5 Kg (without HDD) |
In the box
- Hikvision NVR recorder
- Mouse
- Ethernet Cable
- Instructions Manual
- Hard disk connection wiring
- Power supply
