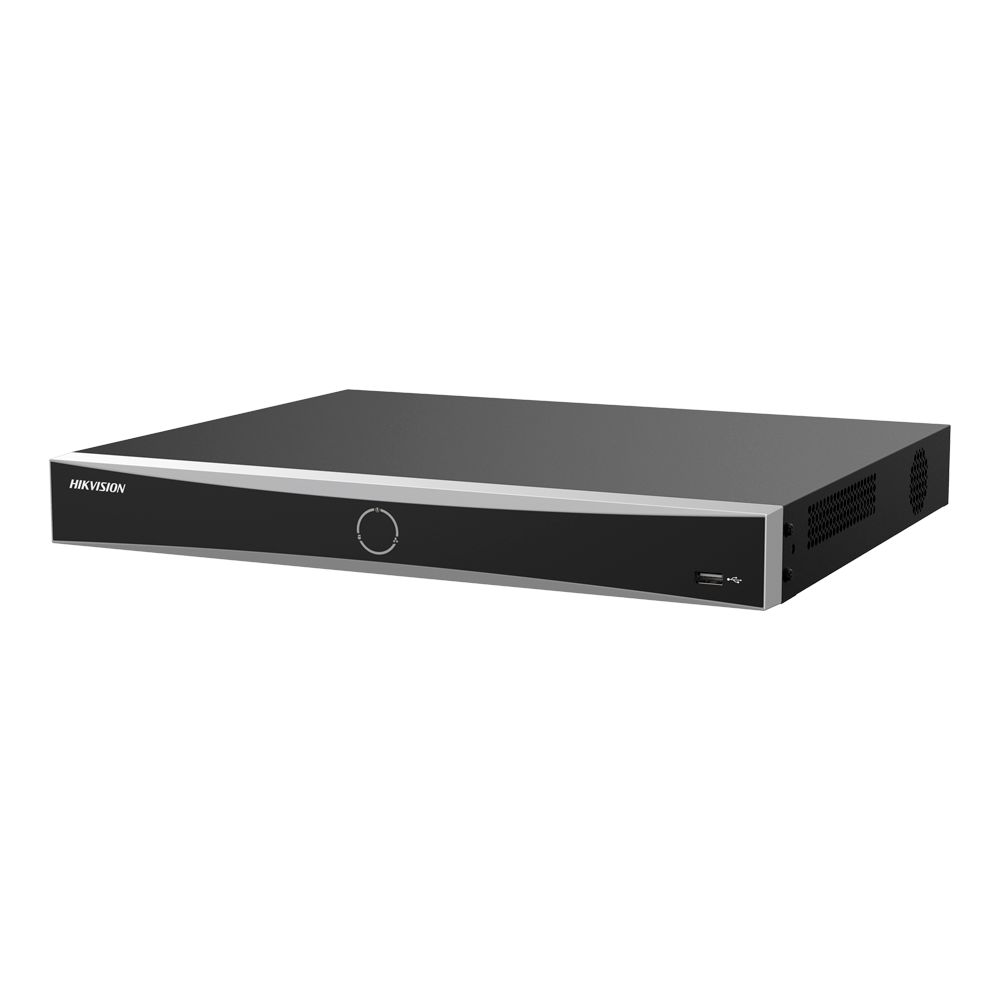

DS-7608NXI-K2/8P/Vpro

DS-7608NXI-K2/8P/Vpro

Log in voor B2B prijs
Ga direct naar de productinformatie
DS-7608NXI-K2/8P/Vpro
  • DS-7608NXI-K2/8P/Vpro
  • DS-7608NXI-K2/8P/Vpro
DS-7608NXI-K2/8P/Vpro

DS-7608NXI-K2/8P/Vpro

Log in voor B2B prijs
  • Hikvision NVR recorder 8 CH IP PoE PRO range
  • 8 CH PoE IEEE 802.3af/at 80 W max
  • Maximum resolution 12 Mpx
  • AcuSearch | AcuSense | Facial recognition
  • AcuSeek, text-based search
  • Audio | Alarms | 2 HDD

Hikvision's AcuSense VPRO range of recorders include artificial intelligence based on a large-scale algorithm, known as Guanlan. This series includes features such as AcuSeek and AcuSearch in its 8 CH.

AcuSeek: Searching through large amounts of video recordings using natural language text descriptions.

AcuSearch: Searching for events from a target image. The recorder is capable of searching for a target of interest, on all NVR channels.

  • Hikvision
  • PRO Range
  • NVR for IP cameras
  • 8 CH PoE IEEE 802.3 af/at 80 W max.
  • Supported incoming bandwidth 80 Mbps
  • Maximum resolution 12 Mpx
  • Compression H.265+/H.265/H.264+/H.264
  • Outputs 4K HDMI & VGA
  • Artificial intelligence based on large-scale algorithm Guanlan
  • Motion detection 2.0 all channels
  • AcuSense, false alarm filter for vehicles and persons (in line crossing and area intrusion)
  • AcuSeek, text-based search in natural language
  • AcuSearch, target image search on all channels
  • Facial recognition
  • Alarms
  • Audio
  • IP Dual Stream Access
  • Mouse
  • Space for 2 HDD
  • WEB, CMS and Smartphone interface
  • ONVIF Compatible

Specifications

Brand Hikvision
Range PRO
Inputs for IP cameras LAN port up to 8 channels
POE ports Switch of 8 PoE IEEE802.3af/at ports (max. 80 W)
IP compatible cameras HIKVISION (native protocol), ONVIF
Video outputs 1xHDMI 4K, 1xVGA independent
Video compression format H.265+ / H.265 / H.264+ / H.264
Display resolution HDMI: 4K (3840×2160)/30 Hz, 2K (2560×1440)/60 Hz, 1080P (1920×1080)/60 Hz, UXGA (1600×1200)/60 Hz, SXGA (1280×1024)/60 Hz, 720P (1280×720)/60 Hz
VGA: 1080P (1920×1080)/60 Hz, UXGA (1600×1200)/60 Hz, SXGA (1280×1024)/60 Hz, 720P (1280×720)/60 Hz
* HDMI and VGA are independent
Total bandwidth 80 Mbps downstream / 160 Mbps upstream
Stream Type Video / Video + Audio
Main Stream recording 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Decoding capacity 12-ch@1080p 30 fps (with AI enabled)
24-ch@1080p 30 fps (with AI disabled)
Intelligent functions For NVR: facial recognition, AcuSense, Motion detection 2.0, AcuSearch, AcuSeek
With cameras with intelligent functions: facial recognition, AcuSense, Motion detection 2.0, ANPR, VCA
Motion Detection Motion detection 2.0 with classification of humans and vehicles applied in motion detection
For NVR: Available on all channels, up to 4 MP (when Enhanced SVC mode is enabled, up to 8 MP).
With motion detection cameras 2.0: Available in all channels.
AcuSense Perimeter protection based on VCA rules with false alarm filter for human and vehicle detection applied on:
Line Crossing, Area Intrusion.

For NVR: Available in up to 1 channel from 5Mpx to 8 Mpx
Available in up to 2 4 Mpx channels

With AcuSense cameras: Available in all channels.
Facial recognition Face comparison, face capture, face search.
Storage in up to 16 libraries with up to 50.000 faces in total (each image ≤ 1 MB, total capacity ≤ 800 MB)
Face detection and analysis tools up to 1CH with 5~8 Mpx. or in up to 2 channels with 4 Mpx.
Face comparison in up to 8 CH.
AcuSearch Video search from target images. Several targets can be detected at the same time in the image and the target to be searched for can be selected.
With AcuSearch technology cameras: available for all channels
AcuSeek Searching through large amounts of video recordings using natural language text descriptions.

If the cameras support AcuSense technology and have AcuSearch enabled, the NVR supports AcuSeek on all channels and is capable of modeling 50.000 targets per day.
ANPR Supports license plate search on all channels with ANPR-enabled cameras
Alarms 4 In / 1 Out
Audio 1 input / 1 output
Bidirectional audio 1 RCA output
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Recording method Manual, programmed, motion detection
External Backup USB memory / HDD USB / CD-RW USB / DVR-RW USB
Remote access Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central
Remote connections 128
Internal memory 2 SATA HDD 3.5" of up to 16 TB (not included)
Communication 1 x USB 2.0 front, 1 x USB 2.0 back
Power DC 48 V, 2.5 A, ≤ 15 W (no HDD)
Operating temperature -10ºC ~ 55ºC (10%-90% Humidity)
Dimensions 52 (H) x 384 (W) x 317 (D) mm
Weight ≤ 3 Kg (without HDD)

In the box

  • Hikvision NVR recorder
  • Mouse
  • Ethernet Cable
  • Instructions Manual
  • Hard disk connection wiring
  • Power supply
